Siegmund System 16 Clamp Accessories

  • Sale
  • Regular price $53.00
Shipping calculated at checkout.


The Siegmund System 16 Clamps - Accessories are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.




SIEGMUND SYSTEM 16 CLAMPS

Technical Data:

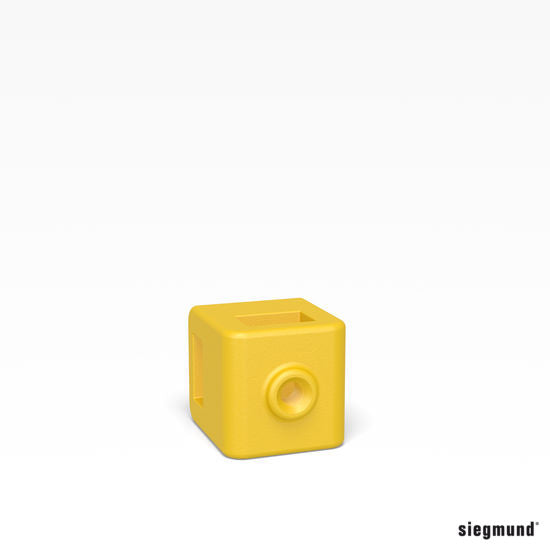

Item No.: 160617
Cast Iron Cross for 160606, 160610
Length (a)42 mm /Width (b)37 mm /Height (c)37 mm /Weight 0,29 kg

Product description
‐ for 160606, 160610
‐ without handwheel

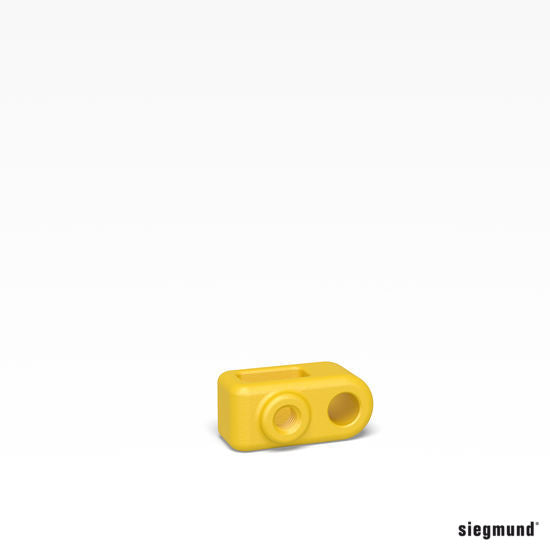

 Item No.: 160617.2
Cast Iron Cross for 160630
Length (a)44 mm /Width (b)20 mm
Height (c)20 mm /Weight 0.08 kg

Product description
‐ for 160630
‐ without handwheel



Item No.:  160617.4

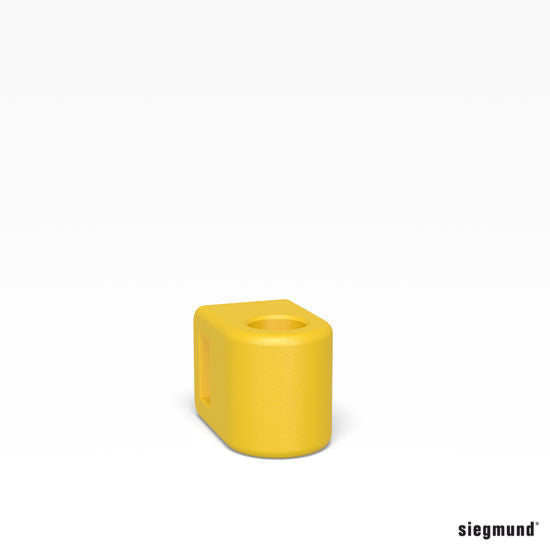

Cast Iron Cross for 160601
Length (a)50 mm /Width (b)32 mm
Height (c)36 mm /Weight 0.27 kg
Product description
‐ for 160601
‐ without handwheel

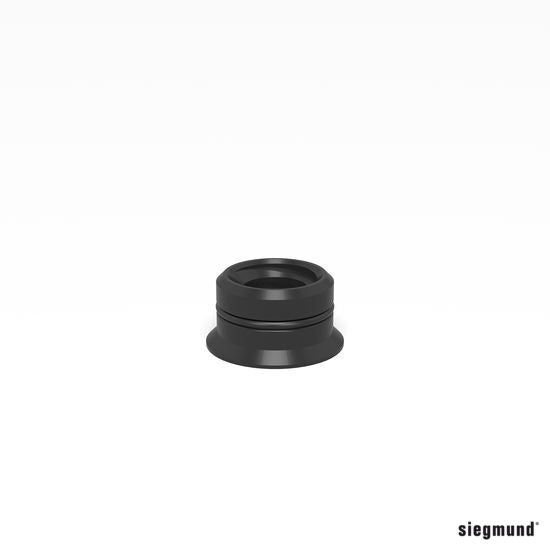

Item No.: 160618
Thread Bushing ‐ burnished
Height (c)10 mm /Weight 0.01 kg  /Diameter 19 mm

Product description
‐ burnished
‐ trapezoid thread 12 x 3 mm
‐ usable in every system borehole



Item No.: 160618.1

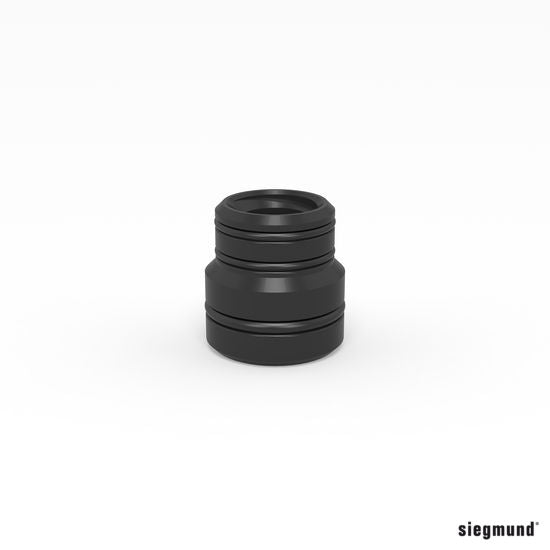

Thread Bushing ‐ burnished (b)
Length (a)15 mm /Weight 0.01 kg
Diameter19 mm

Product description
‐ Acme trapezoidal thread 12 x 3 mm for system 16 screw clamp arbor
‐ burnished

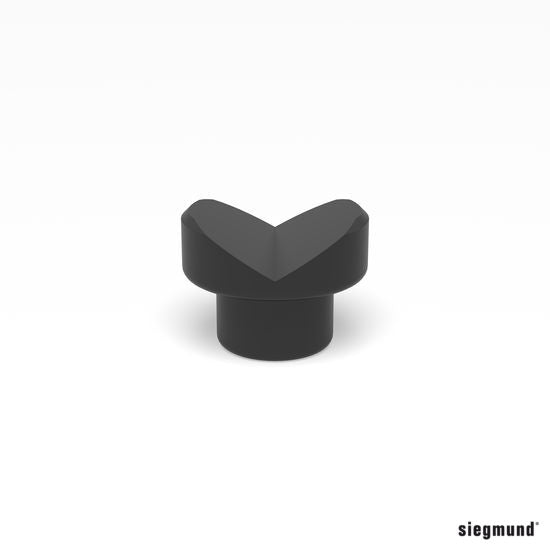

Item No.:   160650
Duo Prism Ø 25 ‐ burnished / nitrided
Height (c)19 mm /Weight 0.04 kg /Diameter 25 mm

Product description
Prism for Screw Clamps, suitable for clamping of round and square pipes. Due to its location at the ball head of the threaded arbor, the prism is movable and can therefore be fixed precisely on the workpiece. It is replaced by simply taking it off the ball head.

The 120° angle creates a stable support surface for all-round pipes. The Prism can also be used for flat welding assemblies, due to its leveled corners.

The Polyamide Prism is used for scratch-prone surfaces.

‐ burnished / nitrided
‐ for the spindle with ball diameter 8 mm
‐ only suitable for clamps

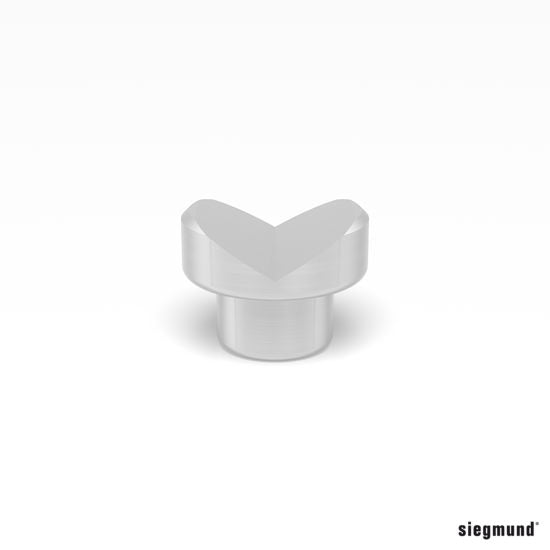

Item No.: 160650.A
Duo Prism Ø 25 ‐ Aluminum
Height (c)19 mm /Weight 0.01 kg /Diameter 25 mm

Product description
Prism for Screw Clamps, suitable for clamping of round and square pipes. Due to its location at the ball head of the threaded arbor, the prism is movable and can therefore be fixed precisely on the workpiece. It is replaced by simply taking it off the ball head.

The 120° angle creates a stable support surface for all-round pipes. The Prism can also be used for flat welding assemblies, due to its leveled corners.

The Polyamide Prism is used for scratch-prone surfaces.

‐ Aluminum
‐ for spindle with ball diameter 8 mm
‐ only suitable for clamps



Item No.: 160650.PA
Prism for Screw Clamps ‐ burnished / nitrided
Height (c) 19 mm /Weight 0,01 kg /Diameter 25 mm

Product description
Prism for Screw Clamps, suitable for clamping of round and square pipes. Due to its location at the ball head of the threaded arbor, the prism is movable and can therefore be fixed precisely on the workpiece. It is replaced by simply taking it off the ball head.

The 120° angle creates a stable support surface for all round pipes. The Prism can also be used for flat welding assemblies, due to its beveled corners.

The Polyamide Prism is used for scratch-prone surfaces.
‐ Polyamide
‐ for the spindle with ball diameter 8 mm
‐ only suitable for clamps
‐ for scratch-sensitive surfaces

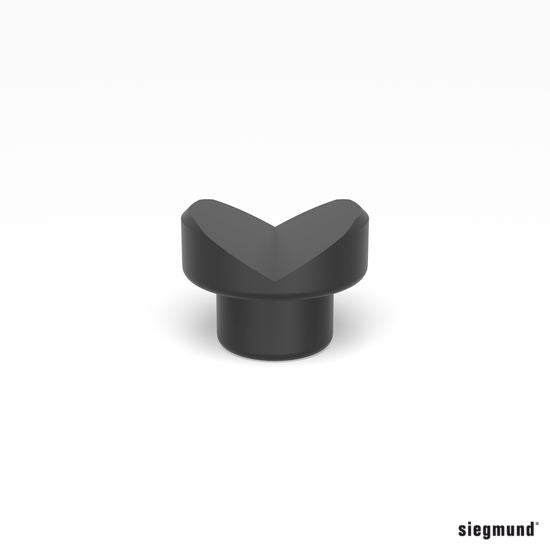

Item No.: 160650.PA
Duo Prism Ø 25 ‐ Polyamide
Height (c)19 mm /Weight 0.01 kg  /Diameter25 mm

Product description
Prism for Screw Clamps, suitable for clamping of round and square pipes. Due to its location at the ball head of the threaded arbor, the prism is movable and can therefore be fixed precisely on the workpiece. It is replaced by simply taking it off the ball head.

The 120° angle creates a stable support surface for all-round pipes. The Prism can also be used for flat welding assemblies, due to its beveled corners.

The Polyamide Prism is used for scratch-prone surfaces.

‐ Polyamide
‐ for the spindle with ball diameter 8 mm
‐ only suitable for clamps
‐ for scratch-sensitive surfaces

Item No.: 160656.E

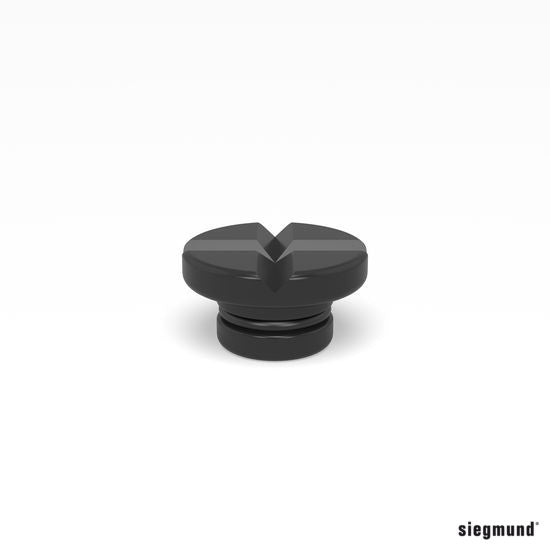

Prism for Screw Clamps ‐ Stainless Steel
Height (c)14 mm /Weight 0.02 kg /Diameter25 mm

Product description
The Prism is available in various material finishes.

Polyamide Prisms are used for scratch-prone surfaces.

The Stainless Steel Prism is used for scratch-resistant precious metals (rust prevention).

‐ Stainless Steel
‐ for the spindle with ball diameter 8 mm
‐ compatible with 16 mm boreholes and clamps
‐ for scratch-resistant surfaces (rust prevention)



Item No.: 160656.PA

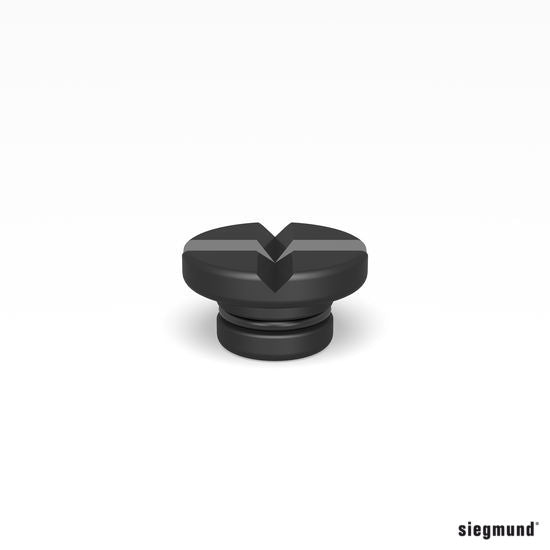

Prism for Screw Clamps ‐ Polyamide
Height (c)14 mm /Weight 0.01 kg
Diameter25 mm
Product description
The Prism is available in various material finishes.

Polyamide Prisms are used for scratch-prone surfaces.

The Stainless Steel Prism is used for scratch-resistant precious metals (rust prevention).
‐ Polyamide
‐ for the spindle with ball diameter 8 mm
‐ compatible with 16 mm boreholes and clamps
‐ for scratch-sensitive surfaces

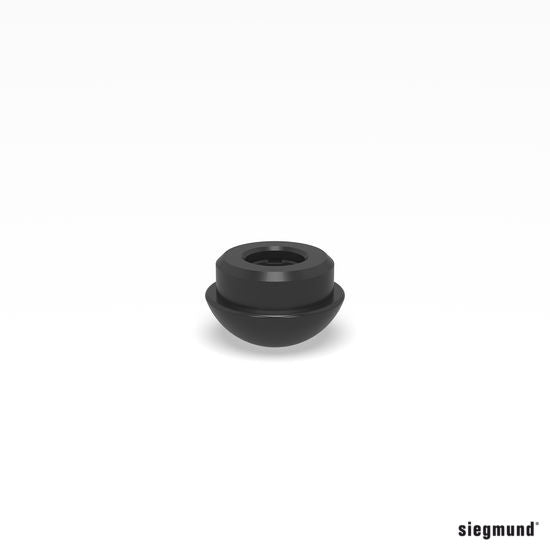

Item No.: 160660
Pressure Ball for Screw Clamps ‐ burnished
Height (c)12.5 mm /Weight 0.02 kg /Diameter20 mm

Product description
Pressure Ball for Screw Clamps, specially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.

It can be replaced by simply removing it from the ball head.

The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistant metals (rust prevention).
‐ burnished
‐ for spindle with ball diameter 8 mm
‐ only suitable for clamps
‐ for clamping in corners or grooves

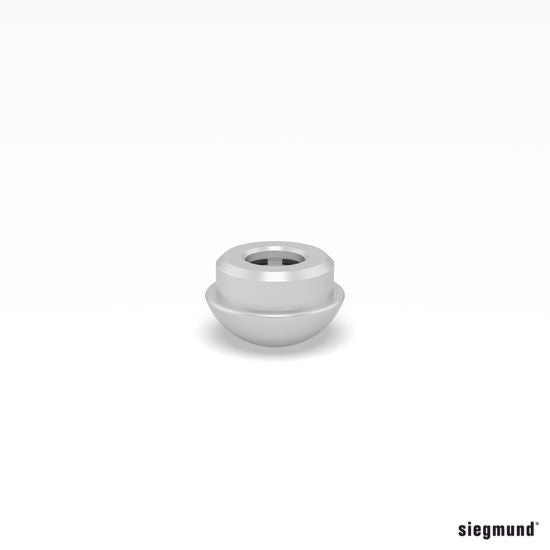

Item No.: 160660.E
Pressure Ball for Screw Clamps ‐ Stainless Steel
Height (c) 12.5 mm /Weight .02 kg /Diameter 20 mm

Product description
Pressure Ball for Screw Clamps, specially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.

It can be replaced by simply removing it from the ball head.

The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistant metals (rust prevention).

‐ Stainless Steel
‐ for the spindle with ball diameter 8 mm
‐ only suitable for clamps
‐ for scratch-resistant surfaces (rust prevention)
‐ for clamping in corners or grooves



Item No.: 160660.PA

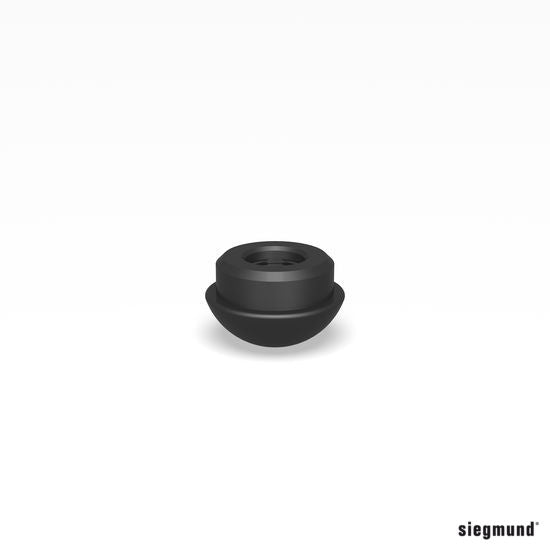

Pressure Ball for Screw Clamps ‐ Polyamide
Height (c) 12.5 mm /Weight 0,01 kg  /Diameter 20 mm

Product description
Pressure Ball for Screw Clamps, specially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.

It can be replaced by simply removing it from the ball head.

The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistant metals (rust prevention).
‐ Polyamide
‐ for the spindle with ball diameter 8 mm
‐ only suitable for clamps
‐ for scratch-sensitive surfaces
‐ for clamping in corners or grooves



Item No.: 160661

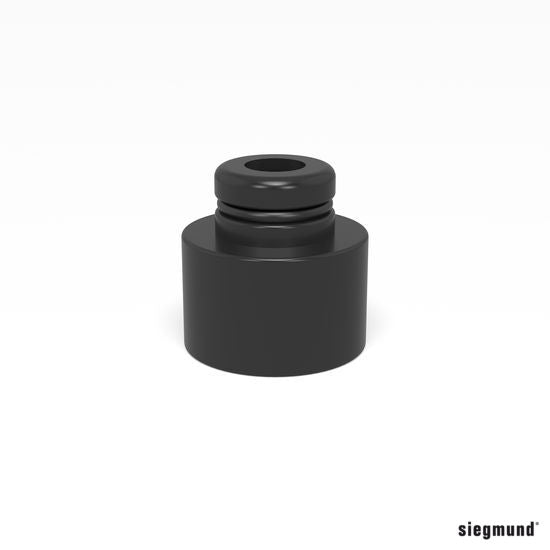

Pressure Ball Blank for Screw Clamps ‐ burnished
Height (c)25 mm /Weight 0.07 kg /Diameter 25 mm

Product description
‐ burnished
‐ compatible with 16 mm boreholes and clamps
‐ according to customer specifications



Item No.: 160666
Short Arbor with Bushing and Prism ‐ burnished
Height (c)75 mm /Weight 0.1 kg

Product description
Short Arbor with Bushing and Prism, perfect for clamping workpieces, using squares or other Siegmund components. The Short Arbor was designed to enable fastening a workpiece through a 16 mm borehole. The Short Arbor can be adjusted with an open-end wrench or a hex wrench.
‐ burnished
‐ trapezoid thread 12 x 3 mm
‐ usable in every system borehole
