Siegmund System 16 Basic Clamps

  • Sale
  • Regular price $153.00
Shipping calculated at checkout.


The Siegmund System 16 Basic Clamps are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.




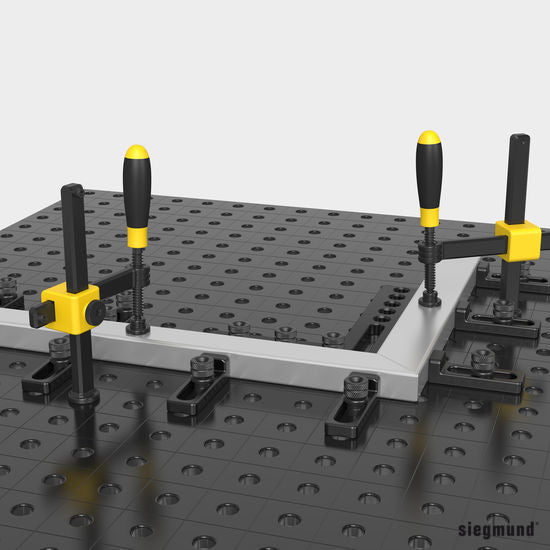

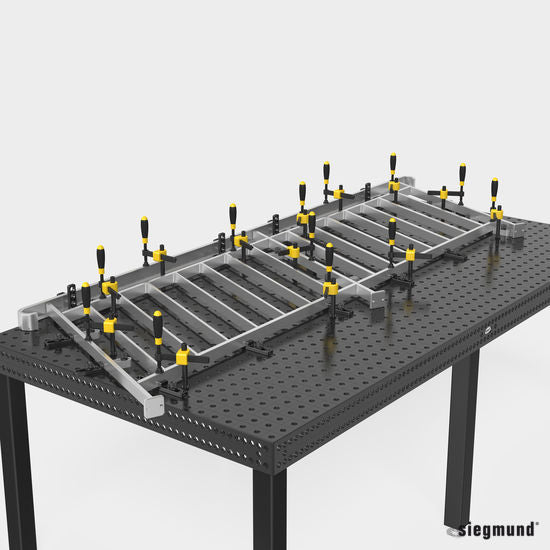

SIEGMUND SYSTEM 16 CLAMPS

Technical Data:

Item No.: 160601

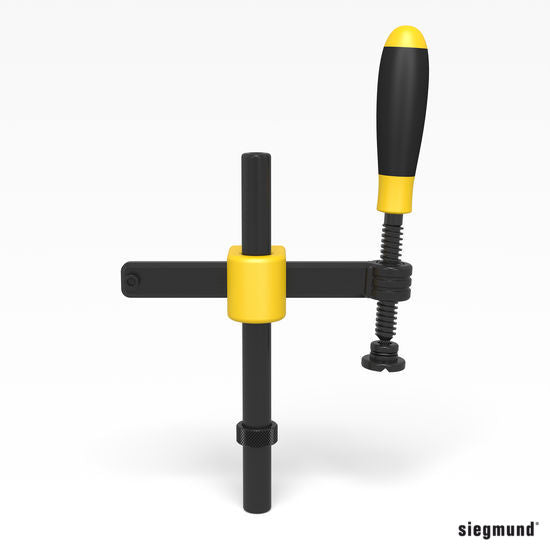

Screw Clamp with Round Pipe ‐ burnished
Width (b)163 mm /Height (c)200 mm /Weight 1 kg /Max. holding force 1.5 kN

Product description
Screw Clamp with Round Pipe is the tool that offers fast, powerful clamping and precise positioning of a variety of work pieces. Time-saving adjustments within seconds and simple dismantling guarantee maximum efficiency. For individual fitting, we offer special sizes of horizontal and vertical bars.

A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order replacement parts individually.

Suitable for simple clamping applications (see max. load).
‐ burnished
‐ ball diameter spindle 8 mm





Item No.: 160601.S
Screw Clamp with Round Pipe special size

Product description
Screw Clamp with Round Pipe is the tool that offers fast, powerful clamping and precise positioning of a variety of work pieces.

 *upon request



Item No.: 160604

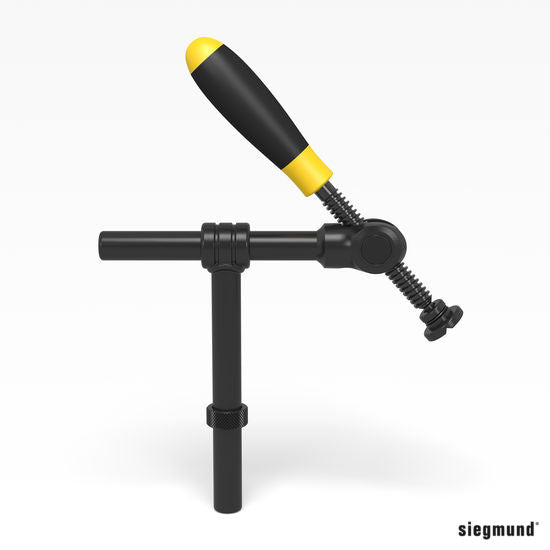

Pipe Clamp Universal ‐ burnished
Width (b)165 mm  /Height (c)150 mm  /Weight 0.8 kg
Max. holding force 0,6 kN

Product description
Pipe Clamp Universal, with swiveling Arbor enables flexible clamping at a + / - 42 degree angle. This Pipe Clamp combines the advantages of conventional 45° or 90° clamps. It can be used at an angle as well as straight, resulting in additional clamping options and a more variable clamping range.

The horizontal round tube with a length of 150 mm is fully adjustable and creates, combined with the swiveling arbor, a variable clamping range. The length of the vertical pipe is 150 mm.

A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order replacement parts individually.

To integrate the vertical pipe into the system boreholes, an adjusting ring is used (Item No. 160653).
‐ burnished
‐ interchangeable prism
‐ ball diameter spindle 8 mm
‐ clamping at an angle of +/- 42°
‐ fastening with an adjusting ring



Item No.: 160604.S
Pipe Clamp Universal special size

Product description
Pipe Clamp Universal, with swiveling Arbor enables flexible clamping at a + / - 42 degree angle.

 *upon request



Item No.: 160620

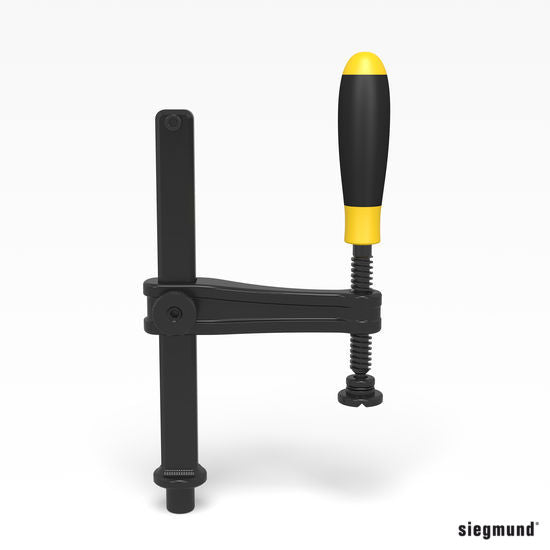

Basic Screw Clamp ‐ burnished
Width (b)128 mm /Height (c)200 mm /Weight 0.95 kg
Max. holding force 2.5 kN

Product description
Basic Screw Clamp, serves as a simple and sturdy clamping element. The distance between the Screw Clamp and the welding element is adjustable by rotation. By simply changing the prisms, different materials can be fastened.
‐ burnished
‐ ball diameter spindle 8 mm

Items marked *upon request are available upon request only. Please contact us for details.
