System 16 Aluminum Profile Bolts

  • Sale
  • Regular price $90.00
Shipping calculated at checkout.



Siegmund System 16 Bolts - Aluminum profiles are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.





SIEGMUND SYSTEM 16 BOLTS - ALUMINUM PROFILES

Technical Data:

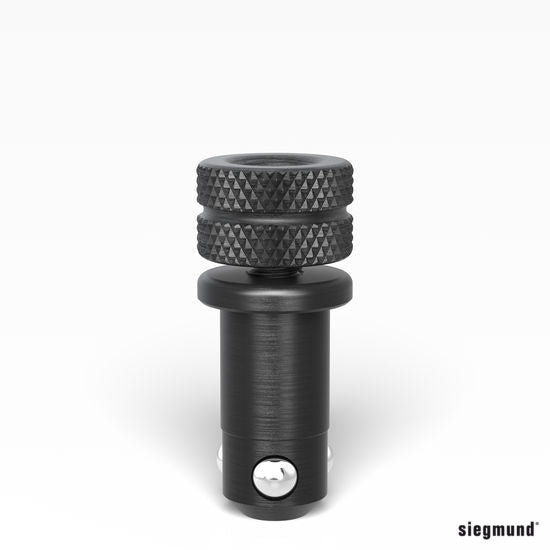

Item No.:  160511
Fast Clamping Bolt without slot double ‐ burnished
Length (a)53 mm /Weight 0.08 kg  /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force 10 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist lock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 2 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

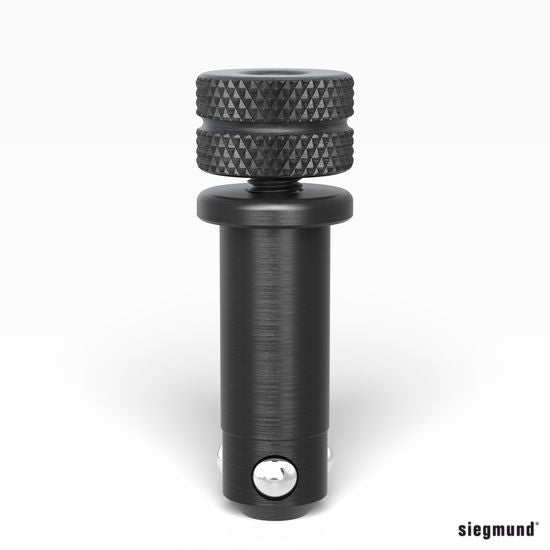

Item No.: 160513
Fast Clamping Bolt without slot triple ‐ burnished
Length (a)65 mm /Weight 0.1 kg  /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force 10 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist lock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 3 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)



Item No.: 160515
Fast Clamping Bolt without slot quadruple ‐ burnished
Length (a)77 mm /Weight 0.12 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force 10 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 4 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 4)

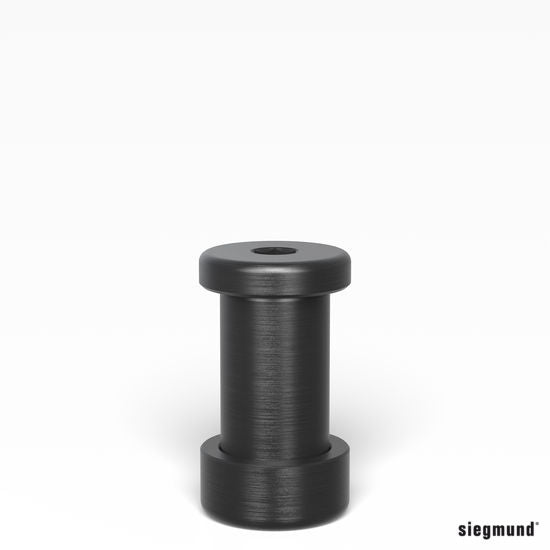

Item No.: 160583
Connecting Bolt with collar double ‐ burnished
Length (a)39 mm /Weight 0.07 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 15 Nm
Tightening Torque Aluminum 15 Nm
Tensile Force 3 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 6 mm hexagonal bit and the special screw is equipped with a 4 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes. Especially suitable for aluminum.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 2 components
‐ burnished
‐ with hexagon socket (At the top Size 6 / At the bottom Size 4)

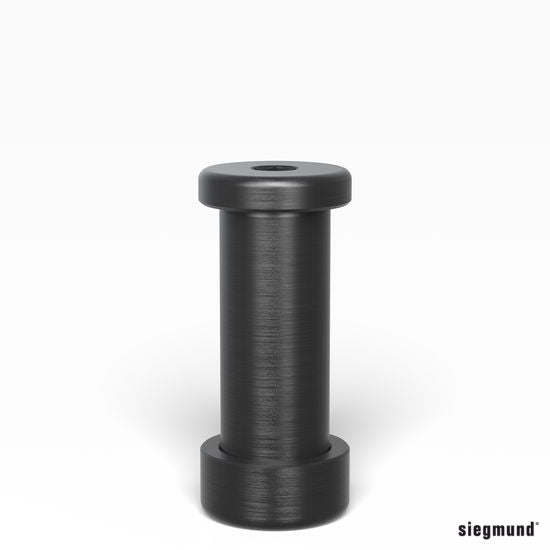

Item No.:   160584
Connecting Bolt with collar triple ‐ burnished
Length (a)51 mm /Weight 0,09 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel15 Nm
Tightening Torque Aluminum 15 Nm
Tensile Force3 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 6 mm hexagonal bit and the special screw is equipped with a 4 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for connecting 3 components
‐ burnished
‐ with hexagon socket (At the top Size 6 / At the bottom Size 4)

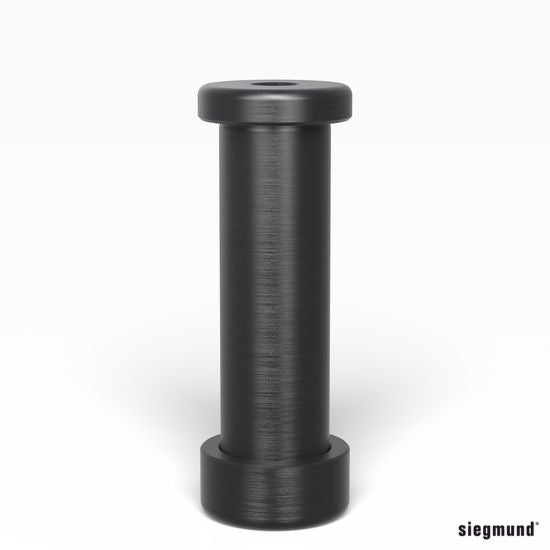

Item No.:   160585
Connecting Bolt with collar quadruple ‐ burnished
Length (a)63 mm /Weight 0.11 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 15 Nm
Tightening Torque Aluminum 15 Nm
Tensile Force 3 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 6 mm hexagonal bit and the special screw is equipped with a 4 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.
Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for connecting 4 components
‐ burnished
‐ with hexagon socket (At the top Size 6 / At the bottom Size 4)

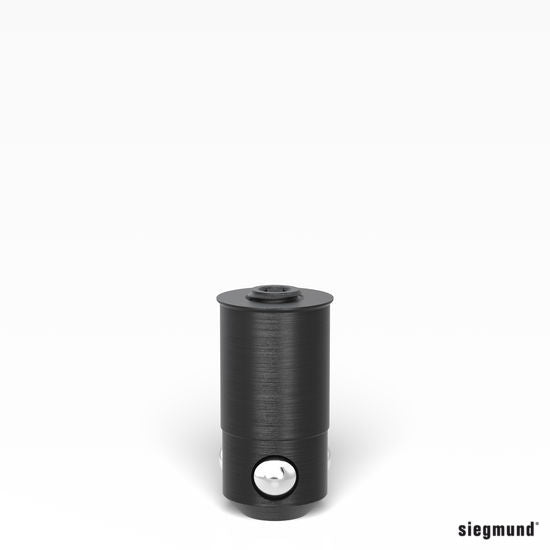

Item No.:  160528
Flush Mount Bolt without slot double ‐ burnished
Length (a)32 mm /Weight 0.04 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force1 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.

Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 4)

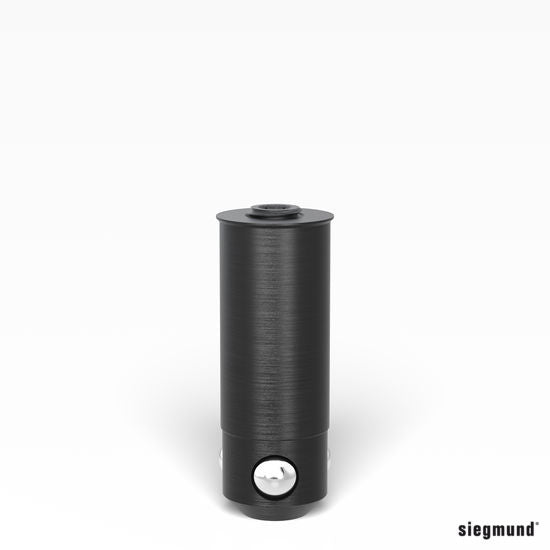

Item No.:  160529
Flush Mount Bolt without slot triple ‐ burnished
Length (a)44 mm /Weight 0.06 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force1 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 4)

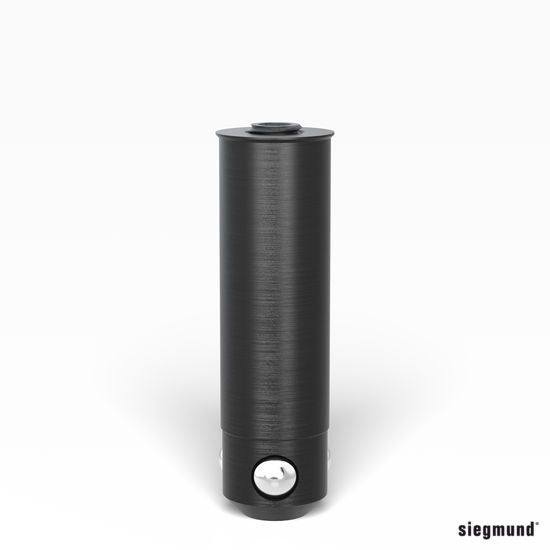

Item No.: 160530
Flush Mount Bolt without slot quadruple ‐ burnished
Length (a)56 mm /Weight 0.08 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force1 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.
Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 4 components
‐ burnished
‐ with hexagon socket (Size 4)

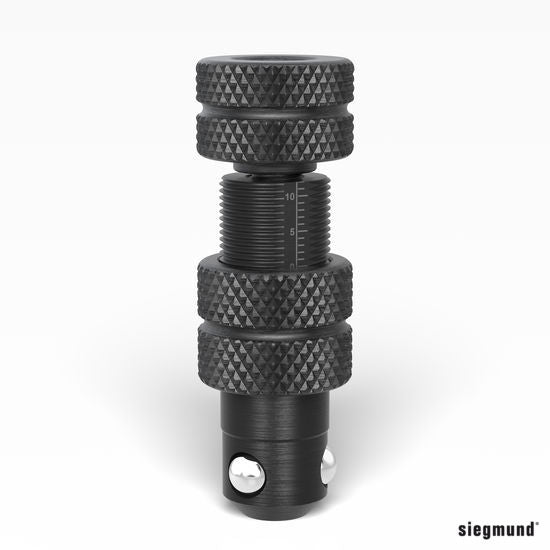

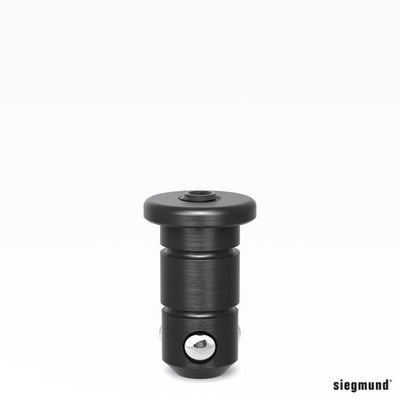

Item No.: 160571
Fast Clamping Bolt adjustable without slot short ‐ burnished
Length (a)78 mm /Weight 0.13 kg /Diameter 16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
Laser-cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

The clamping height is individually adjusted by rotating a knurled thimble ring.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Suitable for aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 2 components
‐ burnished
‐ Clamping dimension 12 – 24 mm
‐ with screw top
‐ with hexagon socket (Size 4)

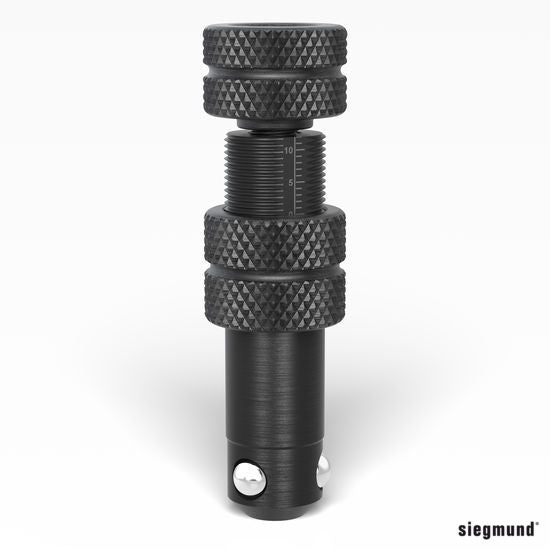

Item No.:  160573
Fast Clamping Bolt adjustable without slot long ‐ burnished
Length (a)90 mm /Weight 0,.15 kg /Diameter16 mm
Shearing Force 55 kN
Tightening Torque Steel 10 Nm
Tightening Torque Aluminum 2.5 Nm
Tensile Force10 kN

Product description
Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

The clamping height is individually adjusted by rotating a knurled thimble ring.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Suitable for aluminum profiles.
Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 3 components
‐ burnished
‐ Clamping dimension 24 – 36 mm
‐ with screw top
‐ with hexagon socket (Size 4)
