System 28 Stops - Flat Square

  • Sale
  • Regular price $495.00
Shipping calculated at checkout.



The Siegmund System 28 Stops - Flat Square Accessories are compatible with any 28mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.




SIEGMUND SYSTEM 28 FLAT SQUARE STOPS

Flat Square can be firmly fixed or variably adjusted, resulting from the combination of system bore holes and oblong slots.


Item No.:   280444

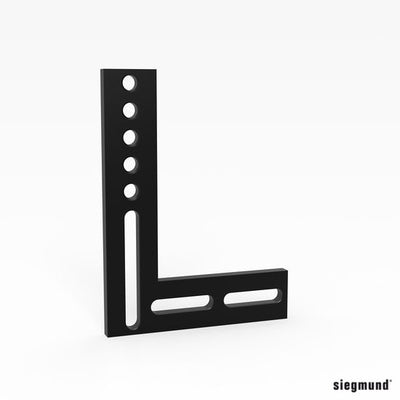

Flat Square 500 large ‐ burnished
Length (a)500 mm
Width (b)375 mm
Height (c)100 mm
Material thickness (d)25 mm
Weight12 kg

Product description
Flat Square 500 can be firmly fixed or variably adjusted, resulting from the combination of system boreholes and elongated hole. The flat square is freely adjustable over a length of up to 200 mm.
‐ 5 system boreholes
‐ burnished
‐ for 90 degree setting



Item No.:   280445

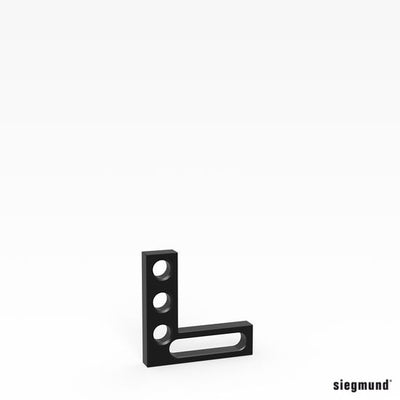

Flat Square 175 small ‐ burnished
Length (a)175 mm
Width (b)175 mm /Height (c) 50 mm /Material thickness (d) 25 mm
Weight 1,85 kg

Product description
Flat Square 175 can be firmly fixed or variably adjusted, resulting from the combination of system boreholes and elongated hole. The flat square is freely adjustable over a length of up to 100 mm.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ burnished



Item No.: 2-280445.C

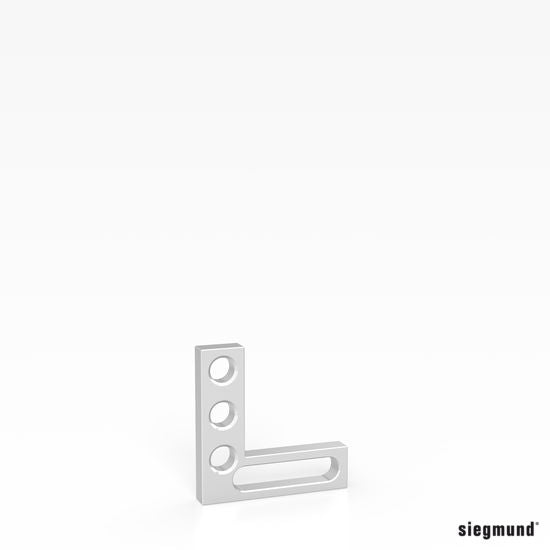

Flat Square 175 small ‐ Chromed
Length (a)175 mm
Width (b)175 mm /Height (c)50 mm
Material thickness (d)25 mm /Weight1,85 kg

Product description
Flat Square 175 can be firmly fixed or variably adjusted, resulting from the combination of system boreholes and elongated hole. The flat square is freely adjustable over a length of up to 100 mm.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ Chromed Delivery time approx. 10 weeks





Item No.:   280455.N

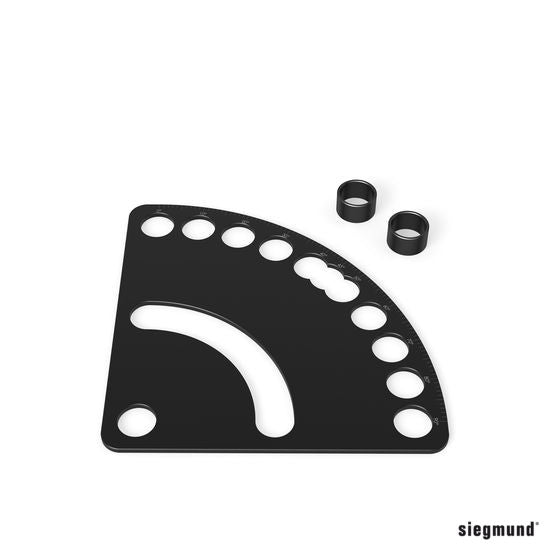

Angle Alignment Template ‐ nitrided
Length (a) 250 mm /Width (b)250 mm /Material thickness (d)5 mm /Weight 1.5 kg

Product description
Angular Adjustment Template, enables precise adjustment, optional in 10° increments or continuously variable from 0-90°. Versatile application due to 1° precision scale.
‐ nitrided
‐ incl. 2x Spacer Sleeve


Item No.:   280538

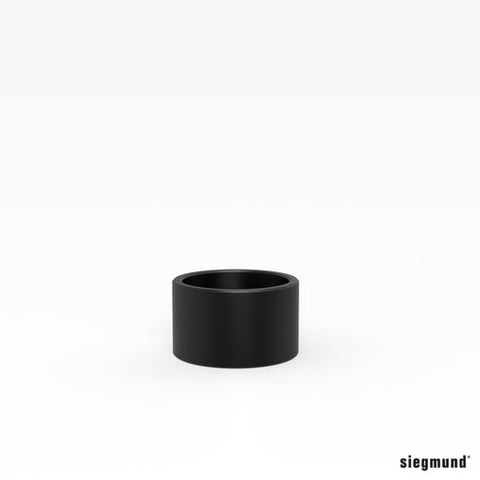

Spacer Sleeve ‐ burnished
Height (c) 20 mm /Weight 0.05 kg /Diameter 35 mm

Product description
Spacer Sleeve, especially developed for applications that require space between two clamping elements. For example, it enables using a long clamping bolt instead of a short one.
‐ burnished
