Siegmund System 16 Flex Stops

  • Sale
  • Regular price $38.00
Shipping calculated at checkout.








SIEGMUND ACCESSORY FOR SYSTEM 16

Siegmund system 16 Accessories are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.

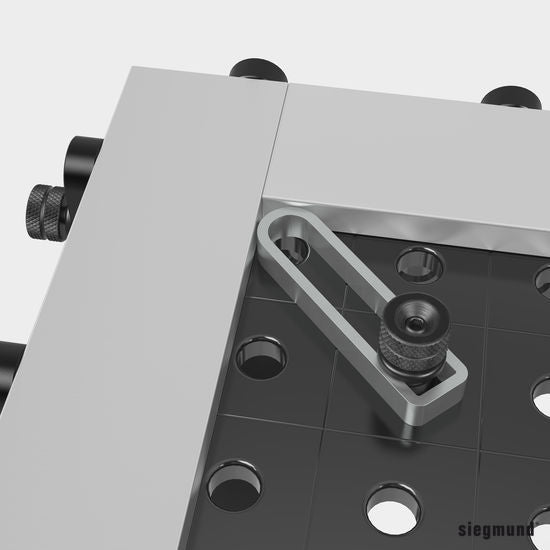

Flex Stop is individually adjustable through the oblong slot. Due to its radiused clamping sides, it can be versatilely used in corners as well as freeform stop surfaces. The Flex Stop is favoured when working with stainless steel and in confined spaces.


Item No.: 2-160412

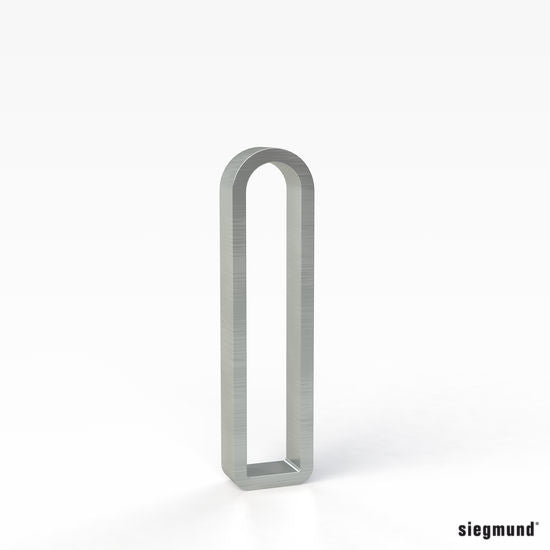

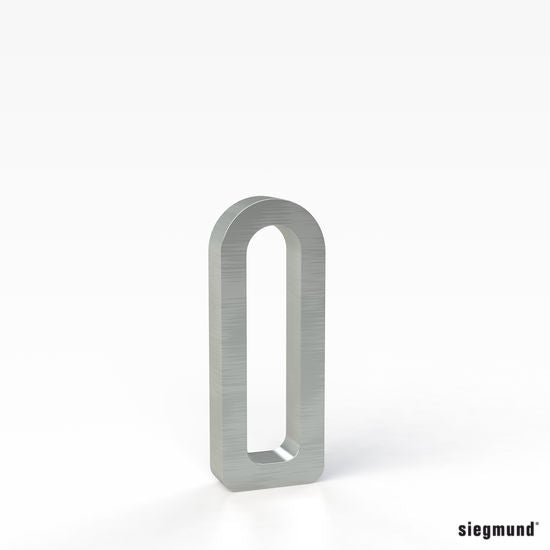

Flex Stop 12x83 Aluminum
Length (a)83 mm /Width (b)31 mm /Material thickness (d)12 mm /Weight 0,05 kg /Wall thickness 7.5 mm /Adjusting range 50 mm

Product description
Flex Stop Aluminum, individually adjustable through the elongated hole. Due to its radiused clamping sides, it can be versatilely used in corners as well as freeform stop surfaces. The Flex Stop is favoured when working with stainless steel and in confined spaces.

‐ Aluminum



Item No.: 2-160415

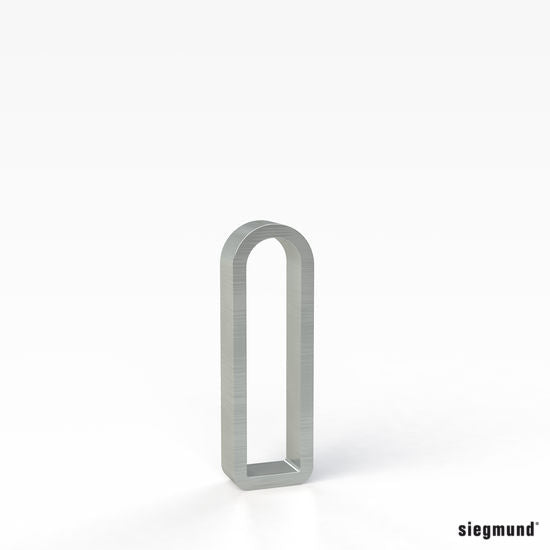

Flex Stop 12x78 Steel ‐ Galvanized
Length (a) 78 mm /Width (b) 28 mm /Material thickness (d) 12 mm /Weight 0.07 kg/ Wall thickness 6 mm /Adjusting range 50 mm

Product description
Flex-Stop Steel, individually adjustable through the elongated hole. It can be versatilely used, both on corners as well as on free shaped stop surfaces, due to its rounded clamping surfaces. The Flex Stop is favored in confined spaces.

‐ Galvanized




Item No.: 2-160416

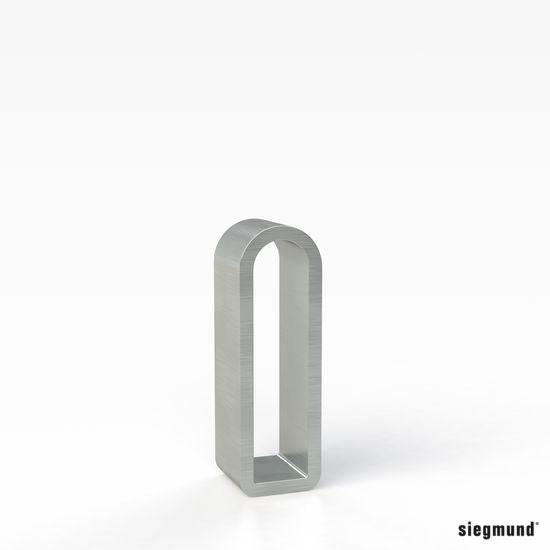

Flex Stop 24x78 Steel ‐ Galvanized
Length (a)78 mm /Width (b)28 mm /Material thickness (d) 24 mm /Weight 0.13 kg /Wall thickness 6 mm  /Adjusting range 50 mm

Product description
Flex-Stop Steel, individually adjustable through the elongated hole. It can be versatilely used, both on corners as well as on free shaped stop surfaces, due to its rounded clamping surfaces. The Flex Stop is favored in confined spaces.

‐ long clamping bolt required
‐ Galvanized




Product Description

Item No.: 2-160417

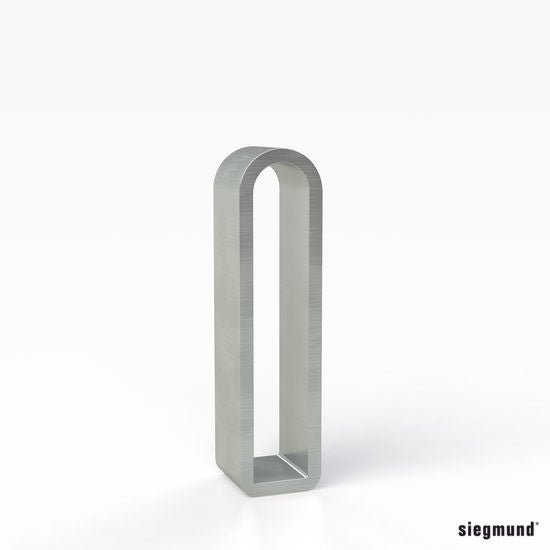

Flex Stop 12x97 Steel ‐ Galvanized
Length (a)97 mm /Width (b)24 mm /Material thickness (d)12 mm /Weight 0.08 kg /Wall thickness 4 mm
Adjusting range71 mm

Product description
Flex Stop Steel, individually adjustable through the elongated hole, provides a multitude of options. Due to its rounded clamping sides it can be used in corners, as well as free formed clamping surfaces. The Flex Stop 97 spans the hole distance even in diagonal applications.

‐ Galvanized



Item No.: 2-160418
Flex Stop 24x97 Steel ‐ Galvanized
Length (a)97 mm /Width (b)24 mm /Material thickness (d)24 mm /Weight 0.16 kg/ Wall thickness 4 mm /Adjusting range 71 mm

Product description
Flex Stop Steel, individually adjustable through the elongated hole, provides a multitude of options. Due to its rounded clamping sides it can be used in corners, as well as free formed clamping surfaces. The Flex Stop 97 spans the hole distance even in diagonal applications.

‐ long clamping bolt required
‐ Galvanized
price on request
