SIEGMUND SYSTEM 16 PRISMS

The Prism is designed for large pipes with a diameter. Above all, it creates a solid support surface for round pipes. The prism with a screwed-in collar can be fastened in the boreholes and securely fixed. For free positioning of the prism independent of the hole grid, you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension. Polyamide Prisms are used for scratch-prone surfaces.


Technical Data:

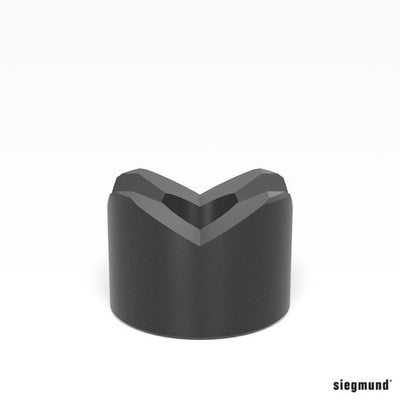

Item: 160641
Vario Prism Ø 50 90°/120° without collar ‐ burnished

Product Description
Vario Prism Ø 50, is suitable for both rounded and 45° twisted square pipes with a diameter up to 80 mm, due to its 90° and 120° angles. In addition, the prism can be universally used for all 16 mm boreholes.
‐ burnished
‐ Prism can be fastened with bolts

Height (c )   35 mm
Weight   0.39 kg
Diameter   50 mm

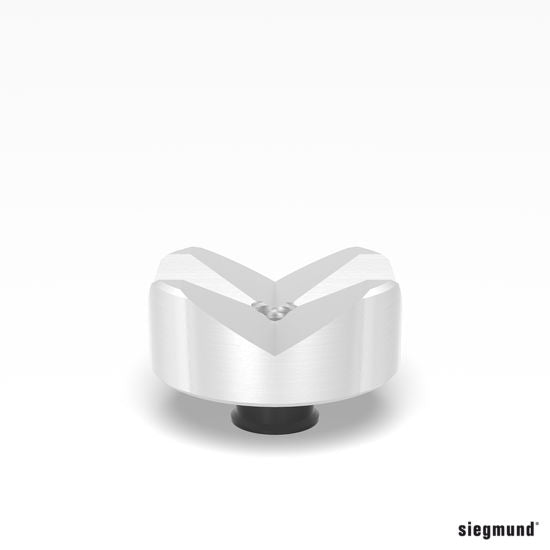

Item: 160645.1.A
Vario Prism Ø 50 90°/120° with screwed-in collar ‐ Aluminum

Product Description
Vario Prism Ø 50, suitable for both rounded and 45° twisted square pipes with a diameter up to 80 mm, due to its 90° and 120° angles. In addition, the prism can be universally used for all 16 mm boreholes.

The prism with screwed-in collar can be fastened in the boreholes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.

Polyamide Prisms are used for scratch-prone surfaces.

‐ Aluminum
‐ M10 thread for e.g. prism extensions Item No. 160649

Height (c)   20 mm
Weight   0.07 kg
Diameter  50 mm



Item: 160645.1.N
Vario Prism Ø 50 90°/120° with screwed-in collar ‐ nitrided
Product Description
Vario Prism Ø 50, suitable for both rounded and 45° twisted square pipes with a diameter up to 80 mm, due to its 90° and 120° angles. In addition, the prism can be universally used for all 16 mm boreholes.

The prism with a screwed-in collar can be fastened in the boreholes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.

Polyamide Prisms are used for scratch-prone surfaces.
‐ nitrided
‐ M10 thread for e.g. prism extensions Item No. 160649

Height (c)  20 mm /Weight   0.21 kg /Diameter  50 mm

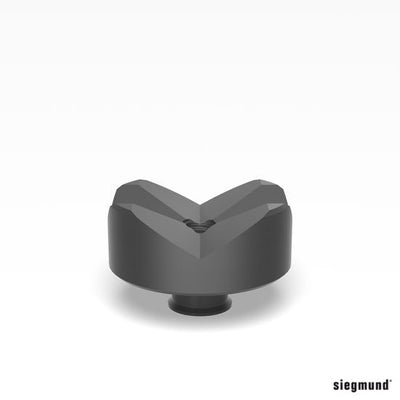

Item: 160645.1.PA
Vario Prism Ø 50 90°/120° with screwed-in collar ‐ Polyamide
Product Description
Vario Prism Ø 50, suitable for both rounded and 45° twisted square pipes with a diameter up to 80 mm, due to its 90° and 120° angles. In addition, the prism can be universally used for all 16 mm boreholes.

The prism with screwed-in collar can be fastened in the boreholes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.

Polyamide Prisms are used for scratch-prone surfaces.
‐ Polyamide
‐ M10 thread for e.g. prism extensions Item No. 160649

Height (c)  20 mm /Weight   0.03 kg /Diameter   50 mm

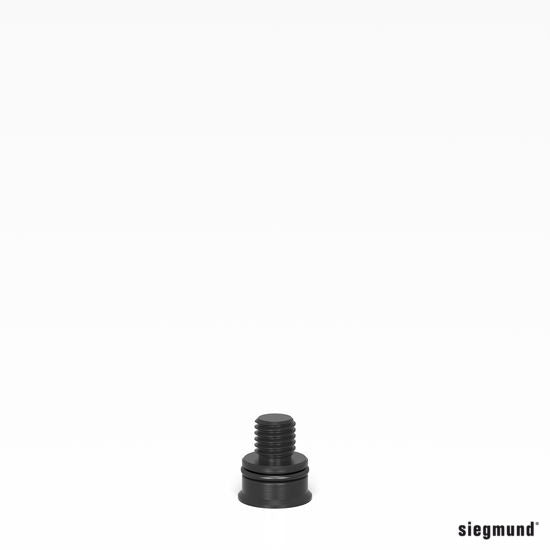

Item: 160649
Prism Collar Screw ‐ burnished
Product Description
Screw Collar for prisms, used to fasten prisms in boreholes.
‐ burnished


Length (a)10 mm
Weight 0,02 kg
Diameter 16 mm




Item: 160649. 0
Special Screw
Product Description
‐ for prisms system 16

Length (a)10 mm
Weight 0,02 kg
Diameter 16 mm

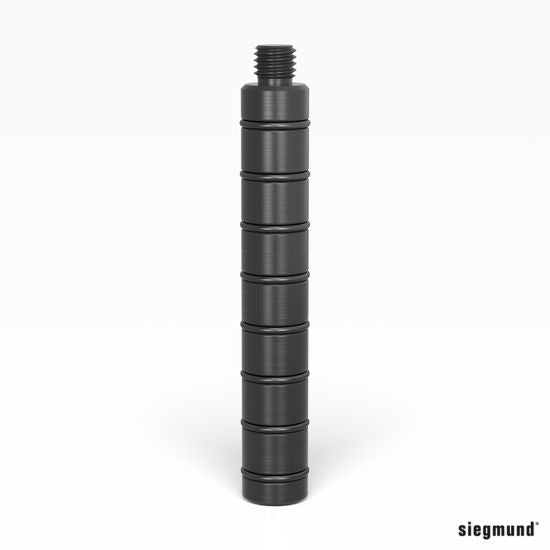

Item: 160649.1

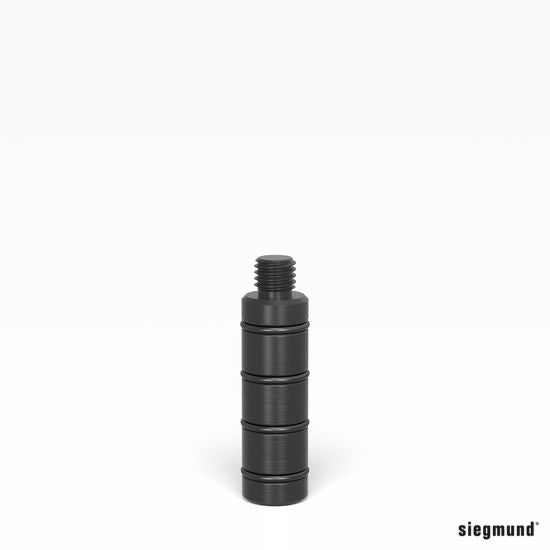

Prism Extension 50 ‐ burnished
Product DescriptionPrism Extension enables infinite positioning, when combined with spacers or support discs (see set of supports, Item No. 160821) or screw support (Item No. 160822).
The Prism Extension can be mounted into all prisms quickly and safely.

Due to the thread, the Prism Extension can be bolted to other extensions or attached to a custom construction.

Length (a) 50 mm /Weight 0.08 kg /Diameter 16 mm



Item: 160649.2
Prism Extension 100 ‐ burnished

Product Description
The Prism extension can be quickly and securely screwed in all prisms and enables the positioning of the prism at different heights in combination with spacers (Item No. 160821).

With the screw support (Item No. 160822) an infinitely variable positioning is possible.

Due to the thread, the Prism Extension can be bolted to other extensions or attached to custom construction.
‐ burnished


Height (c)   65 mm
Weight   .09 kg
Diameter   25 mm

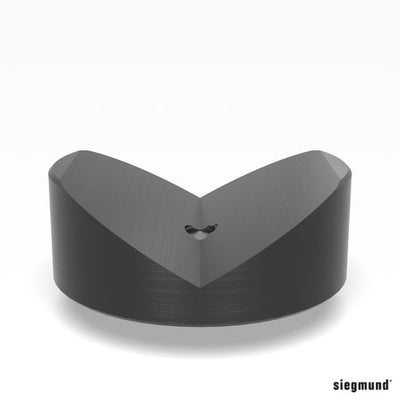

Item: 160652.1
Prism Ø 80 120° with screwed-in collar ‐ burnished / nitrided
Product Description
Prism Ø 80 with 120° angle, suitable for pipes with a diameter of up to 120 mm. The Prism creates a stable surface especially for round pipes and can be used for all 16 mm boreholes.

The prism with screwed-in collar can be fastened in the boreholes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.

Polyamide Prisms are used for scratch-prone surfaces.
‐ burnished / nitrided
‐ M10 thread for e.g. prism extensions Item No. 160649

Height (c)  30 mm
Weight  0.77 kg
Diameter  80 mm

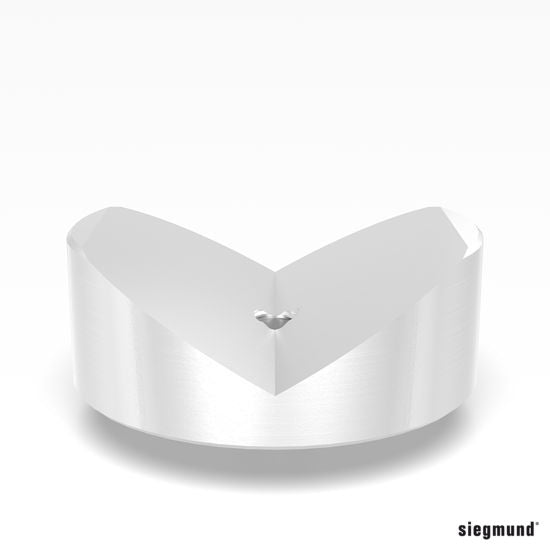

Item: 160652.1.A
Prism Ø 80 120° with screwed-in collar ‐ Aluminum
Product Description
Prism Ø 80 with 120° angle, suitable for pipes with a diameter of up to 120 mm. The Prism creates a stable surface, especially for round pipes and can be used for all 16 mm boreholes.

The prism with a screwed-in collar can be fastened in the boreholes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
‐ Aluminum
‐ M10 thread for e.g. prism extensions Item No. 160649

Height (c)   30 mm /Weight   0.26 kg /Diameter  80 mm



Item: 160652.1.PA
Prism Ø 80 120° with screwed-in collar ‐ Polyamide
Product Description
Prism Ø 80 with 120° angle, suitable for pipes with a diameter of up to 120 mm. The Prism creates a stable surface especially for round pipes and can be used for all 16 mm boreholes.

The prism with screwed-in collar can be fastened in the boreholes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.

Polyamide Prisms are used for scratch-prone surfaces.
‐ Polyamide
‐ M10 thread for e.g. prism extensions Item No. 160649

Height (c)  30 mm /Weight   0.12 kg /Diameter   80 mm

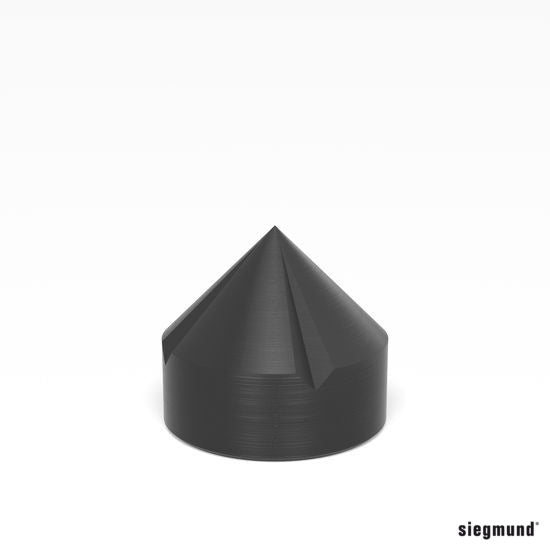

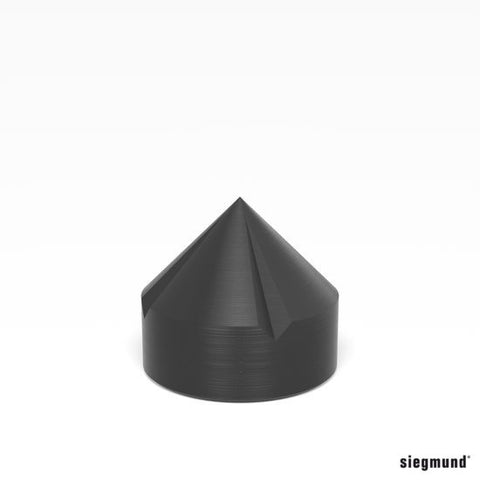

Item: 160670
Clamping Cone ‐ burnished / nitrided
Product Description
Clamping Cone, enables clamping of round and square pipes with a diameter of up to < 45 mm, by simply positioning them. The Clamping Cone is fastened with bolts.
‐ burnished / nitrided

Height (c)  40 mm /Weight   0.26 kg /Diameter   45 mm
