Siegmund System 16 - Professional Clamps

  • Sale
  • Regular price $180.00
Shipping calculated at checkout.


The Siegmund System 16 Professional Clamps are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.




SIEGMUND SYSTEM 16 CLAMPS

Technical Data:

Item No.: 160606

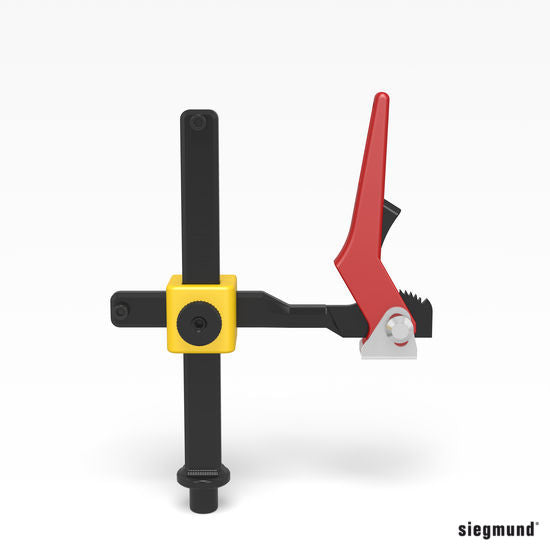

Professional Fast Tension Clamp ‐ burnished
Width (b)132 mm /Height (c)150 mm /Weight 0.9 kg
Max. holding force 2.5 kN

Product description
Professional Fast Tension Clamp, used to clamp welding parts quickly and powerfully. The force can be individually adjusted with the grating.
With the new handwheel on the cast iron cross, it is height-adjustable within seconds.
The dimensions of the applied flat irons are 20x10 mm and 20x13 mm. Additionally, the vertical bar is reinforced.

The Fast Tension Clamp is recommended only for system 16 plasma nitrated tables.
‐ burnished



Item No.:  160606.S
Professional Fast Tension Clamp special size

Product description
Professional Fast Tension Clamp, used to clamp welding parts quickly and powerfully. The force can be individually adjusted with the grating.
With the new handwheel on the cast iron cross, it is height-adjustable within seconds.
The dimensions of the applied flat irons are 20x10 mm and 20x13 mm. Additionally the vertical bar is reinforced.

The Fast Tension Clamp is recommended only for system 16 plasma nitrated tables

*upon request



Item No.: 160610

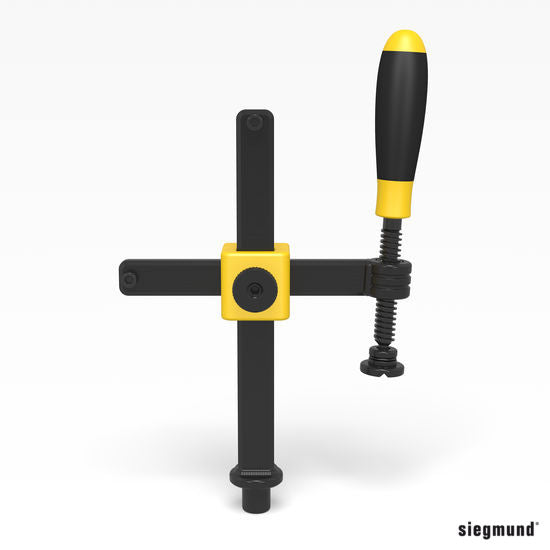

Professional Screw Clamp ‐ burnished / nitrided
Width (b)163 mm /Height (c)200 mm /Weight 1.2 kg
Max. holding force 2.5 kN

Product description
Professional Screw Clamp, enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lenghts of horizontal and vertical bars. The dimensions of the horizontal bar are 20x10 mm. The dimensions of the vertical bar are 20x13 mm, which is additionally reinforced.

A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order spare parts individually.

With the new handwheel on the cast-iron cross, the height can be adjusted within seconds.
‐ burnished/nitrided
‐ ball diameter spindle 8 mm



Item No.: 160610.S
Professional Screw Clamp special size

Product description
Professional Screw Clamp, enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lengths of horizontal and vertical bars. The dimensions of the horizontal bar are 20x10 mm. The dimensions of the vertical bar are 20x13 mm, which is additionally reinforced.

A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted within seconds.

‐ ball diameter spindle 8 mm

*upon request



Item No.: 160630

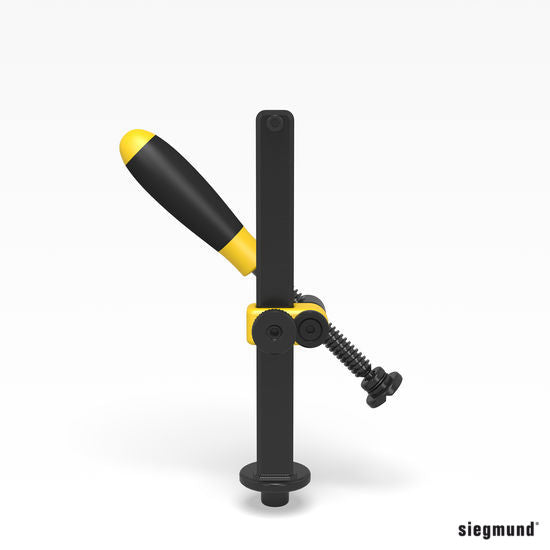

Professional Screw Clamp 45°/90° ‐ burnished
Height (c)200 mm /Weight 0.75 kg /Max. holding force 2.5 kN

Product description
Professional Screw Clamp 45°/90°, replaces standard screw clamps with 45° or 90°. It sets new standards due to its infinitely variable adjustment range from 0°-360°.

The dimensions of the appropriate flat bar are 20x13 mm.

The new handwheel on the cast iron cross enables height adjustment within seconds.
‐ burnished
‐ ball diameter spindle 8 mm



Item No.: 160630.S
Professional Screw Clamp 45°/90° special size

Product description
Professional Screw Clamp 45°/90°, replaces standard screw clamps with 45° or 90°. It sets new standards due to its infinitely variable adjustment range from 0°-360°.

The dimensions of the appropriate flat bar are 20x13 mm.

The new handwheel on the cast iron cross enables height adjustment within seconds.
‐ ball diameter spindle 8 mm

*upon request

Items marked *upon request are available upon request only. Please contact us for details.
