System 16 Stop & Clamping Squares

  • Sale
  • Regular price $128.00
Shipping calculated at checkout.



The Siegmund System 16 Stop and Clamping Squares are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will never be let down.




SIEGMUND SYSTEM 16 STOP AND CLAMPING SQUARES

Stop and Clamping Square standard with fine scale serves as an adjustable angle. The combination of system boreholes and the oblong slot facilitates multi-functional use. The additional top plate provides further combination options in connection with other squares, or to incorporate tools like prisms or clamps. Stop and Clamping Squares, can be used for a large variety of tasks, such as a table extension for lightweight components. Due to the oblong slot, it can also function as a stop for high elements.


Technical Data:


Item No.:  160100.N

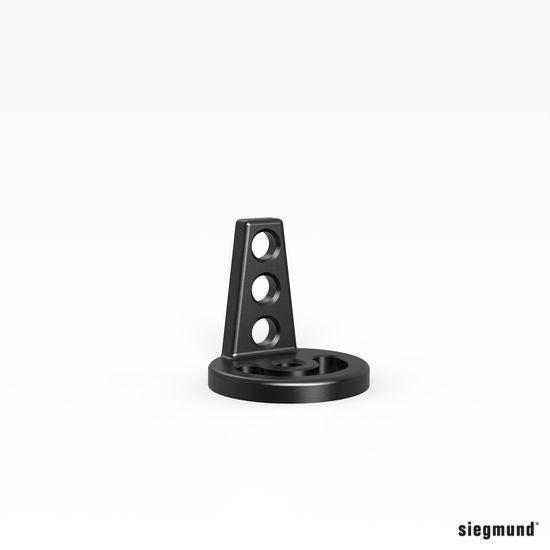

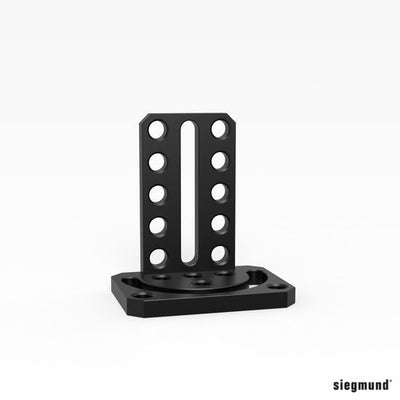

Rotation Angle 90 ‐ nitrided
Height (c)90 mm
Material thickness (d)12 mm
Weight 0.5 kg /Diameter 90 mm

Product description
The Angle of Rotation allows the infinitely variable adjustment of clamping elements with system boreholes at an angle range of 180°.
Optimal fixation is achieved by using 2 clamping bolts simultaneously.
‐ nitrided

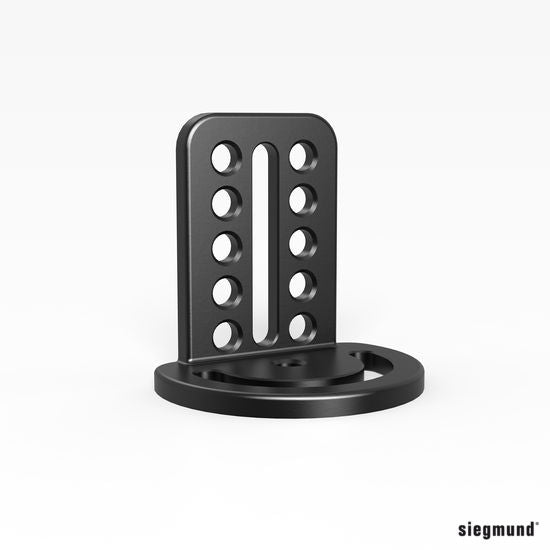

Item No.:  160100.N
Rotation Angle 150 ‐ nitrided
Height (c)150 mm
Material thickness (d)12 mm
Weight1,8 kg
Diameter150 mm

Product description
The Angle of Rotation allows the infinitely variable adjustment of clamping elements with system boreholes at an angle range of 180°.
Optimal fixation is achieved by using 2 clamping bolts simultaneously.
‐ nitrided

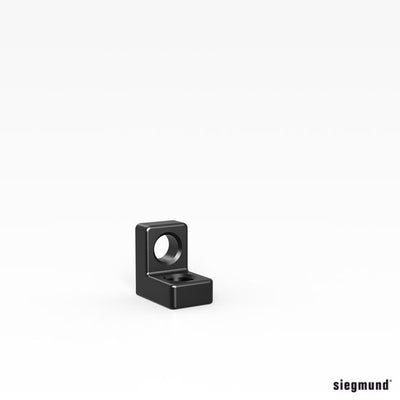

Item No.:  160105.N

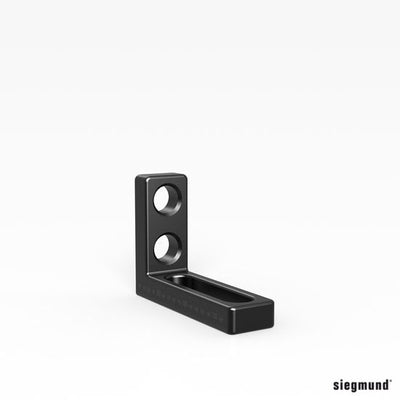

Stop and Clamping Square 50 L ‐ nitrided
Length (a)50 mm /Width (b) 30 mm /Height (c) 50 mm
Material thickness (d)12 mm
Weight 0.2 kg

Product description
Stop and Clamping Square 50 L, applicable as a stop for large profiles. In addition, it is compatible with other squares. A height-adjustable surface can be created by combining it with a Stop and Clamping Square equipped with an elongated hole, e.g. 90 WL (Item No. 160111.N).
‐ nitrided



Item No.:  160108.N

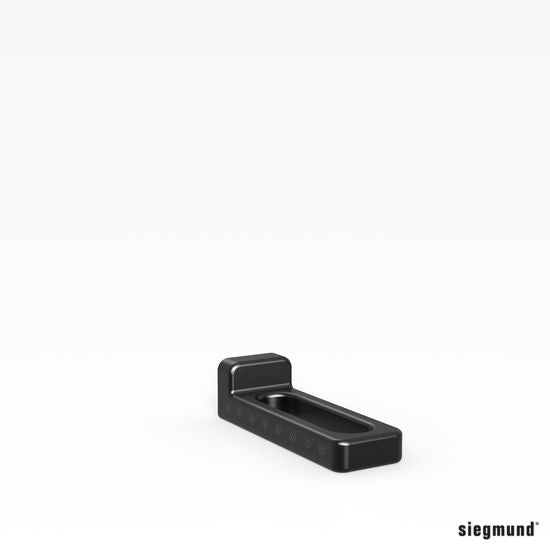

Stop and Clamping Square 90 X ‐ nitrided
Length (a)90 mm /Width (b)30 mm /Height (c)25 mm
Material thickness (d)12 mm /Weight 0.19 kg

Product description
Stop and Clamping Square 90 X and 90 SL, applicable as a stop for large sections. In addition, it is compatible with all squares and can create a height-adjustable surface by clamping into the elongated hole.
‐ nitrided
‐ Standard with fine scaling on both sides



Item No.:  160109.N

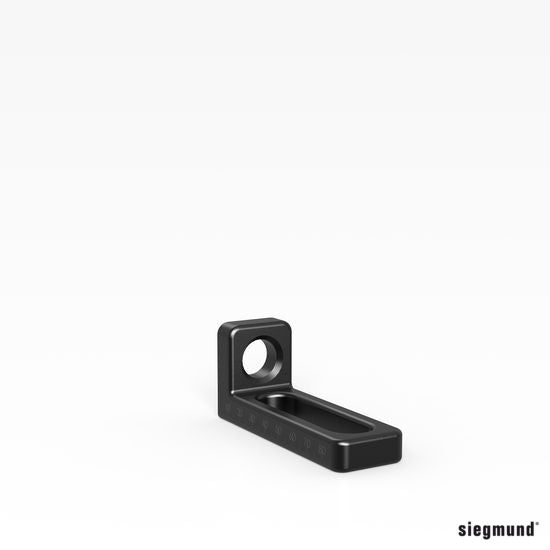

Stop and Clamping Square 90 SL ‐ nitrided
Length (a)90 mm /Width (b)30 mm /Height (c)40 mm
Material thickness (d)12 mm /Weight 0.21 kg

Product description
Stop and Clamping Square 90 X / 90 SL, can be used as a stop for large sections. By clamping the elongated hole, the Stop and Clamping Square 90 SL creates a height-adjustable surface.
‐ nitrided
‐ Standard with fine scaling on both sides



Item No.:  160110.A

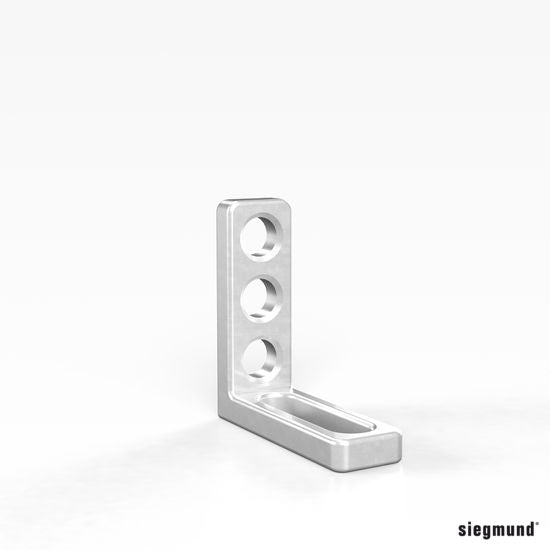

Stop and Clamping Square 90 L ‐ Aluminum
Length (a)90 mm /Width (b)30 mm/ Height (c)90 mm
Material thickness (d)12 mm/Weight 0.11 kg

Product description
Stop and Clamping Square 90 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated hole. A height-adjustable support can be created, by combining the Stop and Clamping Square 50 L (Item No. 160105.N) and the Stop and Clamping Square 90 SL (Item No. 160109.N). It also functions well as a stop for large parts.

Chromed version is available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole
‐ Aluminum

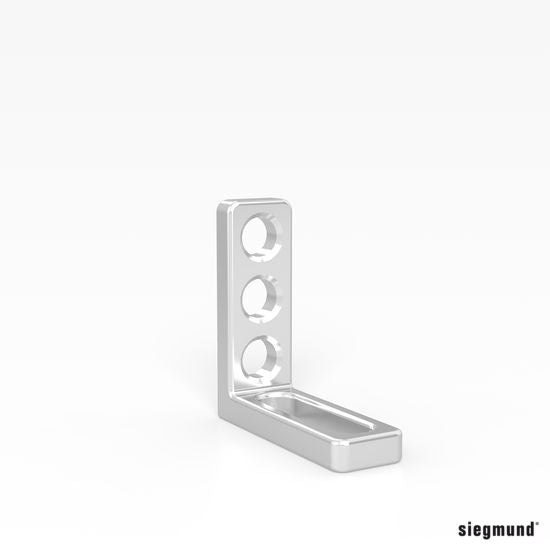

Item No.:  160110.C
Stop and Clamping Square 90 L ‐ Chromed
Length (a)90 mm /Width (b)30 mm /Height (c)90 mm
Material thickness (d)12 mm /Weight 0.31 kg

Product description
Stop and Clamping Square 90 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated holes. A height-adjustable support can be created, by combining the Stop and Clamping Square 50 L (Item No. 160105.N) and the Stop and Clamping Square 90 SL (Item No. 160109.N). It also functions well as a stop for large parts.

Chromed version is available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole
‐ Chromed Delivery time approx. 10 weeks

*upon request only

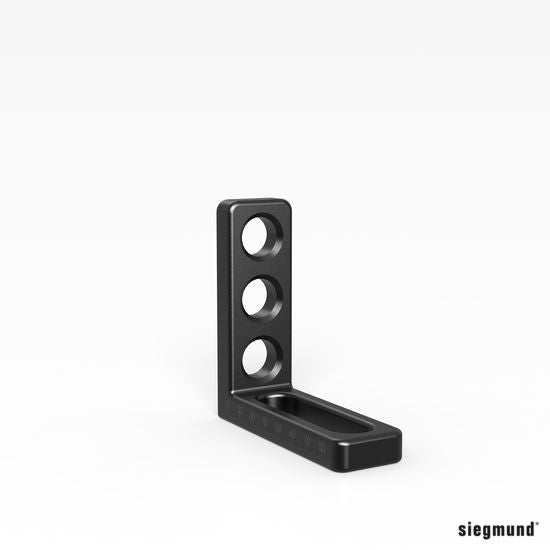

Item No.:   160110.N
Stop and Clamping Square 90 L ‐ nitrided
Length (a)90 mm /Width (b)30 mm /Height (c)90 mm
Material thickness (d)12 mm
Weight 0.31 k

Product description
Stop and Clamping Square 90 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated holes. A height-adjustable support can be created, by combining the Stop and Clamping Square 50 L (Item No. 160105.N) and the Stop and Clamping Square 90 SL (Item No. 160109.N). It also functions well as a stop for large parts.

Chromed version is available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole
‐ nitrided
‐ Standard with fine scaling on both sides



Item No.:  160111.N

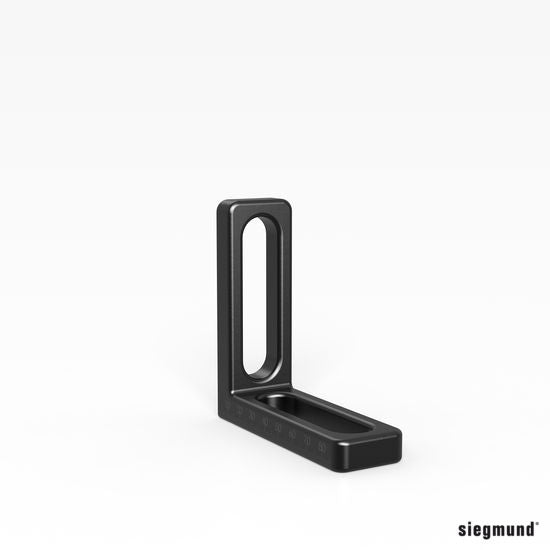

Stop and Clamping Square 90 WL ‐ nitrided
Length (a)90 mm /Width (b)30 mm /Height (c)90 mm
Material thickness (d)12 mm
Weight 0,27 kg

Product description
Stop and Clamping Square 90 WL, adjustable due to the elongated holes, is a versatile and infinitely variable tool.
‐ elongated hole / elongated hole
‐ nitrided
‐ Standard with fine scaling on both sides

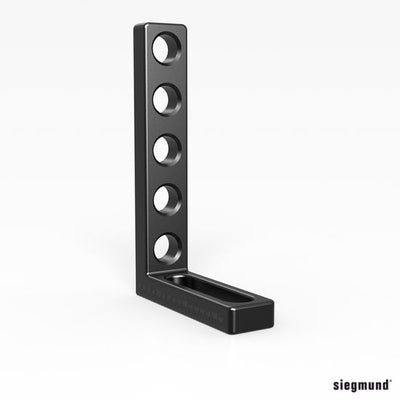

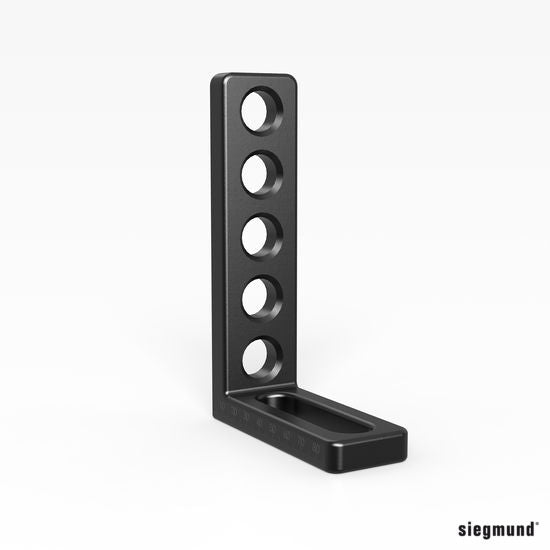

Item No.:  160112.N
Stop and Clamping Square 140 L ‐ nitrided
Length (a)90 mm /Width (b)35 mm /Height (c)140 mm
Material thickness (d)12 mm /Weight 0.51 kg

Product description
Stop and Clamping Square 140 L, can be used for a large variety of tasks, such as a table extension for lightweight components. Due to the elongated hole, it can also function as a stop for high elements.

‐ 5 system boreholes / elongated hole
‐ nitrided
‐ Standard with fine scaling on both sides



Item No.:  160113.N
Stop and Clamping Square 90 VL ‐ nitrided
Length (a)90 mm
Width (b)30 mm
Height (c)90 mm
Material thickness (d)12 mm

Weight0,34 kgProduct descriptio
Stop and Clamping Square 90 VL (Item No. 160113.N), with both-sided boreholes can be used as a fix support bracket. By connecting it with the Stop and Clamping Square 50 L (Item No. 160105.N) and the Stop and Clamping Square 90 SL (Item No. 160109.N), it can be utilized as a height-adjustable support.
‐ nitrided



Item No.:  160162.N

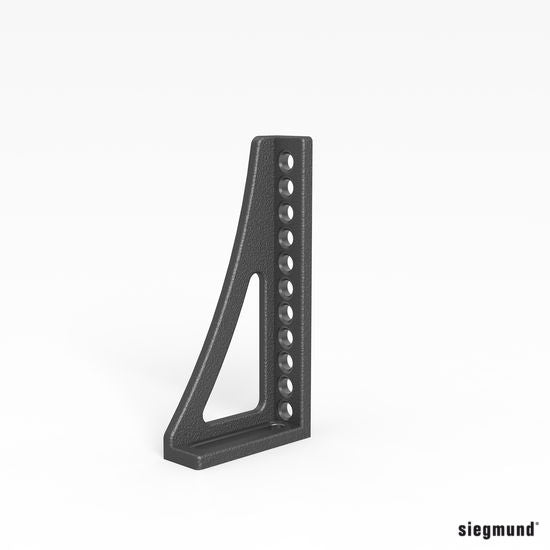

Stop and Clamping Square 300 G ‐ nitrided
Length (a)150 mm /Width (b) 49 mm /Height (c)300 mm
Material thickness (d) 12 mm
Weight 2.51 kg

Product description
Stop and Clamping Square 300 G, fixed and variably adjustable due to the combination of system boreholes and elongated holes. It can be used versatilely e.g. as a table extension. This element is manufactured of high-quality GGG40 ductile cast iron.
‐ stop on left
‐ nitrided

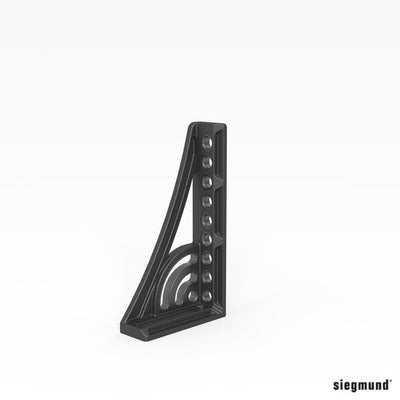

Item No.:  160164.N

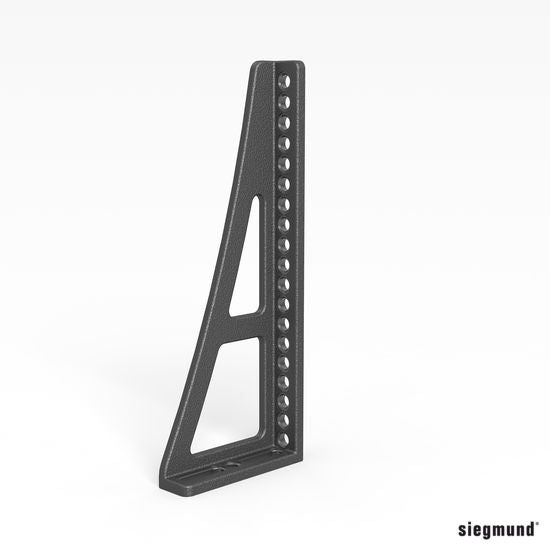

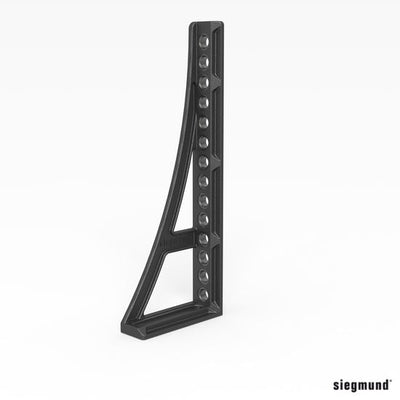

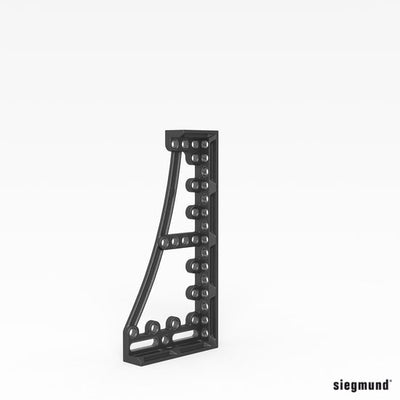

Stop and Clamping Square 500 G ‐ nitrided
Length (a)195 mm /Width (b)49 mm /Height (c)500 mm
Material thickness (d)12 mm
Weight 4,56 kg

Product description
Stop and Clamping Square 500 G, fixed and variably adjustable due to the combination of system boreholes and elongated holes. It can be used versatilely e.g. as a table extension. This element is manufactured of high-quality GGG40 ductile cast iron.
‐ stop on left
‐ nitrided



Item No.:  160114.N

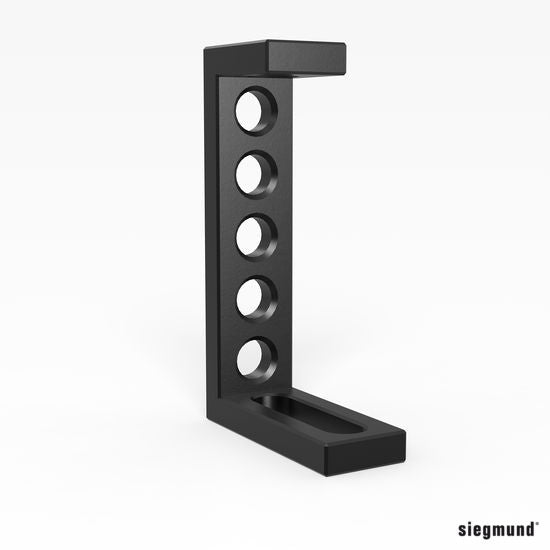

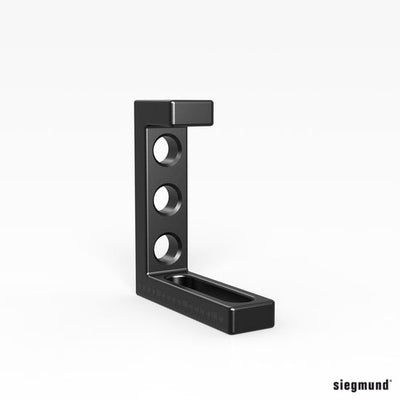

Stop and Clamping Square 150 L ‐ nitrided
Length (a)90 mm /Width (b)35 mm /Height (c)150 mm
Material thickness (d)12 mm /Weight 0.65 kg

Product description
Stop and Clamping Square 150 L, adjustable square for a multitude of applications, due to the combination of system boreholes and elongated holes. The additional head plate enables further combination options: In connection with other squares or as an intake for tools like prisms or clamps.
‐ 6 system boreholes / elongated hole
‐ nitrided



Item No.: 160120
Stop and Clamping Square 250 GK Aluminum-Titanium left
Length (a)145 mm /Width (b) 49 mm /Height (c)250 mm
Material thickness (d)14 mm
Weight 1.2 kg

Product description
Stop and Clamping Square GK aluminum-titanium, facilitates a multitude of clamping options, due to its three-dimensionality. It is specially designed for working with heavy parts, and can be used as a stop as well as a table extension. Stop and Clamping Squares are manufactured using an aluminum-titanium alloy, to reach maximum stability. Ordering in pairs is recommended.

Aluminum-Titanium: We use this lightweight and high-strength material for weight reasons for some large-stop and clamping squares. However, the hardness of nitrided cast steel can not be achieved here.
‐ stop on left
‐ standard with fine scale



Item No.:   160121
Stop and Clamping Square 250 GK Aluminum-Titanium right
Length (a)145 mm /Width (b)49 mm /Height (c)250 mm
Material thickness (d)14 mm /Weight 1.22 kg

Product description
Stop and Clamping Square GK aluminum-titanium, facilitates a multitude of clamping options, due to its three-dimensionality. It is specially designed for working with heavy parts and can be used as a stop as well as a table extension. Stop and Clamping Squares are manufactured using an aluminum-titanium alloy, to reach maximum stability. Ordering in pairs is recommended.

Aluminum-Titanium: We use this lightweight and high-strength material for weight reasons for some large-stop and clamping squares. However, the hardness of nitrided cast steel can not be achieved here.
‐ stop on right
‐ standard with fine scale



Item No.: 160124.N

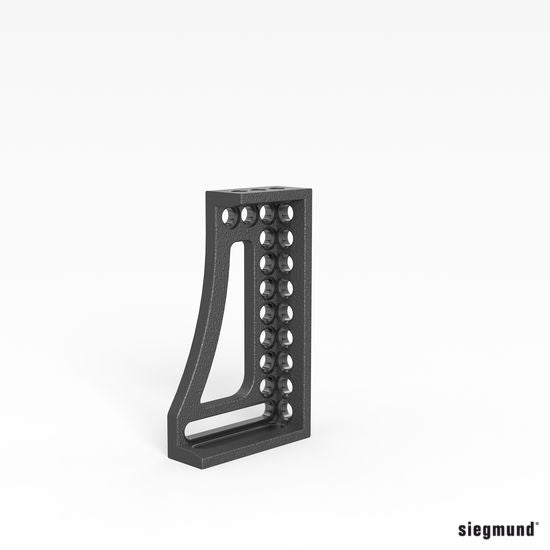

Stop and Clamping Square 250 GK left ‐ nitrided
Length (a)145 mm /Width (b)49 mm /Height (c)250 mm
Material thickness (d)14 mm /Weight 2.1 kg

Product description
Stop and Clamping Square 250 GK, opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
stop on left
‐ nitrided
‐ standard with fine scale



Item No.:   160126.N
Stop and Clamping Square 250 GK right ‐ nitrided
Length (a)145 mm /Width (b)49 mm /Height (c)250 mm
Material thickness (d)14 mm /Weight 2.1 kg

Product description
Stop and Clamping Square 250 GK, opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.

‐ stop on the right
‐ nitrided
‐ standard with fine scale



Item No.: 160134.N

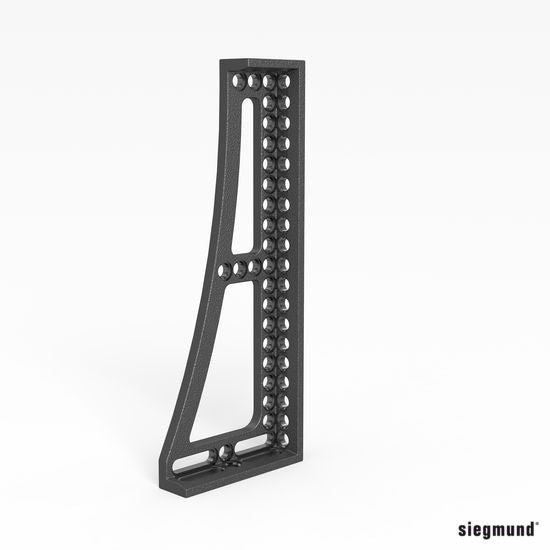

Stop and Clamping Square 500 GK left ‐ nitrided
Length (a)195 mm /Width (b)49 mm /Height (c)500 mm
Material thickness (d)14 mm /Weight 5.3 kg

Product description
Stop and Clamping Square 500 GK, opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
 stop on left
‐ nitrided
‐ standard with fine-scale



Item No.:  160136.N

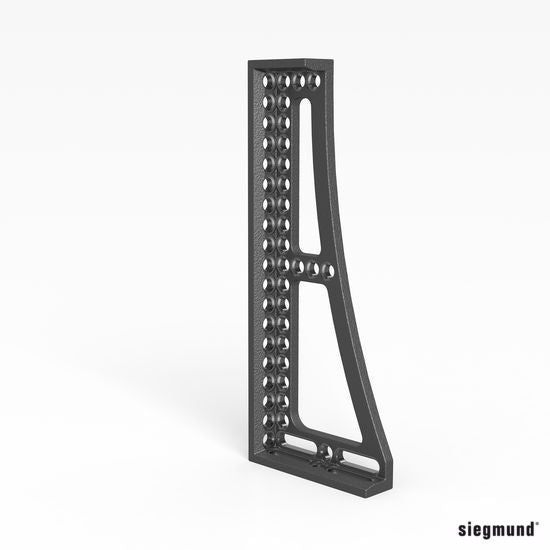

Stop and Clamping Square 500 GK right ‐ nitrided
Length (a)195 mm /Width (b)49 mm /Height (c)500 mm
Material thickness (d)14 mm /Weight 5.3 kg

Product description
Stop and Clamping Square 500 GK, opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.

‐ stop on the right
‐ nitrided
‐ standard with fine-scale



Item No.:   160138

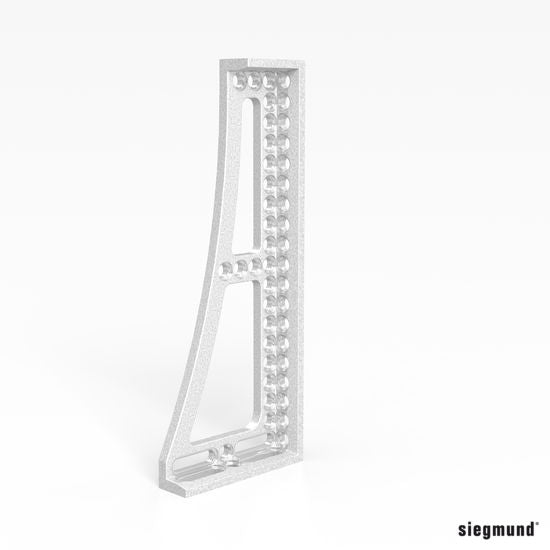

Stop and Clamping Square 500 GK Aluminum-Titanium left
Length (a)195 mm /Width (b)49 mm /Height (c)500 mm
Material thickness (d)14 mm
Weight 1,98 kg

Product description
Stop and Clamping Square GK aluminum-titanium, facilitates a multitude of clamping options, due to its three-dimensionality. It is specially designed for working with heavy parts, and can be used as a stop as well as a table extension. Stop and Clamping Squares are manufactured using an aluminum-titanium alloy, to reach maximum stability. Ordering in pairs is recommended.

Aluminum-Titanium: We use this lightweight and high-strength material for weight reasons for some large-stop and clamping squares. However, the hardness of nitrided cast steel can not be achieved here.

‐ stop on left
‐ standard with fine scale



Item No.:   160139

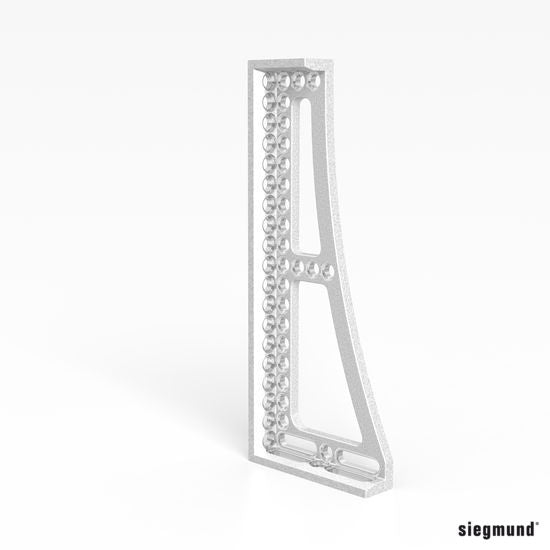

Stop and Clamping Square 500 GK Aluminum-Titanium right
Length (a)195 mm /Width (b)49 mm /Height (c)500 mm
Material thickness (d)14 mm /Weight 1.98 kg

Product description
Stop and Clamping Square GK aluminum-titanium, facilitates a multitude of clamping options, due to its three-dimensionality. It is specially designed for working with heavy parts and can be used as a stop as well as a table extension. Stop and Clamping Squares are manufactured using an aluminum-titanium alloy, to reach maximum stability. Ordering in pairs is recommended.

Aluminum-Titanium: We use this lightweight and high-strength material for weight reasons for some large-stop and clamping squares. However, the hardness of nitrided cast steel can not be achieved here.
‐ stop on right
‐ standard with fine scale



Item No.:   160140.N

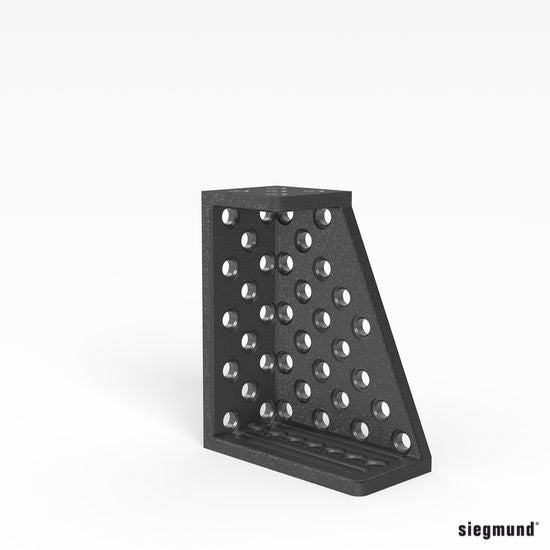

Stop and Clamping Square 250 D ‐ nitrided
Length (a)200 mm /Width (b)100 mm  /Height (c)250 mm
Material thickness (d)14 mm
Weight 6,6 kg

Product description
Stop and Clamping Square 250 D / 500 D / 750 D, three-dimensional with diagonal hole arrangement, enables a multitude of clamping options. It works well as a table extension or vertical superstructure, in combination with other squares and stops. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron.
‐ stop on right
‐ nitrided



Item No.: 160142.N

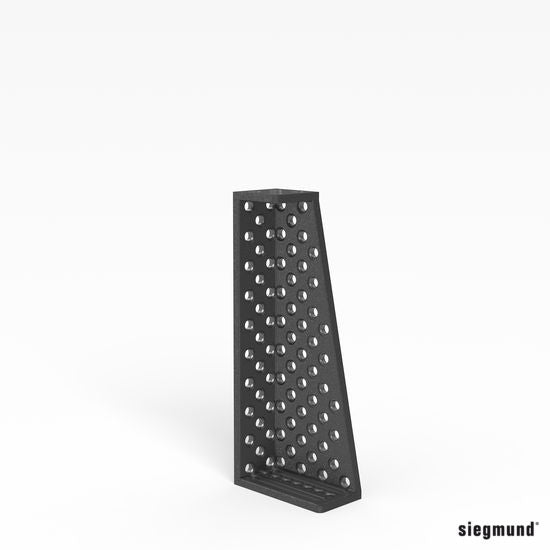

Stop and Clamping Square 500 D ‐ nitrided
Length (a)200 mm
Width (b)100 mm /Height (c)500 mm
Material thickness (d)14 mm
Weight 11.5 kg

Product description
Stop and Clamping Square 250 D / 500 D / 750 D, three-dimensional with diagonal hole arrangement, enables a multitude of clamping options. It works well as a table extension or vertical superstructure, in combination with other squares and stops. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron.
‐ stop on right
‐ nitrided



Item No.:   160144.N

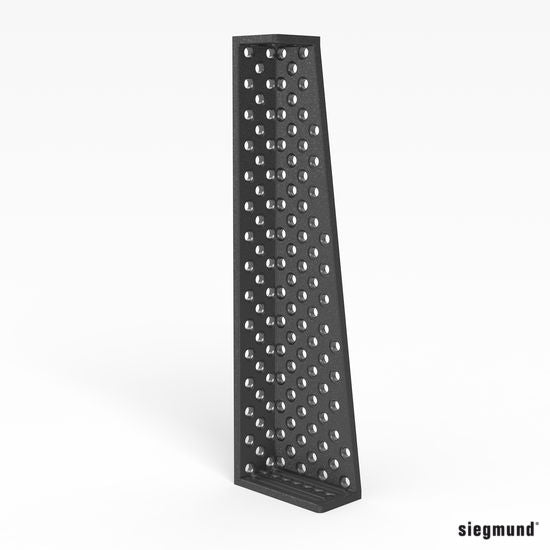

Stop and Clamping Square 750 D ‐ nitrided
Length (a)200 mm  /Width (b)100 mm  /Height (c)750 mm
Material thickness (d)14 mm
Weight 16,4 kg

Product description
Stop and Clamping Square 250 D / 500 D / 750 D, three-dimensional with diagonal hole arrangement, enables a multitude of clamping options. It works well as a table extension or vertical superstructure, in combination with other squares and stops. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron.
‐ stop on right
‐ nitrided



Item No.:   160161.N

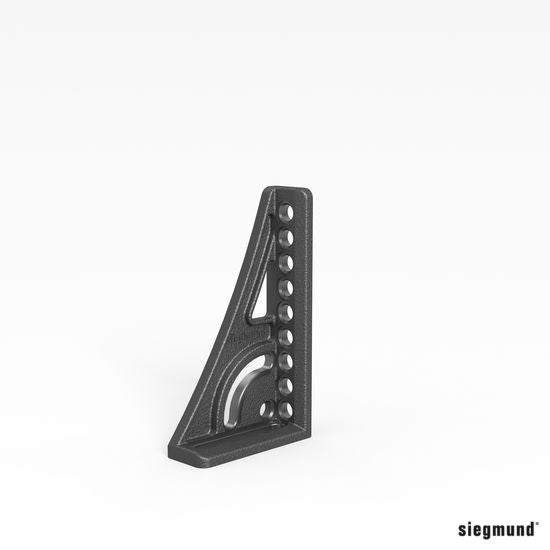

Stop and Clamping Square 250 G with rotation angle left ‐ nitrided
Length (a)145 mm Width (b )49 mm /Height (c)250 mm
Material thickness (d)14 mm
Weight 2.16 kg

Product description
Stop and Clamping Square 250 G, fixed and variably adjustable due to the combination of system boreholes and elongated holes. It can be used versatilely e.g. as a table extension. This element is manufactured of high-quality GGG40 ductile cast iron.
‐ stop on left
‐ nitrided
‐ standard with fine scale



Item No.:   160163.N

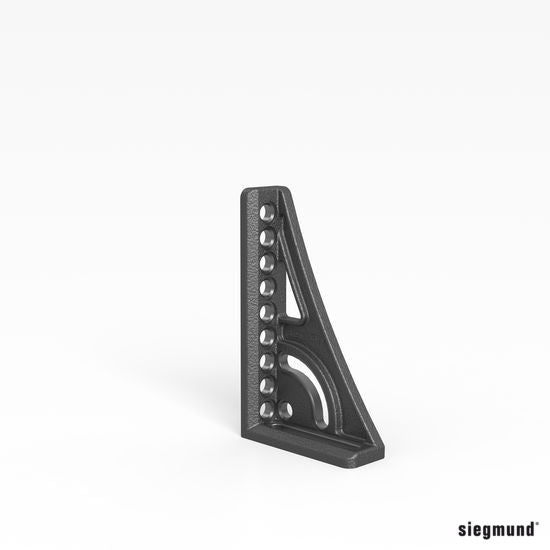

Stop and Clamping Square 250 G with rotation angle right ‐ nitrided
Length (a)145 mm /Width (b)49 mm /Height (c)250 mm
Material thickness (d)14 mm
Weight 2,16 kg

Product description
Stop and Clamping Square 250 G, fixed and variably adjustable due to the combination of system boreholes and elongated holes. It can be used versatilely e.g. as a table extension. This element is manufactured of high quality GGG40 ductile cast iron.
‐ stop on right
‐ nitrided
‐ standard with fine scale
