System 16 Universal Stops

  • Sale
  • Regular price $45.00
Shipping calculated at checkout.


Siegmund system 16 Accessories are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.





SIEGMUND SYSTEM 16 UNIVERSAL STOPS

Universal Stops, fixed or variably adjustable, due to the combination of oblong slot and system boreholes. It is also appropriate for use with prisms and adapters.

Chromed version is available for work on measuring tables, working with aluminum and for TIG-welding.



Technical Data:

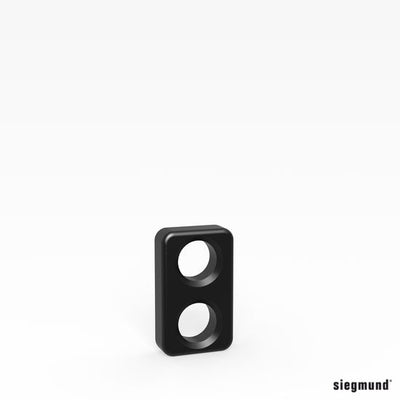

Item No.: 160407.N
Universal Stop 50 L ‐ nitrided

Product description
Length (a)50 mm/Width (b)30 mm /Material thickness (d)12 mm/Weight 0.08 kg
Universal Stop 50 L, can be firmly fixed in place through the two system boreholes. Especially in confined spaces, it offers many application options.
‐ 2 system boreholes
- nitrided



No.:   160408.N
Universal Stop 80 L ‐ nitrided

Product description
Length (a)80 mm/Width (b)30 mm /Material thickness (d)12 mm/Weight 0.16 kg
Universal Stop 80 L, can be firmly fixed in place through the three system boreholes.

‐ 3 system boreholes
‐ nitrided



Item No.:   160410.N
Universal Stop 80 L ‐ nitrided, adjustable

Product description
Length (a)80 mm/Width (b)30 mm /Material thickness (d)12 mm/Weight 0.07 kg /Adjusting range 50 mm
Universal Stop 80 L, individually adjustable through the elongated hole within a range of 0-50 mm.

‐ nitrided

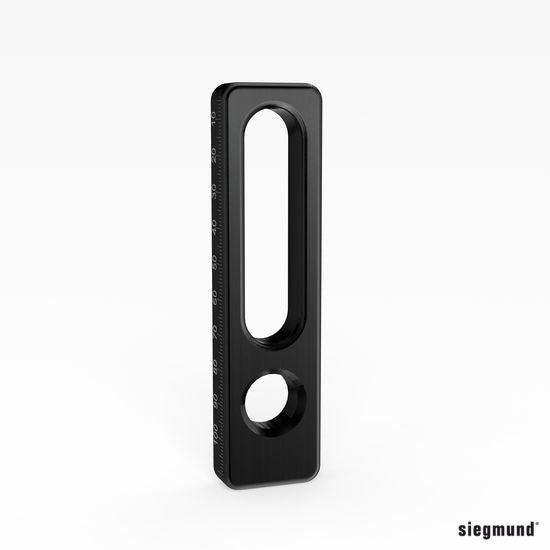

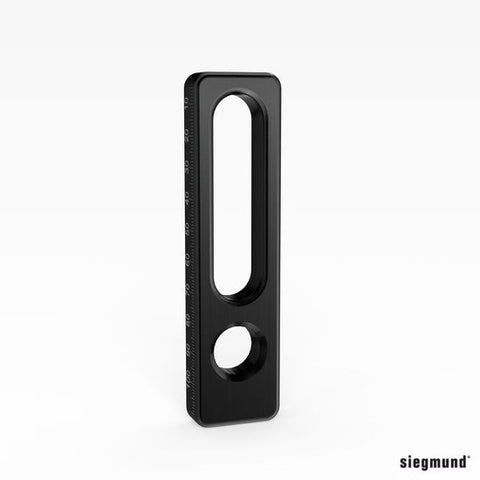

Item No.: 2-160420
Universal Stop 115 L ‐ burnished

Product description
Length (a)115 mm/Width (b)30 mm /Material thickness (d)12 mm/Weight 0.2 kg /Adjusting range 50 mm
Universal Stop 115 L, fixed or variably adjustable, due to the combination of elongated hole and system boreholes (adjustment range 0-50 mm). It is also appropriate for use with prisms and adapters.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

‐ burnished

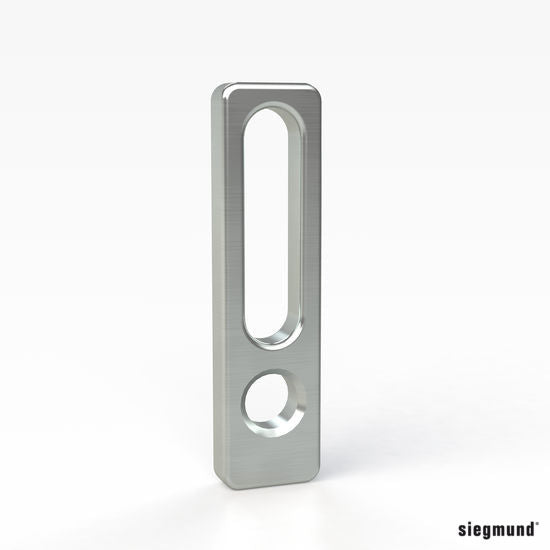

Item No.: 2-160420.A
Universal Stop 115 L ‐ Aluminum

Product description
Length (a)115 mm/Width (b)30 mm
material thickness (d)12 mm/Weight 0.05 kg
Adjusting range50 mm
Universal Stop 115 L, fixed or variably adjustable, due to the combination of elongated hole and system boreholes (adjustment range 0-50 mm). It is also appropriate for use with prisms and adapters.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ Aluminum

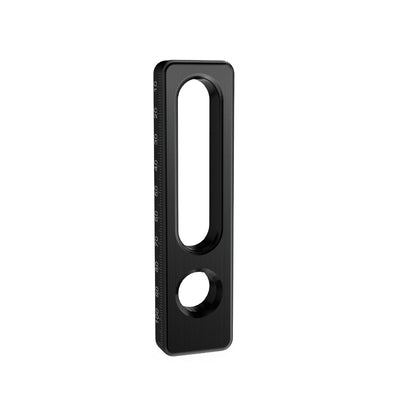

Item No.: 2-160420.N
Universal Stop 115 L ‐ nitrided

Product description
Length (a)115 mm /Width (b)30 mm /Material thickness (d)12 mm/Weight 0.2 kg /Adjusting range50 mm
Universal Stop 115 L, fixed or variably adjustable, due to the combination of elongated hole and system boreholes (adjustment range 0-50 mm). It is also appropriate for use with prisms and adapters.
‐ nitrided
‐ Standard with fine scaling on both sides

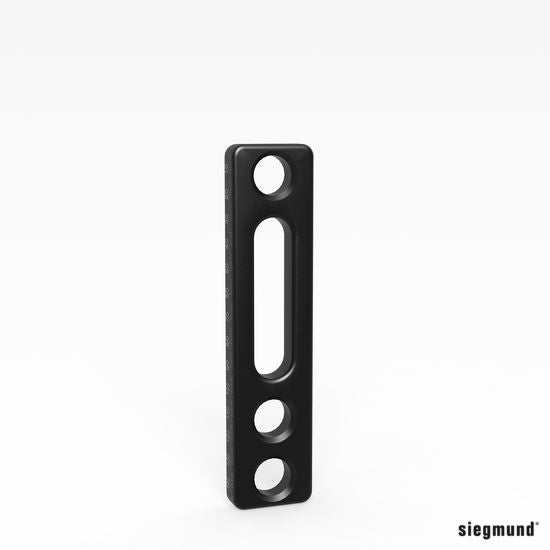

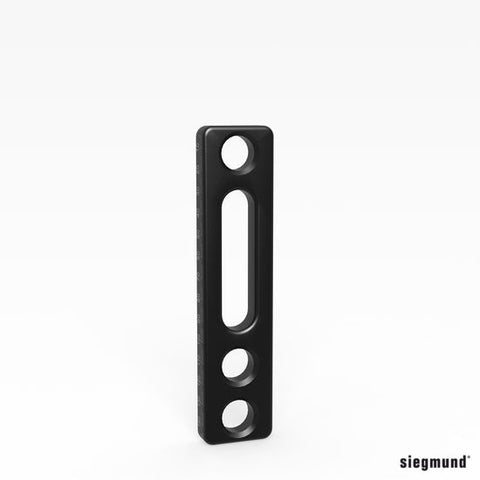

Item No.:   160422.N
Universal Stop 150 L ‐ nitrided

Product description
Length (a)150 mm/Width (b)35 mm/Material thickness (d)12 mm/Weight0,33 kg/Adjusting range 50 mm
Universal Stop 150 L, enables fixed and versatile adjustment (0-50 mm range), due to the combination of the elongated hole and system boreholes. It is also suitable for working with prisms and adapters.

‐ 3 system boreholes
‐ nitrided
‐ Standard with fine scaling on both sides

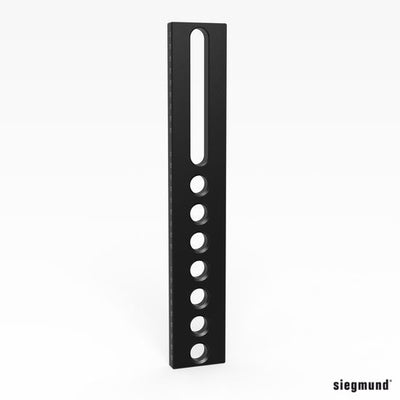

Item No.:   160425.N
Universal Stop 300 M ‐ nitrided

Product description
Length (a)300 mm/Width (b)50 mm /Material thickness (d)12 mm/Weight 1.08 kg /Adjusting range 100 mm
Universal Stop 300 M / 500 M, can be firmly or variably fixed due to the combination of system boreholes and the elongated hole (adjustment range 0-150 mm), therefore offering a multitude of clamping options.
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 7 system boreholes
‐ nitrided
‐ standard with fine scale



Item No.: 2-160432.N
Universal Stop 500 M ‐ nitrided

Product description
Length (a)500 mm/Width (b)50 mm /Material thickness (d)12 mm/Weight 1.85 kg /Adjusting range 150 mm
Universal Stop 300 M / 500 M, can be firmly or variably fixed due to the combination of system boreholes and the elongated hole (adjustment range 0-150 mm), therefore offering a multitude of clamping options.

‐ 13 system boreholes
‐ nitrided
‐ Standard with fine scaling on both sides



Item No.: 2-160450.N
Universal Stop / Clamping Bridge ‐ nitrided

Product description
Length (a)175 mm/Width (b)35 mm /Material thickness (d)12 mm/Weight 0.4 kg /Adjusting range 50 mm
Universal Stop, can also be used as clamping bridge. Using the small hole in the center, the Stop can be fastened with a screw clamp.

‐ 3 system boreholes
‐ nitrided
