System 28 Bolts - Aluminum profiles

  • Sale
  • Regular price $110.00
Shipping calculated at checkout.



The range of Siegmund System 28 Bolts - Aluminum profiles are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.





SIEGMUND SYSTEM 28 BOLTS - ALUMINUM PROFILES



Technical Data:

Item No.:  280511

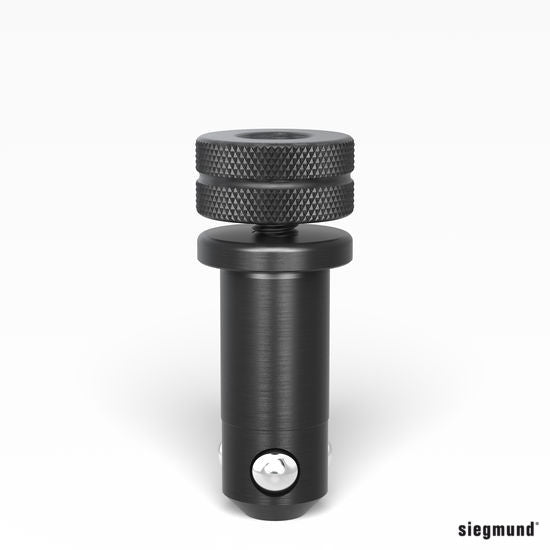

Fast Clamping Bolt without slot double ‐ burnished
Length (a) 95 mm /Weight 0.54 kg /Diameter 28 mm
Shearing Force 220 kN
Tightening Torque Steel 25 Nm /
Tightening Torque Aluminum 10 Nm /Tensile Force 25 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist lock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles. Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.>

‐ for clamping 2 components
‐ burnished
‐ with screw top<>‐ with hexagon socket (Size 6)



Item No.: 2-280513

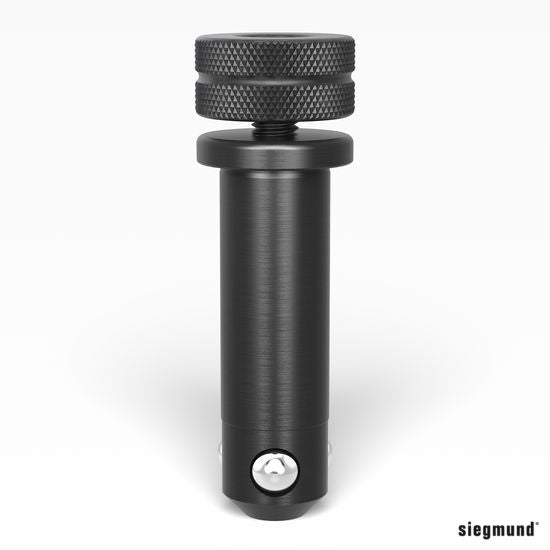

Fast Clamping Bolt without slot triple ‐ burnished
Length (a) 120mm /Weight 0.65 kg   /Diameter 28 mm
Shearing Force 220 kN /
Tightening Torque Steel 25 Nm/
Tightening Torque Aluminum10 Nm /Tensile Force 25 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.>

The fast clamping bolt with twist lock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles. Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 3 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 6)



Item No.:  280515

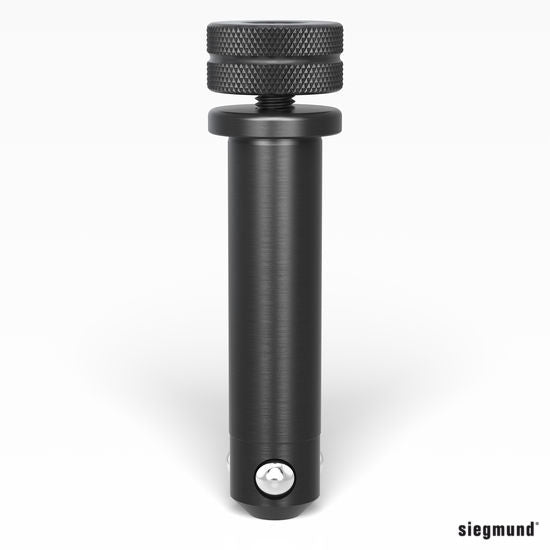

Fast Clamping Bolt flat without slot quadruple ‐ burnished
Length (a) 145 mm /Weight 0.76 kg /Diameter 28 mm
Shearing Force 220 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm /Tensile Force 25 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twistlock is the ideal connecting element between Siegmund components.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles. Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 4 components
‐ burnished
‐ with screw top
‐ with hexagon socket (Size 6)

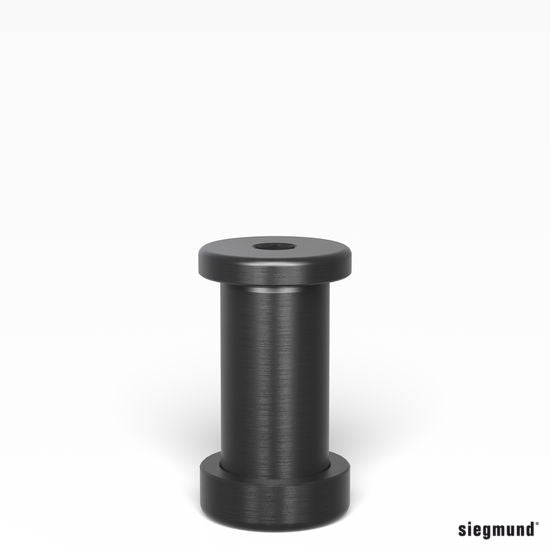

Item No.:  280583
Connecting Bolt with collar double ‐ burnished
Length (a) 70mm /Weight .39 kg /Diameter 28 mm
Shearing Force 220 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 25 Nm /Tensile Force 15 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 6 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes. Especially suitable for aluminum.

Clamping torque dependent on material. When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 2 components
‐ burnished
‐ with hexagon socket (At the top Size 10 / At the bottom Size 6)

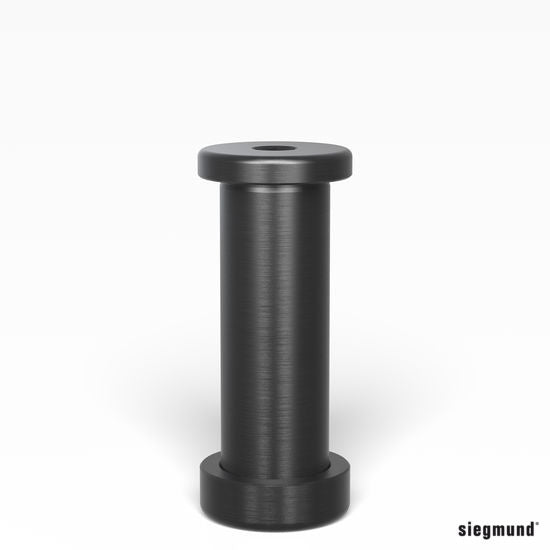

Item No.:   280584
Connecting Bolt with collar triple ‐ burnished
Length (a) 95mm /Weight 0.51 kg  /Diameter 28 mm
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
Tensile Force 10kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 6 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes. Especially suitable for aluminum.

Clamping torque dependent on material. When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 3 components
‐ burnished
‐ with hexagon socket (At the top Size 10 / At the bottom Size 6)



Item No.: 280585

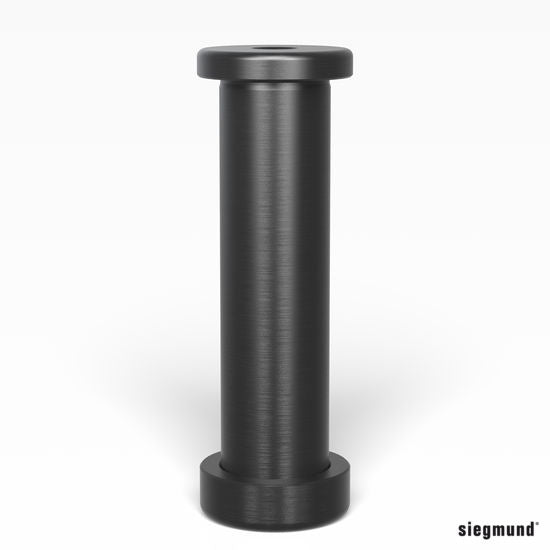

Connecting Bolt with collar quadruple ‐ burnished
Length (a) 120 mm /Weight 0.63 kg /Diameter 28 mm
Shearing Force 200 kN
Tightening Torque Steel 25 Nm
 / Tensile Force10 kN

Product description
The connecting bolt was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles.

For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 6 mm hexagonal bit.

This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for connecting 4 components
‐ burnished
‐ with hexagon socket (At the top Size 10 / At the bottom Size 6)



Item No.:   AP280528

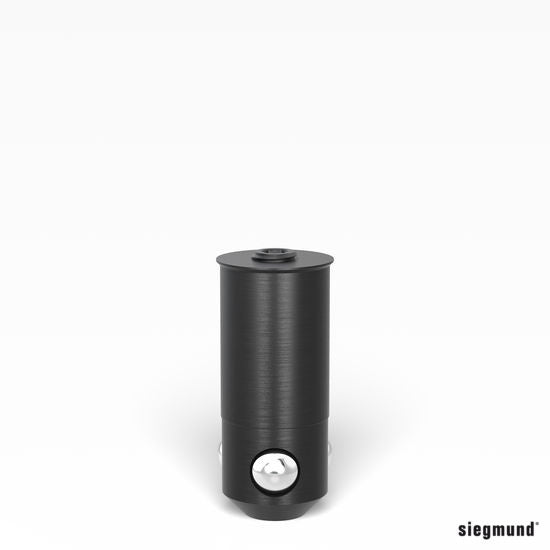

Flush Mount Bolt without slot double ‐ burnished
Length (a)69 mm /Weight 0.28 kg /Diameter 28 mm
Shearing Force 220 kN
Tightening Torque Aluminum10 Nm /Tensile Force 3 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles. Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 6)

Item No.:  AP280529

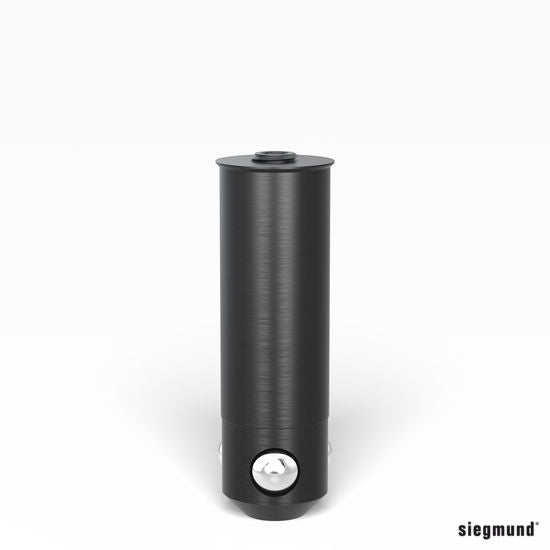

Flush Mount Bolt without slot triple ‐ burnished
Length (a )92 mm/Weight 0.4 kg
Diameter 28 mm /Shearing Force 220 kN/Tightening Torque Aluminum 10 Nm /Tensile Force 3 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.

Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.

Our recommendation when working with aluminum profiles.

Clamping torque dependent on the material. When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 6)



Item No.:   AP280530

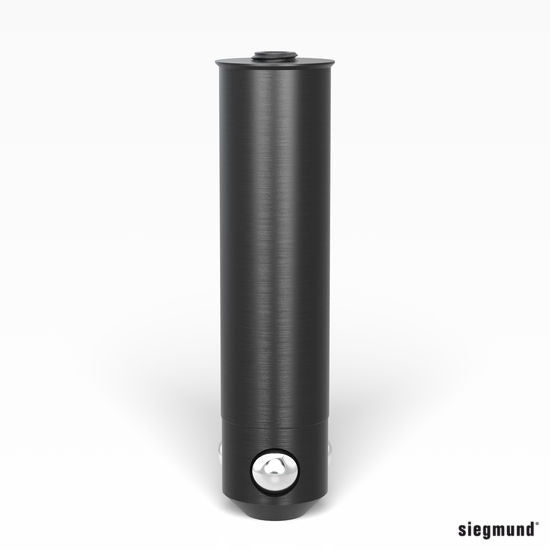

Flush Mount Bolt without slot quadruple ‐ burnished
Length (a)117 mm/Weight 0.5 kg /Diameter 28 mm /Shearing Force 220 kN /Tightening Torque Aluminum 10 Nm /Tensile Force 3 kN

Product description
This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The countersunk bolt can be used to connect Siegmund aluminum profiles and other Siegmund components. The bolt head is flush with the borehole.
Due to the adapted collar, this countersunk bolt is only suitable for clamping aluminum profiles.
Our recommendation when working with aluminum profiles. Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
‐ for clamping 4 components
‐ burnished
‐ with hexagon socket (Size 6)

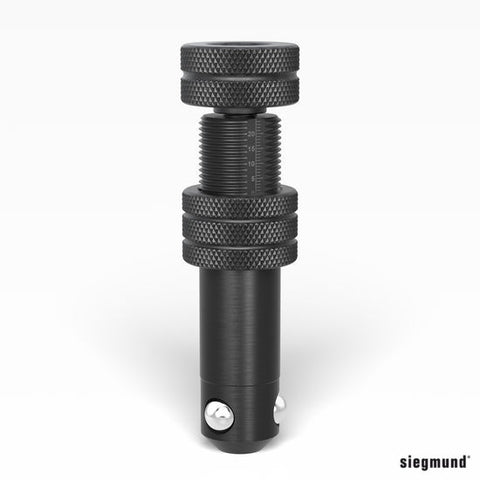

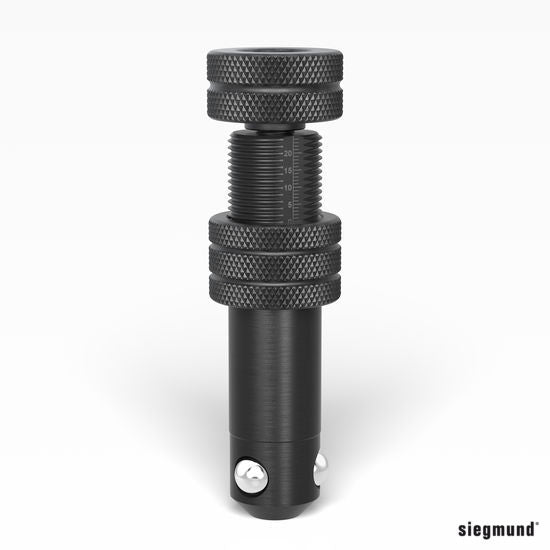

Item No.:  280573
Fast Clamping Bolt adjustable without slot long ‐ burnished
Length (a)140 mm /Weight 0.83 kg /Diameter28 mm /Shearing Force 220 kN
Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm /Tensile Force 25 kN

Product description
Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

The clamping height is individually adjusted by a rotating a knurled thimble ring.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares! Suitable for aluminum profiles.

Clamping torque dependent on material. When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 3 components
‐ burnished
‐ Clamping dimension 50 – 75 mm
‐ with screw top
‐ with hexagon socket (Size 6)
price on request


Item No.:   280571

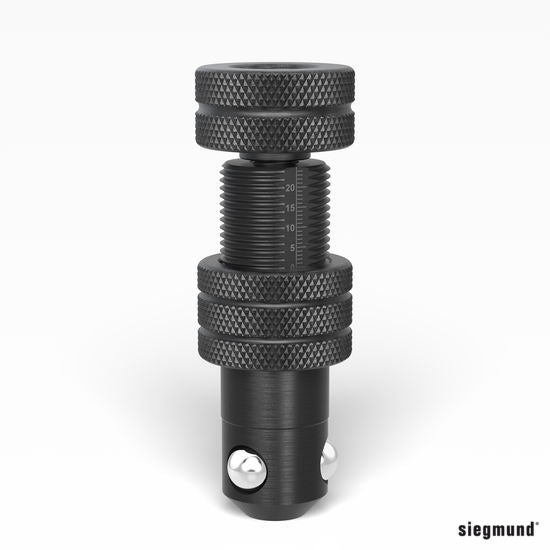

Fast Clamping Bolt adjustable without slot short ‐ burnished
Length (a)115 mm /Weight 0.67 kg /Diameter 28 mm
Shearing Force220 kN
Tightening Torque Steel25 Nm /Tightening Torque Aluminum 10 Nm /Tensile Force 25 kN

Product description
Laser cut profiles of varying thickness can easily be clamped with the all-new adjustable fast clamping bolt.

The clamping height is individually adjusted by rotating a knurled thimble ring.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Suitable for aluminum profiles.

Clamping torque dependent on the material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 2 components
‐ burnished
‐ Clamping dimension 25 – 50 mm
‐ with screw top
‐ with hexagon socket (Size 6)
