Siegmund System 28 - Magnetic Clamping Bolt

  • Sale
  • Regular price $65.00
Shipping calculated at checkout.



Siegmund offers a variety of Magnetic Clamping Bolts for System 28, 28mm fixture tables. Manufactured in Germany, Siegmund's tooling is made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.




SIEGMUND SYSTEM 28 MAGNETIC CLAMPING BOLTS



Technical Data:

Item No.:  280740

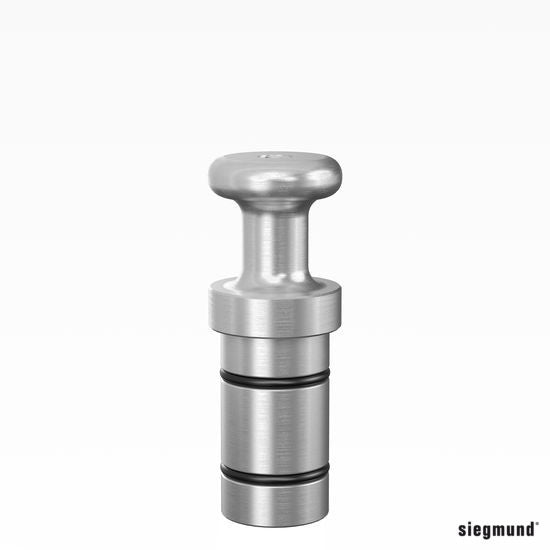

Magnetic Clamping Bolt 68
Length (a) 67 mm /Weight 0.23 kg /Diameter 28 mm>

Product description
Burnished Clamp Sleeve for T-slot tables, perfect connecting element between Siegmund components and T-slot table, in combination with the T-Nut (Item No. 280547).

By using the clamp bushing for M8 / M12 / M16 thread, you can use Siegmund components on a welding table with threaded holes.

‐ incl. screw
‐ burnished
‐ with hexagon socket (Size 8)



Item No.:  280740.1
Magnetic Clamping Bolt 93
Height (c) 28mm /Weight 0.11 kg /Diameter 40 mm

Product description
With the clamping bushing for M8 threads, Siegmund components can be attached to threaded boreholes, e.g. on sliding blocks.

‐ incl. screw
‐ burnished
‐ with hexagon socket (Size 6)



Item No.:  280740.2
Magnetic Clamping Bolt 118
Height (c) 28 mm /Weight 0.14 kg /Diameter 40 mm

Product description
With the clamping bushing for M12 threads, Siegmund components can be attached to threaded boreholes, e.g. on sliding blocks.

‐ incl. screw
‐ burnished
‐ with hexagon socket (Size 10)



Item No.:  280741
Spacer Ring for Magnetic Bolt ‐ burnished
Height (c)45 mm /Weight 0.21 kg /Diameter 40 mm

Product description
With the clamping bushing for M16 threads, Siegmund components can be attached to threaded boreholes, e.g. on sliding blocks.

‐ incl. screw
‐ burnished
‐ with hexagon socket (Size 14)



Item No.:  280741.C
Spacer Ring for Magnetic Bolt ‐ Chromed
Height (a)25 mm /Weight 0.12 kg /Diameter 40mm

Product description Spacer Sleave, is specially developed for applications that require space between two clamping elements. For example, it enables using a long clamping bolt instead of a short one.

‐ Chromed Delivery time approx. 10 weeks
