System 28 Bolts - Templates

  • Sale
  • Regular price $143.00
Shipping calculated at checkout.



The range of Siegmund System 28 Bolts are compatible with any 28mm fixture table. Manufactured in Germany, all bolts are made to be of the best quality on the market.  Siegmund tooling will stand up to any test.





SIEGMUND SYSTEM 28 BOLTS



Technical Data:

Item No.: 2-280516

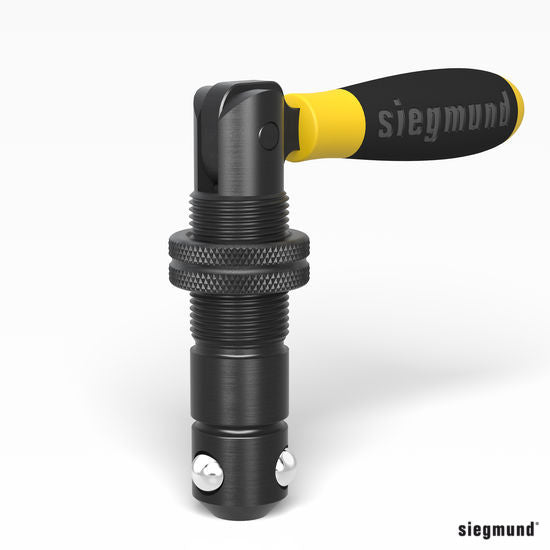

Fast Clamping Bolt with handle ‐ burnished
Length (a) 235mm /Weight 0.63 kg   /Diameter 28 mm
Shearing Force 220 kN /Tensile Force 25kN

Product description
The fast clamping bolt with the handle offers rapid clamping without tools.

The position of the handle is adjustable between 33 mm and 60 mm.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!
‐ burnished

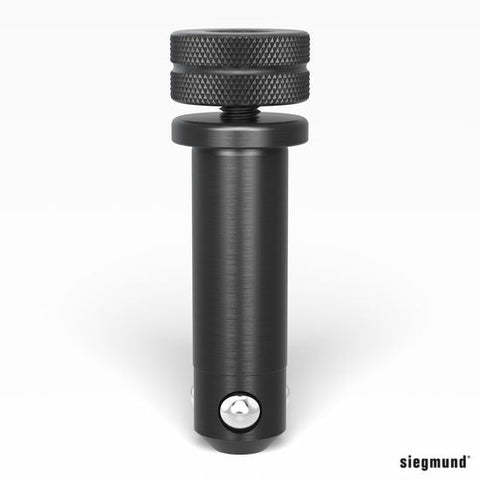

Item No.: 2-280532

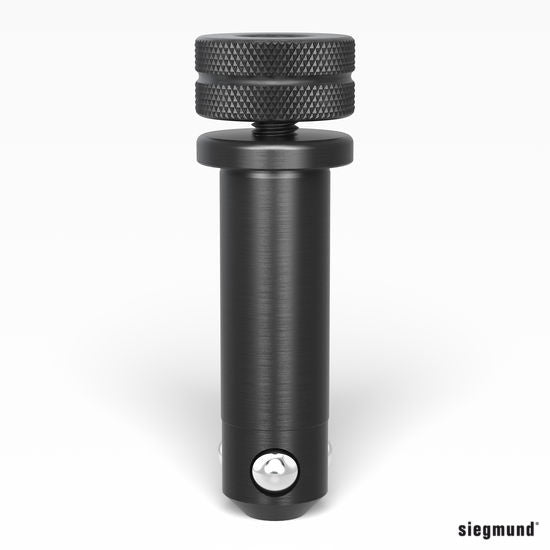

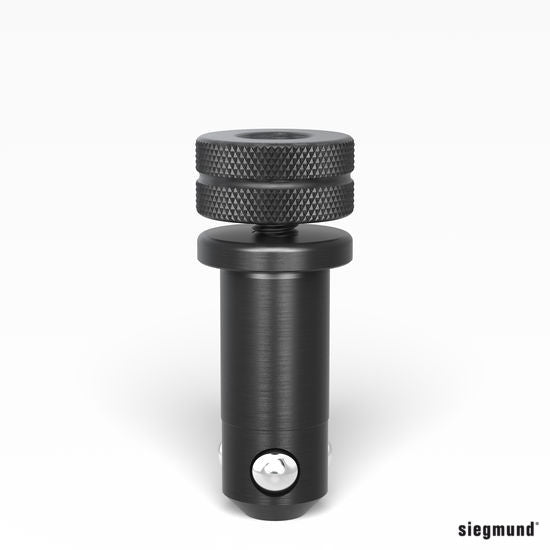

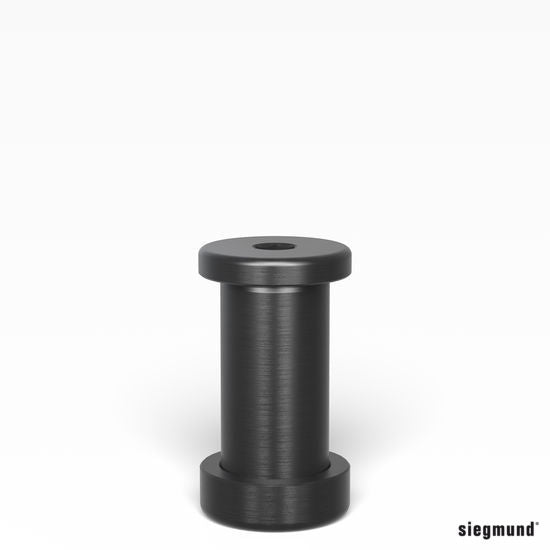

Universal Bolt Comfort short ‐ burnished
Length (a)100 mm /Weight 0.6 kg /Diameter 28 mm
Shearing Force200 kN /Tightening Torque Steel 25 Nm /Tightening Torque Aluminum 10 Nm /Tensile Force 25 kN

Product description
Burnished Universal Bolt (locking bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 45 to 53 mm. The long Universal Bolt has a clamping range of 70 to 78 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 14 (Item No. 280854).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 2 components
‐ burnished
‐ with hexagon socket (Size 14)




Item No.: 2-280533

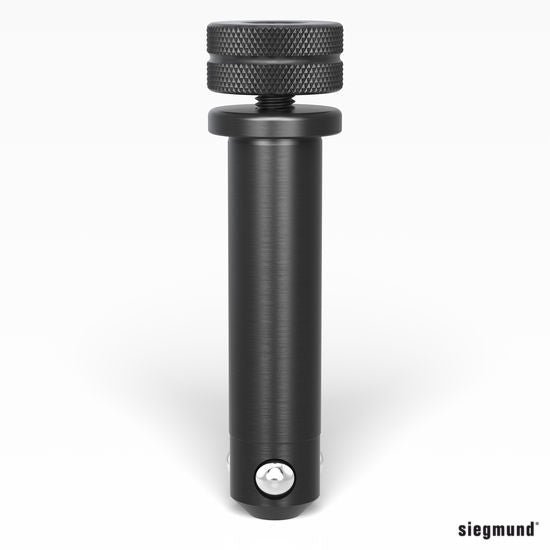

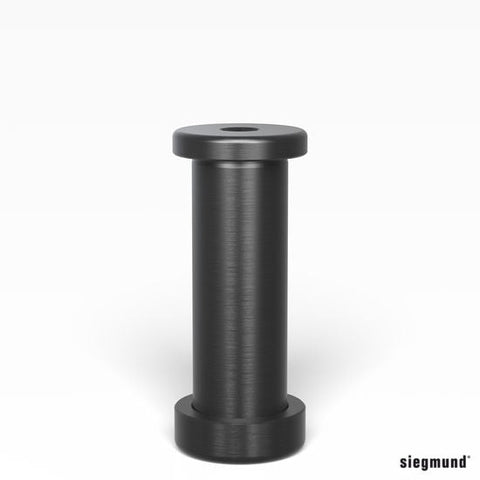

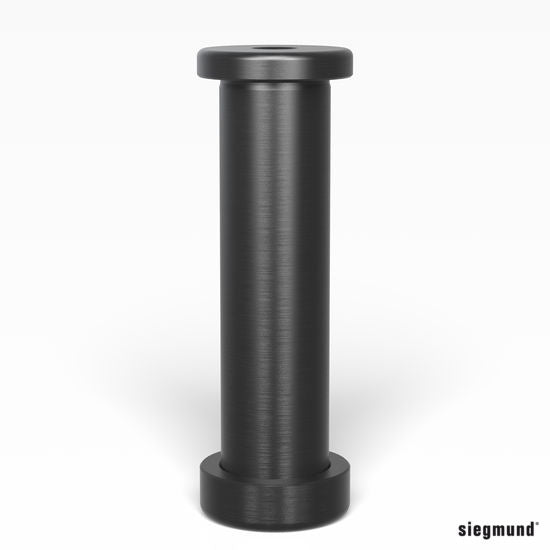

Universal Bolt Comfort long ‐ burnished
Length (a )125 mm /Weight 0.7 kg /Diameter 28 mm /Shearing Force 220 kN /Tightening Torque Steel 25 Nm
Tightening Torque Aluminum 10 Nm /Tensile Force 10 kN

Product description
Burnished Universal Bolt (locking bolt), perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 45 to 53 mm. The long Universal Bolt has a clamping range of 70 to 78 mm. The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the borehole.

The Universal Bolt is clamped with the integrated handwheel or with a hex wrench 14 (Item No. 280854).

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Clamping torque dependent on table type.

‐ for clamping 3 components
‐ burnished
‐ with hexagon socket (Size 14)

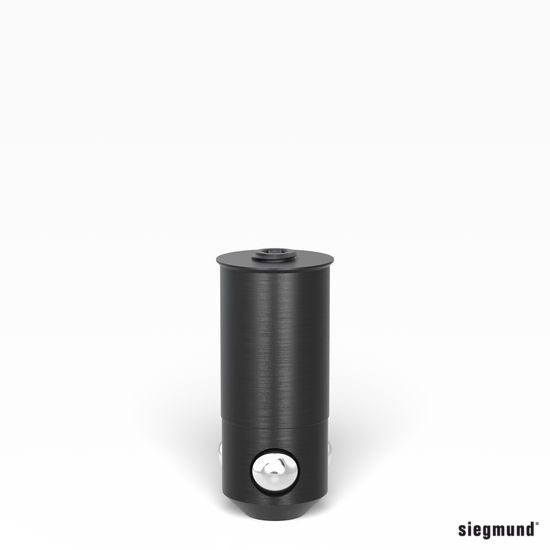

Item No.: 2-280540

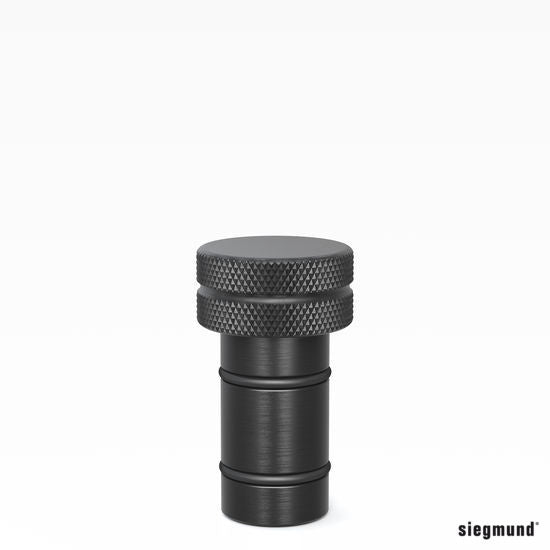

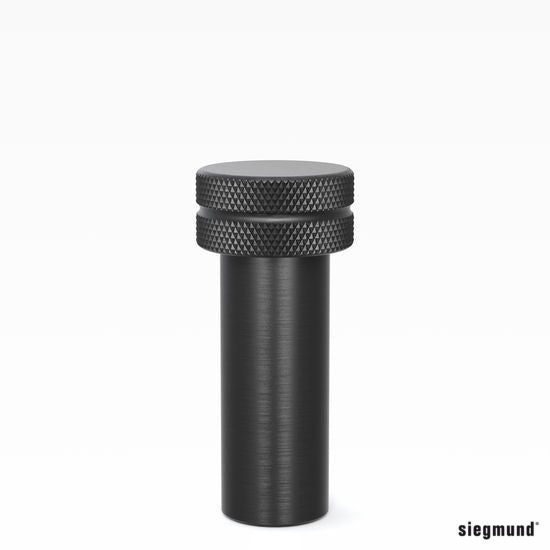

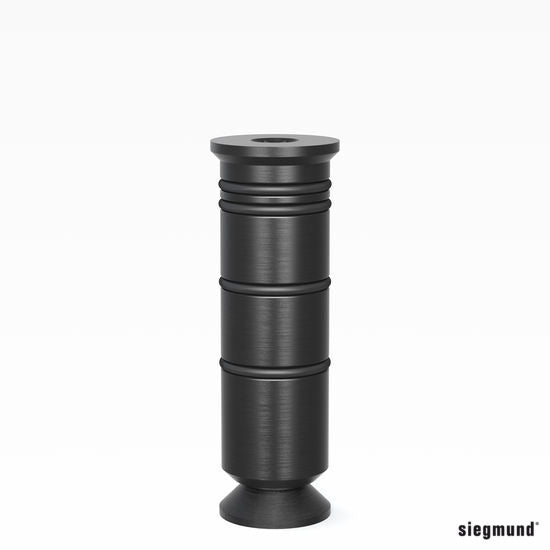

Positioning Bolt ‐ burnished
Length (a) 70mm /Weight 0.4 kg /Diameter 28 mm

Product description Positioning Bolt, serves as an adjustment tool for squares that only require a clamping bolt for fastening, in order to cost-effectively substitute for a second clamping bolt. In addition, various squares can be formed by spading, e.g. 90° or 45°.

This picture shows an application example of a customer generated template.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

‐ burnished

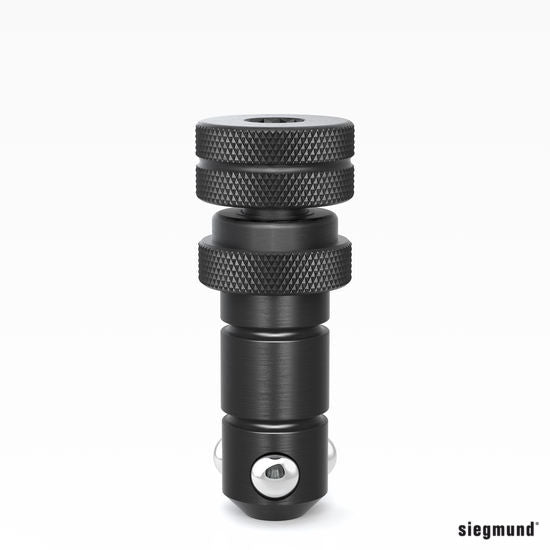

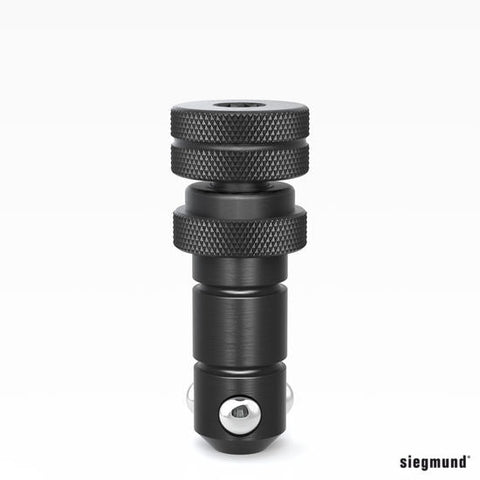

Item No.: 2-280571

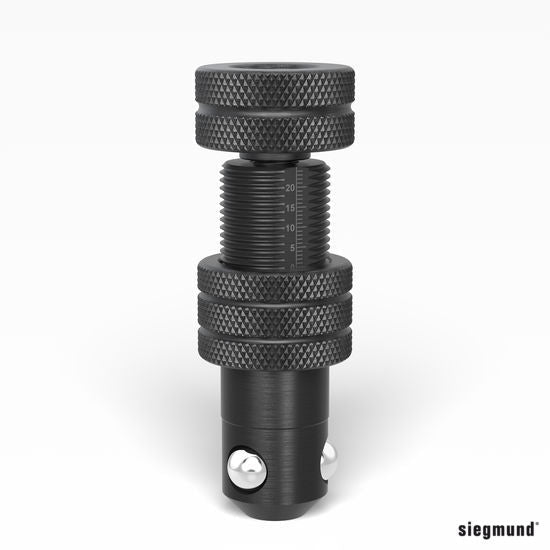

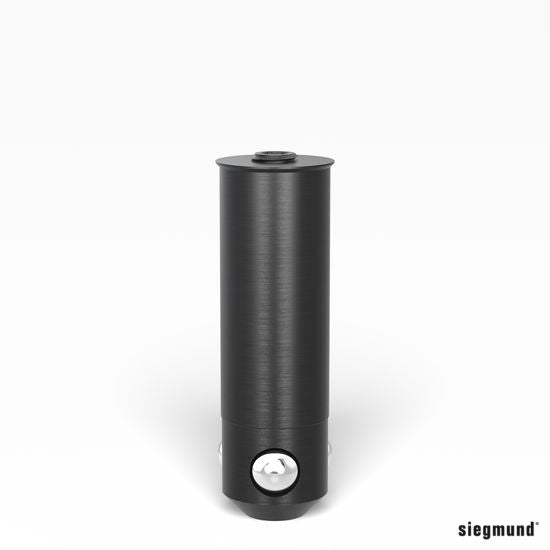

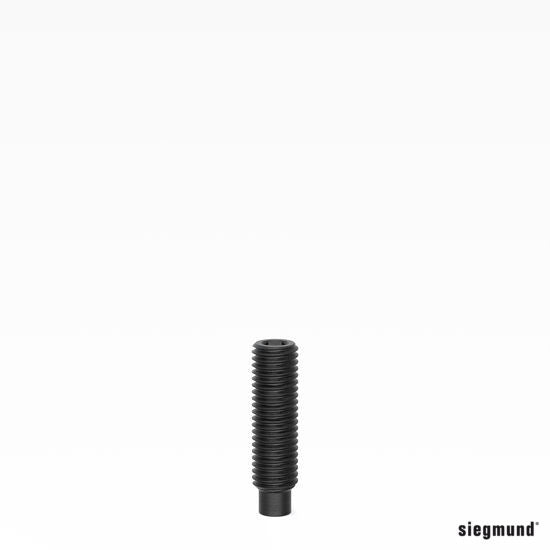

Fast Clamping Bolt adjustable without slot short ‐ burnished
Length (a)115 mm /Weight 0.67 kg /Diameter 28 mm /Shearing Force220 kN /Tightening Torque Steel 25 Nm /Tightening Torque Aluminum 10 Nm /Tensile Force 25 kN

Product description
Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

The clamping height is individually adjusted by a rotating a knurled thimble ring.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Suitable for aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 2 components
‐ burnished
‐ Clamping dimension 25 – 50 mm
‐ with screw top
‐ with hexagon socket (Size 6)



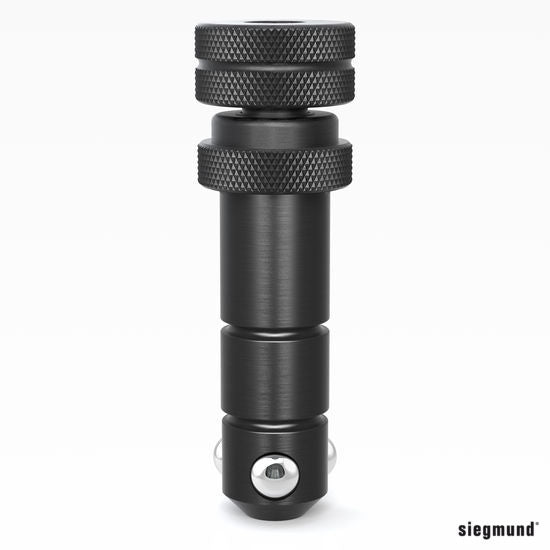

Item No.: 2-280573

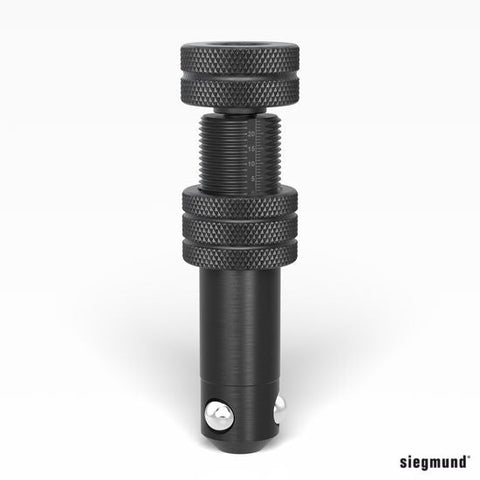

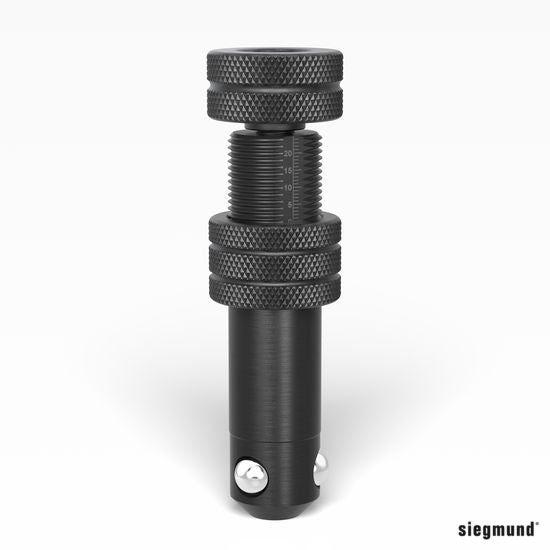

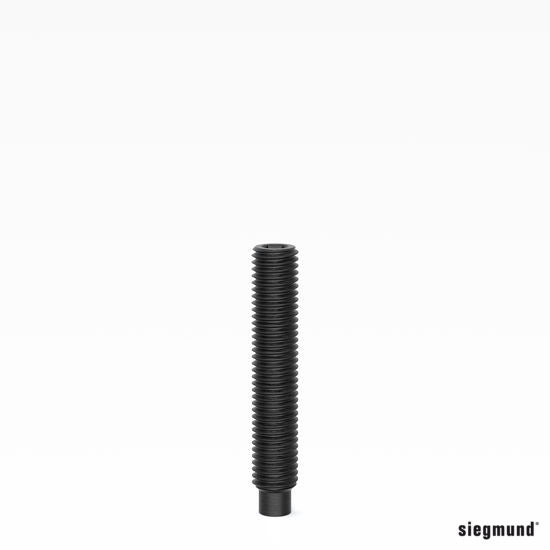

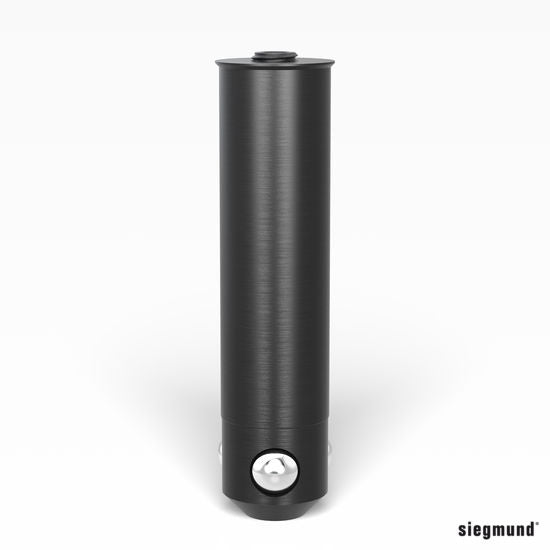

Fast Clamping Bolt adjustable without slot long ‐ burnished
Length (a)140 mm  /Weight 0.83 kg /Diameter28 mm /
Shearing Force 220 kN /Tightening Torque Steel 25 Nm
Tightening Torque Aluminum10 Nm /Tensile Force25 kN

Product description
Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

The clamping height is individually adjusted by a rotating a knurled thimble ring.

Note: This bolt MUST NOT be used for connecting tables and U-shaped squares!

Suitable for aluminum profiles.
Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

‐ for clamping 3 components
‐ burnished
‐ Clamping dimension 50 – 75 mm
‐ with screw top
‐ with hexagon socket (Size 6)
