Siegmund System 28 Clamps - Professional Clamps

  • Sale
  • Regular price $190.00
Shipping calculated at checkout.



Siegmund offers a variety of System 28 Clamps. The line of Professional Clamps are compatible with 16mm fixture tables. Manufactured in Germany, Siegmund's tooling is made with the highest quality standards on the market. Choose Siegmund and take on any job with confidence.

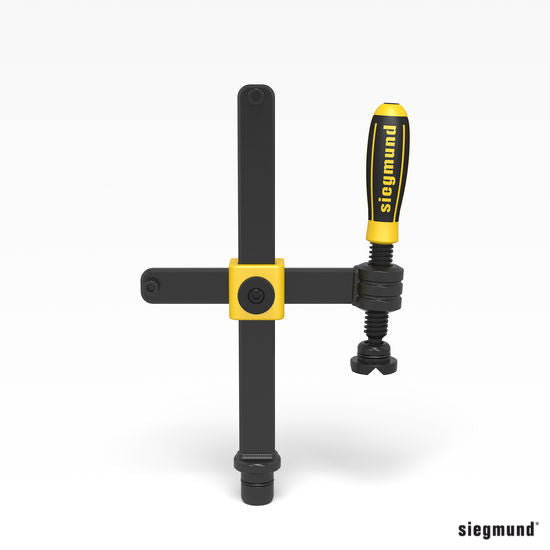

SIEGMUND SYSTEM 28 PROFESSIONAL CLAMPS



Technical Data:

Item No.:  280610.N
Professional Screw Clamp ‐ nitrided
Width (b) 220 mm /Height (c) 310 mm /Weight 2.7 kg /Max. holding force 5 kN

Product description
Professional Screw Clamp, enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lenghts of horizontal and vertical bars. The dimensions of the horizontal bar are 30x10 mm. The dimensions of the vertical bar are 30x14 mm. Additionally, the vertical bar is reinforced.

A long lifetime and efficiency is guaranteed by the nitrided material, as well as the option to order spare parts individually.

With the new handwheel on the cast-iron cross, the height can be adjusted within seconds.
Due to the hexagon socket insert, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque-limiting wrench.
‐ nitrided
‐ ball diameter spindle 16 mm



Item No.:   280610.S
Professional Screw Clamp special size

Product description
Professional Screw Clamp, enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lenghts of horizontal and vertical bars. The dimensions of the horizontal bar are 30x10 mm. The dimensions of the vertical bar are 30x14 mm. Additionally, the vertical bar is reinforced.

A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted within seconds.
Due to the hexagon socket insert, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque-limiting wrench.

‐ ball diameter spindle 16 mm


*upon request

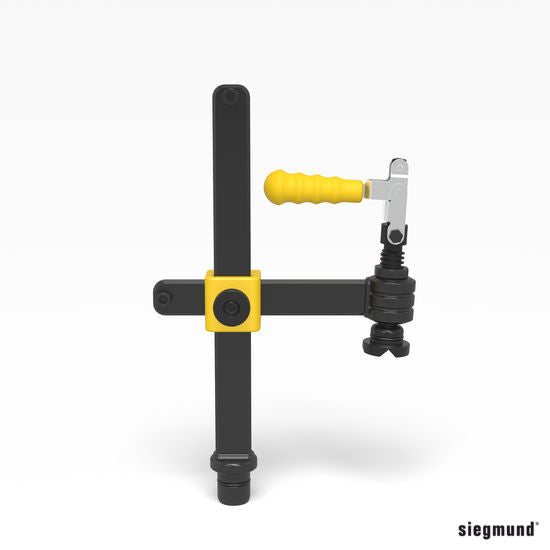

Item No.:  280611.1
Professional Screw Clamp with vertical action toggle
Width (b) 222 mm /Height (c) 310 mm /Weight 3.3 kg
Max. holding force 2.5 kN

Product description
The Professional Screw Clamp with vertical clamp ensures quick and effortless clamping. Maximum clamping stability is achieved as a result of vertical clamping from above. The special feature of this screw clamp is the stronger clamping stroke in comparison to conventional fast tension clamps.

With the handwheel on the cast iron cross, the height can be adjusted quickly. The vertical bar is hardened.

‐ ball diameter spindle 16 mm

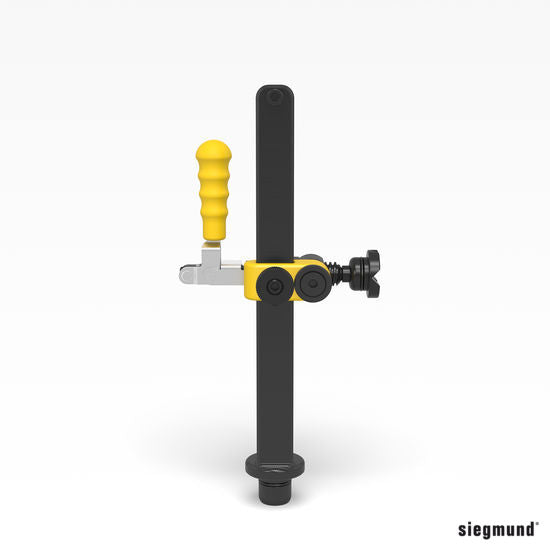

Item No.: 280611.2
Professional Screw Clamp 45°/90° with vertical action toggle
Height (c) 310 mm /Weight 2.2 kg /Max. holding force 2.5 kN

Product description
The Professional Screw Clamp with vertical clamp ensures quick and effortless clamping. Maximum clamping stability is achieved as a result of vertical clamping from above. The special feature of this screw clamp is the stronger clamping stroke in comparison to conventional fast tension clamps.

With the handwheel on the cast iron cross, the height can be adjusted quickly. The vertical bar is hardened.

‐ ball diameter spindle 16 mm

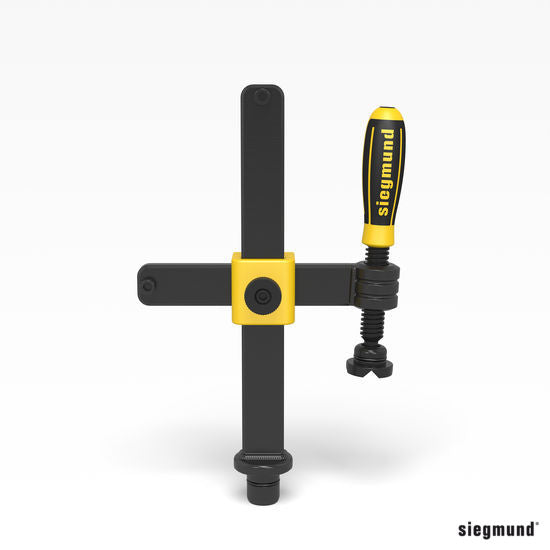

Item No.:   280612.N
Professional Screw Clamp XL ‐ nitrided
Width (b) 240 mm /Height (c) 310 mm
Weight3,4 kg /Max. holding force7 kN

Product description
The Professional Screw Clamp XL was especially designed for tasks that require special effort.

The horizontal and vertical bar is available in various lengths. The dimensions of the flat bar in use are 35x14 mm.

A long lifetime and efficiency is guaranteed by the material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.
Due to the countersunk hexagon socket, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque wrench.

‐ nitrided
‐ ball diameter spindle 16 mm



Item No.:   280612.S
Professional Screw Clamp XL special size

Product description
The Professional Screw Clamp XL was specially designed for tasks that require special effort.

The horizontal and vertical bar is available in various lengths. The dimensions of the flat bar in use are 35x14 mm.

A long lifetime and efficiency is guaranteed by the material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.
Due to the countersunk hexagon socket, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque wrench.

‐ ball diameter spindle 16 mm


*upon request

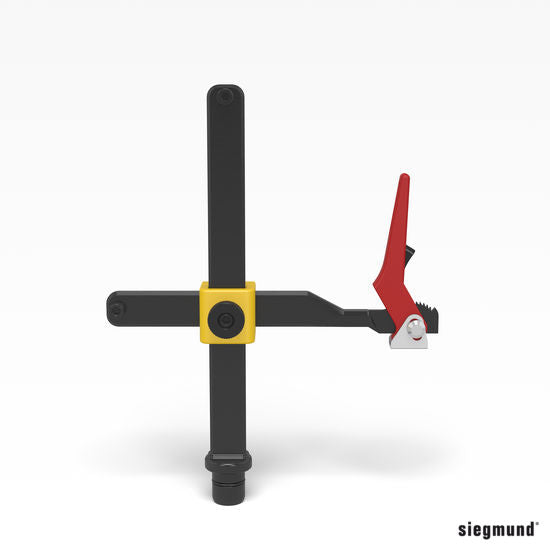

Item No.:  280615.N
Professional Fast Tension Clamp ‐ nitrided
Width (b) 275 mm /Height (c) 310 mm /Weight 2 kg /Max. holding force5 kN

Product description
The Professional Fast Tension Ratchet Clamp is used to clamp welding parts quickly and powerfully. The force can be set individually with the grating.

A long lifetime and efficiency is guaranteed by the nitrided material, as well as the possiblity to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.

‐ nitrided



Item No.: 2-280615.S
Professional Fast Tension Clamp special size

Product description
The Professional Fast Tension Ratchet Clamp is used to clamp welding parts quickly and powerfully. The force can be set individually with the grating.

A long lifetime and efficiency is guaranteed by the nitrided material, as well as the possiblity to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.

‐ ball diameter spindle 16 mm

*upon request

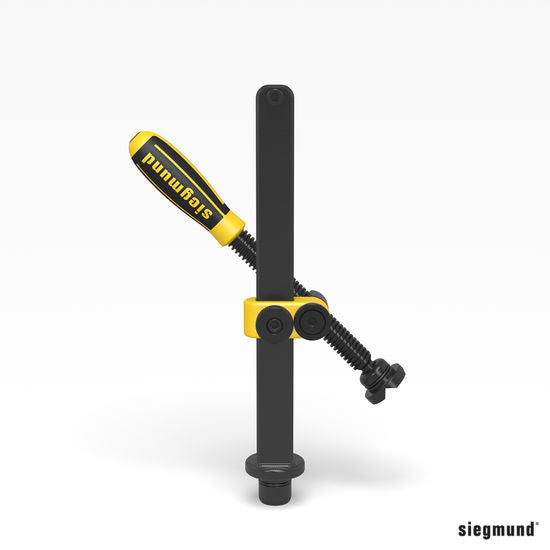

Item No.:   280630.N
Professional Screw Clamp 45°/90° ‐ nitrided
Height (c) 310 mm /Weight 2.3 kg /Max. holding force 5 kN

Product description
The Professional Screw Clamp 45°/90° replaces conventional 45° or 90° screw clamps. This Screw Clamp sets new standards because of its infinitely variable rotatability from 0°-360°.

The dimensions of the flat bar in use are 30x14 mm.

A long lifetime and efficiency is guaranteed by the nitrided material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.
Through the countersunk hexagon socket, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque wrench. Additionally, the vertical bar is reinforced.

‐ nitrided
‐ ball diameter spindle 16 mm



Item No.:   280630.S
Professional Screw Clamp 45°/90° special size

Product description
The Professional Screw Clamp 45°/90° replaces conventional 45° or 90° screw clamps. This Screw Clamp sets new standards because of its infinitely variable rotatability from 0°-360°.

The dimensions of the flat bar in use are 30x14 mm.

A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order spare parts individually.

With the new handwheel on the cast iron cross, the height can be adjusted quickly.
Through the countersunk hexagon socket, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque wrench. Additionally, the vertical bar is reinforced.

‐ ball diameter spindle 16 mm

*upon request



Items marked *upon request are available upon request only. Please contact us for details.
