Siegmund - System 28 - Multi Clamp Tower

  • Sale
  • Regular price $80.00
Shipping calculated at checkout.


Siegmund's System 28 Clamps are compatible with any 28mm fixture table. Made with the highest quality assurance, Siegmund's German-made tooling will stand up to any test!



SIEGMUND SYSTEM 28 SUPPORTS

The Prism is designed for large pipes with a diameter. Above all, it creates a solid support surface for round pipes. The prism with a screwed-in collar can be fastened in the boreholes and securely fixed. For free positioning of the prism independent of the hole grid, you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension. Polyamide Prisms are used for scratch-prone surfaces.


Technical Data:

Item No.:  280617.5H
Cast Iron Cross incl. Handwheel for 280646 Multi Clamp Tower
Height (c) 56 mm /Weight 1.27 kg /Diameter 80 mm

Product description
Multi Clamp Tower, serves as an extension for various components, such as screw clamps, prisms, spacers and similar elements. Bolts are used to quickly fasten Multi Clamp Towers to tables or other components, creating a sturdy support surface. The table top and compatible vertical pipe are bolted together.

‐ Compatible horizontal bars: 280638, 280638.1.N, 280638.2.N



Item No.:   280646
Plate, Small for Multi Clamp Tower modular
Length (a) 120 mm /Weight 2.23 kg /Width (b)120 mm /Height (c)25 mm

Product description
Multi Clamp Tower, serves as an extension for various components, such as screw clamps, prisms, spacers and similar elements. Bolts are used to quickly fasten Multi Clamp Towers to tables or other components, creating a sturdy support surface. The table top and compatible vertical pipe are bolted together.


Item No.:   280646.1

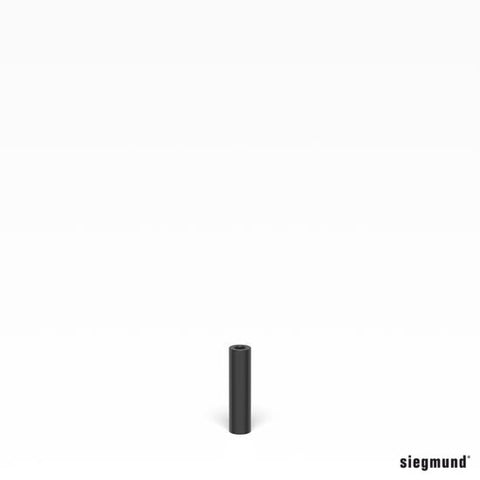

Vertical Pipe 225 for Multi Clamp Tower modular
Height (c)225 mm /Weight 1.7 kg /Diameter 57 mm

Product description
Multi Clamp Tower, serves as an extension for various components, such as screw clamps, prisms, spacers and similar elements. Bolts are used to quickly fasten Multi Clamp Towers to tables or other components, creating a sturdy support surface. The table top and compatible vertical pipe are bolted together.


Item No.: 2-280646.2
Vertical Pipe 475 for Multi Clamp Tower modular
Height (c) 475 mm /Weight 2.94 kg /Diameter 57 mm

Product description
Multi Clamp Tower, serves as an extension for various components, such as screw clamps, prisms, spacers and similar elements. Bolts are used to quickly fasten Multi Clamp Towers to tables or other components, creating a sturdy support surface. The table top and compatible vertical pipe are bolted together.

Item No.:   280646.4
Vertical Pipe 975 for Multi Clamp Tower modular
Height (c)975 mm /Weight 5.54 kg /Diameter 57 mm

Product description
Multi Clamp Tower, serves as an extension for various components, such as screw clamps, prisms, spacers and similar elements. Bolts are used to quickly fasten Multi Clamp Towers to tables or other components, creating a sturdy support surface. The table top and compatible vertical pipe are bolted together.



Item No.:   280646.5
Plate: Large for Multi Clamp Tower modular
Length (a)150 mm /Width (b)100 mm /Weight 2.6 kg /Diameter 80 mm

Product description
Multi Clamp Tower, serves as an extension for various components, such as screw clamps, prisms, spacers and similar elements. Bolts are used to quickly fasten Multi Clamp Towers to tables or other components, creating a sturdy support surface. The table top and compatible vertical pipe are bolted together.
