System 28 Stop & Clamping Square

  • Sale
  • Regular price $823.00
Shipping calculated at checkout.



The Siegmund System 28 Squares - Stop and Clamping Squares are compatible with any 28mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.




SIEGMUND SYSTEM 28 STOP AND CLAMPING SQUARE

Stop and Clamping Square standard with fine-scale serves as an adjustable angle. The combination of system boreholes and the oblong slot facilitates multi-functional use. The additional top plate provides further combination options in connection with other squares, or to incorporate tools like prisms or clamps. Stop and Clamping Squares can be used for a large variety of tasks, such as a table extension for lightweight components. Due to the oblong slot, it can also function as a stop for high elements.

Technical Data:

Item:  280101.N

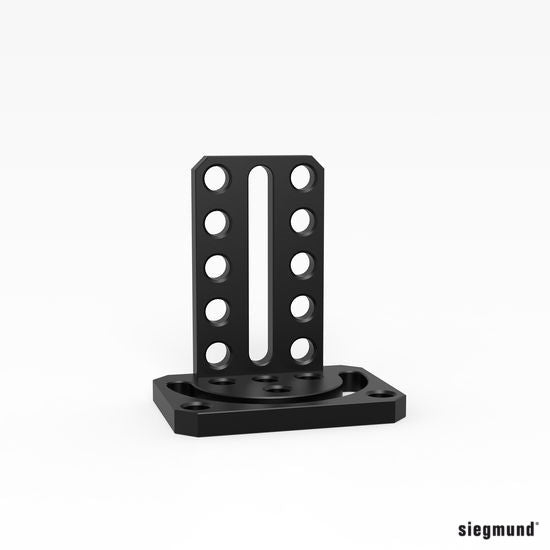

Rotation Angle 275 - nitrided
Length (a): 180 mm /Width (b): 250 mm /Height (c): 275 mm /Weight : 10.2 kg

Product description
The Angle of Rotation allows the infinitely variable adjustment of clamping elements with system boreholes at an angle range of 180°.
Optimal fixation is achieved by using 2 clamping bolts simultaneously.
‐ nitrided



Item:  280105.N

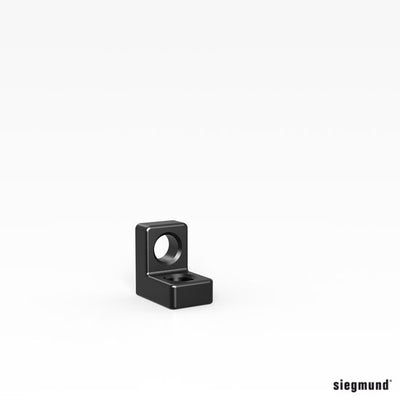

Stop and Clamping Square 75 L - nitrided
Length (a): 75 mm/Width (b): 50 mm /Height (c): 75 mm
Material thickness (d): 25 mm /Weight : 1 kg

Product description
Stop and Clamping Square 75 L, serves as a fixed square for large profiles. In addition it is compatible with other squares. A height-adjustable support surface can be created, by combining it with a Stop and Clamping Square with elongated hole, e.g. 175 WL (Item No. 280111.N).

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

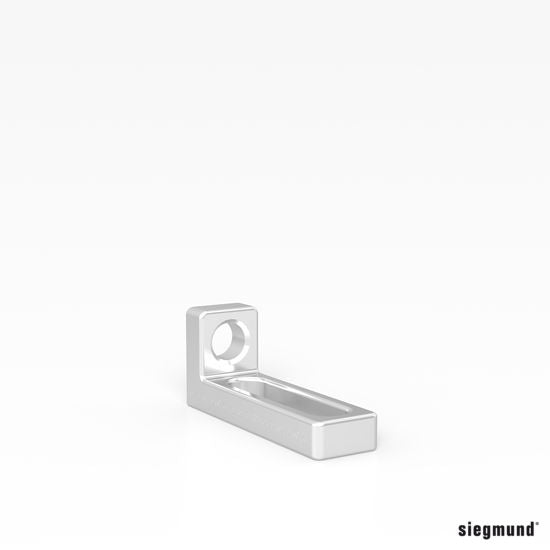

Item:  280105.C
Stop and Clamping Square 75 L - chromed
Length (a): 75 mm/Width (b): 50 mm /Height (c): 75 mm
Material thickness (d): 25 mm /Weight : 1 kg

Product description
Stop and Clamping Square 75 L, serves as a fixed square for large profiles. In addition it is compatible with other squares. A height-adjustable support surface can be created, by combining it with a Stop and Clamping Square with elongated hole, e.g. 175 WL (Item No. 280111.N).

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.



Item:  280107.N
Mounting Square - nitrided
Length (a): 75 mm/Width (b): 150 mm/Height (c): 75 mm
Material thickness (d): 25 mm/Weight : 2.9 kg

Product description
Mounting Square, can be used as a stop or angle element, as well as attaching additional squares. It can also be used to connect welding tables with support- and foundation rails. For this application countersunk bolts (Item No. 280528) or fast clamping bolts (Item No. 280510) are recommended.
‐ nitrided



Item:  280109.C
Stop and Clamping Square 175 SL - chromed
Length (a): 175 mm/Width (b): 50 mm /Height (c): 75 mm
Material thickness (d): 25 mm /Weight : 1.4 kg

Product description
Stop and Clamping Square 175 SL / 175 ML, can be used as a stop for large sections. In addition, it is compatible with other squares and can provide a height adjustable surface by clamping it into the elongated hole.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.



Item:  280109.N
Stop and Clamping Square 175 SL - nitrided
Length (a): 175 mm/Width (b): 50 mm /Height (c): 75 mm
Material thickness (d): 25 mm /Weight : 1.4 kg

Product description
Stop and Clamping Square 175 SL / 175 ML, can be used as a stop for large sections. In addition, it is compatible with other squares and can provide a height adjustable surface by clamping it into the elongated hole.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

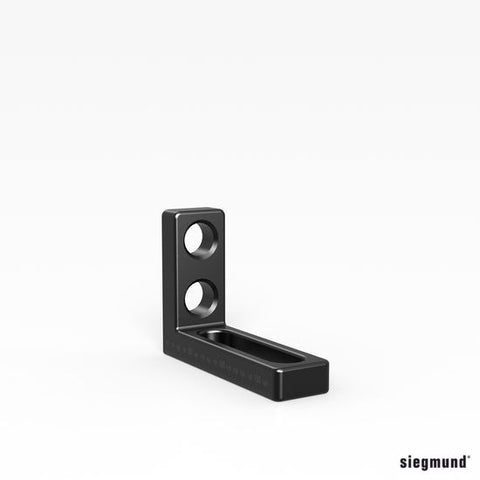

Item:  280109.1.N
Stop and Clamping Square 175 ML - nitrided
Length (a): 175 mm /Width (b): 50 mm /Height (c): 125 mm
Material thickness (d): 25 mm /Weight : 1.8 kg

Product description
Stop and Clamping Square 175 SL / 175 ML, can be used as a stop for large sections. In addition, it is compatible with other squares and can provide a height adjustable surface by clamping it into the elongated hole.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ nitrided
‐ Standard with fine scaling on both sides

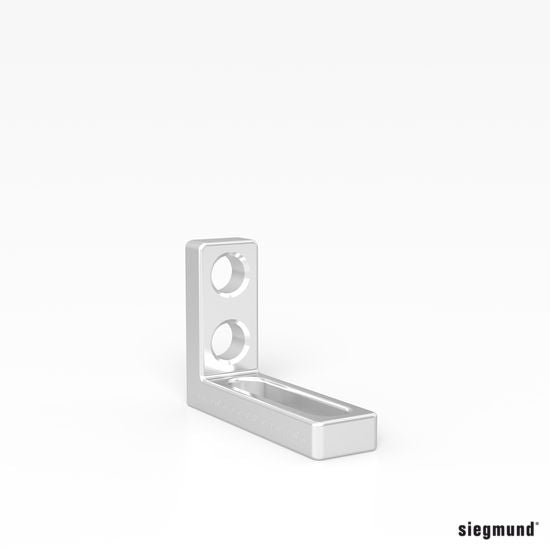

Item:  280109.1.C
Stop and Clamping Square 175 ML - chromed
Length (a): 175 mm /Width (b): 50 mm /Height (c): 125 mm
Material thickness (d): 25 mm /Weight : 1.8 kg

Product description
Stop and Clamping Square 175 SL / 175 ML, can be used as a stop for large sections. In addition, it is compatible with other squares and can provide a height adjustable surface by clamping it into the elongated hole.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ Standard with fine scaling on both sides



Item:  280110.N
Stop and Clamping Square 175 L - nitrided
Length (a): 175 mm /Width (b): 50 mm/Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 1.95 kg

Product description
Stop and Clamping Square 175 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated hole. A height-adjustable support can be created, by combining the Stop and Clamping Square 75 L (Item No. 280105.N) and the Stop and Clamping Square 175 SL (Item No. 280109.N). This component also functions well as a stop for large parts.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole
‐ nitrided
‐ Standard with fine scaling on both sides

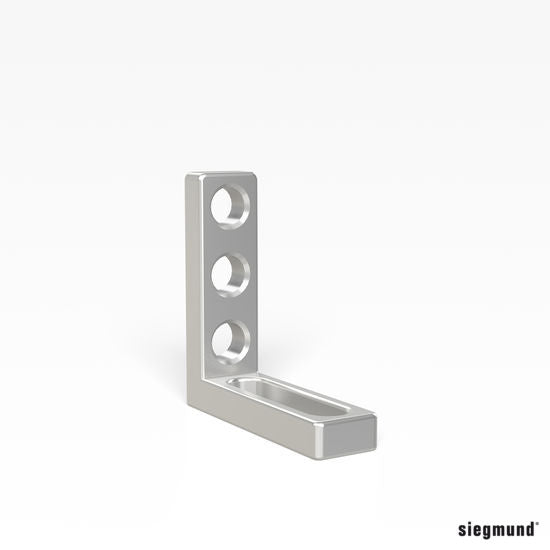

Item:  280110.A
Stop and Clamping Square 175 L - aluminum
Length (a): 175 mm /Width (b): 50 mm/Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 0.08 kg

Product description
Stop and Clamping Square 175 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated hole. A height-adjustable support can be created, by combining the Stop and Clamping Square 75 L (Item No. 280105.N) and the Stop and Clamping Square 175 SL (Item No. 280109.N). This component also functions well as a stop for large parts.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole



Item:  280110.C

Stop and Clamping Square 175 L - chromed
Length (a): 175 mm /Width (b): 50 mm/Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 2.1 kg

Product description
Stop and Clamping Square 175 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated hole. A height-adjustable support can be created, by combining the Stop and Clamping Square 75 L (Item No. 280105.N) and the Stop and Clamping Square 175 SL (Item No. 280109.N). This component also functions well as a stop for large parts.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole
‐ Chromed Delivery time approx. 10 weeks



Item:  280110.G
Stop and Clamping Square 175 L - burnished
Length (a): 175 mm /Width (b): 50 mm/Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 1.9 kg

Product description
Stop and Clamping Square 175 L, can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated hole. A height-adjustable support can be created, by combining the Stop and Clamping Square 75 L (Item No. 280105.N) and the Stop and Clamping Square 175 SL (Item No. 280109.N). This component also functions well as a stop for large parts.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ borehole / elongated hole
‐ burnished


Item:  280111.N
Stop and Clamping Square 175 WL - nitrided
Length (a): 175 mm /Width (b): 50 mm/Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 1.8 kg

Product description
Stop and Clamping Square 175 WL (Item No. 280111.N), with two elongated holes that enable a range of adjustable options.
‐ elongated hole / elongated hole 100
‐ nitrided
‐ flexible in any direction



Item:  280112.N

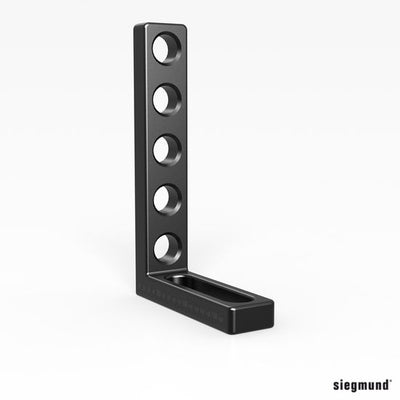

N Stop and Clamping Square 275 L - nitrided
Length (a): 175 mm/Width (b): 50 mm /Height (c): 275 mm
Material thickness (d): 25 mm /Weight : 2.8 kg

Product description
Stop and Clamping Square 275 L, used as a cast iron square and table extension for light-weight parts. The elongated hole also functions as an adjustable stop for high components.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ nitrided
‐ Standard with fine scaling on both sides



Item:  280113.N
Stop and Clamping Square 175 VL - nitrided
Length (a): 175 mm /Width (b): 50 mm /Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 2.4 kg

Product description
Stop- and Clamping Square 175 VL (Item No. 280113.N), with both-sided boreholes, can be used as a support bracket. By connecting it with the Stop- and Clamping Square 75 L (Item No. 280105.N) and the Stop- and Clamping Square 175 SL (Item No. 280109.N), it can be utilized as a height-adjustable support.
‐ borehole / borehole
‐ nitrided


Item:  280114.N
Stop and Clamping Square 200 L - nitrided
Length (a): 175 mm/Width (b): 50 mm /Height (c): 200 mm
Material thickness (d): 25 mm /Weight : 2.71 kg

Product description
Stop and Clamping Square 200 L, adjustable square for a multitude of applications, due to the combination of system boreholes and elongated hole. The additional head plate enables further combination options: In connection with other squares or as intake for tools like prisms or clamps.
‐ nitrided
‐ Standard with fine scaling on both sides



Item:  280115.N
Stop and Clamping Square 275 WL - nitrided
Length (a): 275 mm /Width (b): 50 mm/Height (c): 175 mm
Material thickness (d): 25 mm /Weight : 2.5 kg

Product description
Stop- and Clamping Square 275 WL (Item No. 280115.N), can be utilized as a multifunctional adjustable angle, by combining system boreholes and elongated hole.
It can also be used as a stop, particularly for large parts.
‐ borehole / elongated hole 200
‐ nitrided

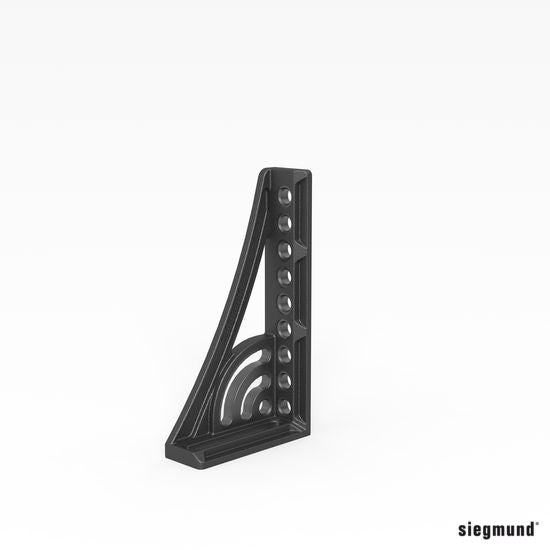

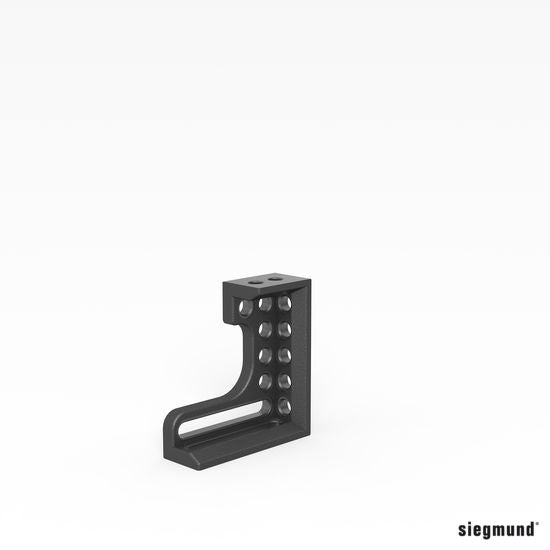

Item:  280124.N
Stop and Clamping Square 300 GK left - nitrided
Length (a): 280 mm /Width (b): 95 mm /Height (c): 300 mm
Material thickness (d): 27 mm/ Weight : 12.9 kg

Product description
Stop and Clamping Squares 300 GK / 500 GK, facilitates a multitude of clamping options due to its three-dimensionality. It was especially designed for use with heavy components and can be used as a Stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on left
‐ nitrided
‐ standard with fine scale



Item:  280126.N
Stop and Clamping Square 300 GK right - nitrided
Length (a): 280 mm /Width (b): 95 mm /Height (c): 300 mm
Material thickness (d): 27 mm /Weight : 12.9 kg

Product description
Stop and Clamping Squares 300 GK / 500 GK, facilitates a multitude of clamping options due to its three-dimensionality. It was especially designed for use with heavy components and can be used as a Stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on right
‐ nitrided
‐ standard with fine scale



Item:  280130.N
Stop and Clamping Square 500 GK left - nitrided
Length (a): 280 mm /Width (b): 95 mm /Height (c): 500 mm
Material thickness (d): 27 mm /Weight : 17.5 kg

Product description
Stop and Clamping Squares 300 GK / 500 GK, facilitates a multitude of clamping options due to its three-dimensionality. It was especially designed for use with heavy components and can be used as a Stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on left
‐ nitrided
‐ standard with fine scale



Item:  280132.N

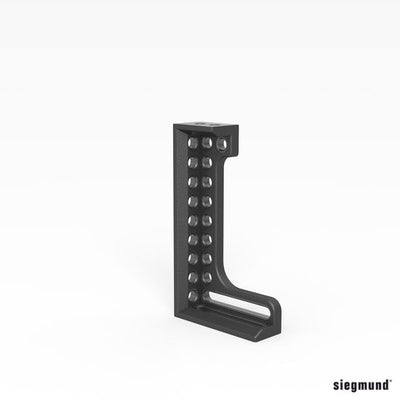

Stop and Clamping Square 500 GK right - nitrided
Length (a): 280 mm/Width (b): 95 mm/Height (c): 500 mm
Material thickness (d): 27 mm /Weight : 17.5 kg

Product description
Stop and Clamping Square 500 GK, opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on right
‐ nitrided
‐ standard with fine scale

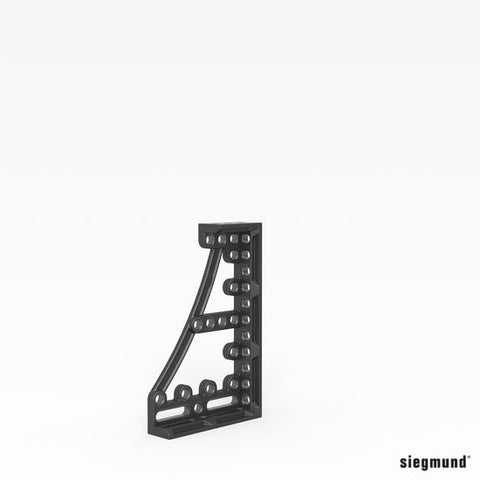

Item:  280134.N
Stop and Clamping Square 600 GK left - nitrided
Length (a): 376 mm/Width (b): 95 mm/Height (c): 600 mm
Material thickness (d): 27 mm/Weight : 22.5 kg

Product description
Stop and Clamping Square 600 GK / 800 GK, enables a multitude of clamping options, due to its three-dimensionality. It was specifically designed for work with heavy parts, and can be used as a stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on left
‐ nitrided
‐ standard with fine scale



Item:  280136.N

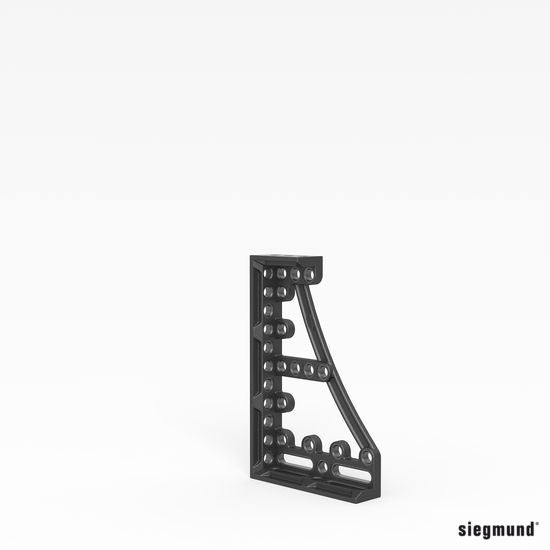

Stop and Clamping Square 600 GK right - nitrided
Length (a): 376 mm/Width (b): 95 mm/Height (c): 600 mm
Material thickness (d): 27 mm/Weight : 22.5 kg

Product description
Stop and Clamping Square 600 GK / 800 GK, enables a multitude of clamping options, due to its three-dimensionality. It was specifically designed for work with heavy parts, and can be used as a stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on right
‐ nitrided
‐ standard with fine scale

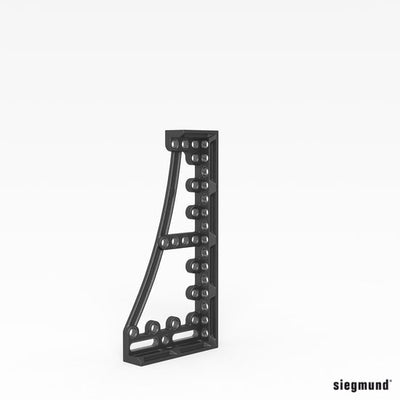

Item:  280144.N
Stop and Clamping Square 800 GK left - nitrided
Length (a): 376 mm/Width (b): 95 mm /Height (c): 800 mm
Material thickness (d): 27 mm / Weight : 27 kg

Product description
Stop and Clamping Square 600 GK / 800 GK, enables a multitude of clamping options, due to its three-dimensionality. It was specifically designed for work with heavy parts, and can be used as a stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
‐ stop on left
‐ nitrided
‐ standard with fine scale



Item:  280146.N
Stop and Clamping Square 800 GK right - nitrided
Length (a): 376 mm /Width (b): 95 mm /Height (c): 800 mm
Material thickness (d): 27 mm /Weight : 27 kg

Product description
Stop and Clamping Square 600 GK / 800 GK, enables a multitude of clamping options, due to its three-dimensionality. It was specifically designed for work with heavy parts, and can be used as a stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.

‐ stop on right
‐ nitrided
‐ standard with fine scale



Item: 280152.N
Stop and Clamping Square 300 G - nitrided
Length (a): 200 mm/Width (b): 75 mm/Height (c): 300 mm
Material thickness (d): 27 mm /Weight : 6.52 kg

Product description
Stop and Clamping Square 300 G, fixed and variably adjustable due to the combination of system boreholes and elongated hole. It can be used versatilely e.g. as table extension. This element is manufactured of high quality GGG40 ductile cast iron.
‐ stop on left
‐ nitrided



Item:  280162.N

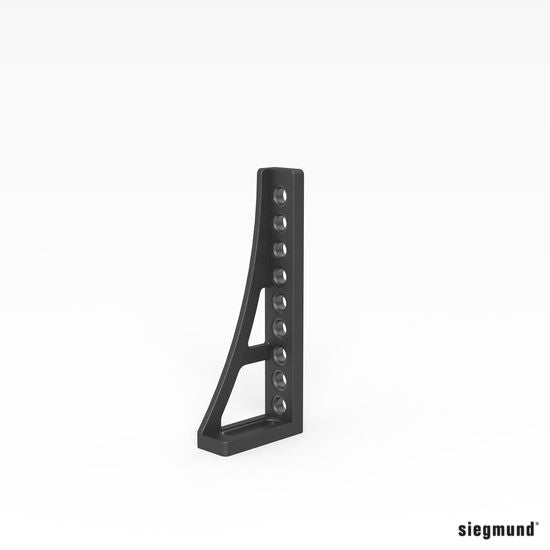

Stop and Clamping Square 500 G - nitrided
Length (a): 200 mm/Width (b): 75 mm/Height (c): 300 mm
Material thickness (d): 27 mm /Weight : 6.52 kg

Product description
Stop and Clamping Square 300 G, fixed and variably adjustable due to the combination of system boreholes and elongated hole. It can be used versatilely e.g. as a table extension. This element is manufactured of high-quality GGG40 ductile cast iron.
‐ stop on left
‐ nitrided



Item No.: 2-280164.N
Stop and Clamping Square 500 G with rotation angle left ‐ nitrided
Length (a)276 mm /Width (b)95 mm /Height (c)500 mm
Material thickness (d)27 mm /Weight 11.5 kg

Product description
Stop and Clamping Square 500 G, can be fixed and variably adjusted due to the combination of system boreholes and the elongated hole. The versatile Square can also be used as a table extension. This component is manufactured of high-quality GGG40 ductile cast iron.

‐ stop on left
‐ nitrided
‐ standard with fine scale



Item No.:  280165.N
Stop and Clamping Square 500 G with rotation angle right ‐ nitrided
Length (a)276 mm /Width (b)95 mm /Height (c)500 mm
Material thickness (d)27 mm /Weight 11.5 kg

Product description
Stop and Clamping Square 500 G, can be fixed and variably adjusted due to the combination of system boreholes and the elongated hole. The versatile Square can also be used as table extension. This component is manufactured of high quality GGG40 ductile cast iron.

‐ stop on right
‐ nitrided
‐ standard with fine scale



Item No.:   280166.N

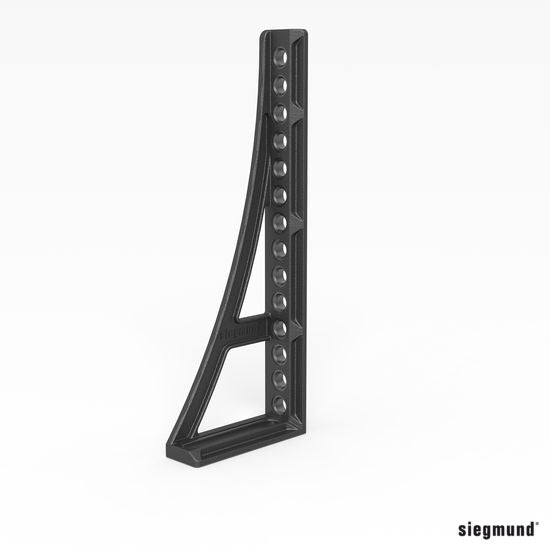

Stop and Clamping Square 750 G left ‐ nitrided
Length (a) 276 mm /Width (b)85 mm /Height (c) 750 mm
Material thickness (d) 27 mm /Weight 13.6 kg

Product description
Stop and Clamping Square 300 G / 500 G / 750 G, can be fixed and variably adjusted due to the combination of system boreholes and the elongated hole. The versatile Square can also be used as table extension. This component is manufactured of high quality GGG40 ductile cast iron.
‐ stop on left
‐ nitrided
‐ standard with fine scale



Item No.:  280167.N

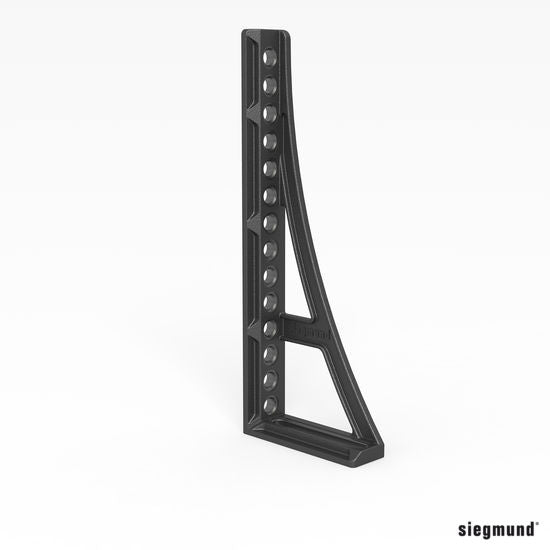

Stop and Clamping Square 750 G right ‐ nitrided
Length (a) 276 mm /Width (b) 85 mm /Height (c) 750 mm
Material thickness (d) 27 mm /Weight 13.6 kg

Product description
Stop and Clamping Square 300 G / 500 G / 750 G, can be fixed and variably adjusted due to the combination of system boreholes and the elongated hole. The versatile Square can also be used as table extension. This component is manufactured of high quality GGG40 ductile cast iron.
‐ stop on right
‐ nitrided
‐ standard with fine scale
