System 28 Universal Stops

  • Sale
  • Regular price $53.00
Shipping calculated at checkout.


The Siegmund System 28 Universal Stops are compatible with any 28mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.




SIEGMUND SYSTEM 28 UNIVERSAL STOPS

Universal Stop serves as an expansion to the stop surface. Further fixed or variable stop options are created, due to the triple system boreholes and the oblong slot.

Technical Data:

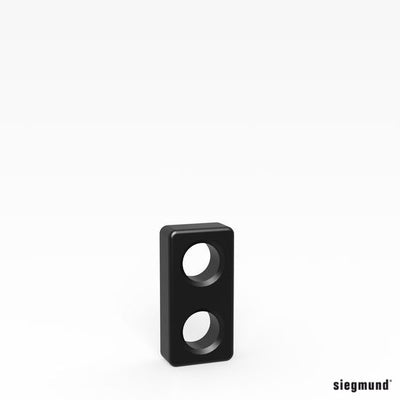

Item:  280407.N
Universal Stop 100 - nitrided
Length - 100 mm /Weight - 0.75 kg

Product Description
Universal Stop, is firmly fixable through system boreholes and is available in different lengths. The distance between the boreholes is 50 mm.

Chromed version available for work on measuring tables, working with aluminum, and for TIG-welding.
‐ 2 system boreholes
‐ nitrided

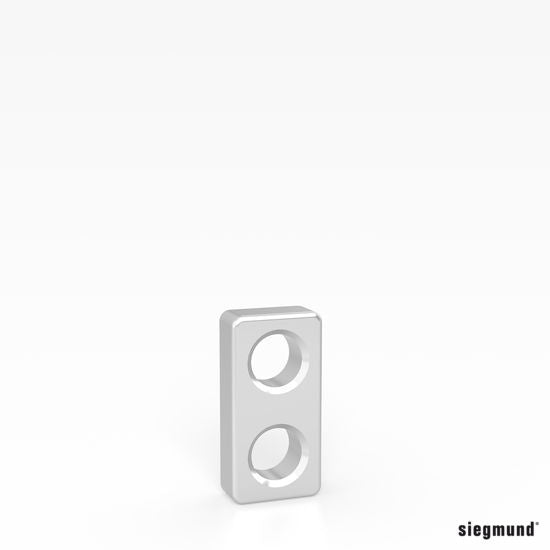

Item:  280407.C
Universal Stop 100 - Chromed
Length - 100 mm /Weight - 0.75 kg

Product Description
Universal Stop, firmly fixable through system boreholes and available in different lengths. The distance between the boreholes is 50 mm.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 2 system boreholes
‐ chromed



Item:  280408.N
Universal Stop 150 - nitrided
Length - 150 mm /Weight - 1.10 kg

Product Description
Universal Stop, firmly fixable through system boreholes and available in different lengths. The distance between the boreholes is 50 mm.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ nitrided



Item:  280408.C
Universal Stop 150 - Chromed
Length - 150 mm/Weight - 1.10 kg

Product Description
Universal Stop, firmly fixable through system boreholes and available in different lengths. The distance between the boreholes is 50 mm.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ chromed

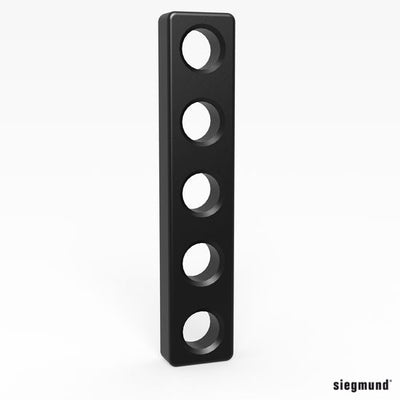

Item:  280409.N
Universal Stop 250 - nitrided
Length - 250 mm /Weight - 1.80 kg

Product Description
Universal Stop, firmly fixable through system boreholes and available in different lengths. The distance between the boreholes is 50 mm.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 5 system boreholes
‐ nitrided

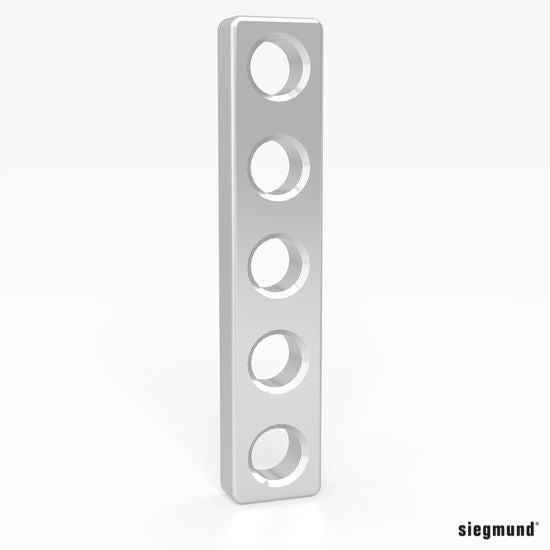

Item:  280409.C
Universal Stop 250 - chromed
Length - 250 mm /Weight - 1.80 kg

Product Description
Universal Stop, firmly fixable through system boreholes and available in different lengths. The distance between the boreholes is 50 mm.
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 5 system boreholes
‐ chromed

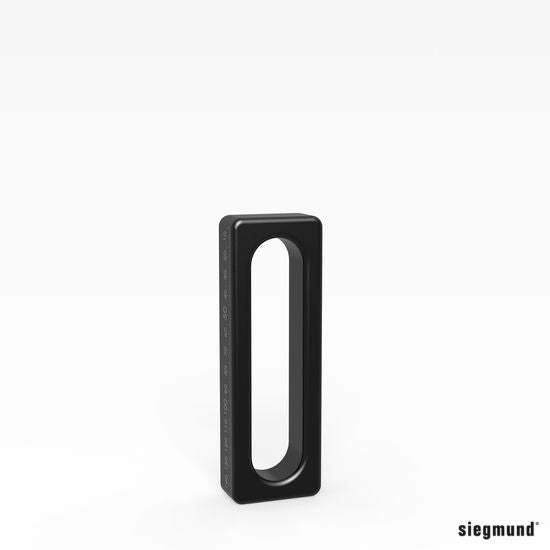

Item:  280410.N
Universal Stop 150 L - nitrided
Length - 150 mm /Weight - 0.78 kg

Product Description
Universal Stop 150 L, enables precise adjustment range of 0-100 mm for every element through the elongated hole.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ nitrided
‐ Standard with fine scaling on both sides

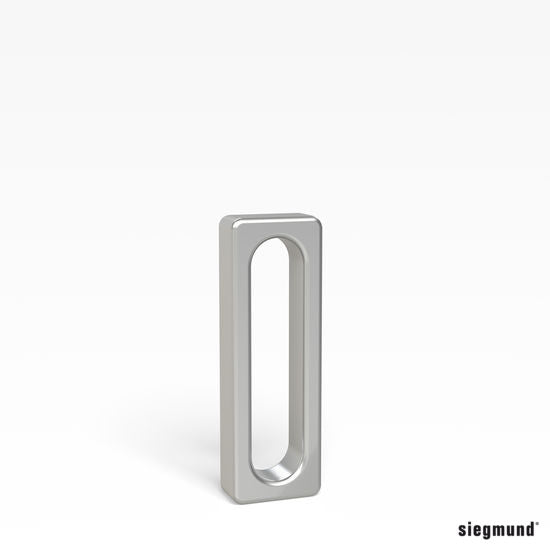

Item:  280410.A
Universal Stop 150 L -aluminum
Length - 150 mm /Weight - 0.78 kg

Product Description
Universal Stop 150 L, enables precise adjustment range of 0-100 mm for every element through the elongated hole.

Chromed version is available for work on measuring tables, working with aluminum and for TIG-welding.
‐aluminum
‐ Standard with fine scaling on both sides

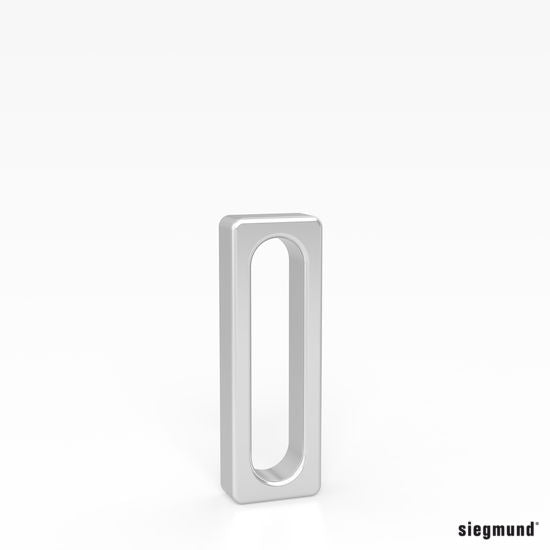

Item:  280410.C
Universal Stop 150 L - chromed
Length - 150 mm/Weight - 0,78 kg

Product Description
Universal Stop 150 L, enables precise adjustment range of 0-100 mm for every element through the elongated hole.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ chromed
‐ Standard with fine scaling on both sides



Item:  280410.1.N
Universal Stop 200 L - nitrided
Length - 200 mm/Weight - 1,00 kg

Product Description
Universal Stop 200 L, precisely adjusts each element through the elongated hole within a range of 0-150 mm.
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ Standard with fine scaling on both sides

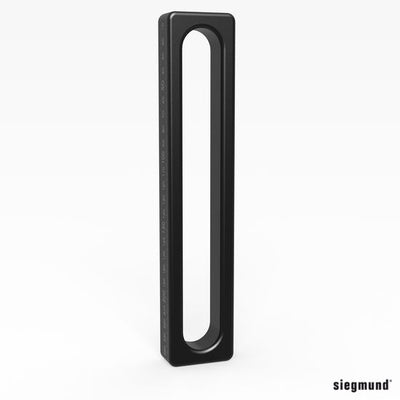

Item:  280410.2.N
Universal Stop 250 L - nitrided
Length - 250 mm/Weight - 1,20 kg

Product Description
Universal Stop 250 L, precisely adjusts each element through the elongated hole within a range of 0-200 mm. The broad adjustment range enables the use of 2 clamping bolts and limitless diagonal clamping.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ nitrided
‐ Standard with fine scaling on both sides

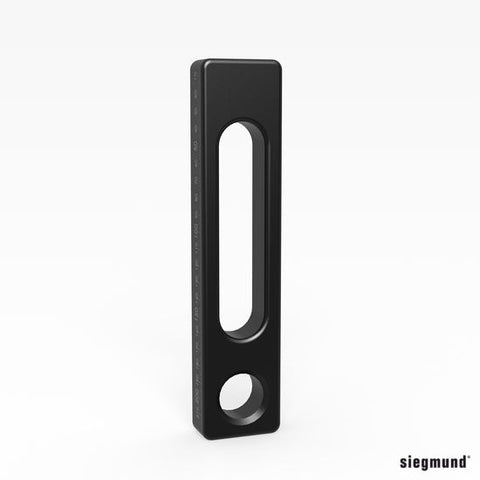

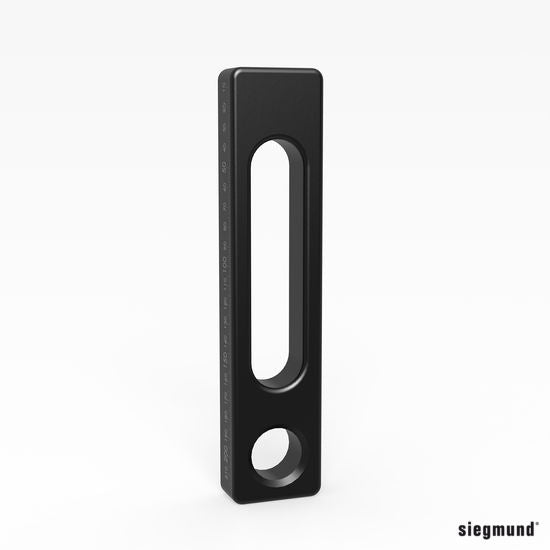

Item:  280420.N

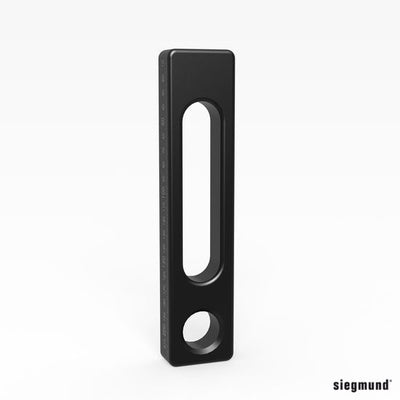

Universal Stop 225 L - nitrided
Length - 225 mm/Weight - 1,40 kg

Product Description
Universal Stop 225 L, by combining elongated hole (0-100 mm adjustable range) and system boreholes, it can be firmly fastened or variably adjusted. In addition, it can be used with prisms and adapters.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ nitrided
‐ Standard with fine scaling on both sides

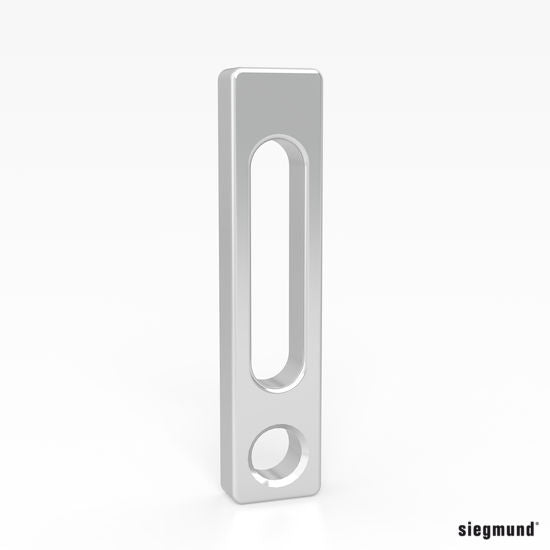

Item:  280420.C
Universal Stop 225 L - chromed
Length - 225 mm/Weight - 1,40 kg

Product Description
Universal Stop 225 L, by combining elongated hole (0-100 mm adjustable range) and system boreholes, it can be firmly fastened or variably adjusted. In addition, it can be used with prisms and adapters.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ chromed
‐ Standard with fine scaling on both sides

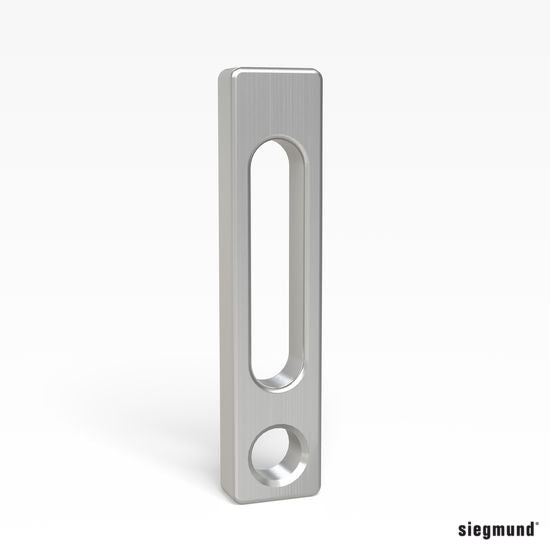

Item:  280420.A
Universal Stop 225 L - aluminum
Length - 225 mm/Weight - 1,40 kg

Product Description
Universal Stop 225 L, by combining elongated hole (0-100 mm adjustable range) and system boreholes, it can be firmly fastened or variably adjusted. In addition, it can be used with prisms and adapters.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ aluminum
‐ Standard with fine scaling on both sides>

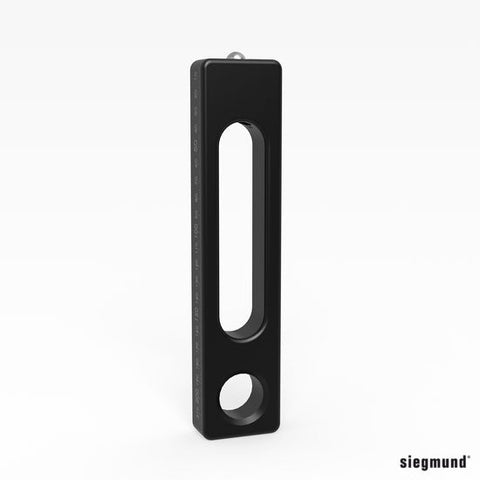

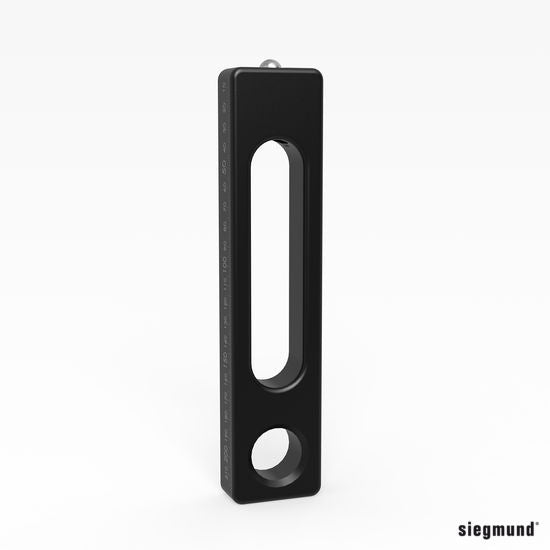

Item:  280421
Universal Stop 225 L FDS with spring pressure part - burnished
Length - 225 mm /Weight - 1.40 kg

Product Description
Universal Stop 225 L FDS, additionally equipped with a spring loaded part. As a result, the 225 L FDS Universal Stop is perfectly suitable for clamping metal and molded components. Due to the spring mechanism, no additional fixation of the workpiece is necessary, if no major welding deformations are anticipated. The adjustment range of the elongated hole is 0-100 mm.

Typical application: Serial production.
‐ burnished
‐ Standard with fine scaling on both sides

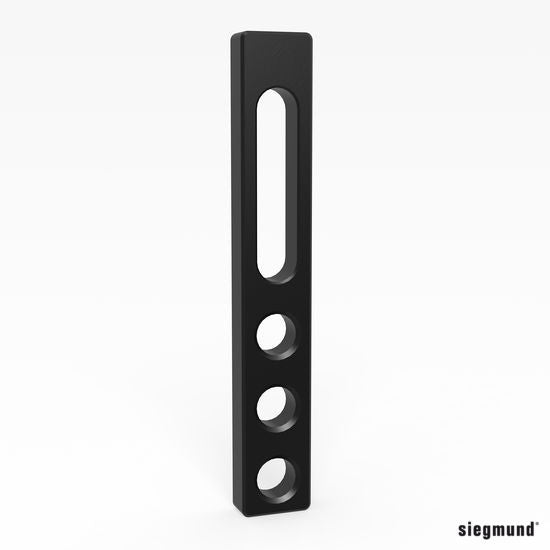

Item:  280422.N
Universal Stop 325 L - nitrided
Length - 325 mm /Weight - 2.10 kg

Product Description
Universal Stop 325 L / 525 L with system boreholes and elongated hole (0-100 mm range), provides fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ nitrided



Item:  280424.N

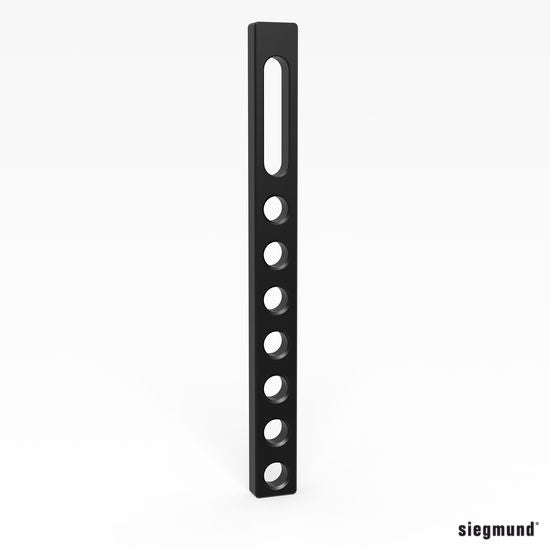

Universal Stop 525 L - nitrided
Length - 525 mm/Weight - 3,50 kg

Product Description
Universal Stop 525 L with system boreholes and elongated hole (0-100 mm range), provides fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 7 system boreholes
‐ Chromed Delivery time approx. 10 weeks



Item:  280424.C
Universal Stop 525 L - chromed
Length - 525 mm /Weight - 3.50 kg

Product Description
Universal Stop 525 L with system boreholes and elongated hole (0-100 mm range), provides fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 7 system boreholes
‐ Chromed Delivery time approx. 10 weeks

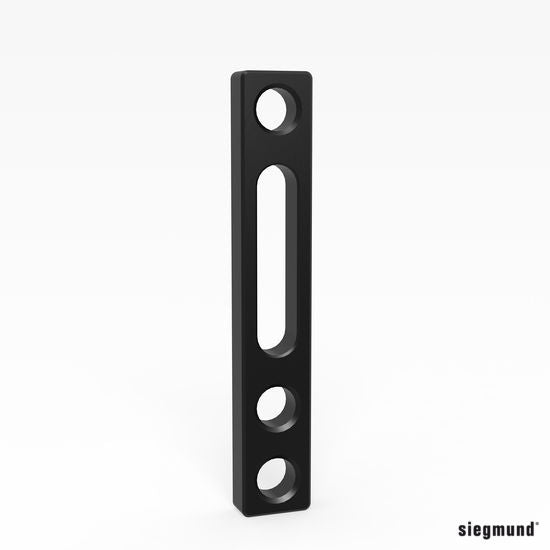

Item:  280426.N
Universal Stop 300 - nitrided
Length - 300 mm /Weight - 1.85 kg

Product Description
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ nitrided

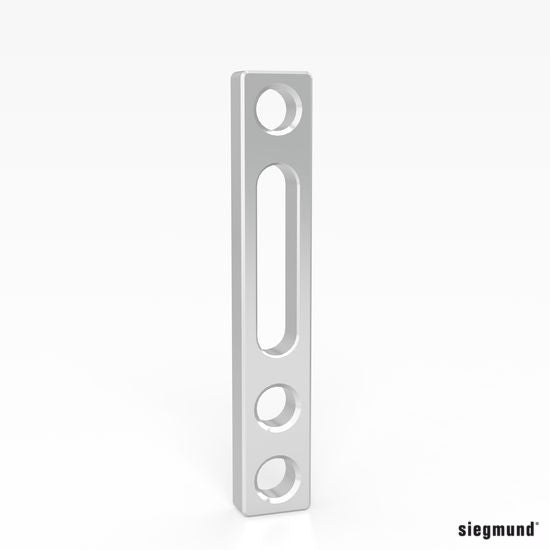

Item:  280426.C
Universal Stop 300 - chromed
Length - 300 mm /Weight - 1.85 kg

Product Description
Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 3 system boreholes
‐ chromed



Item:  280427.N
Universal Stop 500 - nitrided
Length - 500 mm /Weight - 3.30 kg

Product Description
Universal Stop 300, serves as an expansion to the stop surface. Further fixed or variable stop options are created, due to the triple system boreholes and the elongated hole (adjustable range 0-100 mm).

Universal Stop 500 was specially developed to expand the stopping surface. Further fixed or variable stopping options are possible, resulting from the seven system boreholes and the elongated hole (with an adjustable range of 0-100 mm).

Chromed version is available for work on measuring tables, working with aluminum and for TIG-welding.
‐ nitrided

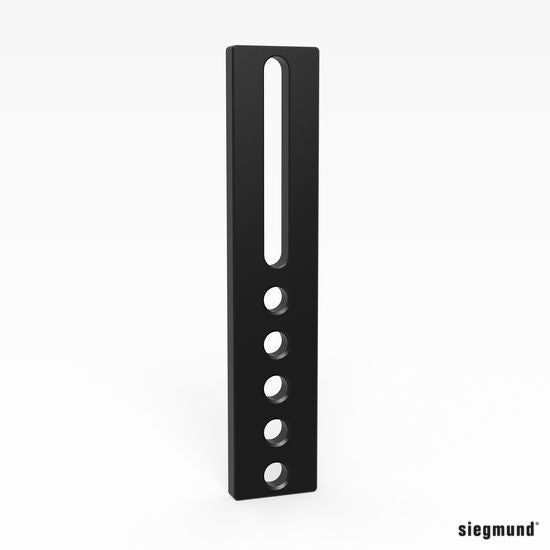

Item:  280430.N

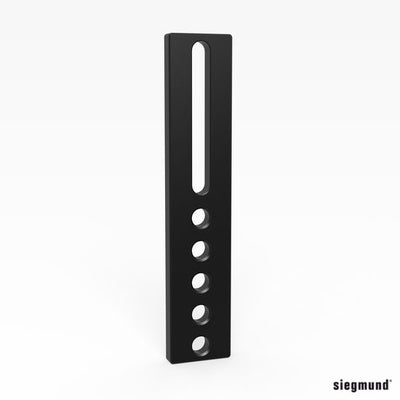

Universal Stop 500 S - nitrided
Length - 500 mm /Weight - 3.30 kg

Product Description
Universal Stop 500 S was specially designed for working with stops and positioning of large components. The combination of system boreholes and the elongated hole (0-200 mm range), enables fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

‐ 5 system boreholes
‐ nitrided

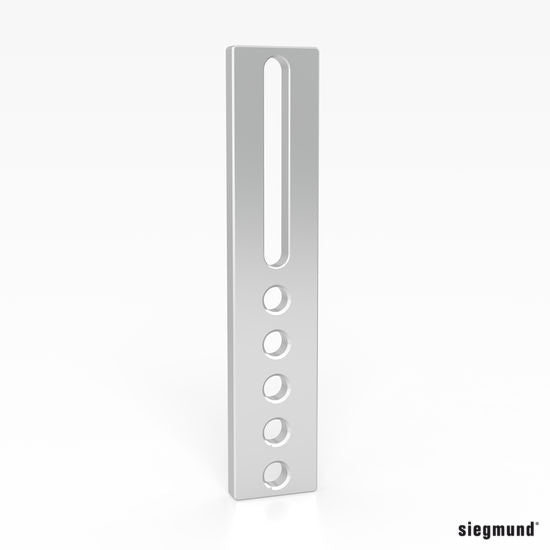

Item:  280430.C
Universal Stop 500 S - chromed
Length - 500 mm/Weight - 3,30 kg

Product Description
Universal Stop 500 S was specially designed for working with stops and positioning of large components. The combination of system boreholes and the elongated hole (0-200 mm range), enables fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

‐ 5 system boreholes
‐ Chromed Delivery time approx. 10 weeks

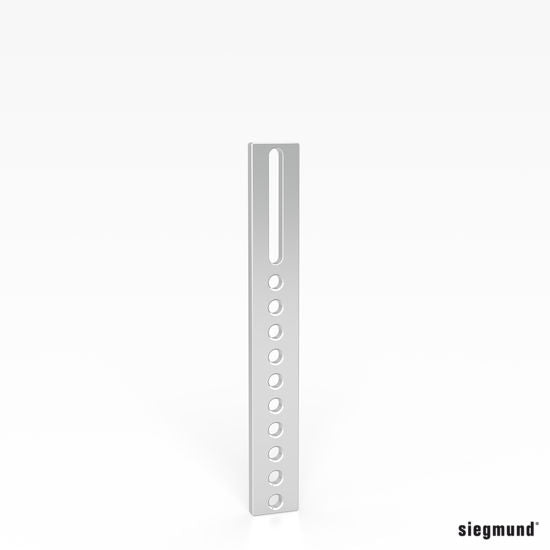

Item:  280432.C
Universal Stop 750 S - chromed
Length - 750 mm/Weight - 7,90 kg

Product Description
Universal Stop 750 S was specially designed for working with stops and positioning of large components. The combination of system boreholes and the elongated hole (0-200 mm range), enables fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 10 system boreholes
‐ chromed

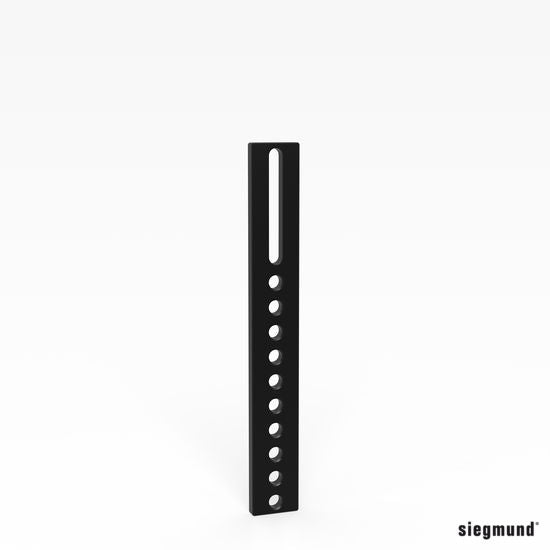

Item:  280432.N
Universal Stop 750 S - nitrided
Length - 750 mm/Weight - 7,90 kg

Product Description
Universal Stop 750 S was specially designed for working with stops and positioning large components. The combination of system boreholes and the elongated hole (0-200 mm range), enables fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.
‐ 10 system boreholes
‐ nitrided

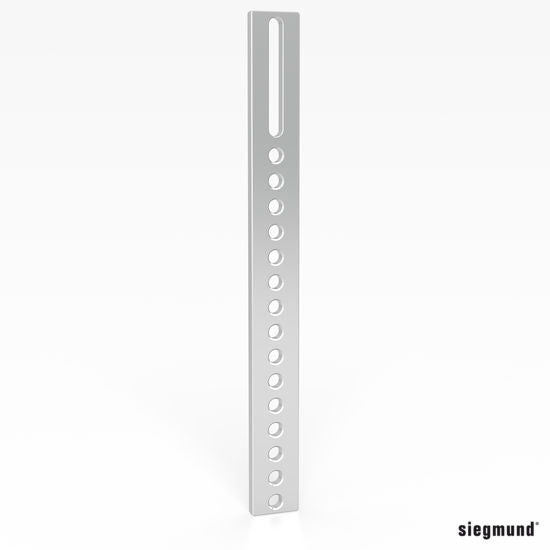

Item:  280434.C

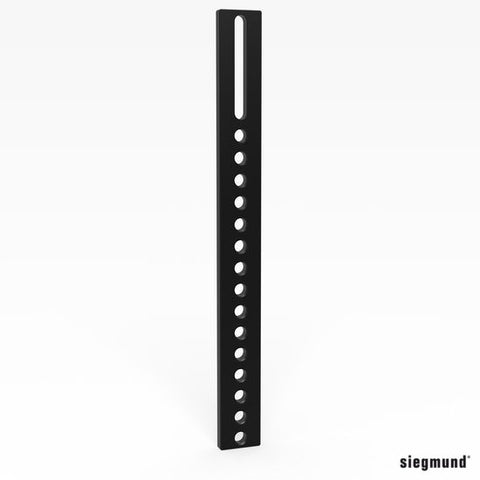

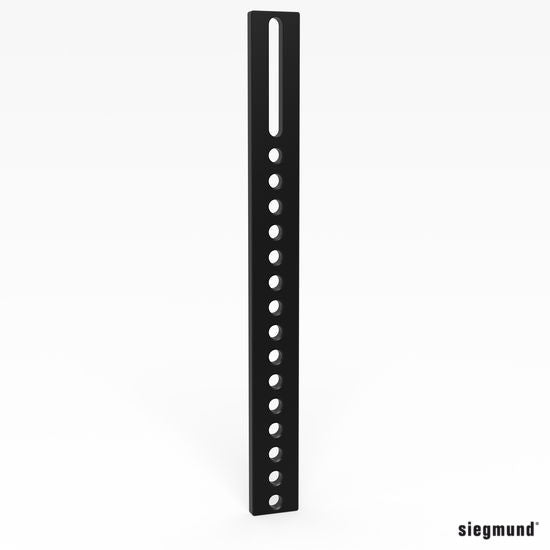

Universal Stop 1000 S - chromed
Length - 10000 mm/Weight - 16.30kg

Product Description
Universal Stop 1000 S was specially designed for working with stops and positioning of large components. The combination of system boreholes and the elongated hole (0-200 mm range), enables fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

‐ 15 system boreholes
‐ Chromed Delivery time approx. 10 weeks



Item:  280434.N
Universal Stop 1000 S ‐ nitrided
Length - 1000 mm/Weight - 16.30 kg

Product Description
Universal Stop 1000 S was specially designed for working with stops and positioning of large components. The combination of system boreholes and the elongated hole (0-200 mm range), enables fixed and versatile adjustment, for a multitude of clamping options.

Chromed version available for work on measuring tables, working with aluminum and for TIG-welding.

‐ 15 system boreholes
‐ nitrided
