Siegmund System 16 Clamps - Spare Parts

  • Sale
  • Regular price $8.00
Shipping calculated at checkout.



The Siegmund System 16 Clamps - Spare Parts are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You know that with Siegmund tooling, you will never be let down.




SIEGMUND SYSTEM 16 CLAMP SPARE PARTS

Technical Data:

Item No.:  160653

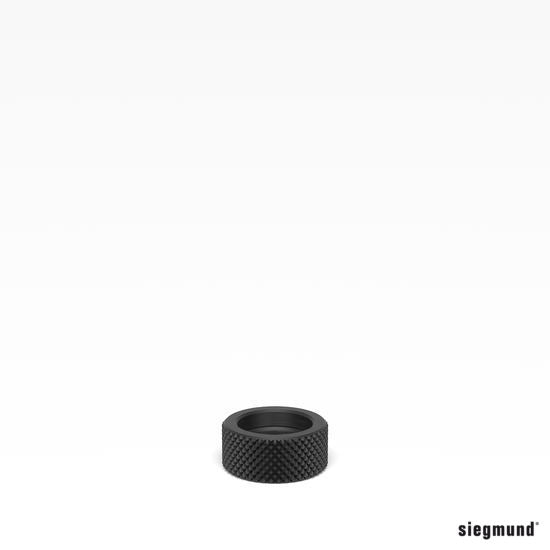

Adjusting Ring
Height (c)10 mm /Weight 0.01 kg /Diameter 23 mm

Product description
‐ for 160601, 160604



Item No.:  160662

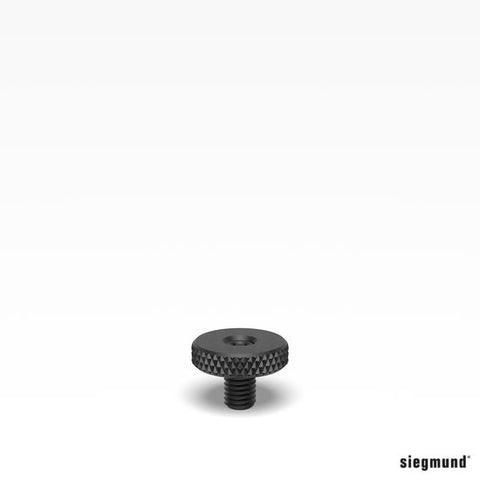

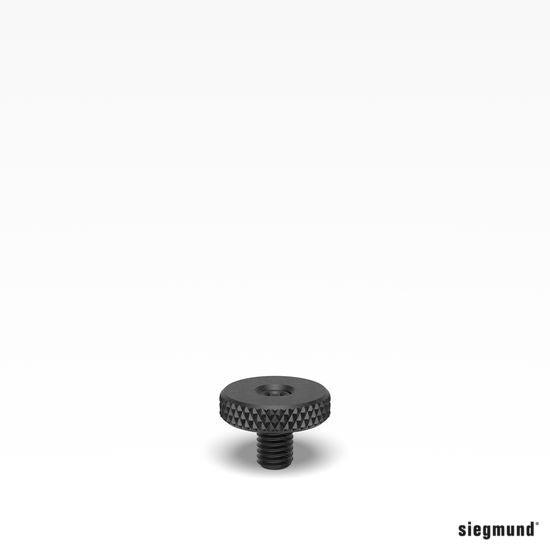

Handwheel for Cast Iron Cross
Length (a)17 mm /Weight 0.02 kg /Diameter24 mm

Product description
‐ for 160606, 160610, 160630



Item No.: 160679

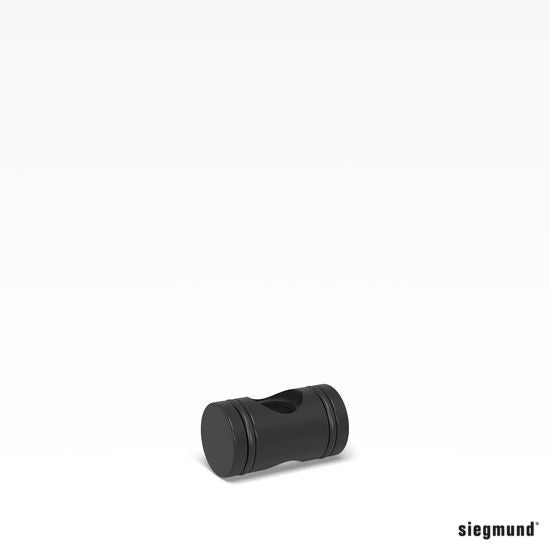

Arbor Thread
Length (a)28 mm /Weight 0.03 kg /Diameter16 mm

Product description
‐ for 160604



Item No.: 169108

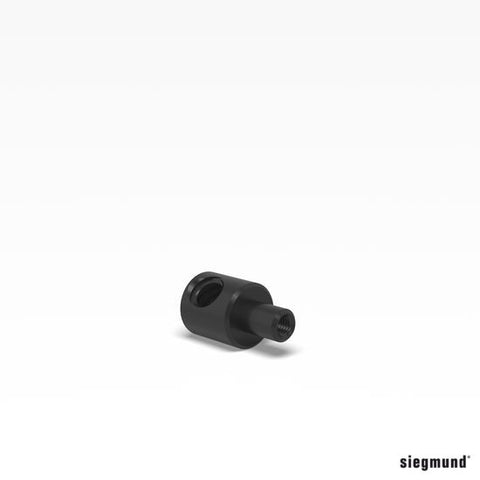

Bushing for Threaded Arbor
Length (a)36 mm /Weight 0.04 kg /Diameter 20 mm

Product description
‐ for 160630



Item No.: 169109

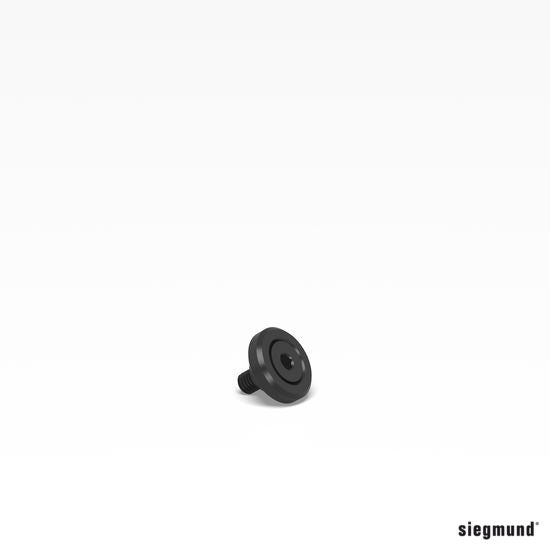

Disc for Cast Iron Cross
Length (a)10 mm /Weight 0.01 kg  /Diameter 20 mm

Product description
‐ for 160630
‐ with countersunk screw M6x20
