Siegmund System 16 Bolts
Siegmund System 16 bolts clamp, connect and position components in the Ø16 mm bores of a 16 mm welding table: fast clamping bolts for quick setups, connecting bolts for fixed joints between tables and Square U-Shapes, universal bolts for mixed material thicknesses, and flush mount, areal, magnetic and positioning bolts for special jobs. This collection also holds genuine Siegmund bolt spare parts. These System 16 parts also fit other 16 mm system welding tables with Ø16 mm bores on a 50 mm grid. Exclusive Canadian importer of Siegmund. Ships across Canada from St. Marys, ON.
Compare System 16 bolts
| Product | Item numbers | Clamping / tool | Key difference (per Siegmund) | Restrictions |
|---|---|---|---|---|

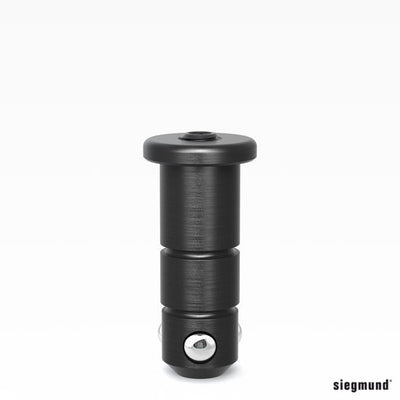

| Fast Clamping Bolt without Slot | 160511, 160513, 160515 | Fast clamping (twistlock, screw top), hex 4 | Smooth body without O-ring slot; Siegmund's recommendation for aluminum profiles | Not for tables / Square U-Shape |
| Fast Clamping Bolt Flat without Slot | 160524, 160525 | Fast clamping, flat, hex 4 | Mainly for elongated holes; reduces protrusion; cordless screwdriver up to 10 Nm | Not for tables / Square U-Shape |
| Fast Clamping Bolt Adjustable without Slot | 160571, 160573 | Fast clamping, knurled thimble ring, hex 4 | Clamping dimension 12–24 mm (160571), for laser-cut profiles of varying thickness | Not for tables / Square U-Shape |
| Magnetic Clamping Bolt | 160740, 160740.1, 160740.2; spacer ring 160539 | Tool-free, magnetic (aluminum), 34 / 46 / 58 mm | For thin sheet and closed housings where counter-holding is impossible | n/a |
| Universal Bolt | 160532, 160533 | Integrated handwheel or hex 6 | Different material thicknesses; clamps 22–28 mm (short, double 160532) / 34–40 mm (long, triple 160533) | Not for tables / Square U-Shape |
| Areal Clamping Bolt | 160590, 160590.3, 160590.4 | Hex 6 | Recommended for aluminum profiles; clamps about 22–26 mm (double) / 46–50 mm (quadruple) | Not for tables / Square U-Shape |
| Areal Clamping Flush Mount Bolt | 160595, 160595.3, 160595.4 | Countersunk, hex 4 | Recommended for aluminum profiles; flush; clamps about 22–26 mm (double); not for elongated holes | Not for tables / Square U-Shape |
| Flush Mount Bolt | 160528, 160529 | Countersunk, hex 4 | Hidden connection, head flush in the bore; not for elongated holes or aluminum profiles | Not for tables / Square U-Shape |
| Flush Mount Bolt without Slot | 2-AP160528, 2-AP160529, 2-AP160530 | Countersunk, hex 4 | Aluminum profiles only (adapted collar) | Aluminum profiles only |
| Connecting Bolt | 160560.N, 160561 | Flush, hex 6 top and bottom | Fixed long-term connection of tables and Square U-Shapes | Not for aluminum or elongated holes |
| Connecting Bolt with Collar | 160583, 160584, 160585 | Hex 6 top / 4 bottom | Fixed connection of tables, Square U-Shapes and aluminum profiles; works in elongated holes | n/a |
| Positioning Bolt | 160540 | Locating only (no clamping) | Aligns squares that need only one clamping bolt | Not for tables / Square U-Shape |
Spare parts
- Bolt Spare Parts (169103): Siegmund lists the set as 10x 169008, 10x 169009 and 5x 169074.
Related collections
Frequently Asked Questions
Which bolt should I use to connect two System 16 tables?
Use a connecting bolt. Siegmund designed the Connecting Bolt 160560.N and the Connecting Bolt with Collar 160583 as fixed long-term connections between large components such as tables and Square U-Shapes. Siegmund says fast clamping, universal, areal clamping, flush mount and positioning bolts must not be used to connect tables or Square U-Shapes.
Which bolts are suitable for aluminum profiles?
Siegmund recommends the Fast Clamping Bolt without Slot 160511 and the Areal Clamping Bolts 160590 and 160595 for aluminum profiles, and the Connecting Bolt with Collar 160583 is especially suitable for aluminum. The Flush Mount Bolt without Slot 2-AP160528 (AP160528) is only for aluminum profiles. Siegmund says aluminum parts must only be tightened hand-tight. The Connecting Bolt 160560.N and the Flush Mount Bolt 160528 are not suitable for aluminum profiles.
Which bolt joins parts of different material thickness?
The Universal Bolts. Siegmund gives a clamping range of 22–28 mm for the short (double) and 34–40 mm for the long (triple) Universal Bolt (double 160532 and triple 160533), clamped with the integrated handwheel or a hex wrench 6 (item 280852.1). The Adjustable Fast Clamping Bolt 160571 sets its clamping dimension (12–24 mm) with a knurled thimble ring.
Which bolts can be used in elongated holes?
Siegmund says the Fast Clamping Bolt Flat without Slot 160524 is mainly used for clamping elongated holes, and the Connecting Bolt with Collar 160583 also works in elongated holes. The Flush Mount Bolt 160528, the Areal Clamping Flush Mount Bolt 160595 and the Connecting Bolt 160560.N are not suitable for elongated holes.
Which bolts clamp without tools?
The Magnetic Clamping Bolt 160740, available in 34, 46 and 58 mm lengths, which Siegmund says clamps without bolting or tools and suits pressure-sensitive thin sheet metal and housings closed all around. The Spacer Ring 160539 adds space between two clamping elements.
