Siegmund System 16 Squares
Siegmund System 16 squares build stops, supports, angles and table extensions up from a 16 mm welding table: stop and clamping squares from the compact 50 L to the 750 D, cast iron G and GK squares, rotation and universal angles for set angles, plus a corner connection and support and clamping frames. These System 16 parts also fit other 16 mm system welding tables with Ø16 mm bores on a 50 mm grid. Exclusive Canadian importer of Siegmund. Ships across Canada from St. Marys, ON.
Compare System 16 squares
| Product | Item numbers | Size (mm) | Key feature (per Siegmund) |
|---|---|---|---|
| Stop & Clamping Square 50L | 160105.N | 50 × 30 × 50 | Boreholes only; stop for large profiles |
| Stop & Clamping Square 90X | 160108.N | 90 × 30 × 25 | Elongated hole; stop for large sections |
| Stop & Clamping Square 90SL | 160109.N | 90 × 30 × 40 | Boreholes + elongated hole; height-adjustable surface |
| Stop & Clamping Square 90L | 160110.N, 160110.A | 90 × 30 × 90 | Boreholes + elongated hole; multifunctional adjustable angle |
| Stop & Clamping Square 90WL | 160111.N | 90 × 30 × 90 | Elongated holes, adjustable in any direction |
| Stop & Clamping Square 90VL | 160113.N | 90 × 30 × 90 | Boreholes on both sides; fixed support bracket |
| Stop & Clamping Square 140L | 160112.N | 90 × 35 × 140 | Table extension for lightweight parts; stop for tall parts |
| Stop & Clamping Square 150L | 160114.N | 90 × 35 × 150 | Additional head plate for squares, prisms or clamps |
| Stop & Clamping Square 250GK | 160124.N (left), 160126.N (right) | 145 × 49 × 250 | GGG40 cast iron, three-dimensional; for heavy parts; order in pairs |
| Stop & Clamping Square 500GK | 160134.N (left), 160136.N (right) | 195 × 49 × 500 | GGG40 cast iron, three-dimensional; for heavy parts; order in pairs |
| Stop & Clamping Square 300G | 160162.N | 150 × 49 × 300 | GGG40 cast iron; boreholes + elongated hole; table extension |
| Stop & Clamping Square 500G | 160164.N | 195 × 49 × 500 | GGG40 cast iron; boreholes + elongated hole; table extension |
| Stop & Clamping Square 250G with Rotation Angle | 160161.N (left), 160163.N (right) | 145 × 49 × 250 | GGG40 cast iron; recommended as a pair |
| Rotation Angle 150 | 160101.N | Ø 150, height 150 | Infinitely variable over 180°; fix with 2 clamping bolts |
| Universal Angle Mechanical Clamping | 160170.N | Side length 260 | Any angle 10°–150°, set with the included setup template |

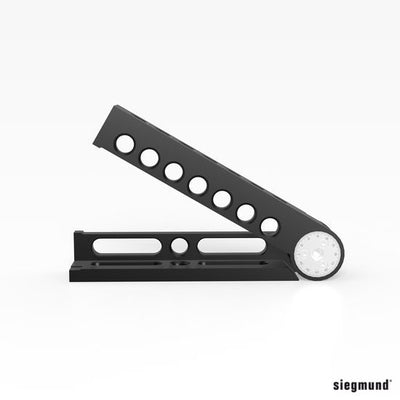

| Universal Angle Hydromechanical Clamping | 160171.N | Side length 250 | Infinitely variable 0°–225°, hydromechanical clamping |
| Corner Connection | 160190.N | 100 × 65 × 100 | 45° diagonal table extension; connect, stop and clamp on 5 sides; GGG40 |
| Support and Clamping Frame, small | 160300.N (right), 160301.N (left) | 150 × 100 × 50 | Connects elements; table extension or console; 50 mm borehole grid on 5 sides |
| Support and Clamping Frame, large | 160302.N | 300 × 200 × 50 | Connects elements; table extension or console; 50 mm borehole grid on 5 sides |
Related collections
Frequently Asked Questions
Which System 16 squares are cast iron?
Siegmund makes the 250 GK and 500 GK squares, the 300 G, 500 G and 250 G with rotation angle, and the Corner Connection (160190.N) from GGG40 ductile cast iron. The GK squares are three-dimensional and designed for heavy parts, serving as a stop and as a table extension.
Should I order the GK squares in pairs?
Siegmund recommends ordering the 250 GK and 500 GK in pairs and lists the 250 G with rotation angle as recommended as a pair. They come in left and right versions, for example 160124.N (left) and 160126.N (right) for the 250 GK.
How do I set an angle other than 90°?
Siegmund offers three options: the Universal Angle Mechanical Clamping (160170.N) sets any angle from 10° to 150° with the included setup template; the Universal Angle Hydromechanical Clamping (160171.N) is infinitely variable from 0° to 225° (digital angle gauge not included; matching 6 mm hex wrench is item 280852.1); and the Rotation Angle 150 (160101.N) adjusts over a 180° range, fixed with 2 clamping bolts.
How do I build a height-adjustable support?
Siegmund says combining the Stop and Clamping Square 50 L (160105.N) with the 90 SL (160109.N) creates a height-adjustable support, and the 90 VL (160113.N) with boreholes on both sides can be added as a fixed support bracket.
