SIEGMUND SYSTEM 28 - SET OF SUPPORTS


Siegmund System 28 Prisms and Supports are compatible with any 28mm fixture table. Made in Germany with the highest quality assurance, you know that with Siegmund tooling, you will never be let down.

The Prism is designed for pipes with a large diameter. Above all, it creates a solid support surface for round pipes. The prism with a screwed-in collar can be fastened in the boreholes and securely fixed. For free positioning of the prism independent of the hole grid, you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension. Polyamide Prisms are used for scratch-prone surfaces.


Technical Data:

Item No.: 2-280821

Set of Supports 11 pieces ‐ burnished

Length (a) 125 mm
Weight 1,95 kg
Diameter 50 mm


Product description

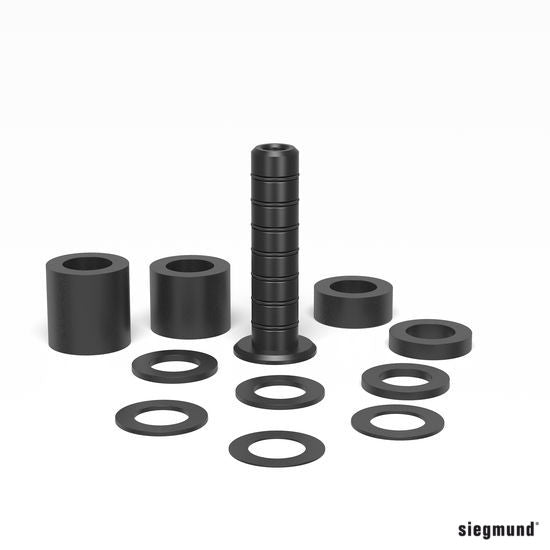

11-piece Set of Supports, offers the option to vary the height of the support surface. The individual supports can be used to compensate for 1-100 mm height differences. The lowest grading of the supports is 1 mm, in order to achieve the intended height precisely. The measurements are specified on the particular discs. Aided by the O-rings, the Supports can be adjusted easily and precisely. The Set of Supports can be universally used in all boreholes of system 28. The M10 thread on the inside of the supports enables fastening of customer-specific components or prisms.



Item No.: 2-280821.2

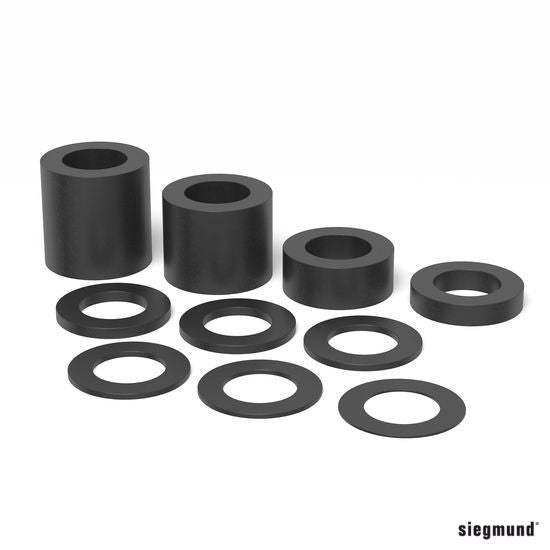

Washer Set

Weight 1,35 kg
Diameter 50 mm
Product description
gradation of discs:
1 / 2 / 3 / 4 / 5 mm
10 / 20 / 40 / 50 mm
incl. 1/10" disc 2.54 mm

Item No.: 2-280821.1

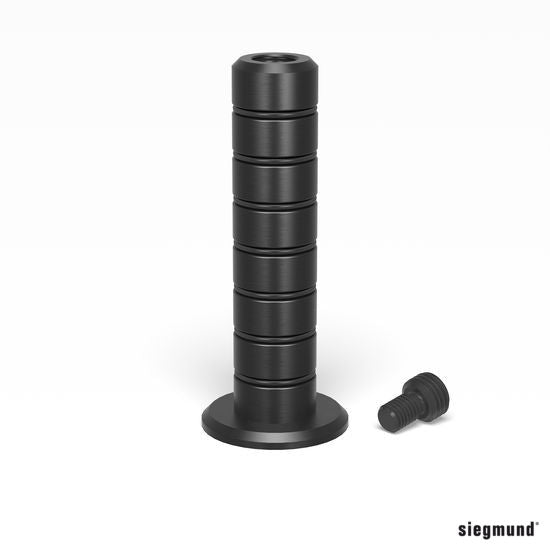

Tower for Supports ‐ burnished

Length (a) 125 mm
Weight 0,6 kg
Diameter 50 mm



Product description
‐ variable support surface
‐ with M10 thread
