Siegmund System 16 - Welding Table Tops

4 products
Siegmund System 16 - Welding Table Tops

Siegmund System 16 welding table tops and perforated plates, all with Ø16 mm bores on a 50 x 50 mm grid. The 1200 x 800 mm plate fits the Workstation 1208, the height-adjustable rotating table and the 500 kg mobile lifting table. BTH Sales is the exclusive Canadian importer of Siegmund.

In this collection

Choosing the right part

The 1200x800 mm S355J2+N plate (164004.P.1) is plasma nitrided and weighs 88 kg. Siegmund says the Workstation plates need 8x mounting screws 00005631 for the 1200x800 size; the screws are not included.

The X8.7 plates are made from Siegmund X8.7 tool steel, plasma nitrided, in 1200x1200, 1500x1000 and 2000x1000 mm.

Engineering support & demos

Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.

Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.

Frequently Asked Questions

Are mounting screws included with the plates?

No. Siegmund says the mounting screws 00005631 are not included with the perforated plate or the base frame. The 1200x800 size needs 8 screws.

What is the difference between S355J2+N and X8.7 plates?

S355J2+N is a structural steel; Siegmund plasma nitrides it for a harder surface. X8.7 is Siegmund tool steel, also plasma nitrided.

Do System 28 accessories fit System 16 tables?

No. System 16 tables have Ø16 mm bores on a 50 x 50 mm grid and take System 16 bolts, clamps and stops. System 28 parts are made for Ø28 mm bores.

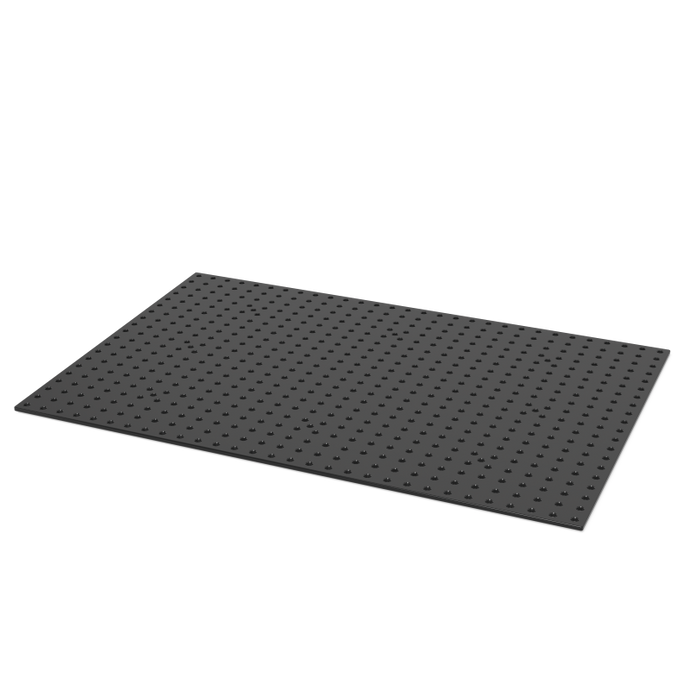

System 16 Workstation Perforated plate S355J2+N 1200x800x12 Plasma nitrided (PLATE ONLY) 164004.P.1, product view System 16 - Workstation - Perforated plate S355J2+N 1200x800x12 Plasma nitrided (PLATE ONLY)
$1,423.00 CAD
$1,423.00 CAD
The Siegmund Perforated Plate S355J2+N 1200x800x12 Plasma nitrided (164004.P.1) is a System 16 workstation plate in S355J2+N steel with plasma nitration, 1200 x 800 mm and 12 mm thick, weighing 88 ...
1200 x 1200 welding table top welding table top example in use
$2,232.00 CAD
$2,232.00 CAD
The Siegmund 164034.1.X7 is a System 16 perforated plate in X8.7 tool steel, plasma nitrided, 1200 x 1200 x 12 mm and 131 kg. Siegmund lists it as compatible with the Siegmund Workstation 1212 and ...
System 16 - Perforated plate S355J2+N 2000x1000x12 Plasma nitrided 1500x1000x12 Plasma nitrided example
$2,401.00 CAD
$2,401.00 CAD
The Siegmund 164014.X7.1 is a System 16 perforated plate in X8.7 tool steel, plasma nitrided, 1500 x 1000 x 12 mm and 135 kg. Siegmund lists it as compatible with the Siegmund Mobile lifting table ...

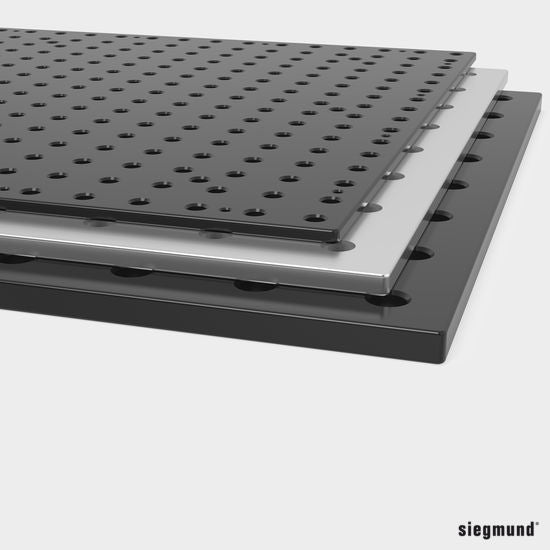

Siegmund System 16 perforated plate X8.7, 2000 x 1000 x 12 mm, plasma nitrided, sold as plate only Close-up of Siegmund System 16 perforated plates showing the bore grid and plate edges
$3,229.00 CAD
$3,229.00 CAD
The Siegmund 164044.X7.1 is a System 16 perforated plate in X8.7 tool steel, plasma nitrided, 2000 x 1000 x 12 mm and 179 kg. Siegmund lists it as compatible with the Siegmund Mobile lifting table ...
