Siegmund System 28 Sub Table Boxes

  • Sale
  • Regular price $763.00
Shipping calculated at checkout.



The Siegmund System 28 Sub Table Boxes are compatible with any 28mm fixture table. Made in Germany with the highest quality assurance. You always know that with Siegmund tooling, you will never be let down.





SIEGMUND SYSTEM 28 SUBTABLE BOXES

Technical Data:

Item No.:  280990

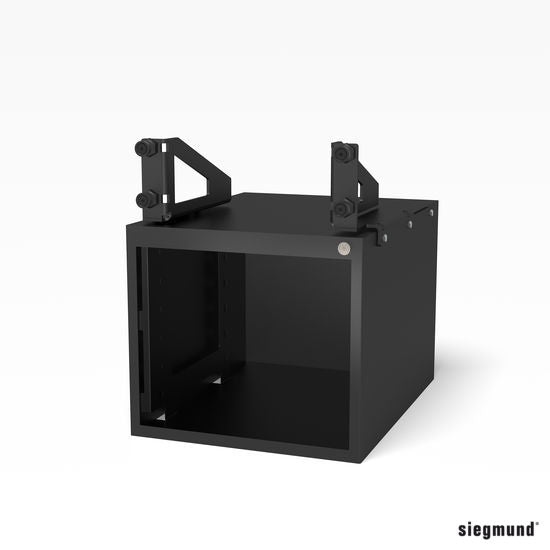

Sub Table Box lockable
Length (a)630 mm /Width (b)510 mm /Height (c)420 mm /Weight 30 kg

Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.

The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.

The design is totally enclosed to protect the contents from weld spatters and dirt.

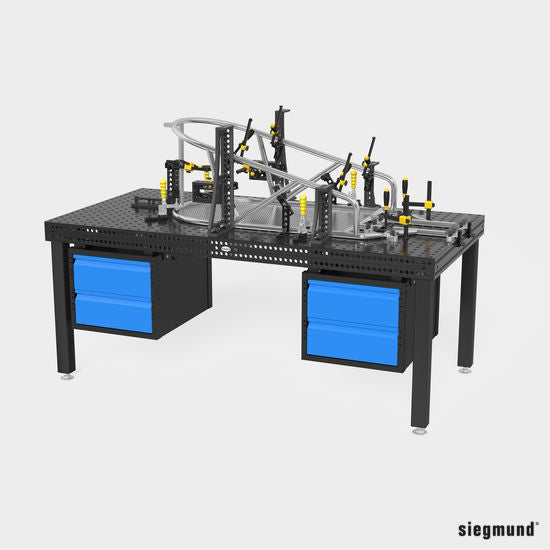

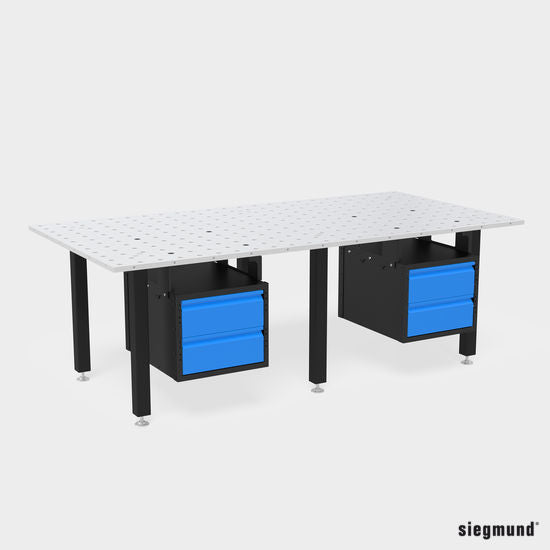

Regardless of table size and ribbing, the ST Box can be attached to every Siegmund welding table.

Self assembly instructions are provided and you can easily attach the assembled ST Box to your welding table.

For Basic tables a special mounting is required.

‐ powder coated finish
‐ 360 mm space for drawers
‐ (Not compatible with the Basic table series)
‐ lockable
‐ incl. two keys
‐ Compatible with PLUS tables


Item No.: 162990
Sub Table Box lockable for PLUS Table
Length (a )630 mm /Width (b) 510 mm /Height (c)420 mm /Weight 28 kg

Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.

The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.

The design is totally enclosed to protect the contents from weld spatters and dirt.

Self-assembly instructions are provided and you can easily attach the assembled ST Box to your welding table.

‐ powder coated finish
‐ 360 mm space for drawers
‐ lockable
‐ incl. two keys



Item No.:  161990

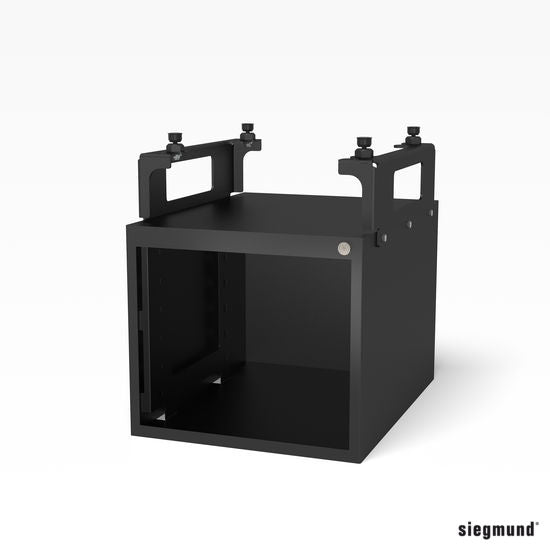

Sub Table Box lockable for Basic
Length (a)630 mm /Width (b)510 mm /Height (c)420 mm
  /Weight 28.5 kg

Product description
The Siegmund ST Box enables the creation and storage of tools for easy access when required.

The ST Box has a total maximum load capacity of approx. 100 kg. Each drawer carries a maximum load of approx. 50 kg.

The design is totally enclosed to protect the contents from weld spatters and dirt.

Regardless of table size and ribbing, the ST Box can be attached to every Siegmund welding table.

Self assembly instructions are provided and you can easily attach the assembled ST Box to your welding table.
‐ powder coated finish
‐ 360 mm space for drawers
‐ lockable
‐ incl. two keys



Item No.:  004220

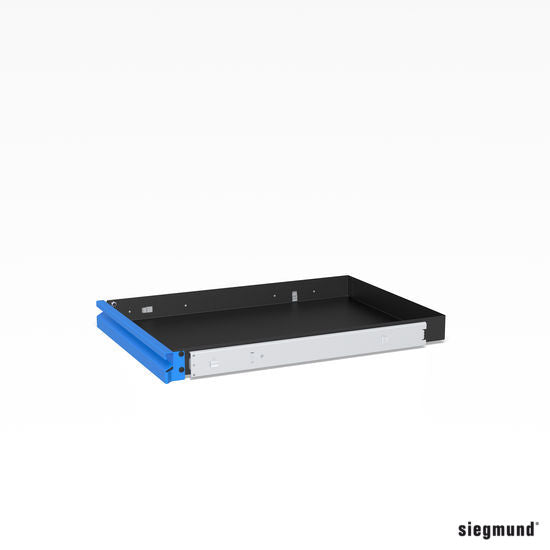

Drawer with clip rail, 60 mm for Sub Table Box
Length (a)590 mm /Width (b) 400 mm /Height (c) 60 mm
Weight 5.5 kg

Product description
‐ powder-coated finish
‐ upgrading possible at any time



Item No.:  004225
Drawer with clip rail, 120 mm for Sub Table Box
Length (a)590 mm /Width (b)400 mm /Height (c)120 mm
Weight 6.5 kg

Product description
‐ powder coated finish
‐ upgrading possible at any time



Item No.:  004230

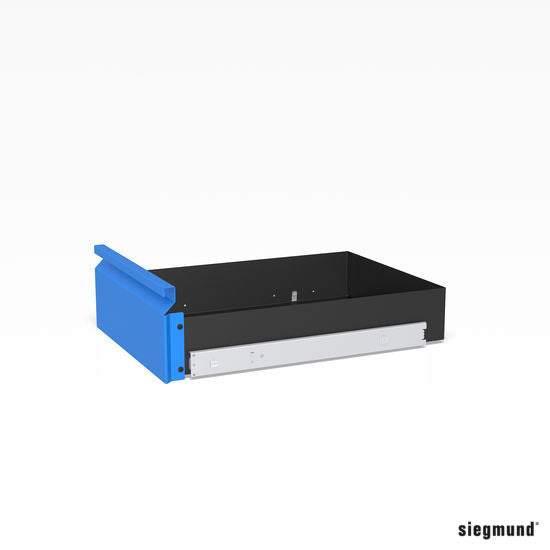

Drawer with clip rail, 180 mm for Sub Table Box
Length (a)590 mm /Width (b)400 mm /Height (c)180 mm /Weight 7kg

Product description
‐ powder coated finish
‐ upgrading possible at any time




Item No.: 2-004235

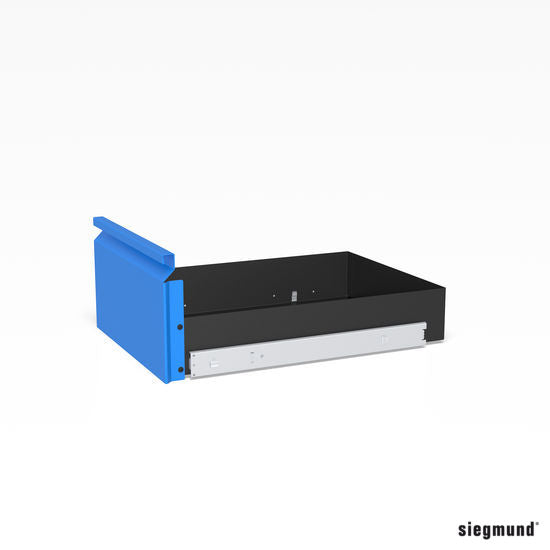

Drawer with clip rail-240 mm for Sub Table Box
Length (a) 590 mm /Width (b) 400 mm /Height (c)240 mm /Weight 7.5 kg

Product description
‐ powder coated finish
‐ upgrading possible at any time
