Siegmund - System 28 - Prisms Spacers

  • Sale
  • Regular price $98.00
Shipping calculated at checkout.


Siegmund System 28 Prisms and Supports are compatible with all 28mm fixture tables. With the highest quality assurance, you know that with German-made Siegmund tooling, you are getting the very best!




SIEGMUND SYSTEM 28 SPACERS

The Prism is designed for large pipes with a diameter. Above all, it creates a solid support surface for round pipes. The prism with a screwed-in collar can be fastened in the boreholes and securely fixed. For free positioning of the prism independent of the hole grid, you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension. Polyamide Prisms are used for scratch-prone surfaces.


Technical Data:

Item No.:  280175

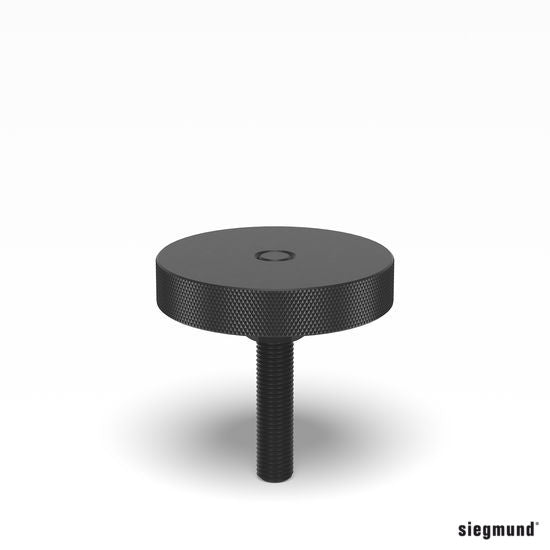

Spacer 100 Ø 50
Length (a)100 mm /Weight .52 kg /Diameter 50 mm

Product description
Spacer - universally usable in combination with the threaded bushing for M16 threads (Item No. 280825) and a square or stop. Any distance can be adjusted quickly and precisely by using the simple rotation mechanism. In general, a screw clamp, try square or something similar, serves as a counterpart to the Spacer.



Item No.:   280175.1

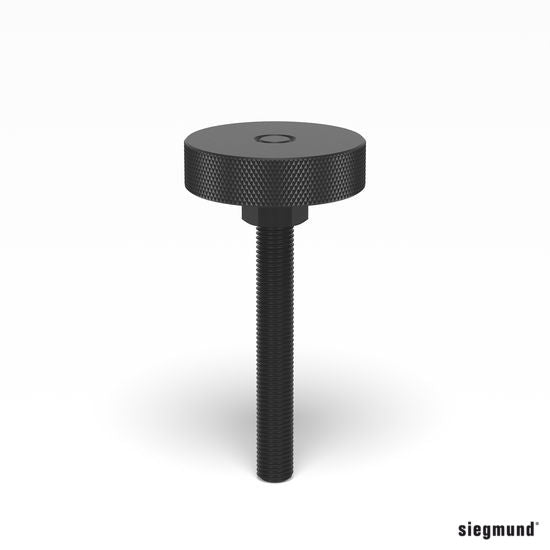

Spacer 150 Ø 50
Length (a) 150 mm /Weight .6 kg /Diameter 50 mm

Product description
Spacer - universally usable in combination with the threaded bushing for M16 threads (Item No. 280825) and a square or stop. Any distance can be adjusted quickly and precisely by using the simple rotation mechanism. In general, a screw clamp, try square or something similar, serves as a counterpart to the Spacer.



Item No.:   280176

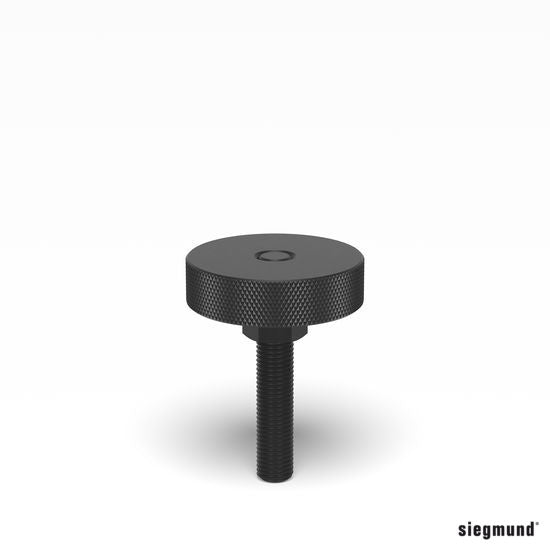

Spacer 100 Ø 75
Length (a) 100 mm /Weight 0.92 kg /Diameter 75 mm

Product description
Spacer - universally usable in combination with the threaded bushing for M16 threads (Item No. 280825) and a square or stop. Any distance can be adjusted quickly and precisely by using the simple rotation mechanism. In general, a screw clamp, try square or something similar, serve as a counterpart to the Spacer.


Item No.:   280176.1

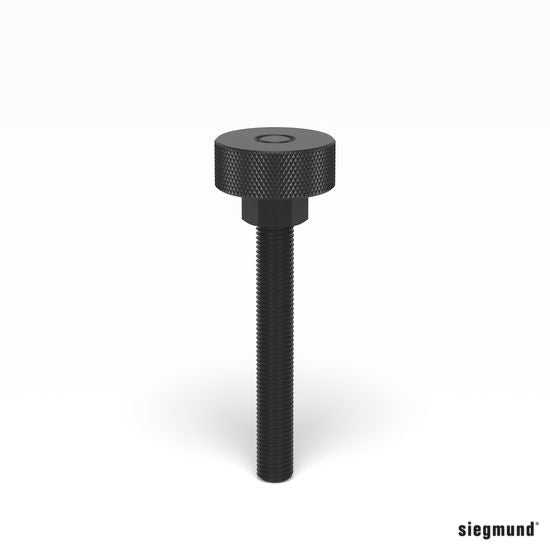

Spacer 150 Ø 75
Length (a) 150 mm /Weight 1 kg /Diameter 75 mm

Product description

Spacer - universally usable in combination with the threaded bushing for M16 threads (Item No. 280825) and a square or stop. Any distance can be adjusted quickly and precisely by using the simple rotation mechanism. In general, a screw clamp, try square or something similar, serves as a counterpart to the Spacer.

Item No.:   280177
Spacer 100 Ø 100
Length (a)100 mm /Weight 1.42 kg /Diameter 100 mm

Product description
Spacer - universally usable in combination with the threaded bushing for M16 threads (Item No. 280825) and a square or stop. Any distance can be adjusted quickly and precisely by using the simple rotation mechanism. In general, a screw clamp, try square or something similar, serves as a counterpart to the Spacer.


Item No.:   280177.1

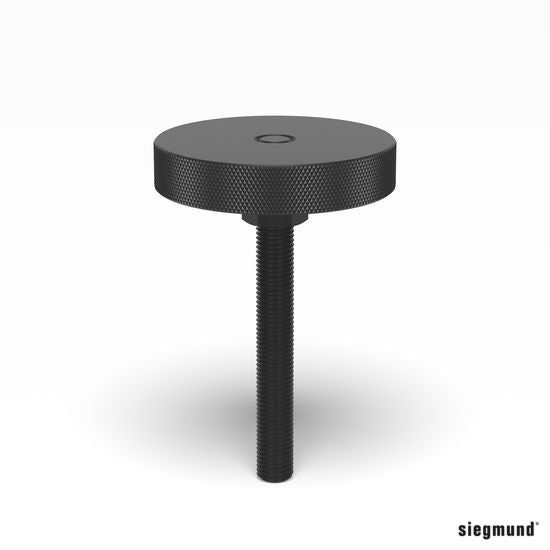

Spacer 150 Ø 100
Length (a)150 mm /Weight 1.5 kg /Diameter 100 mm

Product description
Spacer - universally usable in combination with the threaded bushing for M16 threads (Item No. 280825) and a square or stop. Any distance can be adjusted quickly and precisely by using the simple rotation mechanism. In general, a screw clamp, try square or something similar, serves as a counterpart to the Spacer.





Item No.:   280825

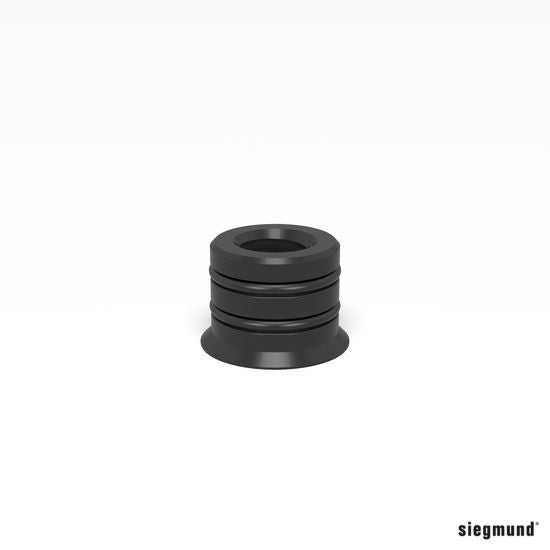

Thread Bushing for M16 thread ‐ burnished
Height (c) 23 mm /Weight 0.07 kg /Diameter 30 mm

Product description
‐ burnished
