The Sliding Base gives two axes of adjustment when used with System 28 squares, and Siegmund says a second sliding base adds a third axis. It is made of GGG40 ductile cast iron, nitrided, and measures 350 x 300 x 50 mm. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 280195.N (siegmund.com) |
|---|---|
| Siegmund name | Sliding Base nitrided |
| System | Siegmund System 28 (Ø28 mm bores, 100 mm grid) |
| Length | 350 mm (13.78 in) |
| Width | 300 mm (11.81 in) |
| Height | 50 mm (1.97 in) |
| Weight | 16 kg (35.27 lb) |
Works with this product
-

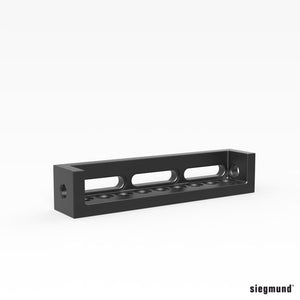

Siegmund System 28 - Moveable Square
$572.00
-
Siegmund System 28 - Mounting Square
$261.00
-
Siegmund System 28 - Fast Clamping Bolt without Slot
From $115.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
-
Siegmund System 16 & 28 - Clean Basic
From $32.00
-
Siegmund System 16 & 28 - Ground Connection Comfort
$104.00
Compatibility
- Fits: Siegmund System 28 welding tables and tooling with Ø28 mm bores.
- Not compatible: System 16 (Ø16 mm) tables; Siegmund builds each system around one bore size.
- Related products: 280302.N Siegmund System 28 - Moveable Square, 280107.N Siegmund System 28 - Mounting Square, 280511 Siegmund S28 Fast Clamping Bolt without Slot.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
- 1 x Siegmund Sliding Base nitrided (280195.N)
Typical uses
- Fine positioning of squares in two axes
- Building three-axis adjustable fixtures with a second base
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and delivery estimate.
Frequently Asked Questions
How many axes of adjustment does the Sliding Base give?
Siegmund says it provides two axes of adjustment when used with squares, and a third axis can be created by adding a second sliding base.
What is it made of?
GGG40 ductile cast iron, nitrided. Siegmund lists it at 350 x 300 x 50 mm and 16 kg.
