System 28 Square U-Shape - 200/200 Special Size

  • Sale
  • Regular price $1,435.00
Shipping calculated at checkout.


Siegmund offers a special sized 200/200, System 28 U-Shape. Like Siegmund's other System 28 tooling, this special U-Shape is still compatible with all 28mm fixture tables. Manufactured in Germany, Siegmund's U-Shapes are made with the highest quality standards on the market. Choose Siegmund and take on any project with confidence.




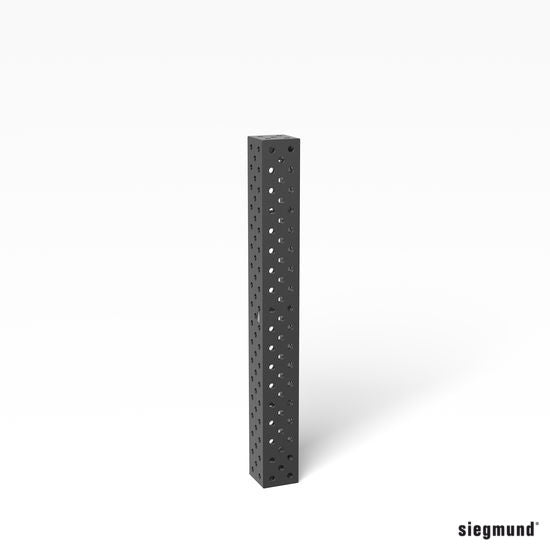

SIEGMUND SYSTEM 28 SQUARE U SHAPE - SPECIAL SIZE

Siegmund's Square U Shape 200/200 (200mm sides), is a perfect accessory to extend an existing table, to use as a vertical fixture, and can firmly join tables together. Riser Blocks can also be mounted on the table using connector bolts (Item No. 280560.N).

If this U-Shape is used to extend a table more than  1000mm, the riser block must be supported by a table leg.

Riser Blocks can be used in different ways on the foundation rails, when combined with the legs (Item No. 280376).

Multiple combinations of clamping options with other squares and stops are facilitated by the five-sided boreholes and optional diagonal hole arrangement. Orientation is simplified with the 100x100mm grid.


Technical Data

Item No.:  280362.P
Square U-Shape 600x200x200 Plasma nitrided
Length (a) 600 mm /Width (b)200 mm /Height (c)200 mm
Material thickness (d)25 mm /Weight 77 kg

Product description
Square U-Shape 200/200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 280560.N).

When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.

Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).


Item No.:  280366.P
Square U-Shape 800x200x200 Plasma nitrided
Length (a) 800 mm /Width (b)200 mm /Height (c)200 mm
Material thickness (d)25 mm /Weight 99 kg

Product description
U-Shape 200/200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 280560.N).

When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.

Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).



Item No.:   280374.P
Square U-Shape 1200x200x200 Plasma nitrided
Length (a)1200 mm /Width (b)200 mm /Height (c) 200 mm
Material thickness (d )25 mm /Weight 140 kg

Product description
Square U-Shape 200/200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 280560.N).

When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.

Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).



Item No.:  280378.P
Square U-Shape 1400x200x200 Plasma nitrided
Length (a)1400 mm /Width (b)200 mm /Height (c)200 mm
Material thickness (d)25 mm /Weight 162 kg

Product description
Squarer>U-Shape 200/200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 280560.N).

When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.

Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).



Item No.: 2-800382.P
Square U-Shape 1600x200x200 Plasma nitrided
Length (a)1600 mm /Width (b)200 mm /Height (c)200 mm
Material thickness (d) 25 mm /Weight 182 kg

Product description
Square U-Shape 200/200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 280560.N).

When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.

Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).




Item No.: 280386.P
Square U-Shape 1800x200x200 Plasma nitrided
Length (a)1800 mm /Width (b) 200 mm /Height (c) 200 mm
Material thickness (d) 25 mm /Weight 204 kg

Product description
Square U-Shape 200/200 (sides 200 mm), ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. Riser Blocks are mounted to the table using connector bolts (Item No. 280560.N).

When used as a table extension exceeding 1000 mm, the Riser Block has to be supported by a table leg.

Combined with the legs (Item No. 280371), Riser Blocks can be flexibly used on the foundation rails.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided boreholes and the optional diagonal hole arrangement.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).
