SIEGMUND SYSTEM 28 - SQUARE U-SHAPE 200x100



Siegmund System 28 Square U -Shapes are compatible with any 28mm fixture table. Made in Germany with the highest quality assurance, you know that with Siegmund tooling, you will not be let down.

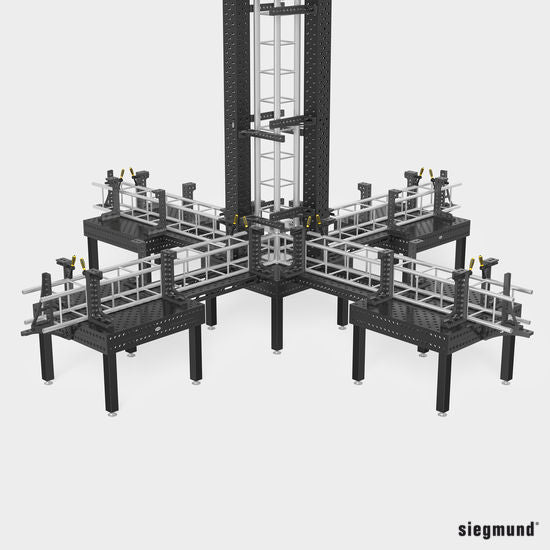

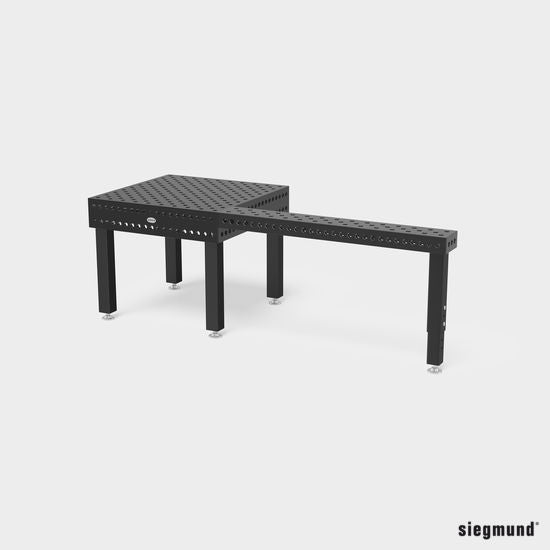

Square U-Shape 200/100 (sides 100 mm), ideally suited as a table extension for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly mounted to the table using Connecting Bolts (Item No. 280560.N).

If the Square is used as a table extension exceeding 1,000 mm, it has to be supported by a table leg.

The diagonal hole arrangement enables many clamping- and combination options in connection with other squares and stops. The 100x100 mm grid simplifies orientation.


Technical Data:

Item No.: 2-280310.P

Square U-Shape 500x200x100 Plasma nitrided

Length (a) 500 mm
Width (b) 200 mm
Height (c) 100 mm
Material thickness (d) 25 mm
Weight  31 kg



Product description
Square U-Shape 200x100 (sides 100 mm), ideally suited as a table extension for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly mounted to the table using Connecting Bolts (Item No. 280560.N).

If the Square is used as a table extension exceeding 1,000 mm, it has to be supported by a table leg.

The diagonal hole arrangement enables many clamping- and combination options in connection with other squares and stops.

The 100x100 mm grid simplifies orientation.

‐ with diagonal grid

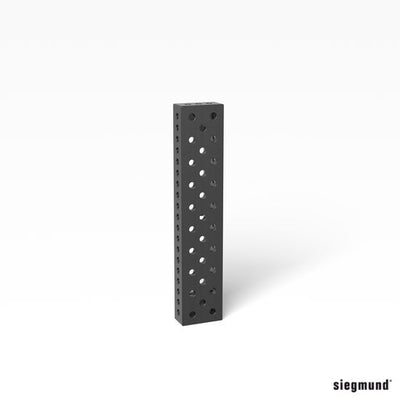

Item No.: 2-280320.P

Square U-Shape 1000x200x100 Plasma nitrided

Length (a) 1000 mm
Width (b) 200 mm
Height (c) 100 mm
Material thickness (d) 25 mm
Weight  75 kg



Product description
Square U-Shape 200x100 (sides 100 mm), ideally suited as a table extension for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly mounted to the table using Connecting Bolts (Item No. 280560.N).

If the Square is used as a table extension exceeding 1,000 mm, it has to be supported by a table leg.

The diagonal hole arrangement enables many clamping- and combination options in connection with other squares and stops.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).

‐ with diagonal grid

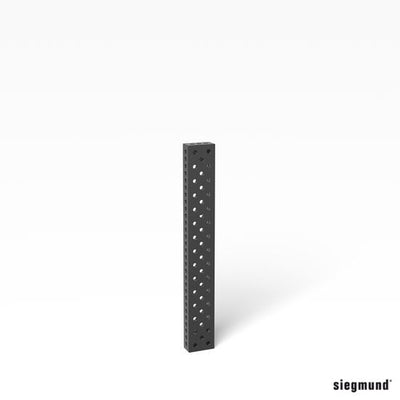

Item No.: 2-280330.P

Square U-Shape 1500x200x100 Plasma nitrided

Length (a) 1500 mm
Width (b) 200 mm
Height (c) 100 mm
Material thickness (d) 25 mm
Weight  108 kg



Product description
Square U-Shape 200x100 (sides 100 mm), ideally suited as a table extension for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly mounted to the table using Connecting Bolts (Item No. 280560.N).

If the Square is used as a table extension exceeding 1,000 mm, it has to be supported by a table leg.

The diagonal hole arrangement enables many clamping- and combination options in connection with other squares and stops.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).

‐ with diagonal grid

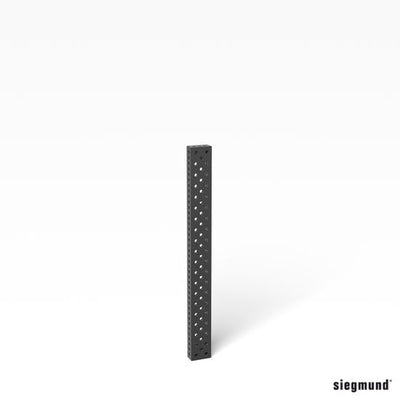

Item No.: 2-280340.P

Square U-Shape 2000x200x100 Plasma nitrided

Length (a) 2000 mm
Width (b) 200 mm
Height (c) 100 mm
Material thickness (d) 25 mm
Weight  141 kg



Product description
Square U-Shape 200x100 (sides 100 mm), ideally suited as a table extension for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly mounted to the table using Connecting Bolts (Item No. 280560.N).

If the Square is used as a table extension exceeding 1,000 mm, it has to be supported by a table leg.

The diagonal hole arrangement enables many clamping- and combination options in connection with other squares and stops.

The 100x100 mm grid simplifies orientation.

From a length of 500 mm all U-shaped squares have mounting holes on the back to attach table legs (except 280310.P).

‐ with diagonal grid
