Item No. 4-168320.X7D
Siegmund Welding Tables are the most durable, resistant and exceptionally flat welding tables available in Canada!
Siegmund Special Offer
Siegmund System 16 Professional Extreme 8.7 2000x1000x100 incl. Accessories
Set Includes:
- 1x Table
- 1x Table Press for System 16
- 6x Professional Screw Clamp ‐ burnished / nitrided
- 4x Professional Screw Clamp 45°/90° ‐ burnished
- 16x Fast Clamping Bolt without slot double ‐ burnished
- 1x Stop and Clamping Square 250 G with rotation angle left ‐ nitrided
- 1x Stop and Clamping Square 250 G with rotation angle right ‐ nitrided
- 4x Stop and Clamping Square 90 L ‐ nitrided
- 4x Universal Stop 80 L ‐ nitrided
- 1x Set Sub Table Box incl. 2 drawers
- 2x Aluminum profile bracket 1000x100x24 with elongated hole
- 2x Aluminum profile U-shape 1000x100x100 with elongated hole
- 4x Fast Clamping Bolt without slot triple ‐ burnished
- 4x Adapter for screw clamps double ‐ nitrided
- 8x Flush Mount Bolt without slot double ‐ burnished
- 1x Accessories Set

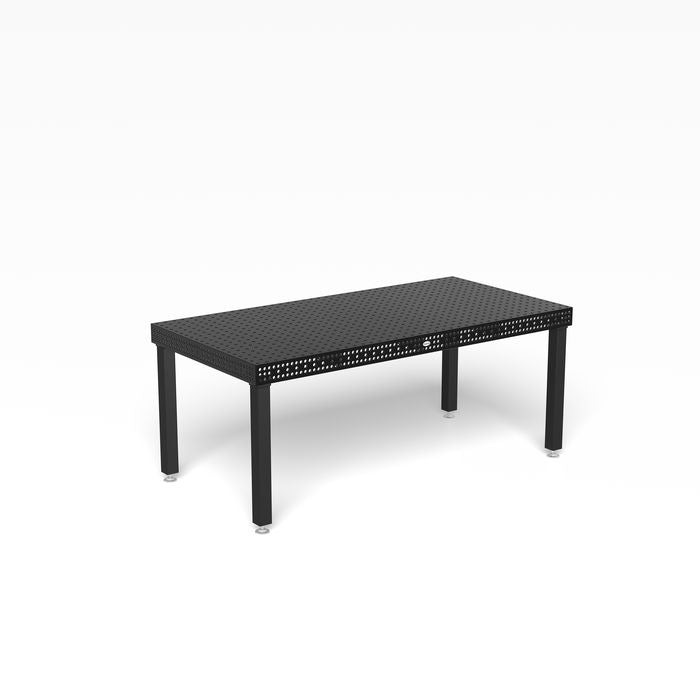

Product description (Welding Table):
- Professional Extreme 8.7: Through-hardened tool steel X8.7 + Plasma nitration
- Material thickness approx. 11,5 – 13 mm
- Table side panel made of high quality steel S355J2+N + Plasma nitration
- Borehole Ø 16 mm
- Boreholes on the surface 50x50 mm grid
- Corners, edges and boreholes rounded
- Height of table side 100 mm
- Boreholes on table sides in diagonal grid
- With scaling on the surface
- Construction reinforced with ribbing
![]() 1x
160020.X7D
|
![]() 6x
160610
|
![]() 4x
160630
|
![]() 16x
160511
|
![]() 1x
160161.N
|
![]() 1x
160163.N
|
![]() 4x
160110.N
|
![]() 4x
160410.N
|
![]() 1x
160990.1
|
![]() 2x
AR16014100.VL
|
![]() 2x
AQ16014100.VL
|
![]() 4x
160513
|
![]() 4x
AP160602.N
|
![]() 2x
AP160399.AT
|
![]() 8x
AP160528
|
![]() 1x
160402.N
|
![]() 1x
160852
|
![]() 1x
160820
|
![]() 1x
000911
|
![]() 1x
000921
|
1x
160780
|
