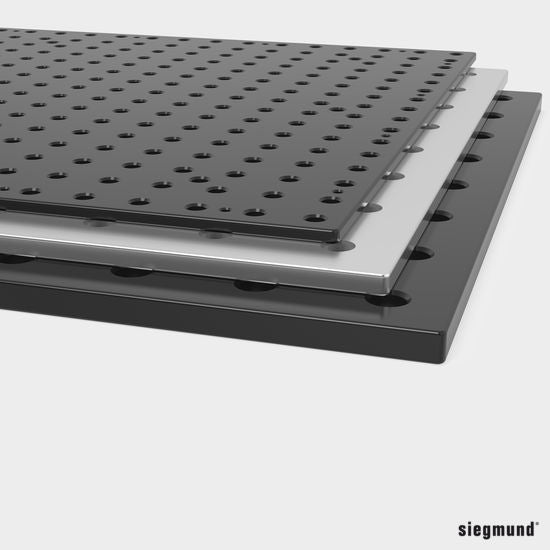

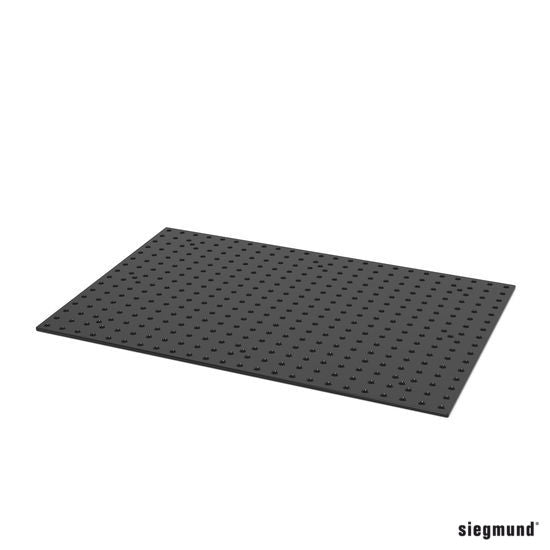

System 16 - Workstation - Perforated plate S355J2+N 1200x800x12 Plasma nitrided (PLATE ONLY)

  • Sale
  • Regular price $1,423.00
Shipping calculated at checkout.


Item Number:  2-164004.P
*Standard Stock

The Workstation Table Top

Properties of S355J2+N steel plus plasma nitration:

Siegmund's plasma nitration represents an unrivaled surface hardening and tempering treatment. Why should you accept anything less? The thermo-chemical procedure of plasma nitration results in more wear-free, corrosion-resistant and durable surfaces.

Plasma nitration is one of the most environmentally friendly hardening processes, as it only requires nitrogen, hydrogen and oxygen for the material to harden. These gases represent the main elements of air. An investment that pays for itself!

By at least doubling the life span, plasma nitration is always profitable! The clamping force of the bolt is substantially increased. At the same time the loadability of the table is increased by approx. 20-30 %.


Workstation Specs

  • Length: 1200mm
  • Width: 800mm
  • Material Thickness: 12mm
  • Weight: 88kg

Product description
To mount the Workstation perforated plates from system 16 and system 28 Premium Light on the Workstation base frame, 8x mounting screws (Item no. 00002594) are required.

These are not included in the scope of delivery of the perforated plate.

‐ Steel S355J2+N + Plasma nitration
‐ The ideal basis for your fixtures.
‐ Compatible with: Workstation, Rotating table height adjustable, Mobile lifting table 500 kg
