Siegmund System 28 Clamps - Accessories

  • Sale
  • Regular price $43.00
Shipping calculated at checkout.



The range of Siegmund System 28 Clamps - Accessories are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.




SIEGMUND SYSTEM 28 CLAMP ACCESSORIES



Technical Data:

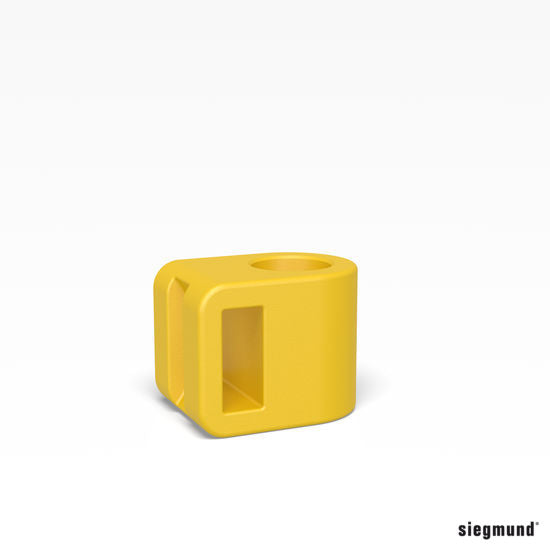

Item No.:   280617

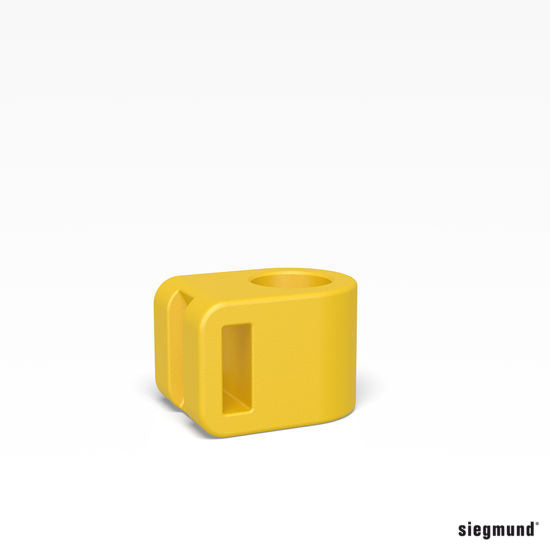

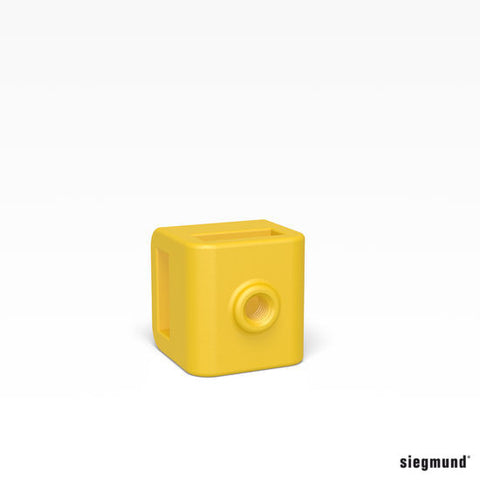

Cast Iron Cross for 280610.N/ 280611/280615.N/220610.1/ 220615
Length (a)45 mm /Width (b) 45 mm /Height (c 40 mm
Weight 0.34 kg

Product description
‐ for 280610.N, 280611, 280615.N, 220610.1, 220615
‐ without handwheel



Item No.:  280617.1
Cast Iron Cross for 280612.N
Length (a) 52 mm /Width (b)52 mm /Height (c)54 mm /Weight 0.39 kg

Product description
‐ for 280612.N
‐ without handwheel



Item No.:   280617.2
Cast Iron Cross for 280630.N/ 220630.1
Length (a)70 mm /Width (b)26 mm /Height (c)30 mm /Weight 0.23 kg

Product description
‐ for 280630.N, 220630.1
‐ without handwheel



Item No.:   280617.4
Cast Iron Cross for 280638/ 280642
Length (a) 69 mm /Width (b) 50 mm /Height (c) 54 mm /Weight 0.73 kg

Product description
‐ for 280638, 280642
‐ without handwheel



Item No.: 2-280617.6
Cast Iron Cross for 280631/ 280642
Length (a)69 mm /Width (b)50 mm /Height (c)48 mm /Weight 0.7 kg

Product description
‐ for 280631, 280642
‐ without handwheel

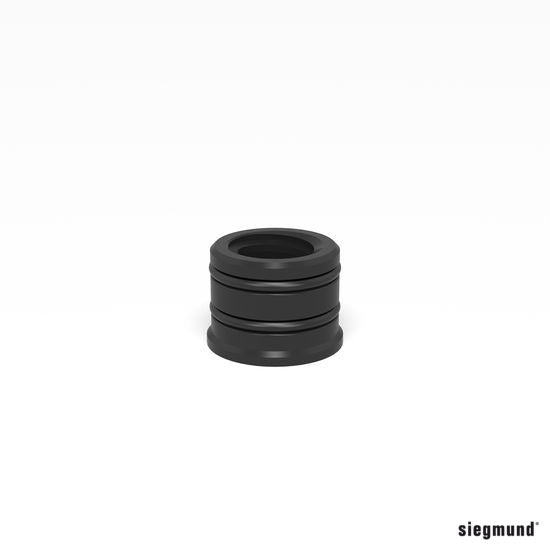

Item No.:   280618.N
Thread Bushing Tr 20x4 ‐ nitrided
Height (c)22 mm /Weight 0.05 kg /Diameter 30 mm

Product description
The burnished Threaded Bushing was especially designed for working in restricted spaces. The threaded bushing is the compatible counterpart which incorporates screw clamp arbors from the 16 mm system (Tr 12x3) or the 28 mm system (Tr 20x4). A combination of threaded bushing, screw clamp arbor and heavy squares, is ideal to perform complicated horizontal clamping tasks.

‐ for 280610.N, 280612.N, 280625
‐ nitrided
‐ Acme trapezoidal thread 20 x 4 mm for system 28 screw clamp arbor
‐ usable in every system borehole

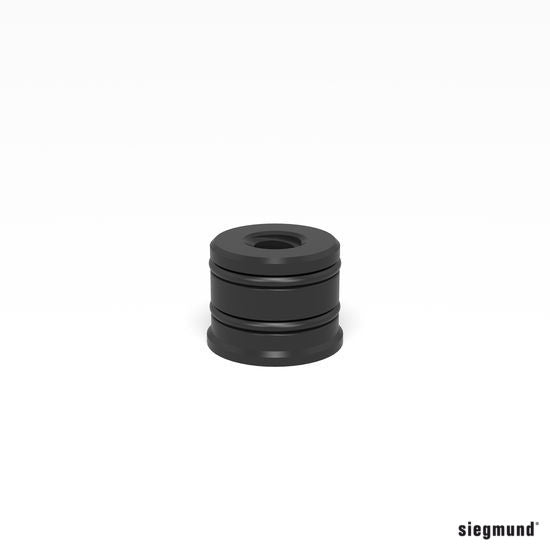

Item No.:   280619
Thread Bushing Tr 12x3 ‐ burnished / nitrided
Height (c) 23 mm  /Weight 0.07 kg /Diameter 32 mm

Product description
The burnished Threaded Bushing was especially designed for working in restricted spaces. The threaded bushing is the compatible counterpart which incorporates screw clamp arbors from the 16 mm system (Tr 12x3) or the 28 mm system (Tr 20x4). A combination of threaded bushing, screw clamp arbor and heavy squares, is ideal to perform complicated horizontal clamping tasks.

‐ Acme trapezoidal thread 12 x 3 mm for system 16 screw clamp arbor
‐ burnished / nitrided

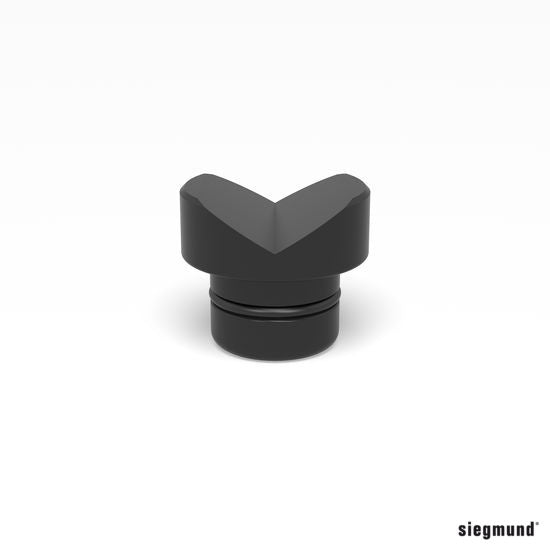

Item No.:   280650

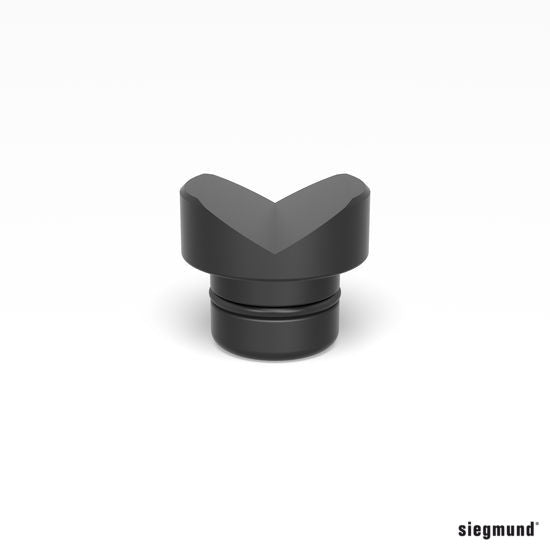

Duo Prism Ø 40 ‐ burnished / nitrided
Height (c) 35 mm /Weight 0.15 kg /Diameter 40 mm

Product description
Duo Prism, compatible with all boreholes and screw clamps of System 28, due to ist dual function. The O-ring provides perfect fixing and fitting accuracy. The 120° square creates a stable support surface for all round pipes. The leveled corners of the prism enable working with flat welding parts.

The Polyamid Prism is used for scratch-prone surfaces.

‐ burnished / nitrided
‐ for spindle with ball diameter 16 mm
‐ compatible with 28 mm boreholes and clamps



Item No.:   280650.A
Duo Prism Ø 40 ‐ Aluminum
Height (c) 35 mm /Weight 0.05 kg /Diameter 40 mm

Product description
Duo Prism, compatible with all boreholes and screw clamps of System 28, due to ist dual function. The O-ring provides perfect fixing and fitting accuracy. The 120° square creates a stable support surface for all round pipes. The leveled corners of the prism enable working with flat welding parts.

The Polyamid Prism is used for scratch-prone surfaces.

‐ Aluminum
‐ for spindle with ball diameter 16 mm
‐ compatible with 28 mm boreholes and clamps



Item No.: 280650.PA
Duo Prism Ø 40 ‐ Polyamide
Height (c) 35 mm /Weight .02 kg /Diameter 40 mm

Product description
Duo Prism, compatible with all boreholes and screw clamps of System 28, due to ist dual function. The O-ring provides perfect fixing and fitting accuracy. The 120° square creates a stable support surface for all round pipes. The leveled corners of the prism enable working with flat welding parts.

The Polyamid Prism is used for scratch-prone surfaces.

‐ Polyamide
‐ for spindle with ball diameter 16 mm
‐ compatible with 28 mm boreholes and clamps




Item No.:   280657.1.N

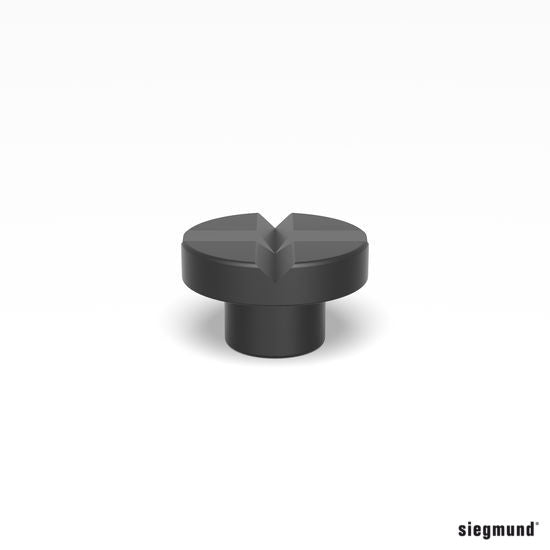

Prism for Screw Clamps ‐ nitrided
Height (c) 24 mm /Weight 0.09 kg /Diameter 40 mm

Product description
The Prism is available in various material finishes.

Polyamid Prisms are used for scratch-prone surfaces.

The Stainless Steel Prism is used for scratch-resistant precious metals (rust prevention).

‐ nitrided
‐ for spindle with ball diameter 16 mm
‐ compatible with 28 mm boreholes and clamps




Item No.:  280658.E

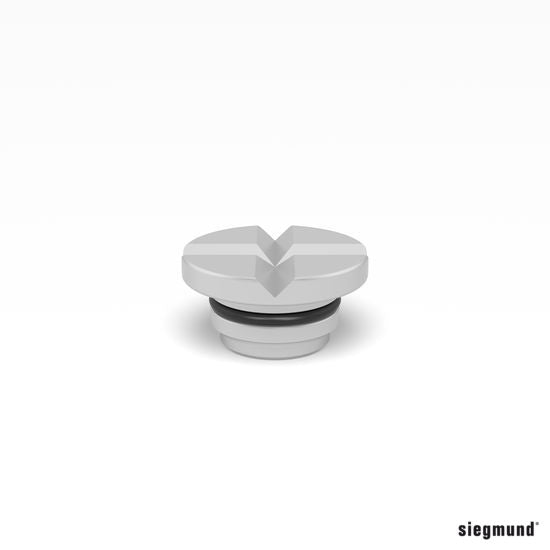

Prism for Screw Clamps ‐ Stainless Steel
Height (c) 21 mm /Weight 0.1 kg /Diameter 40 mm

Product description
The Prism is available in various material finishes.

Polyamid Prisms are used for scratch-prone surfaces.

The Stainless Steel Prism is used for scratch-resistant precious metals (rust prevention).

‐ Stainless Steel
‐ for spindle with ball diameter 16 mm
‐ compatible with 28 mm boreholes and clamps



Item No.:   280659.PA
Prism for Screw Clamps ‐ Polyamide
Height (c) 24 mm /Weight 0.01 kg /Diameter 40 mm

Product description
The Prism is available in various material finishes.

Polyamid Prisms are used for scratch-prone surfaces.

The Stainless Steel Prism is used for scratch-resistant precious metals (rust prevention).

‐ Polyamide
‐ for spindle with ball diameter 16 mm
‐ compatible with 28 mm boreholes and clamps



Item No.:   280660
Pressure Ball for Screw Clamps ‐ burnished / nitrided
Height (c) 20 mm /Weight 0.07 kg /Diameter 35 mm

Product description
Pressure Ball for Screw Clamps, especially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.

It can be replaced by simply removing it from the ball head.

The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistent metals (rust prevention).

‐ burnished / nitrided
‐ for spindle with ball diameter 16 mm
‐ only suitable for clamps

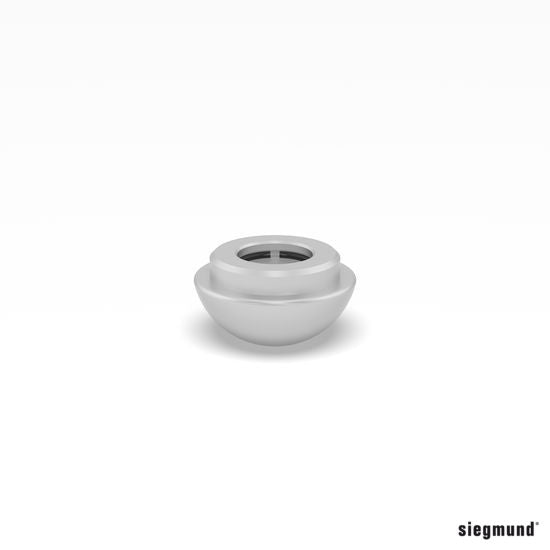

Item No.:   280660.E

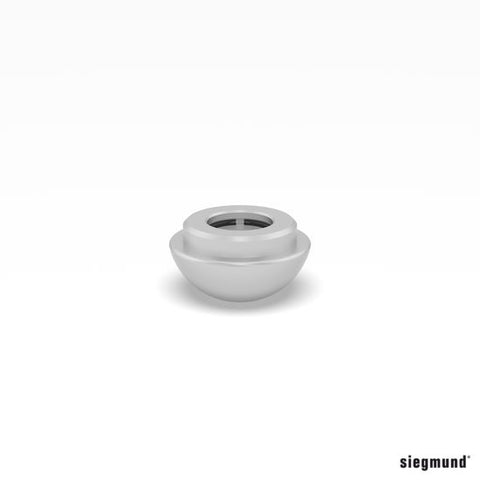

Pressure Ball for Screw Clamps ‐ Stainless Steel
Height (c) 20 mm /Weight 0.07 kg /Diameter 35 mm

Product description
Pressure Ball for Screw Clamps, especially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.

It can be replaced by simply removing it from the ball head.

The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistent metals (rust prevention).

‐ Stainless Steel
‐ for spindle with ball diameter 16 mm
‐ only suitable for clamps



Item No.:  2 80660.PA
Pressure Ball for Screw Clamps ‐ Polyamide
Height (c) 20 mm /Weight 0.01 kg /Diameter 35 mm

Product description
Pressure Ball for Screw Clamps, especially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.

It can be replaced by simply removing it from the ball head.

The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistent metals (rust prevention).

‐ Polyamide
‐ for spindle with ball diameter 16 mm
‐ only suitable for clamps



Item No.: 280662

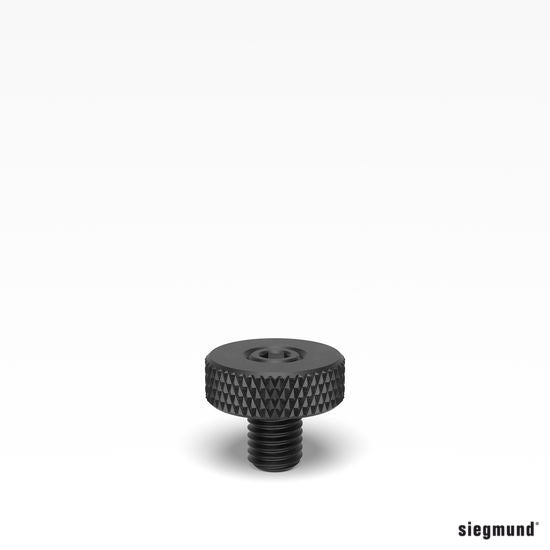

Handwheel for Cast Iron Cross
Length (a )25 mm /Weight 0.06 kg /Diameter 30 mm

Product description
‐ for 280610.N, 280612.N, 280630.N, 280615.N, 280611, 220610.1, 220630.1, 220615

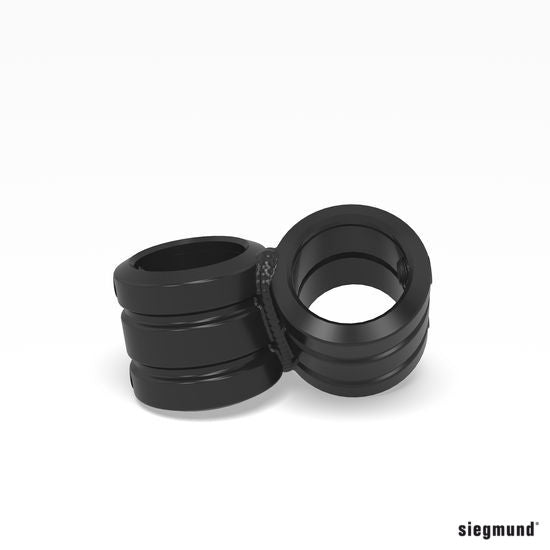

Item No.:   280770

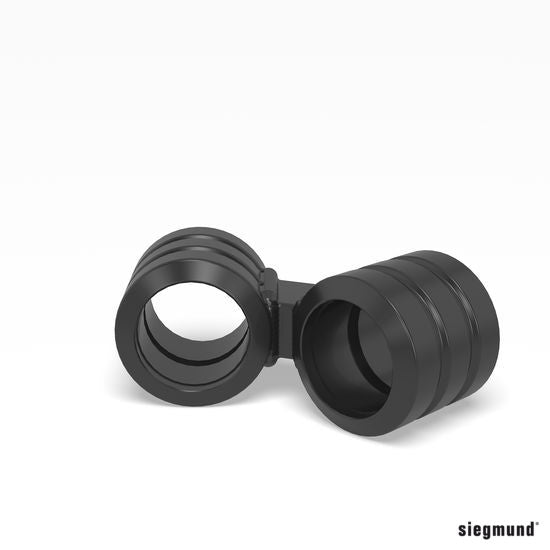

Angle Bushing 45° for clamping pipe
Length (a) 80 mm /Width (b) 40 mm /Height (c) 40 mm /Weight 0.32 kg

Product description
Angle Bushing / -Sleeve, can be flexibly used in conjunction with a Clamping Pipe (Item No. 280750 + 280642).

By using a Threaded Bushing (Item No. 280618.N), the Angle Bushing / -Sleeve can be used in combination with a threaded arbor.

Axial distance arbor 40 mm.

‐ for clamping pipe 280750, 280642

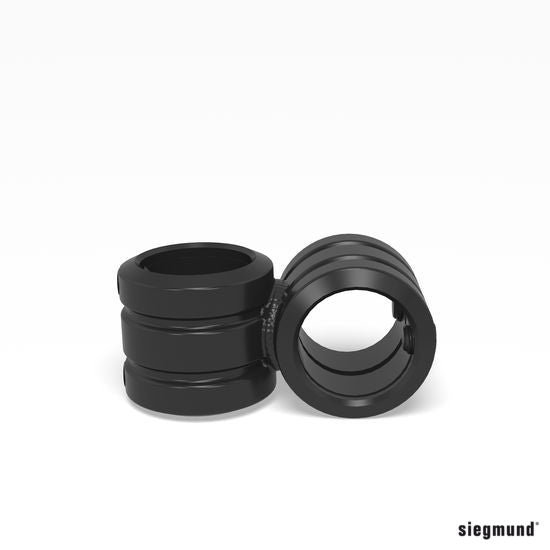

Item No.:  280771
Angle Bushing 90° for clamping pipe
Length (a )80 mm /Width (b) 40 mm /Height (c) 40 mm /Weight 0.32 kg

Product description
Angle Bushing / -Sleeve, can be flexibly used in conjunction with a Clamping Pipe (Item No. 280750 + 280642).

By using a Threaded Bushing (Item No. 280618.N), the Angle Bushing / -Sleeve can be used in combination with a threaded arbor.

Axial distance arbor 40 mm.

‐ for clamping pipe 280750, 280642



Item No.:  280772
Angle Socket 45° for clamping pipe
Length (a) 100 mm /Width (b) 67 mm /Height (c) 40 mm /Weight 0.32 kg

Product description
Angle Bushing / -Sleeve, can be flexibly used in conjunction with a Clamping Pipe (Item No. 280750 + 280642).

By using a Threaded Bushing (Item No. 280618.N), the Angle Bushing / -Sleeve can be used in combination with a threaded arbor.

Axial distance arbor 40 mm.

‐ for clamping pipe 280750, 280642

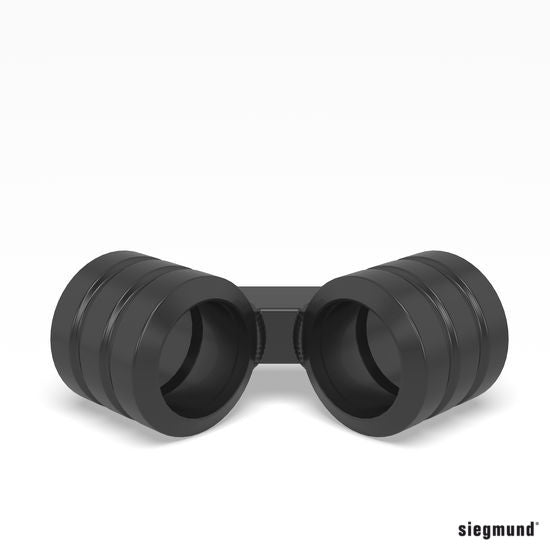

Item No.:  280773
Angle Socket 90° for clamping pipe
Length (a) 85 mm /Width (b) 85 mm /Height (c) 40 mm /Weight 0.39 kg

Product description
Angle Bushing / -Sleeve, can be flexibly used in conjunction with a Clamping Pipe (Item No. 280750 + 280642).

By using a Threaded Bushing (Item No. 280618.N), the Angle Bushing / -Sleeve can be used in combination with a threaded arbor.

Axial distance arbor 40 mm.

‐ for clamping pipe 280750, 280642
