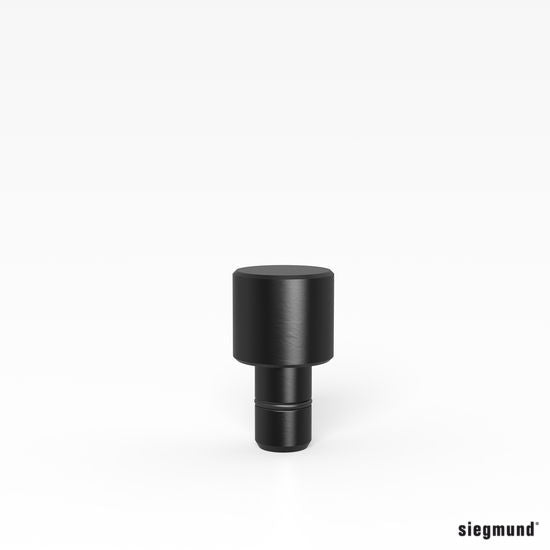

System 16 & 28 Flange Fixing Bolts

  • Sale
  • Regular price $33.00
Shipping calculated at checkout.



The Siegmund System 16 & 28 Flanges - Fixing Bolts are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance. You always know that with Siegmund tooling, you will never be let down.





SIEGMUND SYSTEM FLANGES

Technical Data

Item No.: 280222
Fixing Bolt Ø 13,8 for bore 8.1 ‐ burnished
Length (a)39 mm /Weight 0.03 kg /Diameter 13.8 mm

Product description
‐ for Clamping Plate 280220.P / 280221.P
‐ burnished



Item No.: 280223
Fixing Bolt Ø 17.8 for bore 10.1 ‐ burnished
Length (a)41 mm /Weight 0.05 kg /Diameter 17.8 mm

Product description
‐ for Clamping Plate 280220.P / 280221.P
‐ burnished



Item No.: 280224
Fixing Bolt Ø 21.8 for bore 16.1 ‐ burnished
Length (a)47 mm /Weight 0.1 kg /Diameter 21.8 mm

Product description
‐ for Clamping Plate 280220.P / 280221.P
‐ burnished



Item No.: 280225
Fixing Bolt Ø 25.8 for bore 16.1 ‐ burnished
Length (a)50 mm /Weight 0.14 kg /Diameter 25.8 mm

Product description
‐ for Clamping Plate 280220.P / 280221.P
‐ burnished



Item No.: 280226
Fixing Bolt Ø 29,8 for bore 16.1 ‐ burnished
Length (a)55 mm /Weight 0.2 kg /Diameter 29.8 mm

Product description
‐ for Clamping Plate 280220.P / 280221.P
‐ burnished



Item No.: 280227
Fixing Bolt Ø 32,8 for bore 16.1 ‐ burnished
Length (a)60 mm /Weight 0.27 kg  /Diameter 32.8 mm

Product description
‐ for Clamping Plate 280220.P / 280221.P
‐ burnished



Item No.: 280255
Fixing Bolt Ø 15.5 ‐ burnished
Length (a)39 mm /Weight 0.03 kg /Diameter 15.5 mm

Product description
‐ for Clamping Plate 280250.P / 280251.P / 280252.P
‐ burnished



Item No.: 280256
Fixing Bolt Ø 18.9 ‐ burnished
Length (a) 41 mm /Weight 0.05 kg /Diameter 18.9 mm

Product description
‐ for Clamping Plate 280250.P / 280251.P / 280252.P
‐ burnished



Item No.: 280257
Fixing Bolt Ø 22.2 ‐ burnished
Length (a)45 mm /Weight 0.1 kg
Diameter 22.2 mm

Product description
‐ for Clamping Plate 280250.P / 280251.P / 280252.P
‐ burnished



Item No.: 280258
Fixing Bolt Ø 25.2 ‐ burnished
Length (a) 50 mm /Weight 0,14 kg /Diameter 25.2 mm

Product description
‐ for Clamping Plate 280251.P / 280252.P
‐ burnished



Item No.: 280259
Fixing Bolt Ø 28.2 ‐ burnished
Length (a)50 mm /Weight 0.16 kg /Diameter 28.2 mm

Product description
‐ for Clamping Plate 280252.P
‐ burnished
