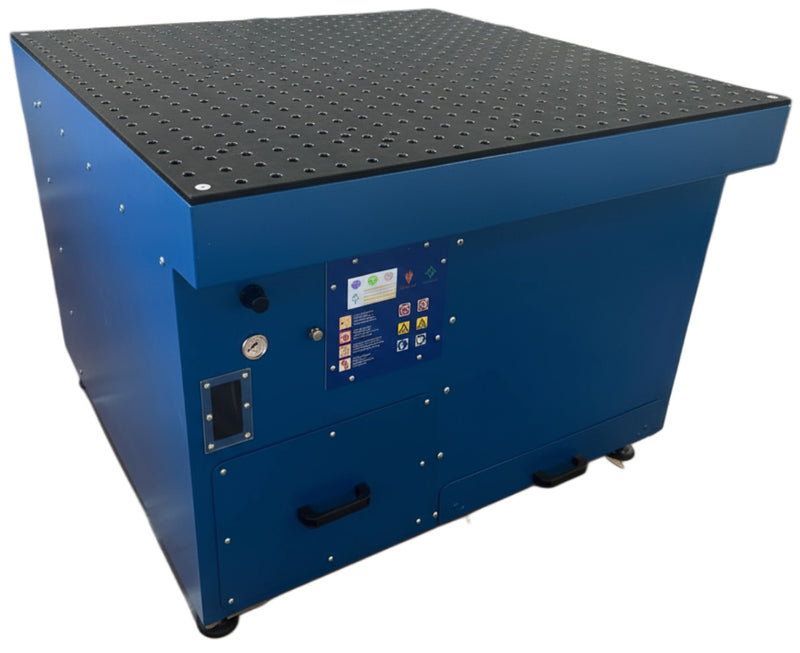

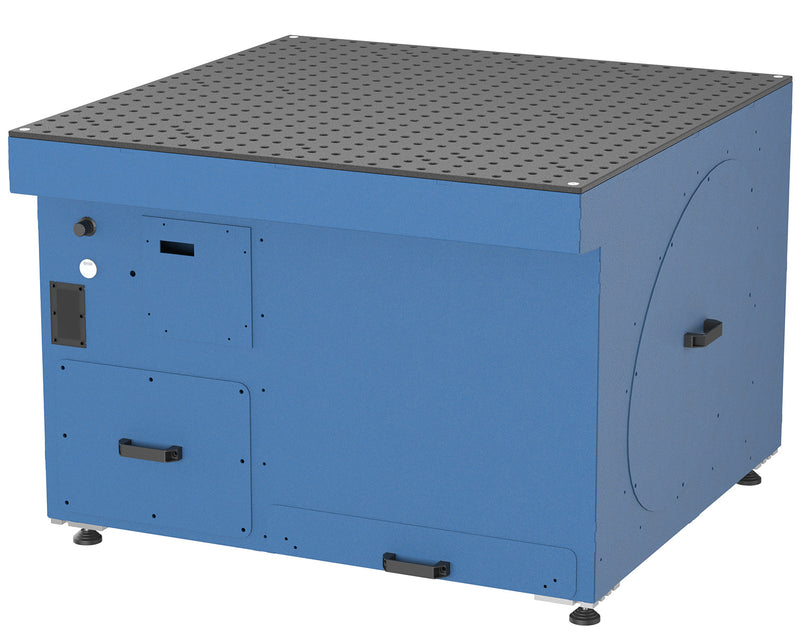

Siegmund Compatible GEF GTW Downdraft Welding Table System 16
Discover the GTW System 16 which combines the versatility of a Siegmund welding table with an integrated downdraft extraction and filtration in one compact workstation. Designed for light to medium-duty fabrication, the System 16 platform allows operators to safely weld, grind, and assemble while capturing fumes and airborne particles directly at the source. Built with full compatibility for Siegmund System 16 fixturing accessories, the GTW delivers exceptional workflow efficiency while improving shop cleanliness and operator safety. Integrated filtration, spark protection, and a high-efficiency internal fan make this an ideal all-in-one solution for fabrication shops, technical schools, and production environments.
Fume extraction is an essential part of any welding operation to protect welder health and maintain a safe work environment. Welding produces hazardous fumes containing toxic heavy metals like manganese and chromium, plus dangerous gases. Extended exposure can lead to serious short-term and long-term health issues.
By combining the GEF GTW downdraft system with a Siegmund welding table, you remove harmful contaminants at the source while having every benefit of a premium fixture table that delivers superior quality, accuracy, and repeatability.
Features
- Siegmund System 16 tabletop with integrated extraction
- Compact all-in-one welding and extraction workstation
- Built-in high-efficiency fan for quiet operation
- Integrated spark arrestor for filter protection
- Dust collection drawers for easy maintenance
- Multifunction display with maintenance monitoring
- Adjustable leveling feet
- Compatible with all Siegmund System 16 accessories
- Includes automatic reverse jet cleaning
- Made in Italy
Applications
- Welding
- Grinding
- Metal fabrication
- Assembly work
- Educational and training facilities
Available Options
- HEPA H13 filtration upgrade
- Acoustic silencer (-10 Dba)
- Enclosure systems
- Integrated lighting
Specifications

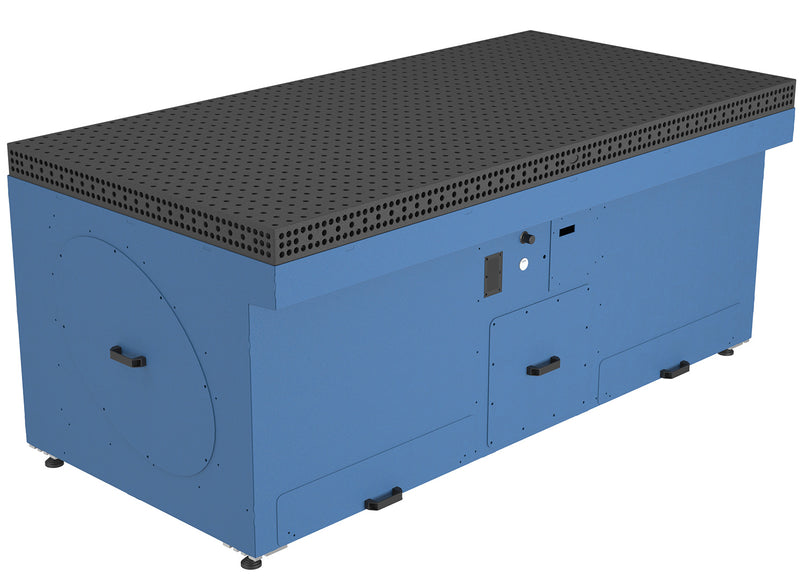

- Available Sizes: 1.2x1.2m (47.24" x 47.24") and 2.4x1.2m (94.49" x 47.24")

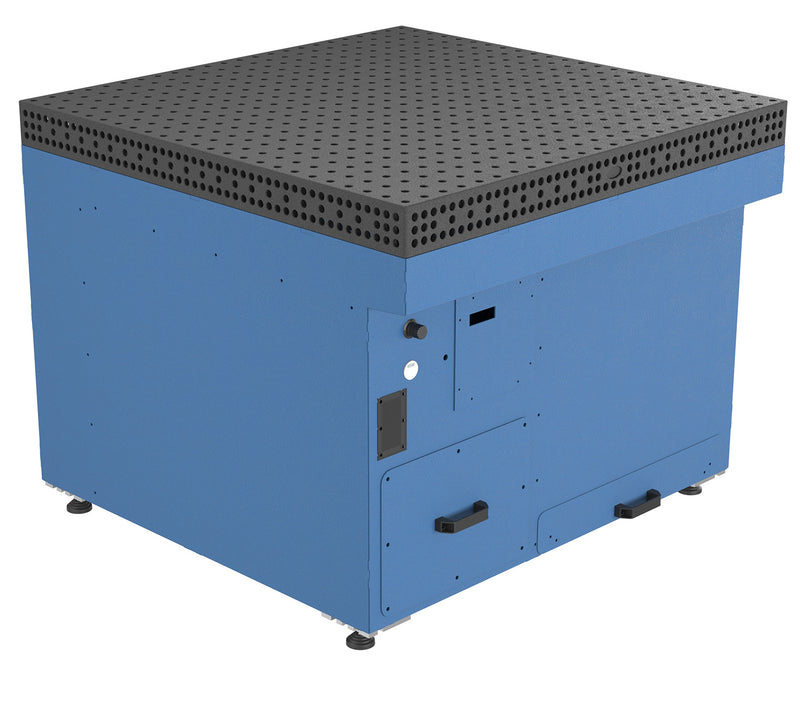

- Available with Siegmund Plate or Professional Extreme 8.7 Series tables
- Hole diameter: Ø16 mm
- Designed for light to medium-duty fabrication applications
- Total unit dimensions for 1.2 x 1.2
-Length 1200mm (47.24") x Width 1241.4mm (48.87") x Height 824.10 mm (32.44") - Total unit dimensions for 2.4 x 1.2
-Length 2400mm (94.49") x Width 1241.4mm (48.87") x Height 824.10 mm (32.44")
Frequently Asked Questions
What is the Siegmund Downdraft Welding Table?
It is a professional downdraft welding and grinding table with integrated fume extraction. It pulls harmful welding fumes and dust downward through the table surface, filters them, and returns clean air to the workspace.
What sizes are available?
Two standard sizes are available:
- 1.2m x 1.2m (47.24" x 47.24")
- 2.4m x 1.2m (94.49" x 47.24")
What type of table top is included?
It is available with either the standard Siegmund Plate or the Professional Extreme 8.7 Series table. Both feature Ø16 mm holes compatible with Siegmund System 16 clamps and accessories.
How does the fume extraction work?

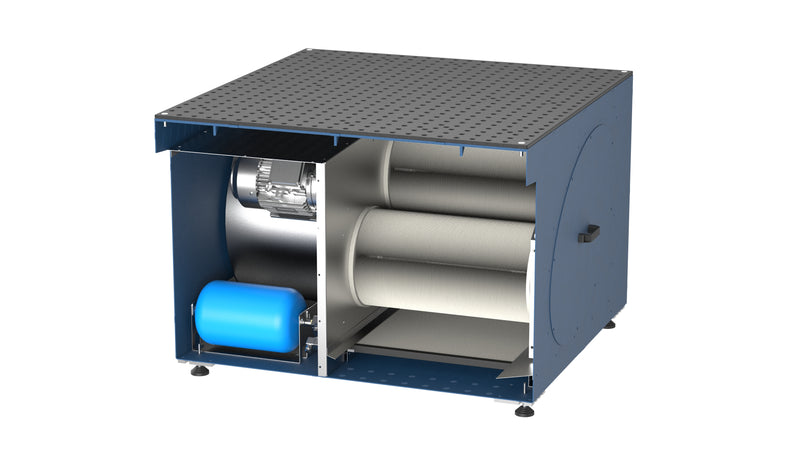

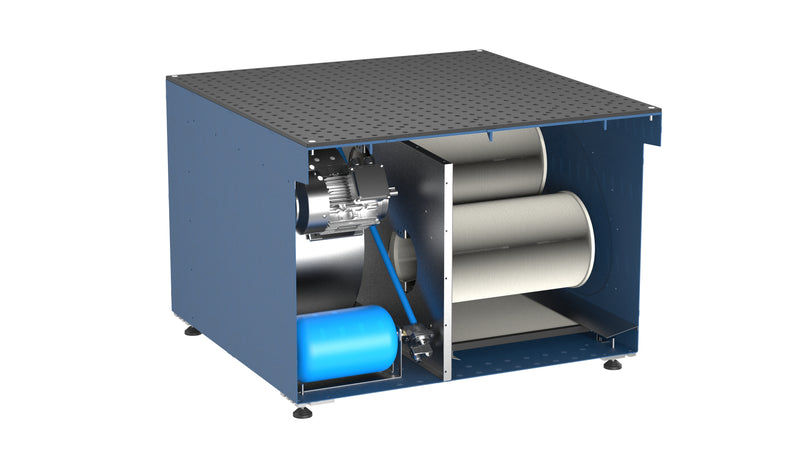

A high-efficiency internal fan pulls fumes and dust downward through the perforated surface into the filtration system. Particles are collected in easy-to-empty dust drawers, while clean air is returned to the shop.
Does it include filtration? What options are available?
Yes, it comes with integrated high-efficiency filtration and a spark arrestor. An optional HEPA H13 filtration upgrade is available for superior particle capture (ideal for stainless steel, aluminum, or strict air quality requirements).
What is the difference between GTW and GTW P models?
The standard GTW model uses manual filter cleaning, while the GTW P features automatic reverse-jet pulse cleaning for reduced maintenance and longer filter life — ideal for higher-volume shops.
Is the table noisy?
The system is designed for quiet operation. An optional acoustic silencer (-10 dBA) is available for even quieter performance in noise-sensitive environments.
What applications is this table suitable for?
It is ideal for light to medium-duty welding, grinding, plasma cutting, metal fabrication, assembly work, and educational/training facilities.
What power does it require?
It runs on a single 240V 1 Phase, 50Hz circuit. Always confirm exact electrical requirements for your location when ordering.
What maintenance is required?
Dust drawers empty easily from the front. The multifunction display shows maintenance alerts. Filters are long-life and easy to access. The GTW P model offers automatic self-cleaning.
What optional accessories are available?
Available options include HEPA H13 filtration, acoustic silencer, enclosure systems, and integrated lighting.
