Collection:

Orbitalservice Orbital Welding Machines & Equipment

16 products
orange and blue orbital service logo

Orbitalservice GmbH of Heimbuchenthal, Germany, develops and builds orbital welding equipment: orbital welding machines, open and closed weld heads, turn tables, remote controls, cold-wire feeders and residual-oxygen measuring devices, and manufactures its systems in Germany. BTH Sales is the exclusive Canadian importer of Orbitalservice.

Shop by job

Power source

The Orbitalservice CompactDual orbital and manual TIG power source, with the Cooler Dual water cooling unit and the RC Mini and RC Plus+ remote controls.

Weld heads

Orbitalservice closed weld heads (CWH) for tube from 3 to 114.3 mm OD and open weld heads (OWH) for pipe from 8 to 273 mm OD, plus the TURN 100 and TURN 250 turn tables and the TR 1000 rolling system.

Pipe prep

Orbitalservice OTS pipe cutters, TIG tack staplers and the TC-600 pipe tack clamp.

Purging

Purge caps, forming gas double plugs, the pressure regulator with 3 flowmeters and the PRO2stick oxygen analyzer.

Why buy through BTH Sales

BTH Sales is the exclusive Canadian importer of Orbitalservice. We offer engineering support, and video demos for customers outside Ontario. Want to see orbital welding before you buy? Book a demonstration.

Ships across Canada from St. Marys, ON. Contact sales@bthsales.ca or 519-461-1381 for a freight quote and delivery estimate.

Orders ship promptly once confirmed, and we'll send tracking when it leaves.

Warranty, financing and support

  • Warranty: 1 year.
  • Financing is available. Contact BTH Sales to ask.
  • After-sale support: training and commissioning support from BTH Sales.

Frequently Asked Questions

Should I choose a closed or an open orbital weld head?

Orbitalservice's closed weld heads (CWH series) cover pipe OD from 3 to 114.3 mm (0.12 to 4.5 in); the CWH 5H, 10H, 53, 76 and 115 are water-cooled, and the CWH 13, 21 and 38 are gas cooled. Open weld heads (OWH series) cover 8 to 273 mm (0.31 to 10.75 in) OD and run with water- or gas-cooled TIG torches, and OWH 76 to 273 are available with AVC and oscillation. Choose by your pipe OD range and whether you need AVC/oscillation.

Can the CompactDual also be used for manual TIG welding?

Yes. Orbitalservice describes the CompactDual as an all-in-one orbital and TIG hand welding machine: TIG DC, constant or pulsed, on single-phase 115/230 V input.

Will the CompactDual work with weld heads I already own?

Orbitalservice lists its full range of weld heads, plus heads from other manufacturers, as compatible accessories for the CompactDual. Send us your head model to confirm before ordering.

Who sells orbital welding equipment in Canada?

BTH Sales in St. Marys, Ontario, is the exclusive Canadian importer of Orbitalservice. We sell the CompactDual, weld heads and purging tools in CAD and ship across Canada. Call 519-461-1381 or email sales@bthsales.ca.

Regular price $17,500.00 CAD
Sale price $17,500.00 CAD
Regular price
Unit price
per
The Orbitalservice CompactDual is an orbital welding power source that also works as a manual TIG welder. It welds TIG DC, constant or pulsed, up to 220 A on 115 V or 230 V single-phase power. Orbi...
Regular price from $6,950.00 CAD
Sale price from $6,950.00 CAD
Regular price
Unit price
per
Orbital Service Closed Weld Heads (CWH Series) High-performance closed orbital weld heads designed for precision tube and pipe welding in controlled environments. Built for repeatability, cleanline...
Regular price from $7,030.00 CAD
Sale price from $7,030.00 CAD
Regular price
Unit price
per
Orbitalservice OWH open weld heads are orbital TIG weld heads for pipe from 8 to 273 mm (0.31″ to 10.75″) OD, in five sizes. They run with water- or gas-cooled TIG torches, take cold wire holders, ...
Regular price $3,800.00 CAD
Sale price $3,800.00 CAD
Regular price
Unit price
per
The Orbitalservice Cooler Dual is an optional water cooling unit for the CompactDual orbital welding power source. It runs from the CompactDual's internal 48 V DC supply, holds 2.0 l of coolant, an...
Regular price from $7,257.00 CAD
Sale price from $7,257.00 CAD
Regular price
Unit price
per
Orbitalservice OTS pipe cutters are orbital saws that cut tube and pipe square and burr-free, within 0.25 mm (0.009″), ready for orbital welding. Five models cover pipe from 6 to 330 mm OD with wal...
Regular price from $78.00 CAD
Sale price from $78.00 CAD
Regular price
Unit price
per
Orbitalservice purge caps seal the open end of a tube from the outside so you can purge it before orbital TIG welding. A union nut presses two TPU air cushions onto the tube, and the gas line conne...
Regular price $999.00 CAD
Sale price $999.00 CAD
Regular price
Unit price
per
Orbitalservice forming gas double plugs seal a pipe on both sides of the weld so only a small chamber needs purging. The set has 14 silicone plugs in 7 colour-coded sizes for pipe ID from 9 to 110 ...
Regular price from $6,700.00 CAD
Sale price from $6,700.00 CAD
Regular price
Unit price
per
The Orbitalservice PRO2stick is a stick-shaped residual oxygen analyzer for checking purge gas before orbital TIG welding. It measures from 1000 ppm down to 1 ppm, is resistant to hydrogen, humidit...
Regular price $2,110.00 CAD
Sale price $2,110.00 CAD
Regular price
Unit price
per
PRO2 Expert Oxygen Analyzer The Orbital Service PRO2 Expert Oxygen Analyzer is a compact, high-accuracy residual oxygen analyzer designed for orbital TIG welding and high-purity purge gas applicati...
Regular price $999.99 CAD
Sale price $999.99 CAD
Regular price
Unit price
per

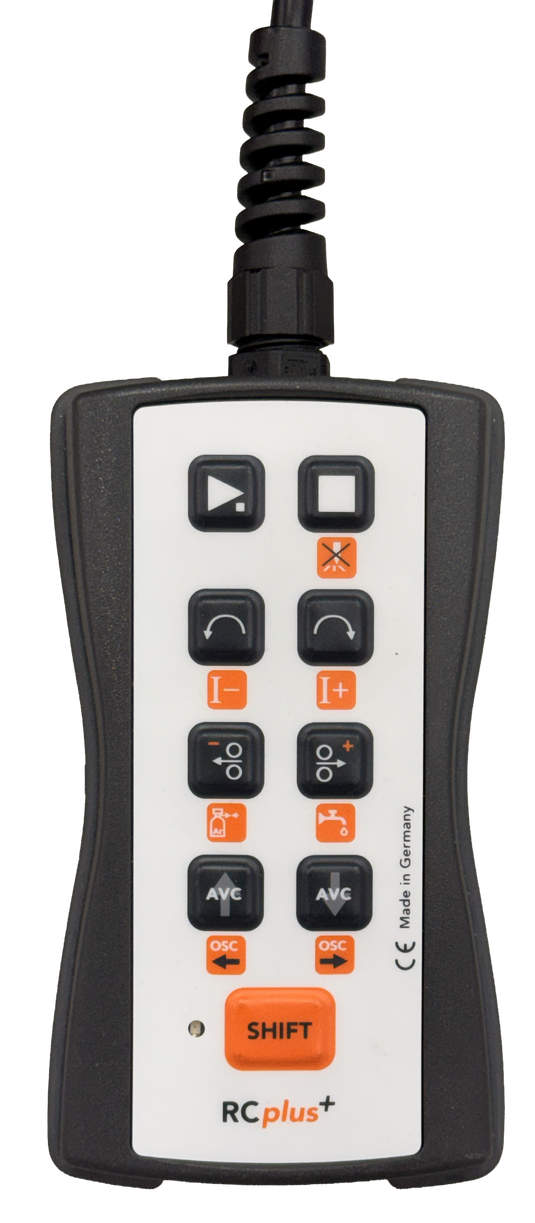

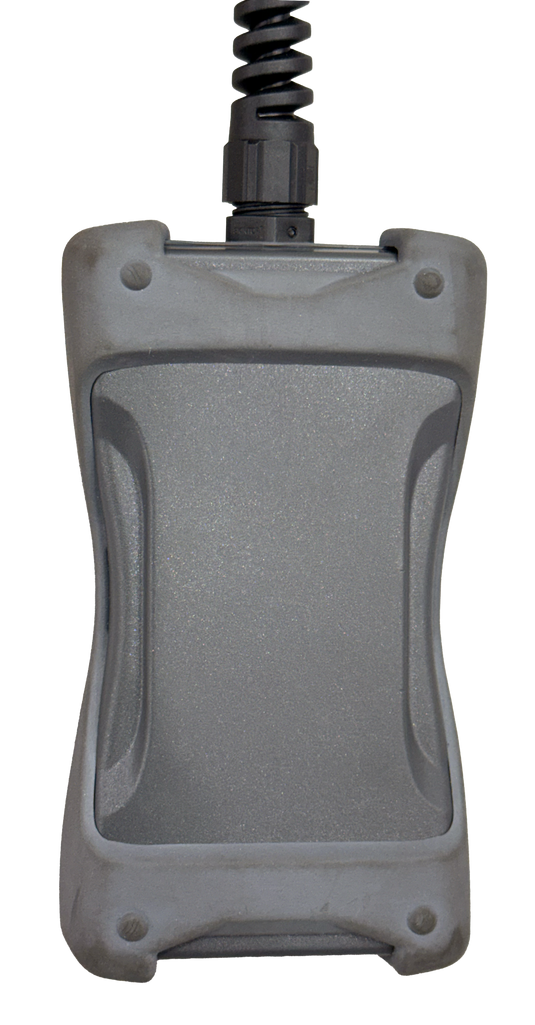

The Orbitalservice RC Plus+ is a wired remote control for orbital welding. It has test and welding modes, so you can run a program without an arc, start and stop the weld, and adjust rotation, wire...
Regular price $3,950.00 CAD
Sale price $3,950.00 CAD
Regular price
Unit price
per
The Orbitalservice RC Mini is a wireless 7-inch Windows remote control for orbital welding. It lets the operator create welding programs, run the weld and record documentation away from the power s...
Regular price $1,863.00 CAD
Sale price $1,863.00 CAD
Regular price
Unit price
per
The Orbitalservice TC-600 is a patented stainless steel pipe clamp for fixing and TIG tack welding pipe and fittings from 60 mm to 600 mm (2.36 in to 23.62 in) OD. Clamping links chain together to ...
Regular price from $225.00 CAD
Sale price from $225.00 CAD
Regular price
Unit price
per
Orbitalservice TIG tack staplers are stainless steel pliers that hold tube and fitting joints in line while you TIG tack them before orbital welding. The narrow version fits Ø 4 to 19.05 mm tube fo...
Regular price $7,099.00 CAD
Sale price $7,099.00 CAD
Regular price
Unit price
per
The Orbitalservice TR 1000 is a motorised roller stand for orbital TIG welding large pipe, flanges and covers, such as railing pipe supports. It handles OD from 20 to 323 mm as standard, with other...
Regular price from $17,885.00 CAD
Sale price from $17,885.00 CAD
Regular price
Unit price
per
Orbitalservice TURN 100 and TURN 250 turn tables rotate parts for orbital TIG welding when a weld head cannot clamp them. Both have a hollow shaft for forming gas. The TURN 100 has a 100 mm three-j...
