Nargesa PP200CNC 20-Ton Horizontal CNC Press Brake
The Nargesa PP200CNC is a 20-ton horizontal hydraulic press brake designed for bending, forming, punching, cutting, notching, and shaping a wide range of metal profiles with high precision and repeatability.
Built around a 60 mm (2.36") welded steel monoblock frame, the machine combines rigid industrial construction with ESA S625 CNC control and Industry 4.0 connectivity, allowing precise programming, automated angle control, springback correction, and remote monitoring.
The PP200CNC is engineered for flexible fabrication work across flat bar, pipe, rod, sheet metal, and structural profiles, with fast tool change capability and a wide range of optional tooling for expanded production versatility.
Key Features & Benefits
- 20-ton (200 kN / 44,962 lb) hydraulic forming force for bending, shaping, punching, cutting, and profile forming applications

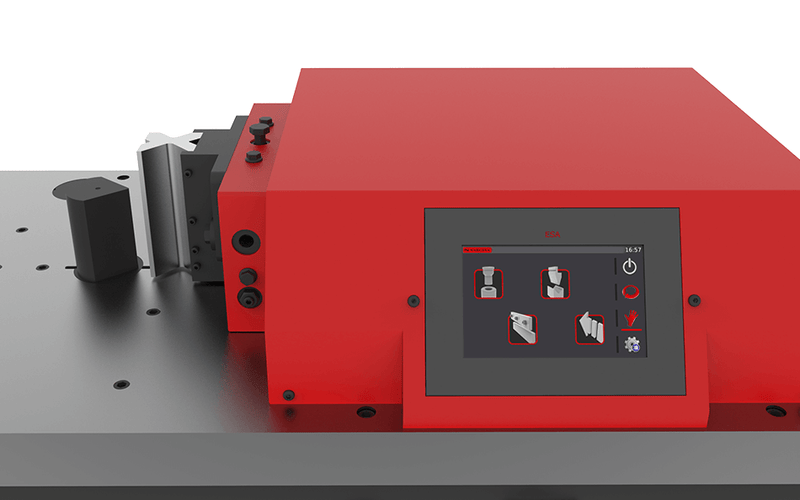

- ESA S625 CNC control with 7" color touchscreen for intuitive programming, angle control, and precise repeatability
- Industry 4.0 capability with remote connection, diagnostics, maintenance alerts, and storage for up to 10,000 programs
- Automatic springback correction and 0.05 mm (0.002") repeatability for consistent part accuracy
- Programming for up to 50 different angles in a single part, with operation in either mm or inches
- Fast tool changes – most punches and dies can be swapped in under 30 seconds
- Horizontal press brake design enables specialized operations difficult or impossible on conventional vertical press brakes, including tube reducing, expanding, profile bending with straight ends, and fully closed bends
- ECO mode energy-saving function automatically reduces power consumption during idle periods
- Heavy-duty welded monoblock construction for rigidity, durability, and long-term precision
- Shipped fully assembled for quick installation – simply connect power and begin operation
- Wide optional tooling range expands machine capability across bending, punching, notching, forming, and fabrication applications
PP200CNC Technical Specifications
|
Specification |
Details |
|
Working Force |
20 Ton (200 kN / 44,962 lb) |
|
Working Speed |
9.8 mm/s (0.39 in/s) |
|
Return Speed |
35 mm/s (1.38 in/s) |
|
Maximum Stroke |
250 mm (9.84") |
|
Repeatability |
0.05 mm (0.002") |
|
Control System |
ESA S625 CNC with 7" touchscreen |
|
Program Storage |
Up to 10,000 programs |
|
Angle Programming |
Up to 50 angles per part |
|
Operation Modes |
Manual / Automatic |
|
Units |
Metric and imperial (mm / inches) |
|
Springback Control |
Automatic correction system |
|
ECO Mode |
Automatic energy-saving standby function |
|
Tooling System |
Quick-change punches and dies (≤30 sec) |
|
Table Size |
600 × 1170 mm (23.6" × 46.1") |
|
Working Height |
950 mm (37.4") |
|
Motor Power |
2.2 kW (3 HP) at 1400 rpm |
|
Electrical Supply |
230/400 V, 3-phase |
|
Current |
9 / 5 A |
|
Hydraulic Pressure |
50–215 kg/cm² |
|
Pump Capacity |
7.5 L/min (1.98 gal/min) |
|
Oil Tank Capacity |
27 L (7.13 gal) |
|
Frame Construction |
60 mm (2.36") welded steel monoblock |

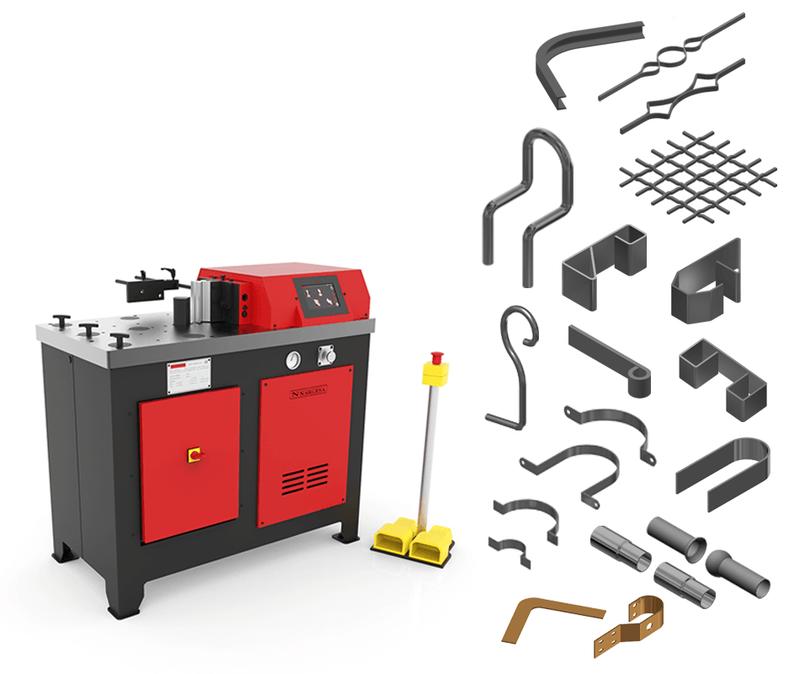

Applications & Capabilities
The PP200CNC is used across a wide range of fabrication and metal forming operations, including:
- Metal bending and folding (flat bar, sheet, plate)
- Pipe and tube forming (expanding, reducing, shaping ends)
- Profile bending (angle iron, structural sections, solid bar)
- Pipe notching and joint preparation
- Punching and cutting of flat bar and light sheet materials
- Cold forming and decorative forging components
- Custom radius forming with controlled straight-end geometry
Why Choose the PP200CNC?
The PP200CNC is designed for workshops that need to consolidate multiple forming processes into a single machine while maintaining CNC-level precision and repeatability.
It improves workflow efficiency by combining bending, cutting, punching, and shaping operations into one compact horizontal system, reducing the need for multiple dedicated machines.
Key advantages:
- Consolidates multiple fabrication processes into one platform
- Reduces equipment footprint in the workshop
- Increases production flexibility across varied materials and profiles
- Improves consistency through CNC-controlled operation
- Supports both low-volume fabrication and repeat production work
Frequently Asked Questions
What is the Nargesa PP200CNC?
The Nargesa PP200CNC is a 20-ton (200 kN) horizontal hydraulic CNC press brake designed for high-precision bending, forming, punching, cutting, notching, and shaping of metal profiles, flat bar, pipe, tube, and sheet metal. Its horizontal design makes it especially effective for operations that are difficult on traditional vertical press brakes.
What is the tonnage and main capacity of this machine?
It delivers 20 tons (200 kN / 44,962 lbs) of force. It features a maximum stroke of 250 mm (9.84") and excellent repeatability of 0.05 mm (0.002").
What control system does it use?
It comes equipped with the ESA S625 CNC control with a 7" color touchscreen. This allows intuitive programming, automatic springback correction, storage for up to 10,000 programs, and the ability to program up to 50 different angles in a single part.
What materials and profiles can it work with?
The PP200CNC is highly versatile and can process:
- Flat bar and sheet metal
- Pipe and tube (expanding, reducing, end forming)
- Angle iron and structural profiles
- Solid rod and bar stock
It excels at both simple bends and complex forming operations.
What makes the horizontal design better than a vertical press brake?
The horizontal layout allows for easier handling of long profiles, better control when forming tubes and closed sections, and enables specialized operations like tube reducing/expanding and profile bending with straight ends, tasks that are often impossible or very difficult on conventional vertical press brakes.
How fast is the machine?
Working speed is 9.8 mm/s (0.39 in/s) and return speed is 35 mm/s (1.38 in/s). Tool changes are very quick — most punches and dies can be swapped in under 30 seconds.
Is it easy to install and set up?
Yes. The machine ships fully assembled. You simply connect the power supply and it’s ready to operate.
Does it support Industry 4.0?
Yes. It includes remote connection capability for diagnostics, maintenance alerts, and production monitoring.
What power does it require?
This machine can be configured as 220V/1PH/60Hz , 220V/3PH/60Hz, or 480V/3PH/60Hz
What optional tooling is available?
A wide range of optional tooling is available, allowing you to expand capabilities for bending, punching, notching, forming, and custom applications. Contact us for tooling recommendations for your specific needs.
Is this machine suitable for small workshops?
Yes. It is ideal for both small workshops and larger production environments. Its compact footprint, versatility, and CNC precision make it excellent for small to medium fabrication shops that want one machine capable of handling many different jobs.
What is the warranty?
The Nargesa PP200 comes with an industry leading 3 year warranty, once the product is registered upon purchase.
