Orbital Service RC Mini Wireless Remote Control

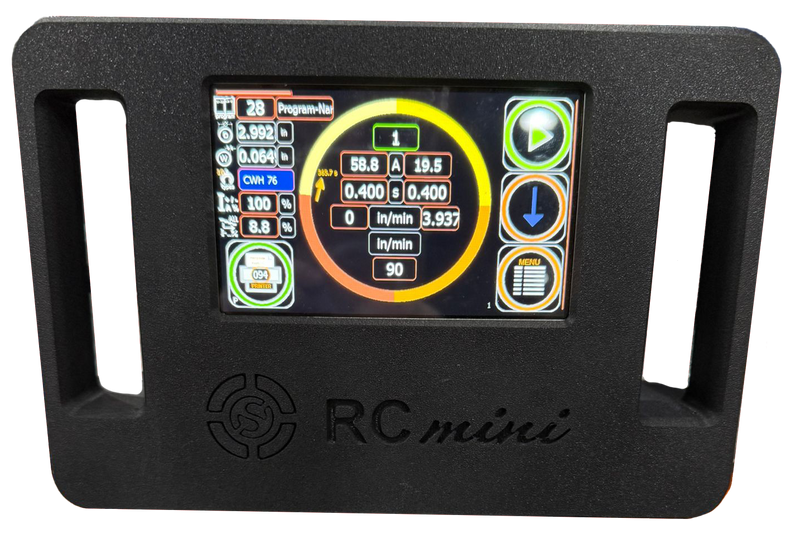

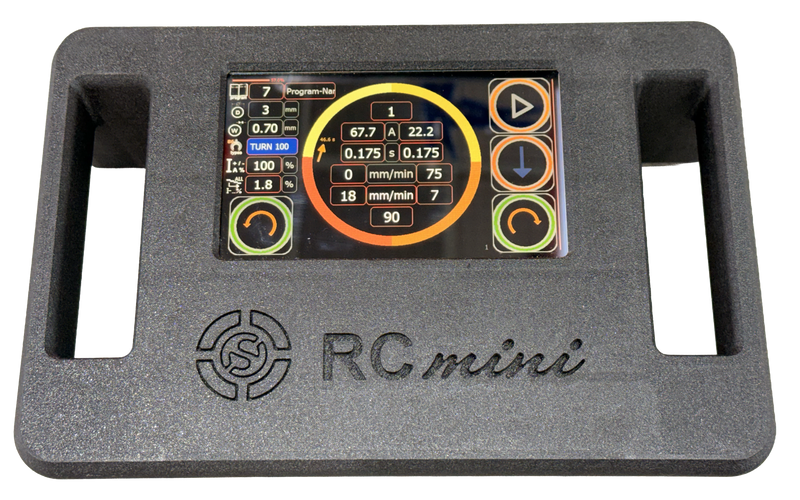

The Orbital Service RC Mini is a wireless remote control designed for mobile operation, programming, and documentation of orbital welding processes. Built around a compact 7-inch Windows touchscreen interface, the RC Mini allows operators to manage key welding functions remotely without direct interaction at the power source.
Designed for use with Orbital Service CompactDual and BasicPlus orbital welding systems, the RC Mini acts as a mobile operator interface for welding program creation, process monitoring, and parameter management. Its intuitive software allows users to create and transfer welding programs directly to the welding machine, while also supporting the documentation and review of welding parameters throughout the welding process.

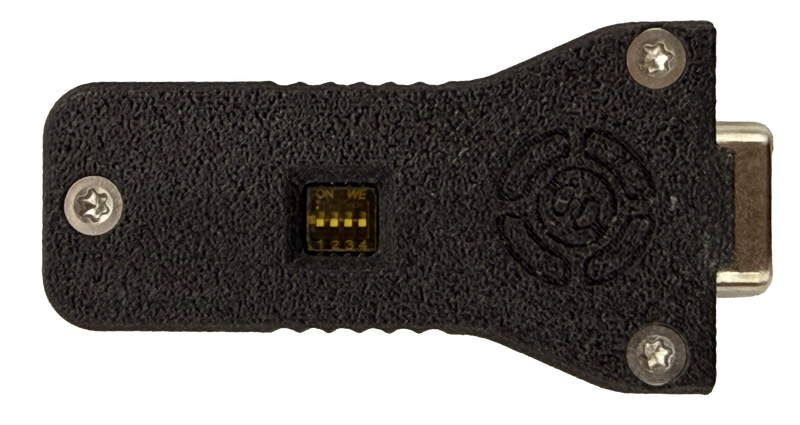

Wireless communication between the RC Mini and the orbital welding system is handled through Bluetooth Class 1 technology, providing reliable long-range data transmission in production and field environments. This gives operators the flexibility to control and monitor the welding process remotely while maintaining communication with the machine.
With a modular software architecture, customizable interface settings, and integrated documentation functionality, the RC Mini is designed to improve operator mobility, simplify orbital welding system control, and support efficient weld process management in industrial applications.
Control and Software Functionality for Orbital Welding Process Management
- Smartphone-style interface
o Intuitive touchscreen navigation
o Simplified operator workflow
- Automatic welding program creation
o Machine calculates parameters
o Reduces manual setup burden
- Program transfer to welding machine
o Send welding programs directly to CompactDual or BasicPlus
- Weld documentation functionality
o Parameter recording / documentation management
- Customizable interface & notifications
o Operator personalization
o Machine communication alerts
- Main-screen access to critical functions
o Quick control visibility during operation
Technical Specifications
|
Specification |
Details |
|
Compatibility |
CompactDual and BasicPlus orbital welding systems |
|
Display |
7” Windows Touchscreen |
|
Communication |
Bluetooth Class 1 |
|
Wireless Range |
100 m (328’); reduced in complex environments |
|
Power Supply |
100-240 VAC, 50/60 Hz |
|
Charging Voltage |
27-33 VDC / 0.9 A |
|
Internal Battery |
18 V DC |
|
USB Communication |
1 x USB port |
|
Dimensions (L x W x H) |
85 x 355 x 205 mm (3.35” x 13.98” x 8.07”) |
|
Weight |
1.9 kg (4.19 lb) |
|
Article Number |
RCMini |
Wireless Operation and Weld Documentation Benefits
The RC Mini provides operators with remote access to key orbital welding functions through a mobile wireless interface, allowing greater flexibility when controlling and monitoring the welding process.
Integrated program management and documentation functions allow welding parameters to be created, transferred, and reviewed from a single device, helping simplify process tracking and weld data management.
Real-time communication with the orbital welding system also gives users direct access to process information, machine notifications, and key operating functions from the touchscreen interface.
Key Benefits of the RC Mini Remote Control
- Wireless Bluetooth Class 1 communication – Enables remote control and data transmission between the RC Mini and compatible orbital welding systems, like the CompactDual
- 7-inch Windows touchscreen interface – Provides a mobile operator control platform with intuitive touchscreen navigation
- Welding program creation and transfer – Allows operators to create and send welding programs directly to the machine
- Integrated weld documentation support – Supports recording, review, and management of welding parameters
- Real-time machine communication – Provides direct access to process information and system notifications during operation
- Customizable operator interface – Allows users to tailor screen settings and functions to their workflow requirements

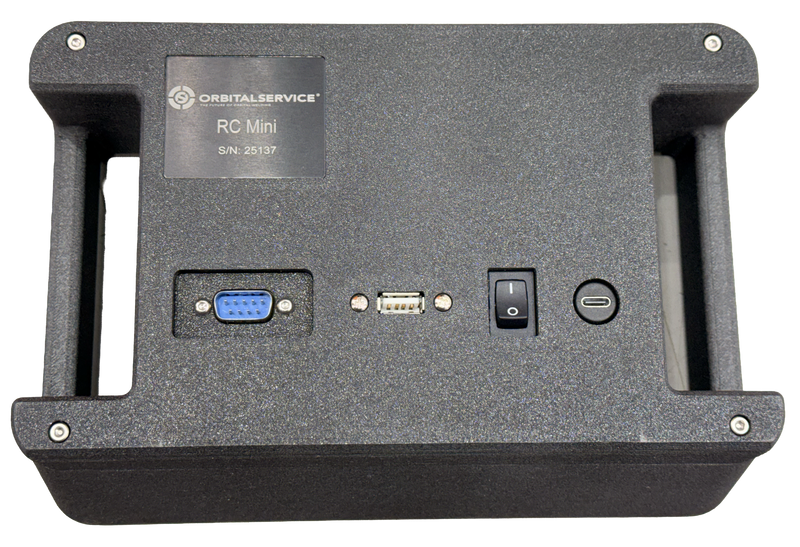

- USB connectivity – Supports documentation transfer, updates, printer communication, and analyzer connection
- All-day battery operation – Designed for mobile use throughout a full working shift
Why Choose the RC Mini for Orbital Welding System Control?
The answer is simple. The RC Mini allows for greater mobility, remote process access and simplified weld documentation when working with Orbital Service orbital welding systems.
The RC Mini provides a practical solution for remote control, parameter management and more for both production and in the field.
Frequently Asked Questions
What is the Orbital Service RC Mini?
The RC Mini is a compact wireless remote control designed for orbital welding systems. It features a 7-inch Windows touchscreen and allows operators to remotely control, program, monitor, and document welding processes from up to 100 meters away.
Which orbital welding machines is the RC Mini compatible with?
The RC Mini is compatible with the Orbital Service CompactDual and BasicPlus orbital welding power sources.
What is the wireless range of the RC Mini?
It uses Bluetooth Class 1 technology and offers up to 100 meters (328 feet) range in open environments. Range may be reduced in industrial settings with walls, metal structures, or high interference.
Does the RC Mini support automatic welding program creation?
Yes. The intuitive software automatically calculates optimal welding parameters, reducing manual input and setup time. You can then transfer programs directly to the welding machine.
Can I document welds using the RC Mini?
Absolutely. The RC Mini includes full weld documentation functionality, allowing you to record, store, review, and manage welding parameters for quality control and traceability.
How long does the battery last?
The internal 18V DC battery is designed for all-day operation during a full working shift.
How do I charge the RC Mini?
It comes with a power supply (100-240 VAC, 50/60 Hz) and charges via 27-33 VDC / 0.9 A.
Is the RC Mini available for immediate delivery?
Yes, this is currently an in-stock item priced at $3,950.00. We will ship it within 1-2 business days of receiving an order.
Does the RC Mini have USB connectivity?
Yes. It includes 1 x USB port for documentation transfer, software updates, printer connection, or oxygen analyzer integration.
What are the dimensions and weight of the RC Mini?
Please contact us for the most up-to-date dimensions and weight specifications.
