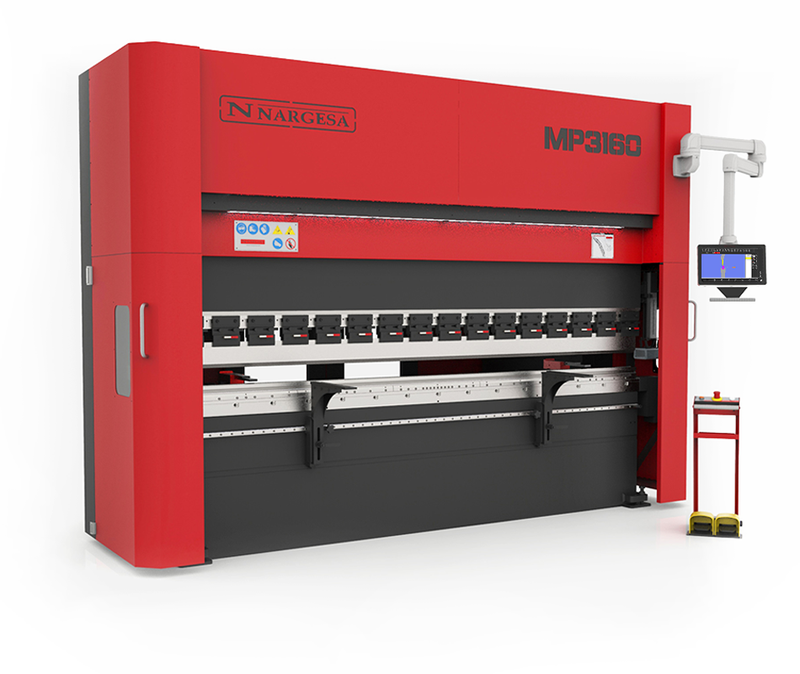

Nargesa MP3160CNC Hydraulic Press Brake

The Nargesa MP3160CNC hydraulic press brake is a heavy-duty CNC sheet metal bending machine designed for demanding industrial fabrication and production environments. With 160 tons of hydraulic bending capacity and a 122-inch (3100 mm) total folding length, it is built to handle large sheet metal components while maintaining accurate, repeatable bending results.

At the heart of the MP3160CNC is the ESA S840W CNC control, featuring a 15-inch HD colour touchscreen, intuitive graphical programming and support for metric and imperial measurements. The CNC automatically controls the Y1/Y2 bending axes and calculates positioning based on the programmed part dimensions, simplifying both straightforward and complex bending operations.

The machine also includes an automatic crowning table, which compensates for deflection across the bending table to help maintain consistent bending angles along the full 122-inch working length. High-precision optical measurement, adaptive electronic pressure control and CNC-controlled back gauging further contribute to repeatability and production efficiency.

Manufactured in Spain, the MP3160CNC combines a rigid, welded and machined steel chassis with European hydraulic and electronic components for demanding sheet metal applications involving steel, stainless steel, aluminum, copper and other materials.

Key Features

• 160-ton hydraulic bending capacity for demanding industrial sheet metal applications
• 122-inch (3100 mm) total folding length for large workpieces
• 103.5-inch (2630 mm) inner folding length
• ESA S840W CNC control with 15-inch HD colour touchscreen
• Automatic Y1/Y2 CNC bending axis control
• Automatic crowning table for consistent bending across the full working length
• High-precision GIVI MISURE optical encoder with 0.005 mm resolution
• CNC-controlled X-axis back gauge with 0.05 mm mechanical precision
• Adaptive electronic hydraulic pressure control
• Electronic frame compensation for improved bending consistency
• 445 mm / 17.52-inch free distance between table and upper beam
• 400 mm / 15.75-inch neck depth
• Maximum punch displacement of 220 mm / 8.66 inches
• Punch working speed of 9 mm/s
• Punch return speed of 97 mm/s
• Punch lowering speed of 200 mm/s
• Automatic hydraulic oil temperature compensation
• Promecam punch clamping system with quick-release segmented flanges
• Euro Promecam/Wila die clamping system
• Front sheet-support arms on linear recirculating ball screw guides
• High-frequency laser safety system
• Electronically monitored side doors and safety muting
• LED bending-zone lighting
• Industry 4.0 connectivity
• Ethernet, USB, EtherCAT and CANbus connectivity
• PC-based 2D and 3D bending programming and simulation
• Support for more than 20 CNC interface languages
• Robust welded, stabilized and machined steel chassis
• Manufactured in Spain to CE industrial machinery standards

Applications

The MP3160CNC is designed for manufacturers requiring high-capacity, repeatable sheet metal bending across a wide range of industrial applications.

Typical applications include:

• Heavy-duty sheet metal fabrication
• Industrial equipment manufacturing
• Structural metal fabrication
• Steel component production
• Stainless steel fabrication
• Aluminum component manufacturing
• Copper sheet forming
• Enclosures and cabinets
• Machine frames and housings
• Industrial panels
• Custom metal components
• Repetitive production bending
• Large-format sheet metal work

The combination of 160 tons of bending force and 3100 mm of folding length makes the MP3160CNC particularly well suited to large components where a smaller press brake would require multiple setups or repositioning.

Why Choose the Nargesa MP3160CNC?

The Nargesa MP3160CNC is built for manufacturers that need high-capacity sheet metal bending with the precision and repeatability of CNC control. Its combination of 160 tons of bending force, 122 inches of folding length and automatic crowning makes it well suited to large and demanding production work.

Key advantages include:

• 160 tons of hydraulic bending capacity for heavy-duty sheet metal fabrication
• 122-inch (3100 mm) total folding length for large workpieces
• Automatic Y1/Y2 CNC axis control for accurate and repeatable bending
• Automatic crowning table to compensate for deflection across the full bending length
• High-precision optical encoder with 0.005 mm resolution
• CNC-controlled X-axis back gauge with 0.05 mm mechanical precision
• Adaptive electronic pressure control
• ESA S840W CNC control with 15-inch HD touchscreen
• 2D and 3D bending programming, simulation and sequence optimization
• Industry 4.0 connectivity with Ethernet, USB, EtherCAT and CANbus
• Optional R and Z1-Z2 axes for additional back-gauge automation
• Optional ESA3D BEND CAD/CAM software
• Robust welded, stabilized and machined steel construction
• Manufactured in Spain using European hydraulic and electronic components

Included Accessories / Components

• ESA S840W CNC control
• 15-inch HD colour touchscreen
• Promecam PS.135.85.R08 punch
• Promecam M.460.R die
• Promecam punch clamping system with quick-release segmented flanges
• Euro Promecam/Wila die clamping system
• Automatic crowning table
• CNC-controlled X axis
• Front sheet-support arms
• Complete Windows PC software
• 2D bending simulator and optimizer
• Promecam punch and die library
• High-precision optical encoder
• High-frequency laser safety system
• LED bending-zone lighting
• Ethernet, USB, EtherCAT and CANbus connectivity

Optional Accessories

• CNC bending simulator and optimizer for the CNC control
• Motorized R axis
• Z1-Z2 axis
• ESA3D BEND software
• Additional Promecam punches
• Additional Promecam dies
• NIMF15 complete wooden packaging
