SIEGMUND SYSTEM 16 - ECCENTRIC STOPS
The Siegmund System 16 Stops - Eccentric Stops are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.
Eccentric Stops are perfectly suited for infinite adjustment of elements by simply twisting them, with minimum space requirements.
Technical Data:
|
Item No.: 2-160401.N

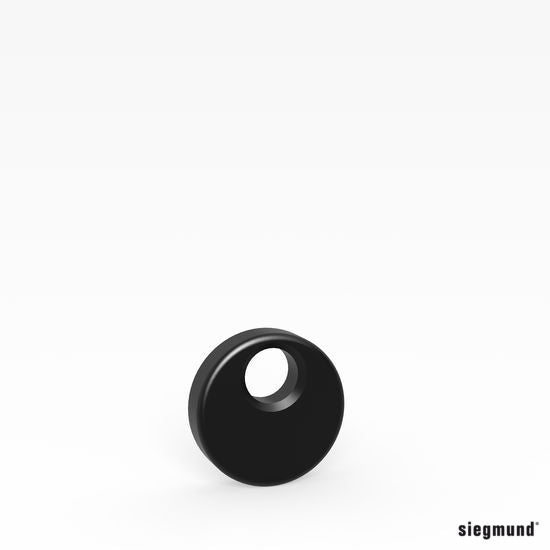

Eccentric Stop Ø 45 ‐ nitrided
| Material thickness (d) |
12 mm |
| Weight |
0,13 kg |
| Diameter |
45 mm |
Product description
Eccentric Stops, perfectly suited for infinite adjustment of elements by simply twisting them, with minimum space requirements.
‐ used where space is restricted
Item No.: 2-160402.N

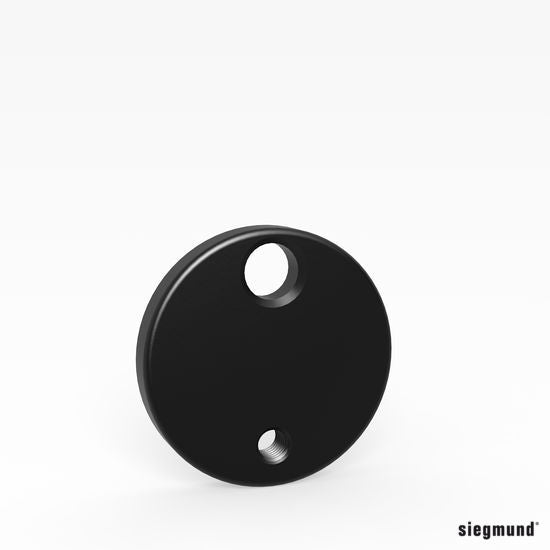

Eccentric Stop Ø 75 with M10 thread ‐ nitrided
| Material thickness (d) |
12 mm |
| Weight |
0,38 kg |
| Diameter |
75 mm |
Product description
Eccentric Stops, perfectly suited for infinite adjustment of elements by simply twisting them, with minimum space requirements.
‐ for ground connection
|
Item No.: 2-160403.N
Eccentric Stop Ø 75 ‐ nitrided
| Material thickness (d) |
12 mm |
| Weight |
0,39 kg |
| Diameter |
75 mm |
Product description
Eccentric Stops, perfectly suited for infinite adjustment of elements by simply twisting them, with minimum space requirements.
‐ also serves as a support surface
|
