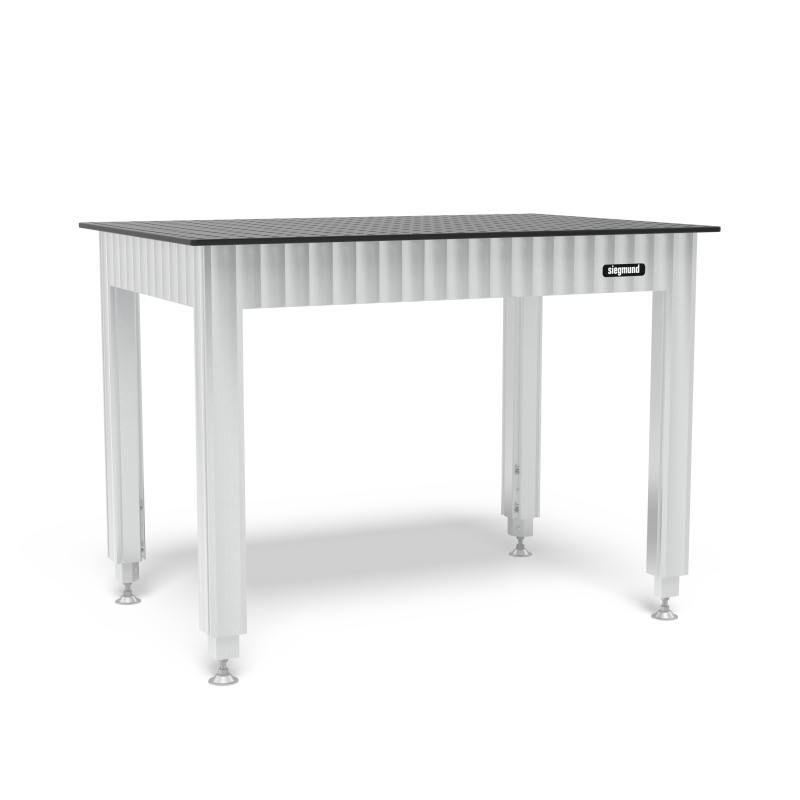

Siegmund Workbench height adjustable with steel plate 1200x800 (WS161208), Siegmund System 16

Example Siegmund System 16 welding table setup with fixture frame, clamp squares, stops and drawer cabinets (shown for reference; not included with this workbench)

Example Siegmund welding table on casters with clamps, drawer cabinet and overhead frame (shown for reference; not included with this workbench)

Load image into Gallery viewer, Siegmund Workbench height adjustable with steel plate 1200x800 (WS161208), Siegmund System 16

Load and play video in Gallery viewer, Video: Siegmund aluminum workbench 1200 x 800 mm in use as a welding and assembly table (Siegmund workbench range)

Load image into Gallery viewer, Example Siegmund System 16 welding table setup with fixture frame, clamp squares, stops and drawer cabinets (shown for reference; not included with this workbench)

Load image into Gallery viewer, Example Siegmund welding table on casters with clamps, drawer cabinet and overhead frame (shown for reference; not included with this workbench)

Siegmund System 16 Workbench 1200 x 800 mm, Steel Plate

SKU: 2-WS161208

Siegmund

$1,828.00 CAD

$1,828.00 CAD ~~$2,032.00 CAD~~

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

The Siegmund Workbench height adjustable with steel plate 1200x800 (Siegmund item WS161208) is a System 16 workbench with a 1200 x 800 mm plasma-nitrided, BAR-coated S355J2+N steel perforated plate, Ø16 mm boreholes on a 50 mm grid, a height-adjustable working height of 800–975 mm, and a 400 kg load capacity per Siegmund.

Key specs

Siegmund item number	WS161208
Top size	1200 x 800 mm (47.2 × 31.5 in)
Top	plasma-nitrided, BAR-coated S355J2+N steel perforated plate
Material thickness	12 mm (0.47 in)
Borehole	Ø16 mm (0.63 in), 50 x 50 mm (1.97 × 1.97 in) grid
Working height	800–975 mm (31.5–38.4 in) (height adjustable)
Load capacity	400 kg (882 lb)
Weight (Siegmund)	100 kg (220 lb)
Base frame	Aluminum profiles
GTIN	4251805911183

Features

Base frame made of aluminum profiles
Height adjustable, Working height 800-975 mm
Perforated plate: premium steel S355J2+N, plasma nitrided and BAR-coated
Borehole Ø 16 mm
Boreholes on the surface 50x50 mm grid
For clamping: Hand clamping bolt 160514

What's included

1 × Siegmund Workbench height adjustable with steel plate 1200x800 (WS161208)
Clamping accessories are sold separately

Compatibility

System 16 (Ø16 mm boreholes, 50 mm grid). Not compatible with System 28 (Ø28 mm) accessories. Browse System 16 welding tables and accessories and System 16 bench vices.

Compare Siegmund workbenches

See all Siegmund workbenches.

Frequently Asked Questions

What is the working height of this workbench?

Siegmund lists a height-adjustable working height of 800–975 mm.

Is it compatible with System 28 accessories?

No. It uses the System 16 system with Ø16 mm boreholes on a 50 mm grid, so it takes System 16 bolts, clamps and stops, not System 28.

How much weight can the workbench hold?

Siegmund lists a load capacity of 400 kg.

What clamping bolts should I use?

Siegmund recommends the Hand clamping bolt 160514 for clamping on this workbench.

How fast does it ship?

BTH Sales ships from St. Marys, Ontario, across Canada, and most orders ship within 48 hours.
