Siegmund System 28 Clamps
Siegmund System 28 clamps for 28mm welding tables in Canada hold workpieces down on a 28 mm table: professional screw clamps (standard, XL, 45°/90° and with vertical action toggle), fast tension clamps, basic and universal pipe clamps, a pipe elbow clamp, a quick-change clamp and a vertical toggle clamp. These System 28 parts also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid. Exclusive Canadian importer of Siegmund. Ships across Canada from St. Marys, ON. See all welding table clamps, including Kifix toggle clamps.
Compare System 28 clamps
| Product | Item numbers | Max. clamping force | Width × height (mm) | Key feature (per Siegmund) |
|---|---|---|---|---|
| Professional Screw Clamp | 280610.N | 5 kN | 220 × 310 | Horizontal bar 30x10 mm, reinforced vertical bar 30x14 mm; hex socket in the handle for a torque-limiting wrench |
| Professional Screw Clamp XL | 280612.N | 7 kN | 220 × 310 | For tasks needing extra force; 35x14 mm flat bar |
| Professional Screw Clamp 45°/90° | 280630.N | 5 kN | height 310 | Infinitely rotatable 0°–360°; replaces separate 45° and 90° clamps |
| Professional Screw Clamp with Vertical Action Toggle | 280611.1, 280611.2 (45°/90°) | 2.5 kN | 222 × 310 | Vertical clamping from above for maximum clamping stability |
| Professional Fast Tension Clamp | 280615.N | 5 kN | 275 × 310 | Ratchet clamp; force set with the grating |
| Fast Tension Clamps | 280616, 280616.1, 280616.2, 280616.3 | — | length × width 200 × 100 / 250 × 120 / 300 × 140 / 400 × 120 | Conventional fast tension clamp in four sizes |
| Basic Pipe Clamp 90° | 280608.N | 3 kN | height 230 | Clamps at 90° to the bores; rotates 360° |
| Basic Pipe Clamp 180° | 280625 | 3 kN | 220 × 250 | Clamps at 180° to the bores; horizontal range 45–180 mm; 250 mm vertical pipe |
| Pipe Clamp Universal | 280604 | 3 kN | 265 × 250 | Swivelling arbor, ±42°; 200 mm horizontal tube, 250 mm vertical pipe |

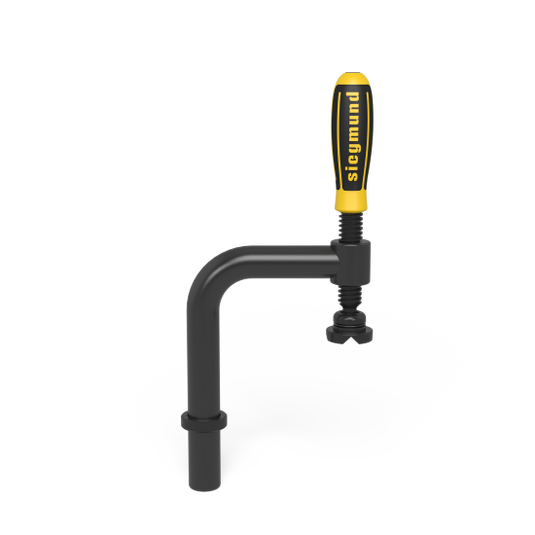

| Pipe Elbow Clamp | 280626.N | 4 kN | 165 × 350 | Interchangeable prism; ball spindle Ø16 mm, trapezoid thread 20×4; fastening with an adjusting ring |
| Quick-Change Clamp | 280706 (100), 280707 (160) | — | length × height 340 × 150 / 360 × 150 | Clamping arm 100 mm with 0–100 mm clamping range (280706); mounts in system bores |
| Vertical Toggle Clamp | 009902.1 | — | height 85 | For the screw clamps with vertical action toggle 280611.1 / 280611.2; usable in a bore with thread bushing 280618.N |
16mm or 28mm: which clamps fit your table?
Match the clamp to your table's bore. The two systems are not interchangeable.
| System 16 (16mm) | System 28 (28mm) | |
|---|---|---|
| Bore diameter | Ø16 mm | Ø28 mm |
| Bore grid | 50 mm | 100 mm |
| Siegmund recommends it for | Light to medium-duty work and precision fixtures; the close 50 mm grid lets small components be fixed with high precision | Light to heavy components; designed for maximum clamping forces, multi-ton structures and high distortion forces |
| Professional Screw Clamp, max. clamping force | 2.5 kN (160610) | 5 kN (280610.N); XL 7 kN (280612.N) |
| Also fits | Other 16 mm system welding tables with Ø16 mm bores on a 50 mm grid | Other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid |
| Shop | System 16 clamps · System 16 tables | System 28 clamps · System 28 tables |
Specifications from siegmund.com. Compatible tables from other manufacturers are often made from different materials and to different standards, so quality varies by manufacturer, compared with Siegmund's X8.7 tool steel.
Stops, squares and blocks to use with these clamps
- Stop and Clamping Square 175 L and 175 VL
- Stop and Clamping Square 300 GK and 750 G for heavy parts
- Clamping Block 400x350x200
Related collections
- Siegmund System 16 Clamps
- Siegmund System 28 Fast Clamping Equipment
- Siegmund System 28 Clamp Replacement Parts
Frequently Asked Questions
Which System 28 clamp has the highest clamping force?
On siegmund.com the Professional Screw Clamp XL (280612.N) lists 7 kN maximum clamping force. The Professional Screw Clamp (280610.N), the 45°/90° version (280630.N) and the Professional Fast Tension Clamp (280615.N) list 5 kN, the Pipe Elbow Clamp (280626.N) 4 kN, the Basic Pipe Clamp 90°, Basic Pipe Clamp 180° and Pipe Clamp Universal 3 kN, and the screw clamp with vertical action toggle 2.5 kN.
How are the pipe clamps held in the table bore?
Siegmund says the vertical pipe of the Basic Pipe Clamp 180° (280625) and the Pipe Clamp Universal (280604) is secured in the system bores with an Adjusting Ring, item 280653.N; the Pipe Elbow Clamp (280626.N) is also fastened with an adjusting ring. The vertical pipe is 250 mm long on the Basic Pipe Clamp 180° and the Pipe Clamp Universal.
Can I set the clamping force precisely?
Yes, on the professional screw clamps. Siegmund says the hexagon socket at the top of the handle of the Professional Screw Clamp, the XL and the 45°/90° version lets you set the clamping force precisely with a torque wrench.
Where are the fast clamping kits and clamp spare parts?
Fast clamping kits are in the Siegmund System 28 Fast Clamping Equipment collection, and prisms, spindles, bars and other clamp parts are in the Siegmund System 28 Clamp Replacement Parts collection. Siegmund says its professional clamps are built so that spare parts can be ordered individually.
Will System 28 clamps fit a 16mm welding table?
No. System 28 clamps are made for Ø28 mm bores on a 100 mm grid. A table with Ø16 mm bores on a 50 mm grid needs System 16 clamps. System 28 clamps also fit other 28 mm system welding tables with Ø28 mm bores on a 100 mm grid.
