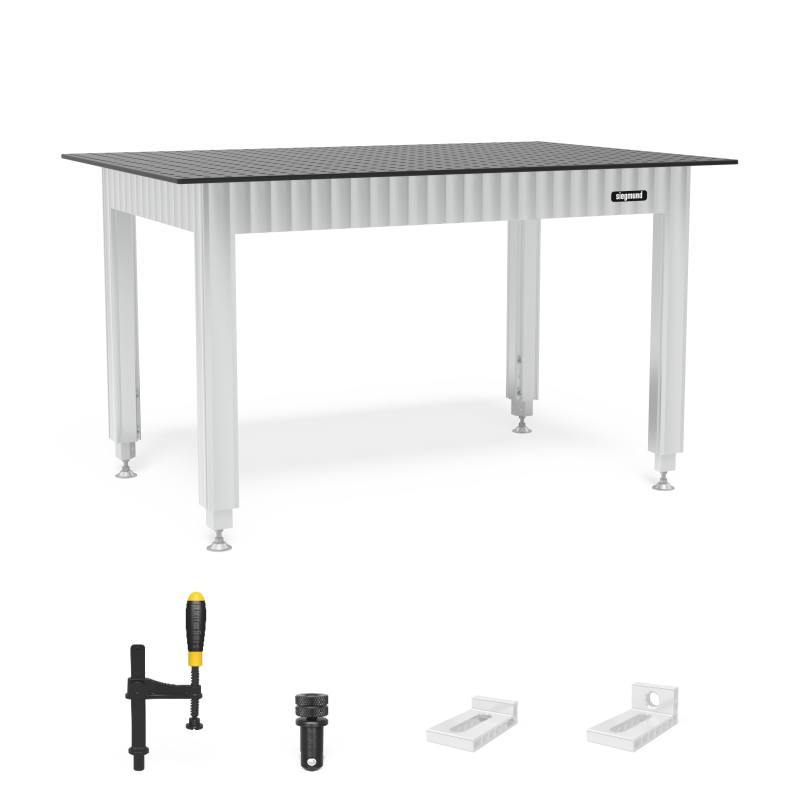

The Siegmund Workbench height adjustable with steel plate 1500x1000 incl. accessories (Siegmund item WS161510.1) is a System 16 workbench with a 1500 x 1000 mm plasma-nitrided, BAR-coated S355J2+N steel perforated plate, Ø16 mm boreholes on a 50 mm grid, a height-adjustable working height of 800–975 mm, and a 400 kg load capacity per Siegmund.
Key specs
| Siegmund item number | WS161510.1 |
|---|---|
| Top size | 1500 x 1000 mm (59.1 × 39.4 in) |
| Top | plasma-nitrided, BAR-coated S355J2+N steel perforated plate |
| Material thickness | 12 mm (0.47 in) |
| Borehole | Ø16 mm (0.63 in), 50 x 50 mm (1.97 × 1.97 in) grid |
| Working height | 800–975 mm (31.5–38.4 in) (height adjustable) |
| Load capacity | 400 kg (882 lb) |
| Weight (Siegmund) | 151,84 kg (335 lb) |
| Base frame | Aluminum profiles |
| GTIN | 4251805911107 |
Features
- Base frame made of aluminum profiles
- Height adjustable, Working height 800-975 mm
- Perforated plate: premium steel S355J2+N, plasma nitrided and BAR-coated
- Borehole Ø 16 mm
- Boreholes on the surface 50x50 mm grid
- For clamping: Hand clamping bolt 160514
What's included
- 1 × Siegmund Workbench height adjustable with steel plate 1500x1000 (WS161510)
- 4 × Basic Screw Clamp nitrided for workbench (160621)
- 8 × Fast Clamping Bolt (160511)
- 4 × Stop and Clamping Square 90 X Aluminum (160108.A)
- 4 × Stop and Clamping Square 90 SL Aluminum (160109.A)
Compatibility
System 16 (Ø16 mm boreholes, 50 mm grid). Not compatible with System 28 (Ø28 mm) accessories. Browse System 16 welding tables and accessories and System 16 bench vices.
Compare Siegmund workbenches
- Siegmund Workbench 1200 x 800 mm Steel Plate
- Siegmund Workbench 1200 x 800 mm Steel incl. Accessories
- Siegmund Workbench 1500 x 1000 mm Steel Plate
- Siegmund Workbench 2000 x 1000 mm Steel Plate
- Siegmund Workbench 2000 x 1000 mm Steel incl. Accessories
- Siegmund Workbench 1200 x 800 mm Aluminum Top
- Siegmund Workbench 1200 x 800 mm Aluminum incl. Accessories
See all Siegmund workbenches.
Frequently Asked Questions
What is the working height of this workbench?
Siegmund lists a height-adjustable working height of 800–975 mm.
Is it compatible with System 28 accessories?
No. It uses the System 16 system with Ø16 mm boreholes on a 50 mm grid, so it takes System 16 bolts, clamps and stops, not System 28.
How much weight can the workbench hold?
Siegmund lists a load capacity of 400 kg.
What clamping bolts should I use?
Siegmund recommends the Hand clamping bolt 160514 for clamping on this workbench.
How fast does it ship?
BTH Sales ships from St. Marys, Ontario, across Canada, and most orders ship within 48 hours.
