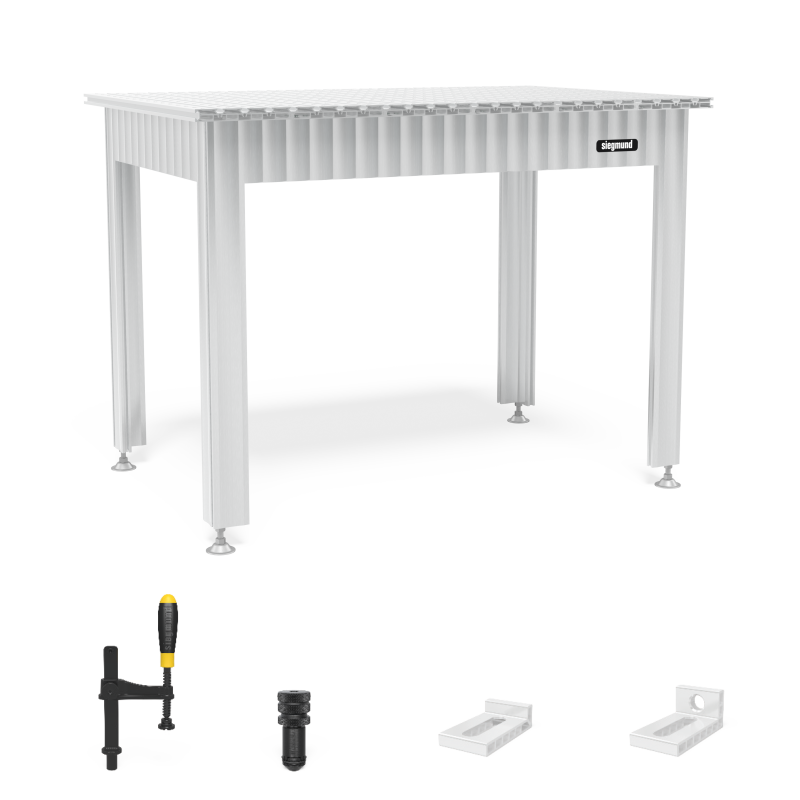

The Siegmund Workbench with aluminum table profiles 1200x800 incl. accessories (Siegmund item WA161208.L.1) is a System 16 workbench with a 1200 x 800 mm aluminum table profiles, Ø16 mm boreholes on a 50 mm grid, a fixed working height of 900 mm, and a 400 kg load capacity per Siegmund.
Key specs
| Siegmund item number | WA161208.L.1 |
|---|---|
| Top size | 1200 x 800 mm (47.2 × 31.5 in) |
| Top | aluminum table profiles |
| Material thickness | 24 mm (0.94 in) |
| Borehole | Ø16 mm (0.63 in), 50 x 50 mm (1.97 × 1.97 in) grid |
| Working height | 900 mm (35.4 in) (fixed) |
| Load capacity | 400 kg (882 lb) |
| Weight (Siegmund) | 42,08 kg (93 lb) |
| Base frame | Aluminum profiles |
| GTIN | 4251805911756 |
Features
- Base frame made of aluminum profiles
- Working height 900 mm
- Surface made of aluminum table profiles
- Borehole Ø 16 mm
- borehole spacing 50 mm
- Hexagonal Slot HX8
- Hexagonal Slot distance 50 mm
- When clamping aluminum parts, the bolts must only be tightened hand-tight.
- For clamping: Hand clamping bolt 160514 / Areal Clamping Bolt 160590
What's included
- 1 × Siegmund Workbench with aluminum table profiles 1200x800 (WA161208.L)
- 4 × Basic Screw Clamp nitrided for workbench (160621)
- 8 × Areal Clamping Bolt double burnished (160590)
- 4 × Stop and Clamping Square 90 X Aluminum (160108.A)
- 4 × Stop and Clamping Square 90 SL Aluminum (160109.A)
Compatibility
System 16 (Ø16 mm boreholes, 50 mm grid). Not compatible with System 28 (Ø28 mm) accessories. Browse System 16 welding tables and accessories and System 16 bench vices.
Compare Siegmund workbenches
- Siegmund Workbench 1200 x 800 mm Steel Plate
- Siegmund Workbench 1200 x 800 mm Steel incl. Accessories
- Siegmund Workbench 1500 x 1000 mm Steel Plate
- Siegmund Workbench 1500 x 1000 mm Steel incl. Accessories
- Siegmund Workbench 2000 x 1000 mm Steel Plate
- Siegmund Workbench 2000 x 1000 mm Steel incl. Accessories
- Siegmund Workbench 1200 x 800 mm Aluminum Top
See all Siegmund workbenches.
Frequently Asked Questions
What is the working height of this workbench?
Siegmund lists a fixed working height of 900 mm.
Is it compatible with System 28 accessories?
No. It uses the System 16 system with Ø16 mm boreholes on a 50 mm grid, so it takes System 16 bolts, clamps and stops, not System 28.
How much weight can the workbench hold?
Siegmund lists a load capacity of 400 kg.
What clamping bolts should I use?
Siegmund recommends the Hand clamping bolt 160514 or Areal Clamping Bolt 160590; on aluminum profiles bolts must only be tightened hand-tight.
How fast does it ship?
BTH Sales ships from St. Marys, Ontario, across Canada, and most orders ship within 48 hours.
