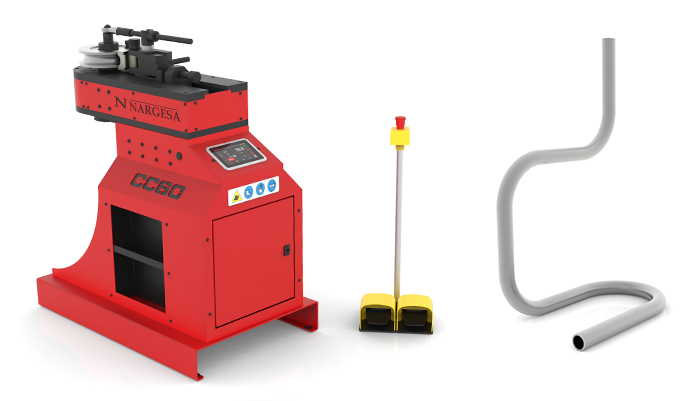

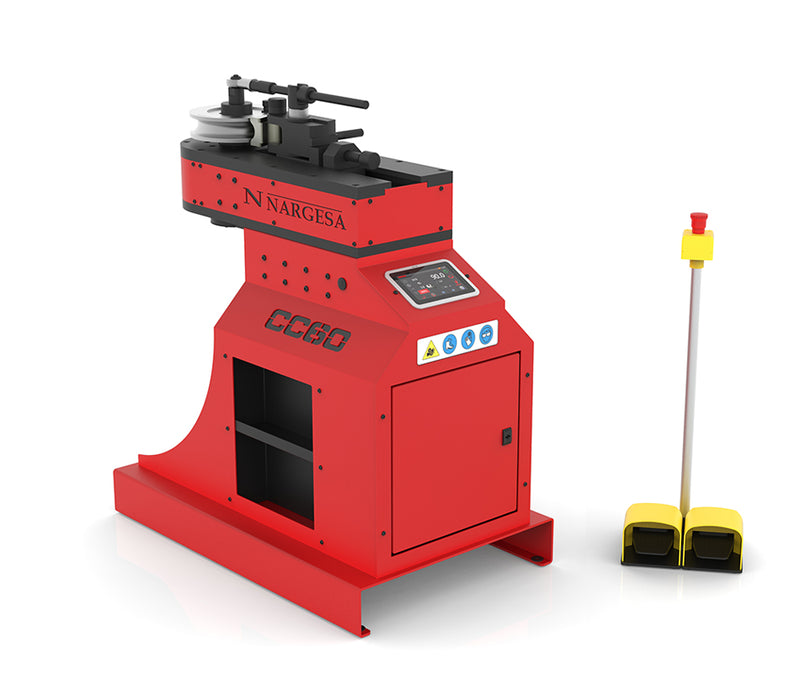

The Nargesa CC60 CNC is a rotary non-mandrel tube and pipe bender for bends up to 180° on round steel pipe up to 60.3 mm (2" Schedule 40), stainless up to 60.3 × 3 mm and square tube up to 40 × 40 × 4 mm. It runs on 230 V single-phase power, and its 7" CNC stores 10,000 programs.
Key specs
| Round steel pipe (S275) | 60.3 mm, 2" Schedule 40 or 2 1/4" × 4 mm |
|---|---|
| Aluminum pipe | 60.3 × 8 mm (2.375" × 0.315") |
| Stainless pipe (304/316) | 60.3 × 3 mm (2.375" × 0.160") |
| Square tube | 40 × 40 × 4 mm (1.50" × 1.50" × 0.160") |
| Max. bend angle | 180°, right or left |
| Bend radius | Min. 3 × pipe diameter; max. 320 mm (12.6 in) |
| Repeatability | ±0.1° |
| Rotation speed | 1.1–3.5 rpm, automatic |
| Motor | 1.1 kW (1.5 HP) |
| Power supply | 230 V single-phase, 50/60 Hz (110 V optional) |
| CNC controller | 7" touchscreen, 10,000 programs, up to 50 angles per part |
| Machine dimensions | 630 × 1000 × 1150 mm (24.8" × 39.4" × 45.3") |
| Weight | 365 kg (805 lb) |
What's included
- Reinforcement tool post support arm for pipe over 40 mm diameter
- 400 ml BEND 8 lubricant
- Delivered fully assembled on a palletized base
- Not included: bending dies and bronze counter-dies. These are ordered separately for each tube size.
Options
- 2-axis positioning gauge (3000 mm) for production parts
- Bending dies and bronze counter-dies for each tube size
Features and applications
Key Features
- Non-mandrel rotary bending technology – Produces clean, consistent bends without the complexity and cost of mandrel bending for many common tube and pipe applications.
- Large bending capacity – Handles carbon steel pipe up to 60.3 mm (2.4") OD (Schedule 40 equivalent), making it suitable for a wide range of fabrication projects.
- Advanced CNC touchscreen control – A user-friendly 7-inch colour touchscreen with multi-language support simplifies programming and day-to-day operation.
- Industry 4.0 ready – Supports remote diagnostics, software updates, and enhanced connectivity for improved machine management and productivity.
- Programmable bending up to 180° – Produces accurate bends up to 180 degrees in a single cycle for greater manufacturing flexibility.
- High program storage capacity – Stores up to 10,000 programs, with as many as 50 bend angles per part, reducing setup time for repeat production.
- Automatic springback compensation – Automatically adjusts for material springback to deliver more accurate and repeatable bend angles.
- Variable bending speed – Adjustable rotation speeds from 1.1 to 3.5 RPM allow operators to optimize performance for different materials and applications.
- Bi-directional bending capability – Left and right rotation provides greater flexibility when producing complex parts and multi-bend components.
- Fast tooling changes – Quick-change tooling system allows dies to be replaced in 60 seconds or less, minimizing production downtime.
- Reinforced support for larger workpieces – Includes a support arm to improve stability and accuracy when bending larger diameter tubing.
- Offset head design – Makes it easier to produce complex bends and tight-radius geometries while reducing interference during operation.
- Long-life tooling – Tempered steel bending dies provide excellent durability and wear resistance for demanding production environments.
- Reduced material marking – Bronze counter-dies help protect finished surfaces by minimizing marks and deformation during bending.
- Energy-efficient operation – ECO design reduces energy consumption per bending cycle, helping lower operating costs without sacrificing performance.
Applications
The CC60 CNC Tube Bender is designed for precision tube forming across a variety of industrial and fabrication environments where consistent radius bends, repeatability, and accuracy are required.
- Handrail and balustrade fabrication – Produces smooth, consistent bends for architectural railings, safety barriers, and decorative metalwork.
- Structural steel and architectural fabrication – Ideal for forming tubing used in frames, supports, building components, and custom steel structures.
- Automotive and transportation manufacturing – Provides repeatable tube bending for vehicle components, frames, exhaust systems, and specialty assemblies.
- Industrial piping and fluid systems – Suitable for forming tubing used in process piping, fluid lines, and industrial equipment applications.
- Furniture and tubular frame production – Enables efficient manufacturing of metal frames, supports, and custom-designed tubular products.
- Stainless steel fabrication and hygienic installations – Delivers precise bends for stainless tubing used in food, pharmaceutical, and clean-environment applications.
- Copper and aluminum tube forming – Handles non-ferrous materials commonly used in HVAC, electrical, and lightweight fabrication applications.
- Custom fabrication and repeat production – CNC control provides consistent radius bends for one-off projects, custom components, and repeat manufacturing runs.
Why Choose the Nargesa CC60 CNC?
The CC60 CNC is designed for workshops that need fast, repeatable tube bending without the complexity of mandrel systems.
It reduces setup time and simplifies operation while maintaining CNC-level accuracy for production environments.
Key advantages include:
- Eliminates mandrel setup while maintaining high-quality bend finishes
- Reduces cycle time with fast rotation and quick die changes
- Improves repeatability through CNC-controlled automation
- Supports multi-material fabrication across steel, stainless, aluminum, and copper
- Enables efficient production with programmable multi-angle sequences
- Compact industrial footprint suitable for workshop integration
It is ideal for manufacturers seeking a balance between production speed, versatility, and operational simplicity.
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa CC90 CNC non-mandrel pipe bender
- Nargesa MC650CNC CNC section & pipe bender
- All Nargesa machines
Frequently Asked Questions
What is the CC60’s maximum capacity?
60.3 mm (2" Schedule 40) round steel pipe, 60.3 × 8 mm aluminum, 60.3 × 3 mm stainless and 40 × 40 × 4 mm square tube, with bends up to 180°.
What power does the CC60 need?
Nargesa specifies a 1.1 kW (1.5 HP) motor on 230 V single-phase, 50/60 Hz, with 110 V single-phase as an option. Confirm your shop’s voltage with BTH Sales before ordering.
Does it need a mandrel?
No. It is a rotary non-mandrel bender with tempered steel dies and bronze-alloy counter-dies that help prevent marks on the bend.
Are bending dies included with the CC60?
No. Bending dies and bronze counter-dies are not included with the CC60 and are ordered separately for each tube size. Contact BTH Sales for the dies you need.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine is arriving soon; contact us for an ETA.
