Orbital Service Gas Double Plugs
Orbital Service Forming Gas Double Plugs are professional purge sealing solutions designed to improve purge gas management during orbital TIG welding and high-purity pipe fabrication.
Manufactured from high-temperature silicone, these reusable double plugs create a secure seal inside the pipe, reducing purge volume while promoting consistent gas coverage throughout the weld zone. The result is more efficient purging, lower gas consumption, and cleaner, oxidation-free welds.
The system includes seven colour-coded plug sizes covering pipe inside diameters from 9 mm to 110 mm (0.35" to 4.33"), allowing operators to quickly select the correct plug for a wide range of stainless steel and process piping applications.
Supplied in a durable storage case and compatible with optional swirl nozzles, Forming Gas Double Plugs provide a practical solution for professional orbital welding environments where weld quality and purge efficiency are critical.
Key Features
- Double plug purge sealing system – Creates an isolated purge chamber for efficient orbital welding preparation
- Reduces purge gas volume – Minimizes the amount of forming gas required before welding
- Improves purge gas coverage – Promotes consistent shielding and cleaner internal weld surfaces
- Helps produce oxidation-free welds – Supports high-quality weld roots in stainless steel applications
- Seven colour-coded plug sizes – Enables quick identification and faster setup
- Pipe ID coverage from 9 mm to 110 mm (0.35"–4.33") – Suitable for a wide range of tube and pipe sizes
- High-temperature silicone construction – Heat resistant up to 300°C for demanding welding environments
- Reusable industrial design – Durable construction for long service life and repeated use
- Compatible with optional swirl nozzles – Optimizes purge gas distribution and improves purging efficiency
- Supplied in a protective storage case – Keeps components organized and ready for transport
Applications
Orbital Service Forming Gas Double Plugs are designed for purge gas management in precision welding applications, including:
- Orbital TIG welding
- High-purity process piping
- Stainless steel tube and pipe fabrication
- Pharmaceutical manufacturing systems
- Semiconductor tubing installations
- Food and beverage processing equipment
- Aerospace and precision welding applications
- Hygienic piping systems requiring oxidation-free welds
Why Choose Orbital Service Forming Gas Double Plugs?
Proper purge gas control is essential for producing high-quality stainless steel welds while minimizing gas consumption and preparation time.
Orbital Service Forming Gas Double Plugs simplify this process by creating a compact purge chamber inside the pipe, reducing the volume of gas required while helping maintain consistent purge coverage throughout the weld.
Key advantages include:
- Reduces purge gas consumption and operating costs
- Improves weld quality with cleaner internal weld surfaces
- Faster setup with colour-coded plug identification
- Reusable silicone construction for long service life
- Wide range of pipe sizes covered in one kit
- Compatible with optional swirl nozzles for enhanced purge performance

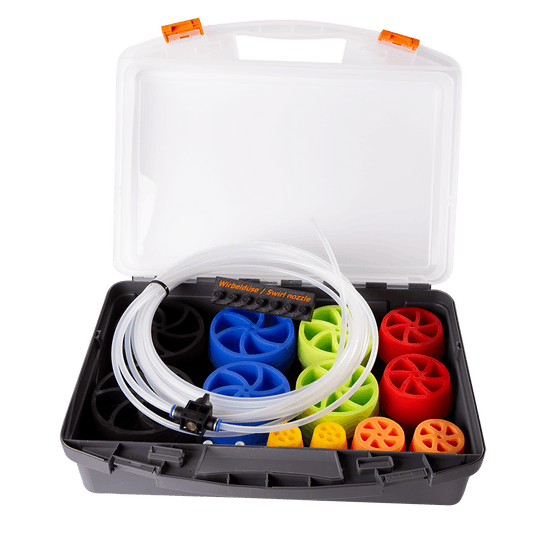

Included Components
- 14 forming gas plugs (7 colour-coded size pairs)
- Durable plastic carrying case with transparent lid
- 6 × 1 mm PE purge gas hose
- Integrated plug valve system
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Forming Gas Double Plug Purge System |
| Pipe ID Range | 9–110 mm (0.35"–4.3") |
| Number of Plug Sizes | 7 Colour-Coded Sizes |
| Material | High-Temperature Silicone |
| Shore Hardness | 35 Shore |
| Maximum Temperature | 300°C |
| Reusable | Yes |
| Compatible Accessories | Swirl Nozzle Kit (WiDu7) |
| Article Number | StopfSet |
Frequently Asked Questions
What are Forming Gas Double Plugs used for?
Forming Gas Double Plugs are used to seal the inside of tube or pipe during orbital TIG welding, creating a smaller purge chamber that improves gas efficiency and weld quality.
How do double plugs reduce purge gas consumption?
By sealing both sides of the weld joint, the plugs significantly reduce the volume that must be filled with purge gas, allowing the system to reach the required purge level more quickly while using less gas.
What pipe sizes are supported?
The standard kit covers pipe inside diameters from 9 mm to 110 mm (0.35" to 4.33") using seven colour-coded plug sizes.
What materials are the plugs made from?
The plugs are manufactured from high-temperature silicone with a 35 Shore hardness, providing flexibility, durability, and heat resistance up to 300°C.
Can the plugs be reused?
Yes. The silicone construction is designed for repeated use in professional fabrication and orbital welding environments.
What is the benefit of the optional Swirl Nozzle Kit?
The optional Swirl Nozzle Kit (WiDü7) improves purge gas distribution inside the pipe, helping achieve faster, more uniform purging before welding.
