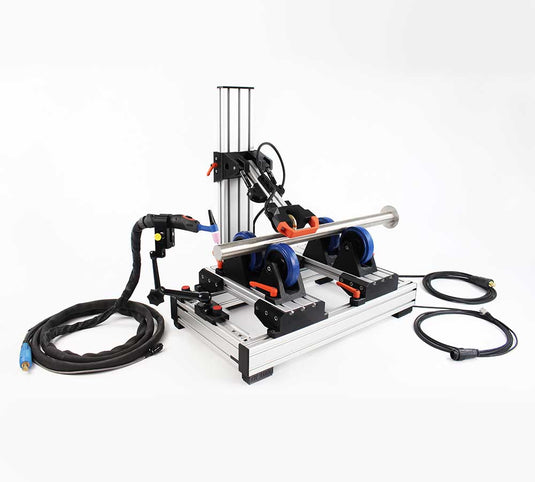

Rolling System TR 1000

The Orbital Service TR 1000 Rolling System is a precision roller stand designed for orbital TIG welding of large-diameter pipes, flanges, covers, and other round assemblies. By providing controlled and repeatable rotation of the workpiece, the TR 1000 allows operators to produce consistent welds on components that are too large or difficult to handle with conventional orbital weld heads.

Designed to communicate directly with compatible Orbital Service welding power supplies, the TR 1000 provides synchronized rotational control for demanding orbital welding applications. Its toothed belt drive system delivers smooth, stable movement, while the integrated 3D torch arm and linear guide system provide precise torch positioning throughout the weld.

The TR 1000 supports a wide range of welding configurations, including pipe-to-flange, butt, fillet, edge, and cover welds. Optional AVC, OSC, and cold wire feeding systems can further expand the system's capabilities for more advanced orbital welding applications.

With a compact 25 kg design and modular configuration options, the TR 1000 provides a flexible solution for fabrication shops working with large-diameter pipe, process piping, pressure vessels, and other cylindrical components.

Key Features

• Precision rolling system for orbital TIG welding of round components
• Designed for large-diameter pipes, flanges, covers, and cylindrical assemblies
• Supports workpiece diameters from 20 mm to 323 mm (0.79" to 12.72")
• Optional configurations available for applications up to approximately 1000 mm (39.37") OD
• Real-time communication with compatible Orbital Service welding power supplies
• Smooth toothed belt drive system provides stable and repeatable rotation
• Integrated motor control for precise rotational movement
• Hydraulic 3D torch arm adjustment
• Linear guide system provides controlled and repeatable torch positioning
• Supports butt, fillet, edge, and flange welding applications
• Tool-free adjustment using clamping levers and knurled adjustment screws
• Laser-engraved roller markings simplify repeatable setup
• Compatible with gas-cooled and water-cooled TIG torches
• Upgradeable with AVC, OSC, and cold wire feeding systems
• Modular design allows optional table or mobile frame configurations
• Compact 25 kg (55 lb) system for easier handling and repositioning

Applications

The TR 1000 is designed for orbital welding applications where controlled rotation of the workpiece is required to achieve consistent weld quality around large or irregularly shaped components.

Typical applications include:

• Orbital TIG welding
• Pipe-to-flange welding
• Large-diameter pipe welding
• Pipe support and spool fabrication
• Pressure vessel and cover welding
• Stainless steel process piping
• Pharmaceutical and high-purity process piping
• Semiconductor fabrication
• Industrial pipe and vessel manufacturing
• Welding of large round assemblies and components

The system is particularly useful for components that cannot be practically positioned inside a conventional orbital weld head. Instead of rotating the welding head around a fixed workpiece, the TR 1000 rotates the component while maintaining controlled torch positioning.

Its modular design also allows the system to be configured for different component sizes and welding requirements, making it suitable for both general fabrication and specialized orbital welding applications.

Why Choose the TR 1000 Rolling System?

Consistent rotational movement is critical when performing orbital TIG welding on large-diameter components. Variations in rotation speed, torch position, or workpiece alignment can affect arc stability, heat input, and overall weld consistency.

The TR 1000 provides controlled workpiece rotation while integrating directly with compatible Orbital Service welding systems, allowing operators to maintain more consistent welding parameters throughout the process.

Key Advantages

• Provides repeatable rotation for consistent orbital welds
• Allows welding of components too large for conventional orbital weld heads
• Synchronizes with compatible orbital welding power supplies
• Provides precise torch positioning through the integrated linear guide and articulated arm
• Supports multiple weld configurations, including flange and butt welding
• Compact and modular design for flexible shop configurations
• Can be expanded with AVC, OSC, and cold wire systems
• Tool-free adjustments simplify setup between different components
• Suitable for demanding stainless steel and high-purity welding applications

For fabrication shops working with larger pipe assemblies, flanges, covers, and cylindrical components, the TR 1000 provides a controlled and repeatable method of rotating the workpiece while maintaining accurate torch positioning.

Included Components

• TR 1000 roller stand with integrated motor control
• 5 m (16.4 ft) ground cable
• Linear guide unit
• 3D articulated torch arm
• TIG torch grip system
• Gas-cooled TIG torch

Optional Accessories & Upgrades

The TR 1000 can be configured with additional equipment to expand its orbital welding capabilities, including:

• AVC (Automatic Voltage Control)
• OSC (Oscillation) system
• Cold wire feeding system
• Water-cooled TIG torch configurations
• Optional table configurations
• Optional mobile frame configurations
• Additional roller configurations for larger workpiece diameters
