SKU: 4-280015.XD8PL + (4x) 280853.X

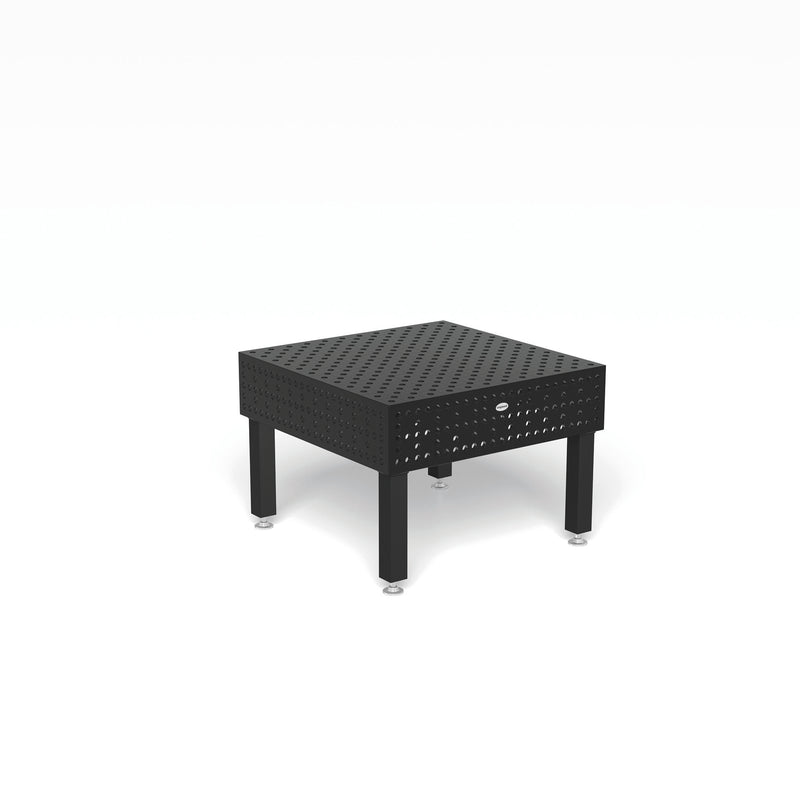

280015.XD8PL: Siegmund System 28 Professional Extreme 8.8 PLUS 1200x1200 Plasma Nitrided

Vendor BTH Sales
Regular price $9,279.00
Sale price $9,279.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.

Made in Germany, the hardened X7 Steel (the 8.8 Series), is made special for Siegmund Welding Tables and Products. This steel is of a significantly greater hardness grade, compared to 98% of the welding tables in the market. The only material harder than our 8.7 series tables are our Siegmund 8.8 Series Welding Tables. With the Series 8.8 Siegmund Welding tables, the top plate achieves a hardness of 850 Vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.


Technical Data

Item No.: 4-280015.XD8PL

Length (a) 1200 mm
Width (b) 1200 mm
Height (c) 300 mm
Weight 612 kg





Welding Table Specs and Features:

  • Overall Tabletop Size: 1,200 x 1,200 x 300mm (47.24" x 47.24" x 11.81")
  • Borehole: Ø 28mm (1.10")
  • Welding Table Series: Professional Extreme 8.8 Series
  • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")
  • Welding Table Material Type and Finish: Professional Extreme 8.8 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Official Siegmund Welding Table Part No.: 4-280015.XD8PL
  • Maximum Weight Load: 8,818 lbs. / 4,000 kg (Based on Even Distribution)
  • Approximate Table Weight: 1,349 lbs. / 612 kg.

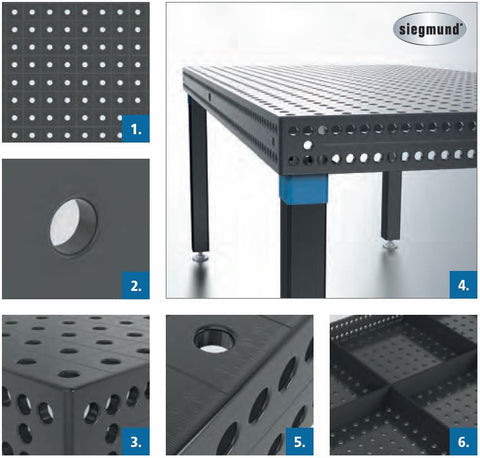

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes are Ø 28mm (1.10").

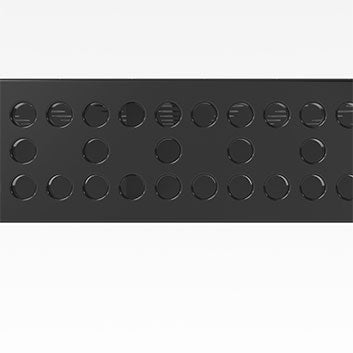

  3. Boreholes on Table Side 3 Rows with 50mm Spacing. 2 Rows with 100mm Spacing.
  4. Height of table side 300mm.

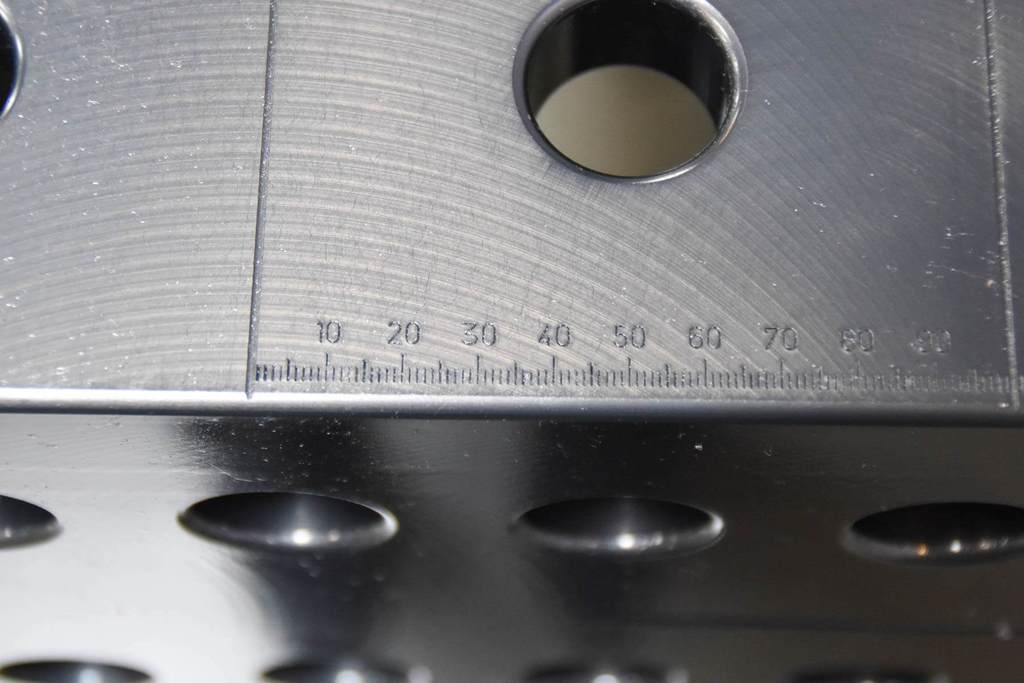

  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.

    The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

    All System 28 Professional Extreme welding tables feature the latest refinements in  appearance, ingenuity, strength and reliability.

    Our Double Hardened Welding Tables are constructed with through-hardened steel,  before undergoing a Plasma Nitride treatment to give you a Welding Table of elite quality and performance.

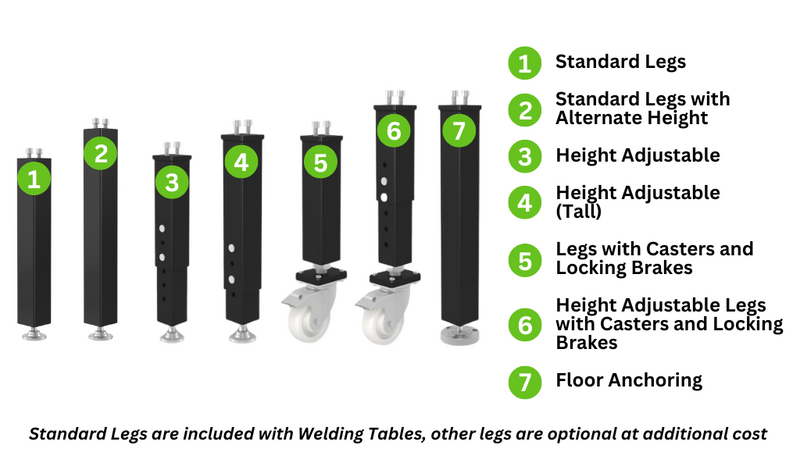

    Available Style Variants

    • Standard 850mm Legs
    • Alternate Height Standard 1050mm Legs
    • Height Adjustable 750-1100mm Legs
    • Height Adjustable Alternate Height 850-1200mm Legs
    • Caster with locking brake 850mm Legs
    • Caster with Locking brake and Height Adjustable 850-1050mm Legs
    • Floor Anchoring 850mm Legs
