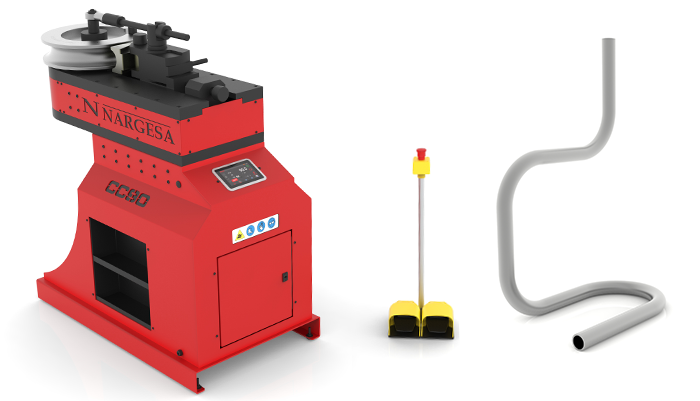

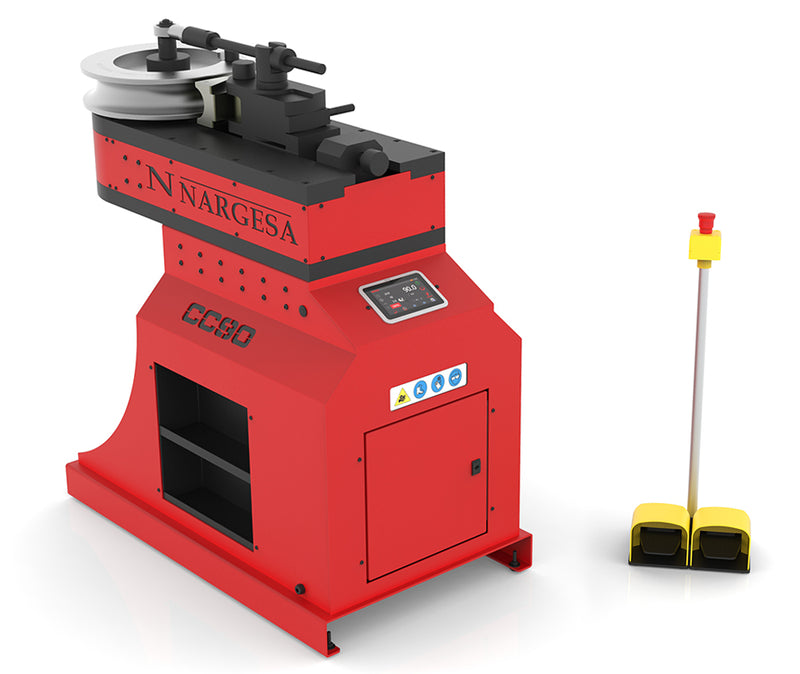

The Nargesa CC90 CNC is a rotary non-mandrel tube and pipe bender for bends up to 180° on round steel pipe up to 90 mm (3" Schedule 40), stainless steel up to 88.9 × 4 mm and square tube up to 60 × 60 × 4 mm. Its 7" CNC stores 10,000 programs with automatic springback correction, so it suits production tube bending.
Key specs
| Round steel pipe (S275) | 90 mm, 3" Schedule 40, 3½" Whitworth or 3" ISO × 6 mm |
|---|---|
| Aluminum pipe | 88.9 × 10 mm (3½" × 0.393") |
| Stainless pipe (304/316) | 88.9 × 4 mm (3½" × 0.157") |
| Square tube | 60 × 60 × 4 mm (2.36 × 2.36 × 0.16 in) |
| Max. bend angle | 180°, right or left |
| Bend radius | Min. 3 × pipe diameter; max. 390 mm (15.35") |
| Repeatability | ±0.1° |
| Rotation speed | 0.75–2.2 rpm, automatic |
| Motor | 2.2 kW (3 HP) |
| Power supply | 230/400 V three-phase, 50/60 Hz, 9/5 A |
| CNC controller | 7" touchscreen, 10,000 programs, up to 50 angles per part |
| Machine dimensions | 700 × 1300 × 1360 mm (27.6" × 51.2" × 53.5") |
| Weight | 860 kg (1,896 lb) |
What's included
- Reinforcement tool post support arm for pipe over 40 mm diameter
- 400 ml BEND 8 lubricant
- Delivered fully assembled on a palletized base
- Not included: bending dies and bronze counter-dies. These are ordered separately for each tube size.
Options
- Bending dies and bronze counter-dies for each tube size (see Nargesa tooling lists)
Features and applications
Key Features
- Non-mandrel rotary bending technology for accurate tube and pipe forming without the complexity of internal mandrel systems
- Large diameter bending capacity up to 88.9 mm (3.5") OD for structural, industrial, and heavy fabrication applications
- CNC-controlled operation with 7" touchscreen interface for simple programming, repeatability, and operator efficiency
- Industry 4.0 connectivity with remote diagnostics, software updates, and improved machine monitoring capabilities
- Programmable bending up to 180° per cycle for complex tube forming requirements
- Stores up to 10,000 bending programs with up to 50 programmable angles per component
- Automatic springback correction compensates for material behavior to improve dimensional accuracy
- Bi-directional bending capability allows left and right rotation for increased flexibility during production
- Variable bending speed control from 0.75–2.2 rpm to optimize performance across different materials and profiles
- Quick-change die system with tool changes in 60 seconds or less to reduce production downtime
- Reinforced support arm for larger diameter tubing improves stability during high-force bending operations
- Offset bending head design provides additional clearance for complex geometries and tighter bending paths
- Tempered steel bending dies provide long service life in demanding production environments
- Bronze counter-dies reduce surface marking and help maintain finished tube quality
- Energy-efficient ECO design reduces power consumption while maintaining industrial performance
- Heavy-duty reinforced frame construction supports consistent operation under high bending loads
Applications
The Nargesa CC90 CNC is designed for manufacturers and fabricators requiring large-diameter tube forming capabilities, including:
Engineering & Construction
The Nargesa CC90 CNC is built for demanding industrial tube forming applications where strength, accuracy, and repeatability are essential.
Its reinforced industrial frame, high-torque rotary bending head, and offset bending head design provide the rigidity and clearance required for forming larger diameter tubing and complex geometries. The quick-change tooling system and CNC-controlled bending sequences allow manufacturers to efficiently produce consistent results across a variety of materials.
Designed for professional fabrication environments, the CC90 CNC supports bending of carbon steel, stainless steel, aluminum, copper, and other industrial alloys while maintaining reliable performance under high-load production conditions.
Why Choose the Nargesa CC90 CNC?
The Nargesa CC90 CNC provides manufacturers with a high-capacity tube bending solution that combines large-diameter forming capability with simplified CNC operation.
Designed for fabricators who need repeatable production without the complexity of mandrel-based systems, the CC90 CNC improves workflow efficiency while delivering accurate bends across a wide range of materials and profiles.
Key advantages include:
- Large-capacity bending for structural and industrial applications
- CNC automation for repeatable, consistent production
- Faster setup with quick-change tooling and programmable sequences
- Reliable performance for demanding fabrication environm
Video
Capacity charts and documents
Compare Nargesa models
- Nargesa CC60 CNC non-mandrel pipe bender
- Nargesa MC650CNC CNC section & pipe bender
- All Nargesa machines
Frequently Asked Questions
What is the CC90’s maximum capacity?
90 mm (3" Schedule 40) round steel pipe, 88.9 × 10 mm aluminum, 88.9 × 4 mm stainless steel and 60 × 60 × 4 mm square tube, with bends up to 180°.
What power does the CC90 need?
Nargesa specifies a 2.2 kW (3 HP) motor on a 230/400 V three-phase, 50/60 Hz supply (9/5 A). Confirm your shop’s voltage with BTH Sales before ordering.
Does it need a mandrel?
No. It is a rotary non-mandrel bender. Nargesa uses tempered steel dies and bronze-alloy counter-dies to help prevent marks on the outside of the bend.
Are bending dies included with the CC90?
No. Bending dies and bronze counter-dies are not included with the CC90 and are ordered separately for each tube size. Contact BTH Sales for the dies you need. Nargesa states a die change takes 60 seconds maximum.
How long does delivery take?
BTH Sales ships across Canada from St. Marys, ON. This machine has a 4–6 week lead time; contact us for an exact date.
