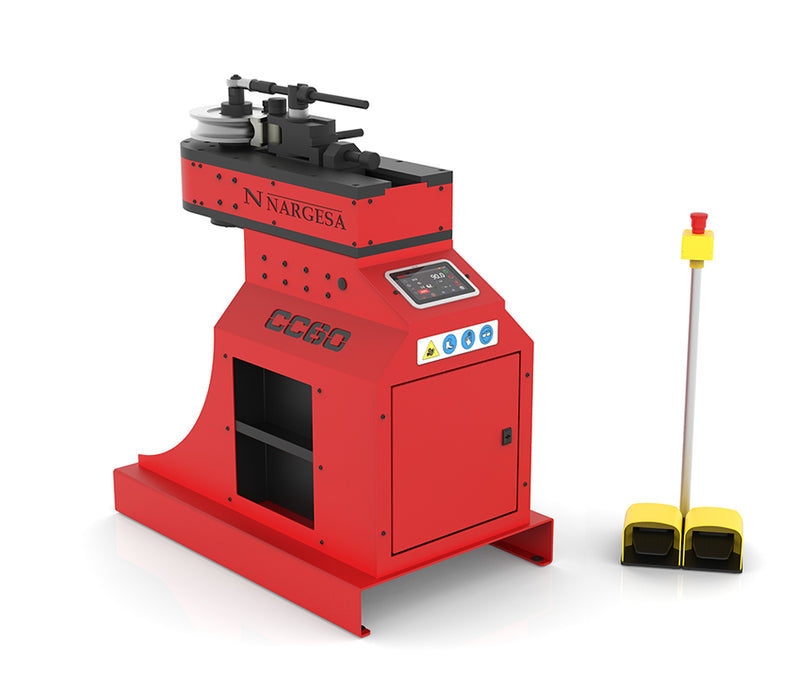

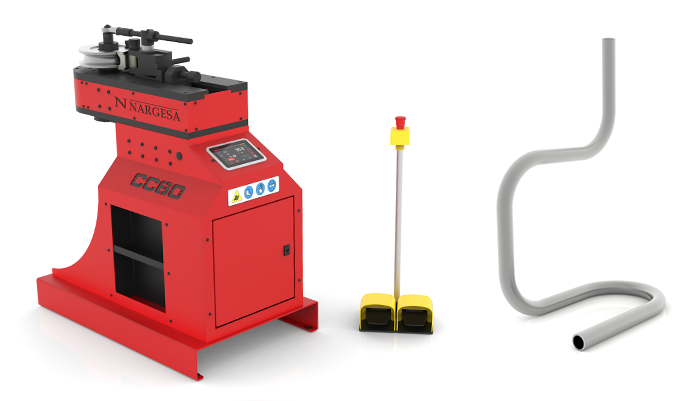

Nargesa CC60 Non-Mandrel Pipe Bender

The Nargesa CC60 CNC is a non-mandrel rotary tube and pipe bending machine designed for high-precision bending of metal profiles up to 60.3 mm (2.4") OD.

It enables smooth, repeatable bends up to 180° on round, square, rectangular, and oval tubing across materials including steel, stainless steel, aluminum, and copper.

Built with CNC control and Industry 4.0 connectivity, the CC60 delivers precise motion control, programmable bending sequences, and automated springback correction for consistent production quality.

Its compact rotary design, fast cycle speeds, and intuitive touchscreen interface make it suitable for both custom fabrication and repetitive industrial bending applications.

Key Features

• Non-mandrel rotary bending technology – Produces clean, consistent bends without the complexity and cost of mandrel bending for many common tube and pipe applications.
• Large bending capacity – Handles carbon steel pipe up to 60.3 mm (2.4") OD (Schedule 40 equivalent), making it suitable for a wide range of fabrication projects.
• Advanced CNC touchscreen control – A user-friendly 7-inch colour touchscreen with multi-language support simplifies programming and day-to-day operation.
• Industry 4.0 ready – Supports remote diagnostics, software updates, and enhanced connectivity for improved machine management and productivity.
• Programmable bending up to 180° – Produces accurate bends up to 180 degrees in a single cycle for greater manufacturing flexibility.
• High program storage capacity – Stores up to 10,000 programs, with as many as 50 bend angles per part, reducing setup time for repeat production.
• Automatic springback compensation – Automatically adjusts for material springback to deliver more accurate and repeatable bend angles.
• Variable bending speed – Adjustable rotation speeds from 1.1 to 3.5 RPM allow operators to optimize performance for different materials and applications.
• Bi-directional bending capability – Left and right rotation provides greater flexibility when producing complex parts and multi-bend components.
• Fast tooling changes – Quick-change tooling system allows dies to be replaced in 60 seconds or less, minimizing production downtime.
• Reinforced support for larger workpieces – Includes a support arm to improve stability and accuracy when bending larger diameter tubing.
• Offset head design – Makes it easier to produce complex bends and tight-radius geometries while reducing interference during operation.
• Long-life tooling – Tempered steel bending dies provide excellent durability and wear resistance for demanding production environments.
• Reduced material marking – Bronze counter-dies help protect finished surfaces by minimizing marks and deformation during bending.
• Energy-efficient operation – ECO design reduces energy consumption per bending cycle, helping lower operating costs without sacrificing performance.

Applications

The CC60 CNC Tube Bender is designed for precision tube forming across a variety of industrial and fabrication environments where consistent radius bends, repeatability, and accuracy are required.

• Handrail and balustrade fabrication – Produces smooth, consistent bends for architectural railings, safety barriers, and decorative metalwork.
• Structural steel and architectural fabrication – Ideal for forming tubing used in frames, supports, building components, and custom steel structures.
• Automotive and transportation manufacturing – Provides repeatable tube bending for vehicle components, frames, exhaust systems, and specialty assemblies.
• Industrial piping and fluid systems – Suitable for forming tubing used in process piping, fluid lines, and industrial equipment applications.
• Furniture and tubular frame production – Enables efficient manufacturing of metal frames, supports, and custom-designed tubular products.
• Stainless steel fabrication and hygienic installations – Delivers precise bends for stainless tubing used in food, pharmaceutical, and clean-environment applications.
• Copper and aluminum tube forming – Handles non-ferrous materials commonly used in HVAC, electrical, and lightweight fabrication applications.
• Custom fabrication and repeat production – CNC control provides consistent radius bends for one-off projects, custom components, and repeat manufacturing runs.

System Configuration & Bending Technology

The CC60 CNC is built around a non-mandrel rotary bending system, where tube support is achieved through precision tooling rather than internal mandrels.

• Bi-directional rotary bending head – Provides left and right bending capability, improving flexibility when producing complex geometries and multi-bend components.
• Reinforced support arm – Provides additional stability when forming larger diameter tubing above 40 mm, helping maintain accuracy during demanding bending operations.
• Offset head geometry – Improves clearance around the workpiece, allowing for more complex bend configurations and reducing interference during operation.
• Automatic unlocking and repositioning system – Simplifies setup between bends and improves efficiency during multi-step bending cycles.
• Programmable bend sequencing – Allows operators to define bend order, angles, and positioning for consistent results across repeat production runs.
• Interchangeable die system – Supports multiple tube sizes and profiles by allowing quick tooling changes to match different material requirements.
• Wide material compatibility – Designed to process a variety of metals including stainless steel, carbon steel, aluminum, copper, and similar alloys.
• Large tube forming capacity – Handles round tubing up to 60.3 mm OD and square tubing up to 40 × 40 × 4 mm, providing flexibility for industrial and fabrication applications.

Why Choose the Nargesa CC60 CNC?

The CC60 CNC is designed for workshops that need fast, repeatable tube bending without the complexity of mandrel systems.

It reduces setup time and simplifies operation while maintaining CNC-level accuracy for production environments.

Key advantages include:

• Eliminates mandrel setup while maintaining high-quality bend finishes
• Reduces cycle time with fast rotation and quick die changes
• Improves repeatability through CNC-controlled automation
• Supports multi-material fabrication across steel, stainless, aluminum, and copper
• Enables efficient production with programmable multi-angle sequences
• Compact industrial footprint suitable for workshop integration

It is ideal for manufacturers seeking a balance between production speed, versatility, and operational simplicity.
