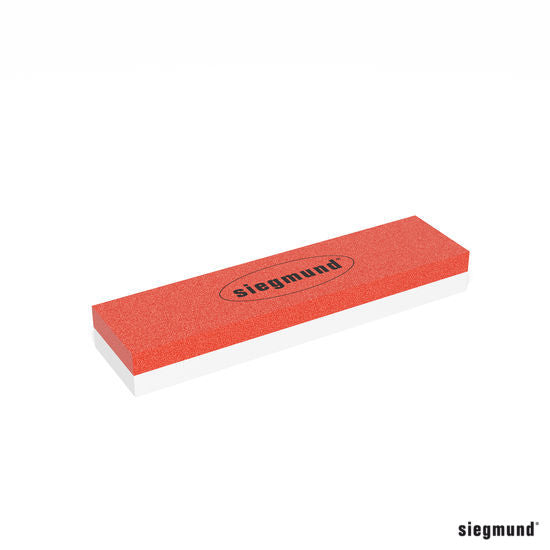

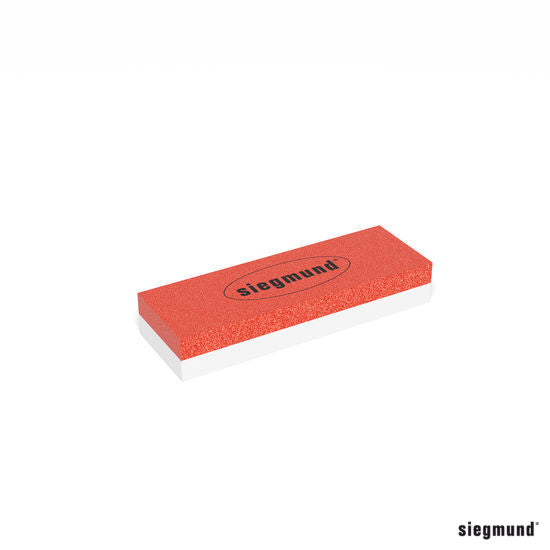

Siegmund recommends an oilstone, and only an oilstone, to remove light damage or weld spatter from the surface of a non-nitrided welding table or Siegmund element, instead of flex discs or other abrasives. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 000940 (siegmund.com) | 000942 (siegmund.com) |
|---|---|---|
| Siegmund name | Oilstone 200x50x25 | Oilstone 150x50x25 |
| Used with | Siegmund System 16 and System 28 welding tables | |
| Length | 200 mm (7.87 in) | 150 mm (5.91 in) |
| Width | 50 mm (1.97 in) | |
| Height | 25 mm (0.98 in) | |
| Weight | 0.56 kg (1.23 lb) | 0.42 kg (0.93 lb) |
Compatibility
- Not compatible: Plasma-nitrided tables and accessories. Siegmund lists the oilstone as suitable for non-nitrided welding tables and accessories only.
- Related products: 000914 Siegmund System 16 & 28 - Clean Basic, 000924 Siegmund System 16 & 28 - Anti-Splatter.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:
- 1 x Siegmund Oilstone 200x50x25 (000940)
- 1 x Siegmund Oilstone 150x50x25 (000942)
Typical uses
- Removing light weld spatter from a non-nitrided table top
- Dressing small dings on non-nitrided squares and stops
- Routine upkeep alongside CleanBasic and anti-spatter
Engineering support & demos
Engineering support comes with your purchase: fixture design, layout drawings, CAD and 3D models, site visits and cobot cell planning, handled by Travis Hardcastle at BTH Sales or by Siegmund directly. Live demos at our St. Marys showroom are by appointment (book a demo), and we offer video demos if you are outside Ontario. BTH Sales is family-owned, founded in 2001, and has been the exclusive Canadian importer of Siegmund since 2018.
Industries served: Siegmund's published practical examples show its welding tables and tooling in these sectors: Agriculture; Interior; Lighting and electrical engineering; Machine tools and plant construction; Measurement and testing technology; Motorcycle engineering; Revolving door systems; Robotic technology; Stage technology; Stainless steel processing; Steel, sheet metal and metal construction; Textile production; Train Construction; Vehicle construction; Welding technology; Woodworking.
Ships across Canada by freight from 5 Industrial Rd, St. Marys, ON N4X 1G2, or pick up from our warehouse. Email sales@bthsales.ca or call +1-519-461-1381 for a freight quote and lead time.
Frequently Asked Questions
Can I use the oilstone on a plasma-nitrided table?
No. Siegmund lists the oilstone as suitable for non-nitrided welding tables and accessories. For a plasma-nitrided table, use anti-spatter before welding and CleanBasic after welding.
Why not use a flex disc or grinder?
Siegmund strongly advises against other abrasives and grinding machines such as flex discs on the table surface. The oilstone removes damage and spatter while keeping the surface smooth.
Which size should I order?
Siegmund makes two sizes: 000940 at 200 x 50 x 25 mm and 000942 at 150 x 50 x 25 mm. Both have the same purpose; pick the one that suits your hand and the area you need to dress.
