Siegmund Laser Welding Cells in Canada
Siegmund modular laser welding cells give handheld laser welding and laser cleaning a certified enclosure on your shop floor. Choose from four sizes, from 2480 × 2480 mm to 4880 × 3680 mm, each with or without a closed roof. BTH Sales is the exclusive Canadian importer of Siegmund.
Compare the four sizes
| Size (nominal, mm) | Outside L × W × H (mm) | Weight without / with roof | Price without roof (.M) | Price with roof (.MR) | Catalogue example table | Example clearance |
|---|---|---|---|---|---|---|

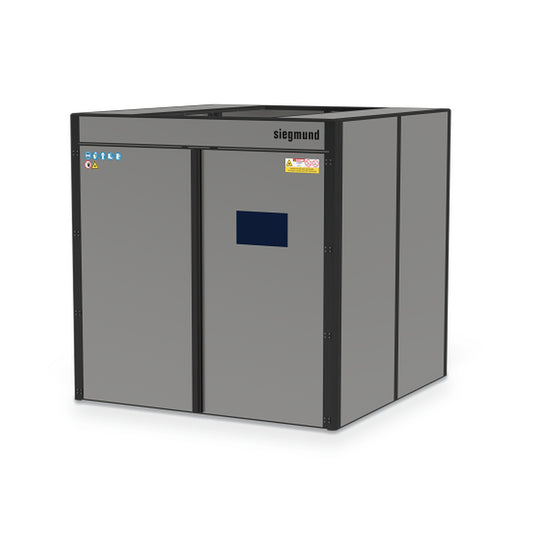

| 2480 × 2480 | 2540 × 2570 × 2520 | 221 kg / 246 kg | $10,258 | $11,412 | 1200 × 1200 mm | 640 mm on all sides |

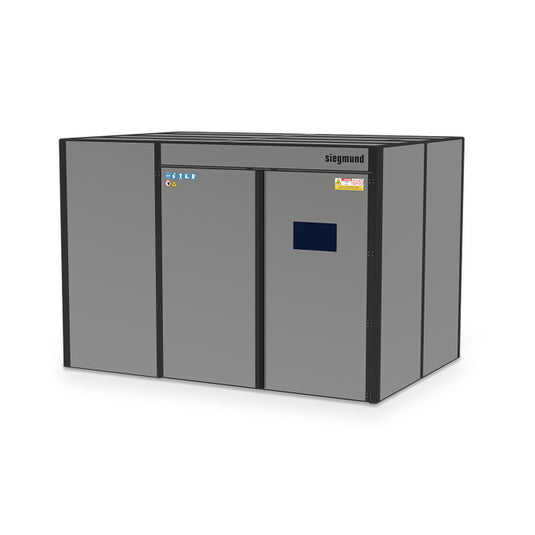

| 3680 × 2480 | 3740 × 2570 × 2520 | 295 kg / 331 kg | $12,368 | $14,121 | Not shown in catalogue; ask us | — |

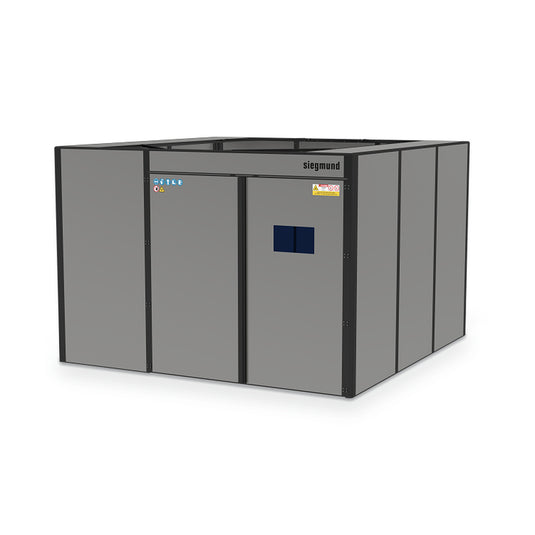

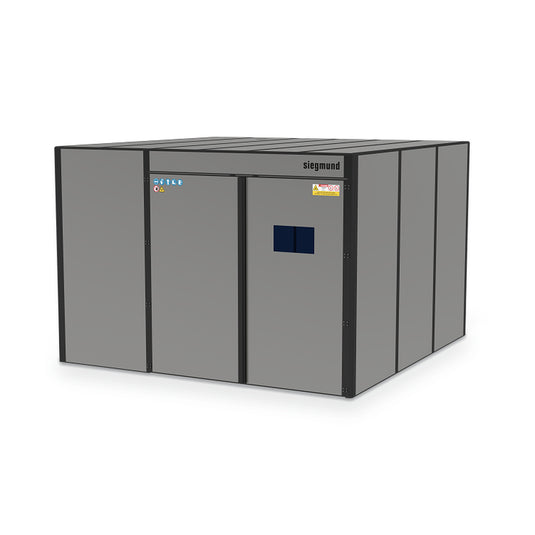

| 3680 × 3680 | 3740 × 3770 × 2520 | 319 kg / 389 kg | $13,808 | $16,817 | 2400 × 1200 mm | 640 mm at the sides, 1240 mm front and back |

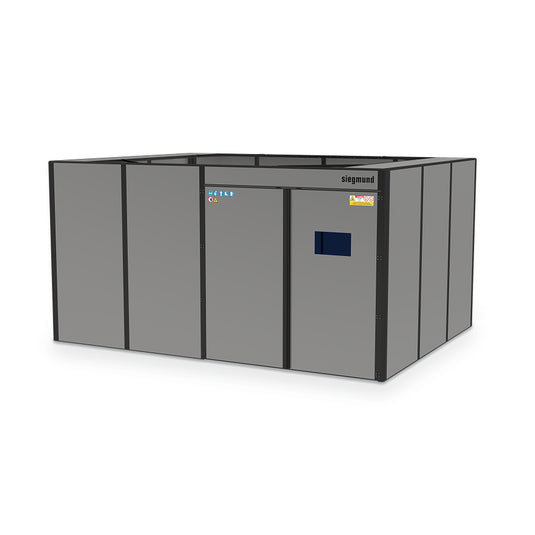

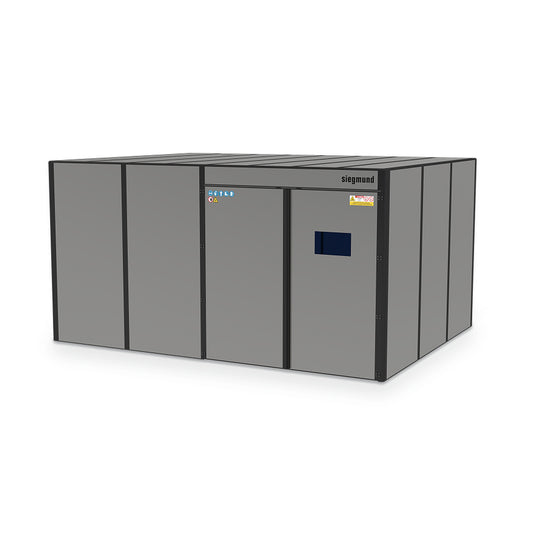

| 4880 × 3680 | 4940 × 3770 × 2520 | 356 kg / 462 kg | $15,073 | $19,431 | 3000 × 1500 mm | 940 mm at the sides, 1090 mm front and back |
Length and width are external dimensions. Prices are CAD list prices, excluding tax and freight, shipped from St. Marys, ON.
What .M and .MR mean
Cells ending in .M come without a roof. Cells ending in .MR come with a closed roof of aluminum composite panels and a Ø 200 mm welding fume extraction connection. Both versions have the same footprint, door and wall height. Siegmund recommends the roof, and upgrading is possible at any time.
Assembly without a roof is only permitted based on an individual risk assessment that considers and eliminates hazards for surrounding persons.
What every cell has
- Pre-assembled side walls of 4 mm aluminum composite panels (B1 certified) on black anodized aluminum profiles, 2520 mm high
- Extra-wide double door, 2370 mm wide × 2240 mm high, with a freely selectable door position
- 3 mm polycarbonate laser protection window, certified to DIN EN 60825-4 and DIN EN 207
- Approved for manual laser welding and laser cleaning at 940–1090 nm and up to 4 kW (semi-automated: up to 2 kW)
- CE compliant as a safety component and certified to DIN EN 60825-4
- Ground anchoring and a wall with a passive ventilation opening
- Expandable at any time
Choosing a size for your table
Siegmund's catalogue examples pair the 2480 × 2480 mm cell with a 1200 × 1200 mm welding table, the 3680 × 3680 mm cell with a 2400 × 1200 mm table and the 4880 × 3680 mm cell with a 3000 × 1500 mm table. For manual laser welding at 1.5 kW, Siegmund recommends a minimum distance of 600 mm between the table and the cell wall. Browse Siegmund System 16 welding tables and Siegmund System 28 welding tables.
Siegmund also builds larger cells, U-shapes, L-shapes and larger windows as special solutions on request. Use the Request a quote button on any cell page, or contact us.
Canadian safety package
BTH Sales is building a custom safety package for these cells in Canada, for Canadian voltages and CSA requirements. The safety package is required to operate the cell and is not included in the cell price. We quote it with every cell order, and you can request a safety package quote before you buy.
Request a safety package quote
Lighting

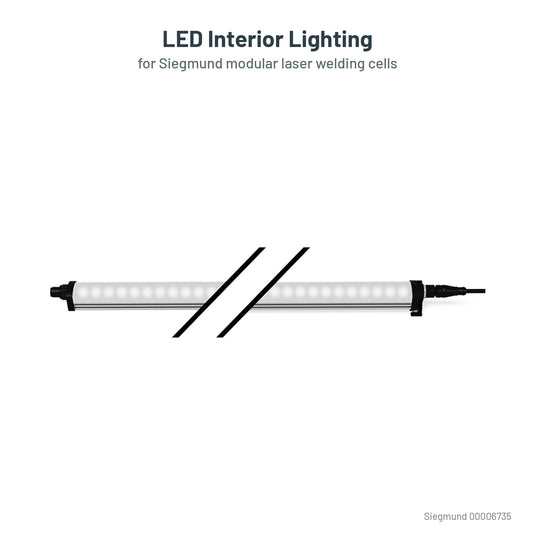

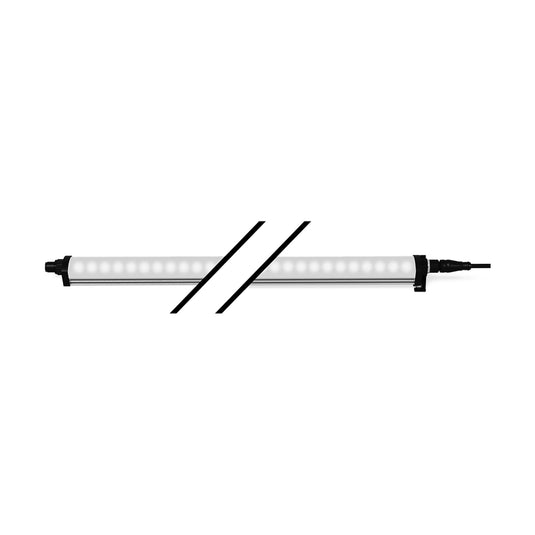

Siegmund recommends at least two LED interior lights per cell.
Laser welder
The Nargesa MS20 2000W Handheld Laser Welder runs at 2000 W and 1080 nm, within the cells' approved 940–1090 nm wavelength and 4 kW power limits.
Pricing and delivery
Order online or request a quote. After you order, we contact you to confirm freight, the delivery estimate and your safety package before the cell ships. Ships across Canada by freight from St. Marys, ON, or pick up. Read more about shipping and delivery across Canada, or contact us with questions.
Frequently Asked Questions
What is the difference between .M and .MR cells?
Cells ending in .M come without a roof. Cells ending in .MR come with a closed roof made of aluminum composite panels, with a Ø 200 mm connection for welding fume extraction. Both versions have the same footprint and door. Siegmund recommends the roof, and it can be added at any time.
Which lasers can I use inside a Siegmund laser welding cell?
The cell is approved for manual laser welding and laser cleaning at wavelengths from 940 to 1090 nm and a maximum laser power of 4 kW, or up to 2 kW for semi-automated work. Check your laser's wavelength and power against these limits before you order.
Which cell size fits my welding table?
Siegmund's catalogue examples pair the 2480 × 2480 mm cell with a 1200 × 1200 mm table, the 3680 × 3680 mm cell with a 2400 × 1200 mm table and the 4880 × 3680 mm cell with a 3000 × 1500 mm table. For manual laser welding at 1.5 kW, Siegmund recommends a minimum distance of 600 mm between the table and the cell wall.
Is a safety package included?
No. BTH Sales is building a custom safety package for these cells in Canada, for Canadian voltages and CSA requirements. The safety package is required to operate the cell and is not included in the cell price. We quote it with every cell order, and you can request a safety package quote before you buy.
How do pricing and delivery work?
Prices are list prices in Canadian dollars, excluding tax and freight. Order online or request a quote. After you order, we contact you to confirm freight, the delivery estimate and your safety package before the cell ships. Ships across Canada by freight from St. Marys, ON, or pick up.
