Vertical bars and vertical round pipes for Siegmund System 16 clamps. Each part is made for a specific clamp, from the screw clamp with round pipe 160601 to the professional screw clamp 160610 and the 45°/90° clamp 160630. BTH Sales is the exclusive Canadian importer of Siegmund.
Specifications
| Item no. | 160642 (siegmund.com) | 160677 (siegmund.com) | 160632.N (siegmund.com) | 160632.1 (siegmund.com) | 160633 (siegmund.com) |
|---|---|---|---|---|---|
| Siegmund name | Vertical Round Pipe 200 | Vertical Round Pipe 150 | Vertical Bar 200 | Vertical Bar 150 | Vertical Bar 200 |
| System | Siegmund System 16 (Ø16 mm bores, 50 mm grid) | ||||
| Length | 200 mm (7.87 in) | 150 mm (5.91 in) | 200 mm (7.87 in) | 150 mm (5.91 in) | 200 mm (7.87 in) |
| Width | – | – | 20 mm (0.79 in) | 20 mm (0.79 in) | 20 mm (0.79 in) |
| Material thickness | – | – | 13 mm (0.51 in) | 13 mm (0.51 in) | 10 mm (0.39 in) |
| Diameter | 16 mm (0.63 in) | 16 mm (0.63 in) | – | – | – |
| Weight | 0.23 kg (0.51 lb) | 0.22 kg (0.49 lb) | 0.63 kg (1.39 lb) | 0.35 kg (0.77 lb) | 0.38 kg (0.84 lb) |
- 160642 (200 mm round pipe) is for 160601; 160677 (150 mm round pipe) is for 160604; 160632.N (200 mm) is for 160610 and 160620; 160632.1 (150 mm) is for 160606; 160633 (200 mm) is for 160630. Round pipes are fixed with the adjusting ring 160653.
Works with this product
-
Siegmund System 16 - Screw Clamp with Round Pipe
$137.00
-
Siegmund System 16 - Pipe Clamp Universal
$140.00
-
Siegmund System 16 - Professional Fast Tension Clamp
$187.00
-
Siegmund System 16 - Professional Screw Clamp
$137.00
-
Siegmund System 16 - Basic Screw Clamp
$77.00
-
Siegmund System 16 - Professional Screw Clamp 45°/90°
$131.00
-
Siegmund System 16 - Clamp Spare Parts
From $5.00
-
Siegmund System 16 & 28 - Anti-Splatter
From $38.00
Compatibility
- Fits: Siegmund System 16 welding tables and tooling with Ø16 mm bores.
- Not compatible: System 28 (Ø28 mm) tables; Siegmund builds each system around one bore size.
- Related products: 160601 Siegmund System 16 - Screw Clamp With Round Pipe, 160604 Siegmund System 16 - Pipe Clamp Universal, 160606 Siegmund System 16 - Professional Fast Tension Clamp, 160610 Siegmund System 16 - Professional Screw Clamp, 160620 Siegmund System 16 - Basic Screw Clamp, 160630 Siegmund System 16 - Professional Screw Clamp 45°/90°, 160653 Siegmund System 16 - Clamp Spare Parts.
- Care & grounding: anti-spatter spray, CleanBasic cleaner, Ground Connection Comfort (S16/S28).
What's included
Choose one option; each option is one piece:

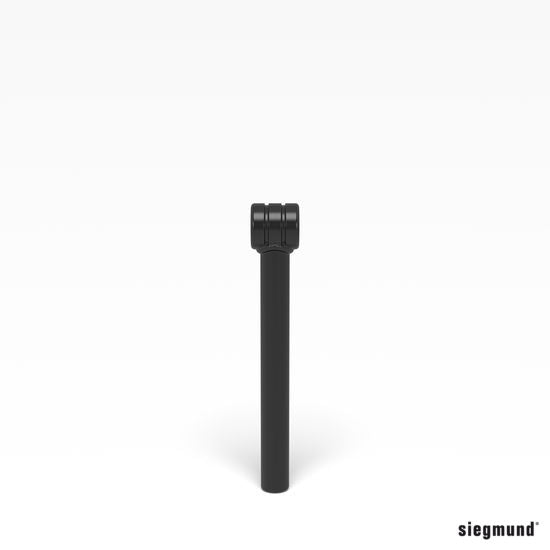

- 1 x Siegmund Vertical Round Pipe 200 (160642)

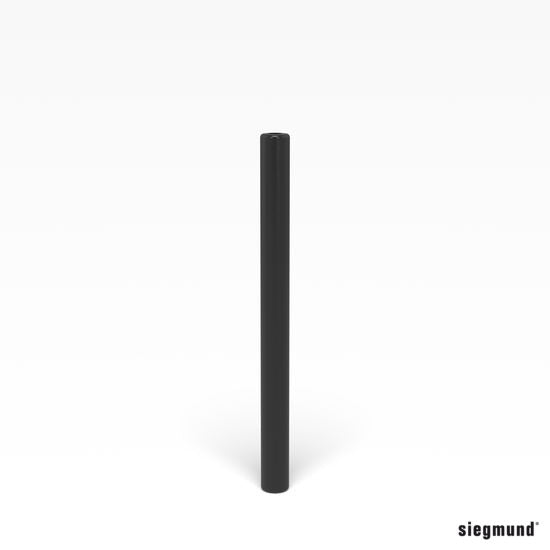

- 1 x Siegmund Vertical Round Pipe 150 (160677)

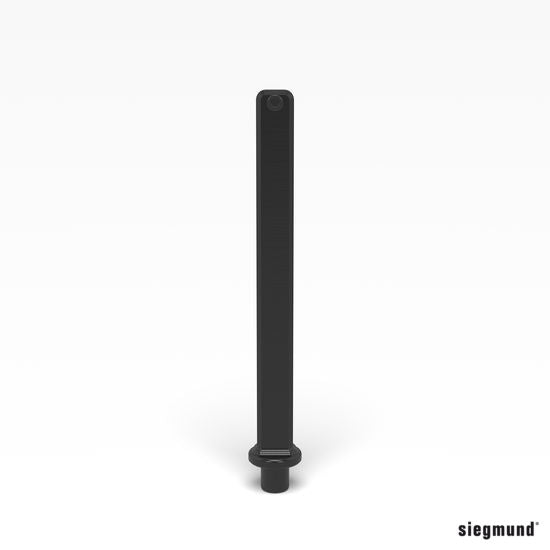

- 1 x Siegmund Vertical Bar 200 (160632.N)

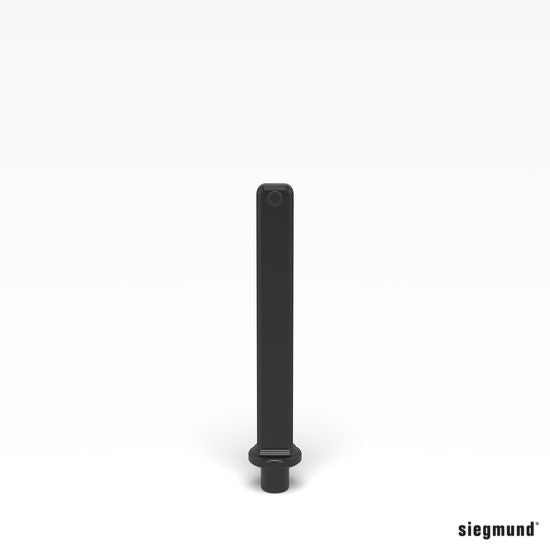

- 1 x Siegmund Vertical Bar 150 (160632.1)
