Siegmund System 16 - Set Of Supports

SKU: 2-160821

Siegmund

$90.00 CAD

Sale Sold out

Shipping calculated at checkout.

Quantity must be 1 or more

SIEGMUND SYSTEM 16 - SET OF SUPPORTS

The Siegmund System 16 Professional Clamps are compatible with any 16mm fixture table. Made in Germany to the highest of quality assurance, you know that with Siegmund tooling, you will not be let down.

Technical Data:

Item No.: 2-160821

Set of Supports 7 pieces ‐ burnished

Height (c)	65 mm
Weight	0,17 kg
Diameter	25 mm

Product description

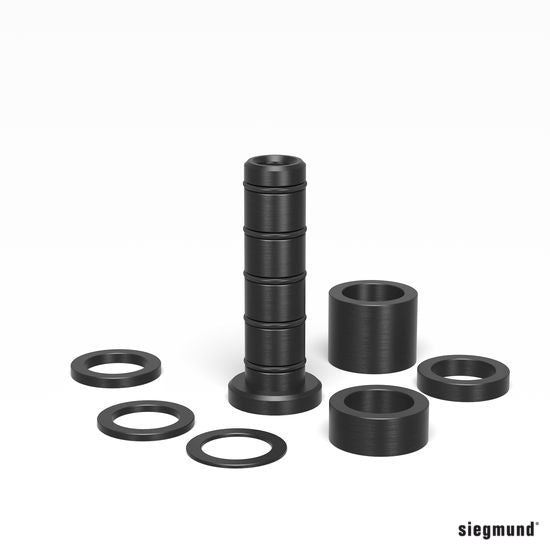

7-piece Set of Supports, offers the option to create height-adjustable work surfaces. The individual supports can be utilized to compensate for height differences of 1-60 mm. In order to achieve the intended height precisely, the lowest grading of the Supports is 1 mm. The measurements are specified on the particular discs. The Supports can be adjusted easily and precisely with the help of O-rings. The Set of Supports can be inserted universally in all boreholes of type 16. The M10 thread on the inside of the supports enables fastening of customer specific components or prisms.

Item No.: 2-160821.2

Washer Set

Weight	0,08 kg
Diameter	25 mm

Product description

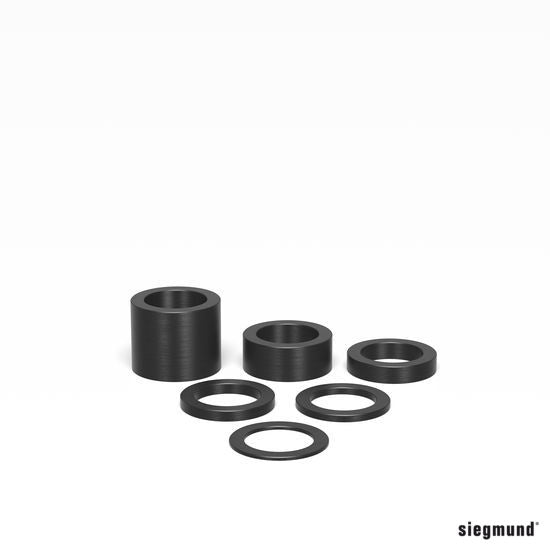

gradation of discs:
1 / 2 / 3 / 5 mm
10 / 20 mm

Item No.: 2-160821.1

Tower for Supports ‐ burnished

Height (c)	65 mm
Weight	0,09 kg
Diameter	25 mm

Product description
‐ variable support surface
‐ with M10 thread

Compatibility

Siegmund System 16: fits every System 16 Siegmund table, including the Professional Extreme 8.7 and 8.7 PLUS tables listed on bthsales.ca; on a System 28 table it needs Siegmund's Reduction Bushing 16->28 (000545, boreholes only) to clamp with System 28 bolts, or the Adapter Sleeve 16->28 (000547) to locate it without clamping; neither is listed on bthsales.ca.
